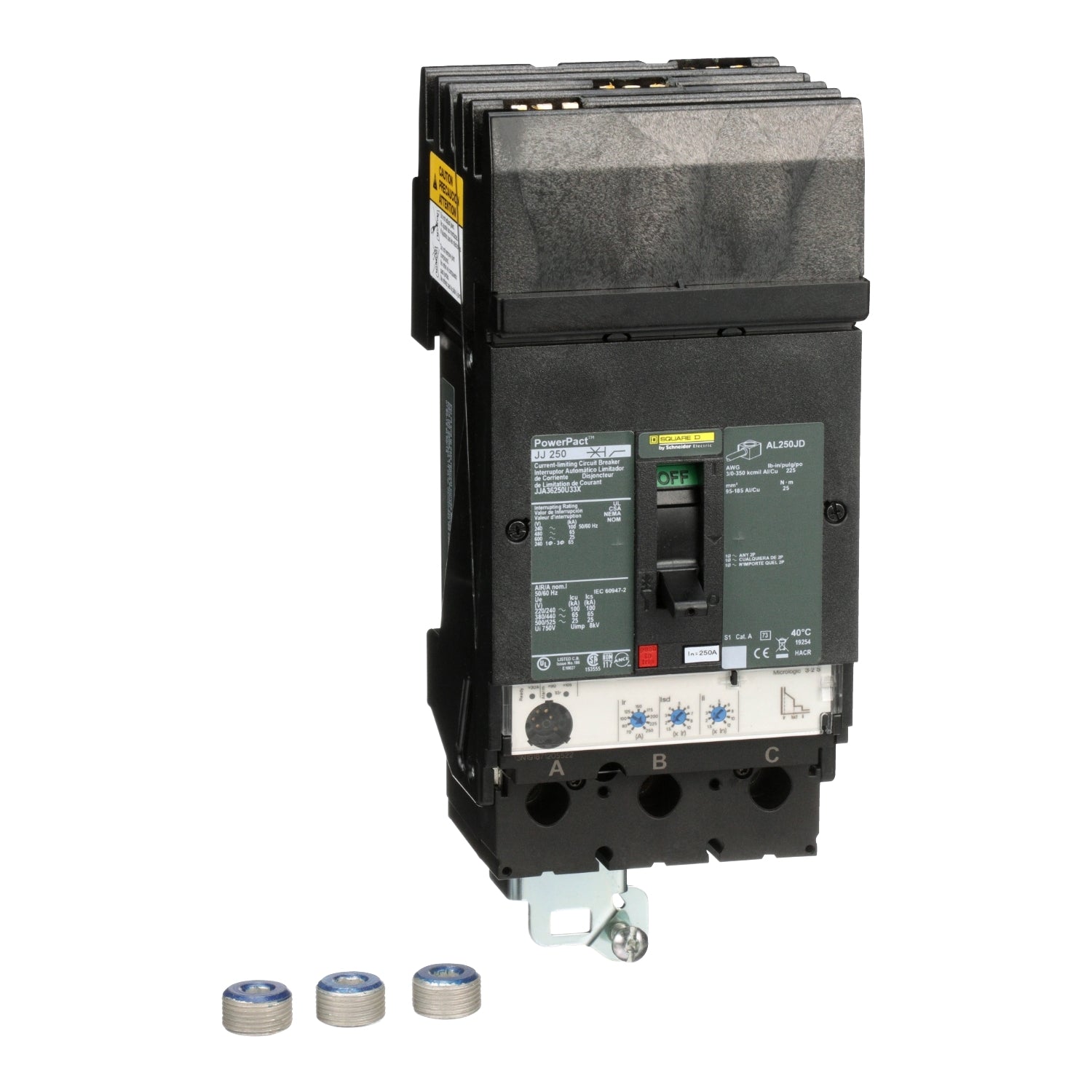

JJA36250U33X | Schneider Electric Powerpact JJA 3-Pole 250A 600V Solid State Circuit Breaker
- Regular price
- $2,594.00
- Sale price
- $2,594.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JJA36250U33X
Description
The Schneider Electric JJA36250U33X is a molded case circuit breaker engineered for high-capacity three-phase distribution systems requiring advanced electronic protection. Operating at up to 600 volts with a 250-amp rating, it provides reliable interruption capability for demanding industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | JJA36250U33X |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JJA |
| Voltage | 600 V |
| Amperage | 250 A |
| Phase | 3 |
| Frame Type | J Frame |
| Functions | LSI – Long-Time, Short-Time, Instantaneous |
| AIC Rating | 65 kA @ 480 V |
| Protection | Solid State Electronic |
| Poles | 3 |
| Connection | I-Line Style Plug-In |
| Trip Unit | Micrologic Standard 3.2S, Non-Interchangeable |
| Current Limiting | Yes |
| Reverse Connection | Suitable |
| 2-Pole Use | Can Be Applied |
| Phase Connection | ABC |
| Mounting Style | I-Line Plug-In |
| Application | Industrial and commercial power distribution |
Information About JJA36250U33X
The JJA36250U33X is a high-performance circuit breaker within Schneider Electric’s Powerpact product line, built to deliver reliable protection in three-phase electrical systems rated up to 600 volts. As a J Frame device, it offers a strong 250-amp current capacity and incorporates a Micrologic 3.2S solid-state trip unit to manage long-time, short-time, and instantaneous fault conditions with precision. The I-Line style plug-in connection enables efficient installation while supporting compatibility with standard I-Line power distribution assemblies. Additional features such as suitability for reverse connection and optional use in two-pole configurations enhance installation flexibility across complex industrial systems.
Key Features
- J Frame molded case design: Supports high-current industrial protection applications.
- 250-amp rating: Handles substantial three-phase loads in Powerpact distribution systems.
- Solid-state Micrologic 3.2S trip unit: Provides precise LSI protection for dynamic fault conditions.
- 65 kA interrupt rating: Offers high fault-clearing capability at 480 volts.
- I-Line plug-in connection: Ensures fast, secure installation within compatible panelboards.
- Current-limiting capability: Reduces fault energy during high-current events.
- Reverse-connection suitability: Allows flexible system configuration.
- Supports 2-pole applications: Adds versatility for non-standard installation requirements.
The JJA36250U33X delivers the reliability and precision required for safeguarding high-capacity industrial power distribution systems.
