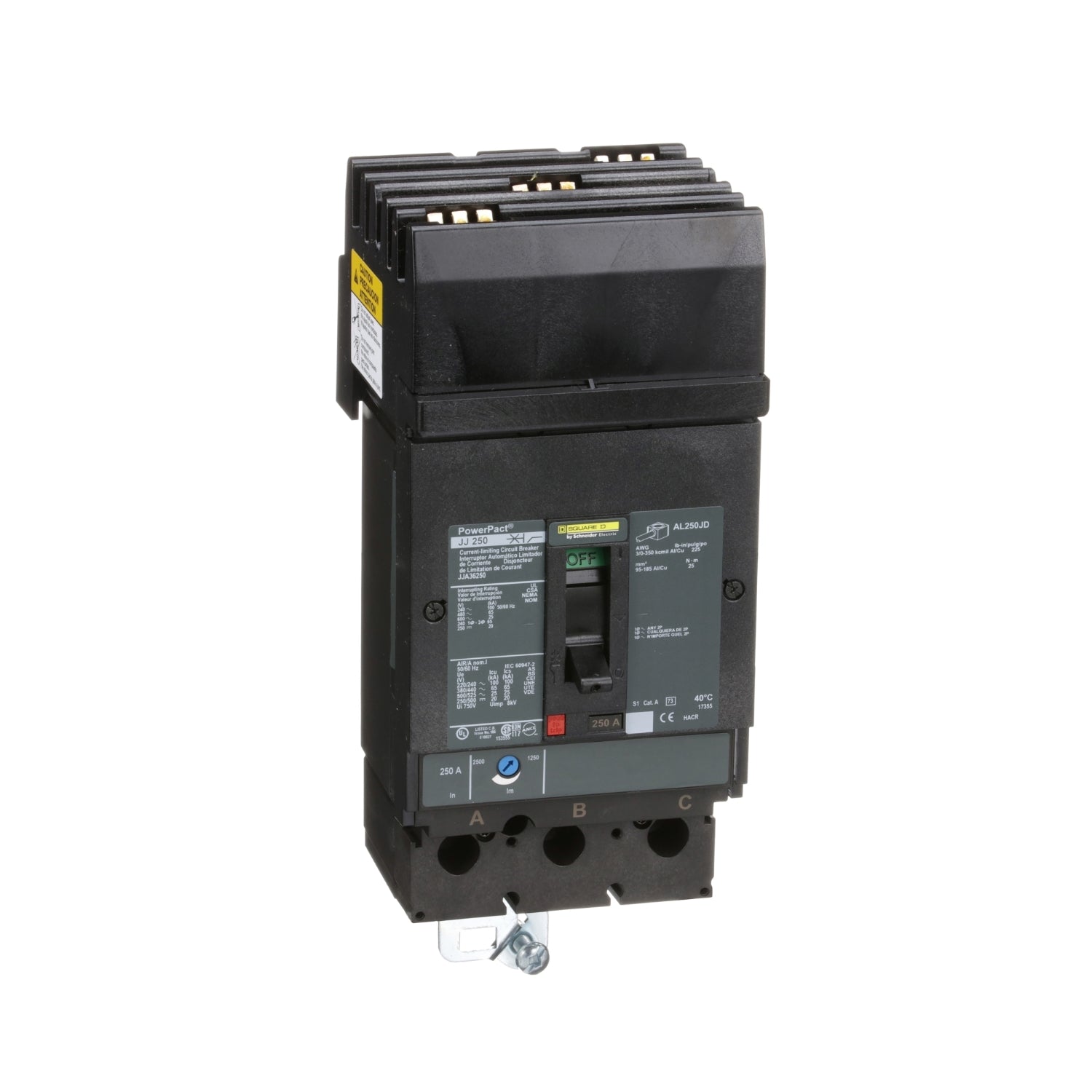

JJA36250YP | Schneider Electric Square D J-Frame 250A 3-Pole Molded Case Circuit Breaker
- Regular price
- $2,999.00
- Sale price
- $2,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JJA36250YP
Description
The Schneider Electric JJA36250YP is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection in low-voltage power distribution systems. It is commonly used in switchboards, panelboards, and motor control centers to protect feeders and large electrical loads. This breaker supports dependable interruption performance in demanding industrial and commercial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breakers |
| Part Number | JJA36250YP |
| Subcategory | Molded Case Circuit Breakers |
| Frame Type | J-Frame |
| Rated Current | 250 A |
| Number of Poles | 3 |
| Rated Voltage | Up to 600 V AC |
| Trip Unit Type | Thermal-magnetic |
| Mounting Type | I-Line plug-in |
| Interrupting Rating | High interrupting capacity (per UL standards) |
| Frequency | 50/60 Hz |
| Application | Feeder and distribution protection |
| Standards Compliance | UL, CSA |
| Weight | 16.5 lb |
Information About JJA36250YP
The JJA36250YP is part of Schneider Electric’s Square D J-Frame circuit breaker family, engineered for high-capacity power distribution applications. It features a robust molded case construction with a thermal-magnetic trip mechanism that responds accurately to overloads and fault conditions. The breaker is compatible with Square D I-Line mounting systems, allowing plug-in installation and simplified maintenance. Designed for use in low-voltage AC networks, it meets industry standards for protection, durability, and operational safety.
Key Features:
- Square D J-Frame Breaker: Designed for feeder and distribution circuit protection.
- Thermal-Magnetic Trip Unit: Provides reliable response to overload and short-circuit events.
- High Current Rating: Rated for 250 A applications in power distribution systems.
- 3-Pole Configuration: Enables simultaneous protection of three-phase circuits.
- I-Line Compatible Design: Supports plug-in mounting for faster installation and servicing.
- High Interrupting Capacity: Suitable for systems with elevated fault current levels.
- Durable Molded Case: Built for long-term operation in industrial environments.
The JJA36250YP delivers the reliability and precision required for effective circuit protection in industrial and commercial electrical distribution systems.
