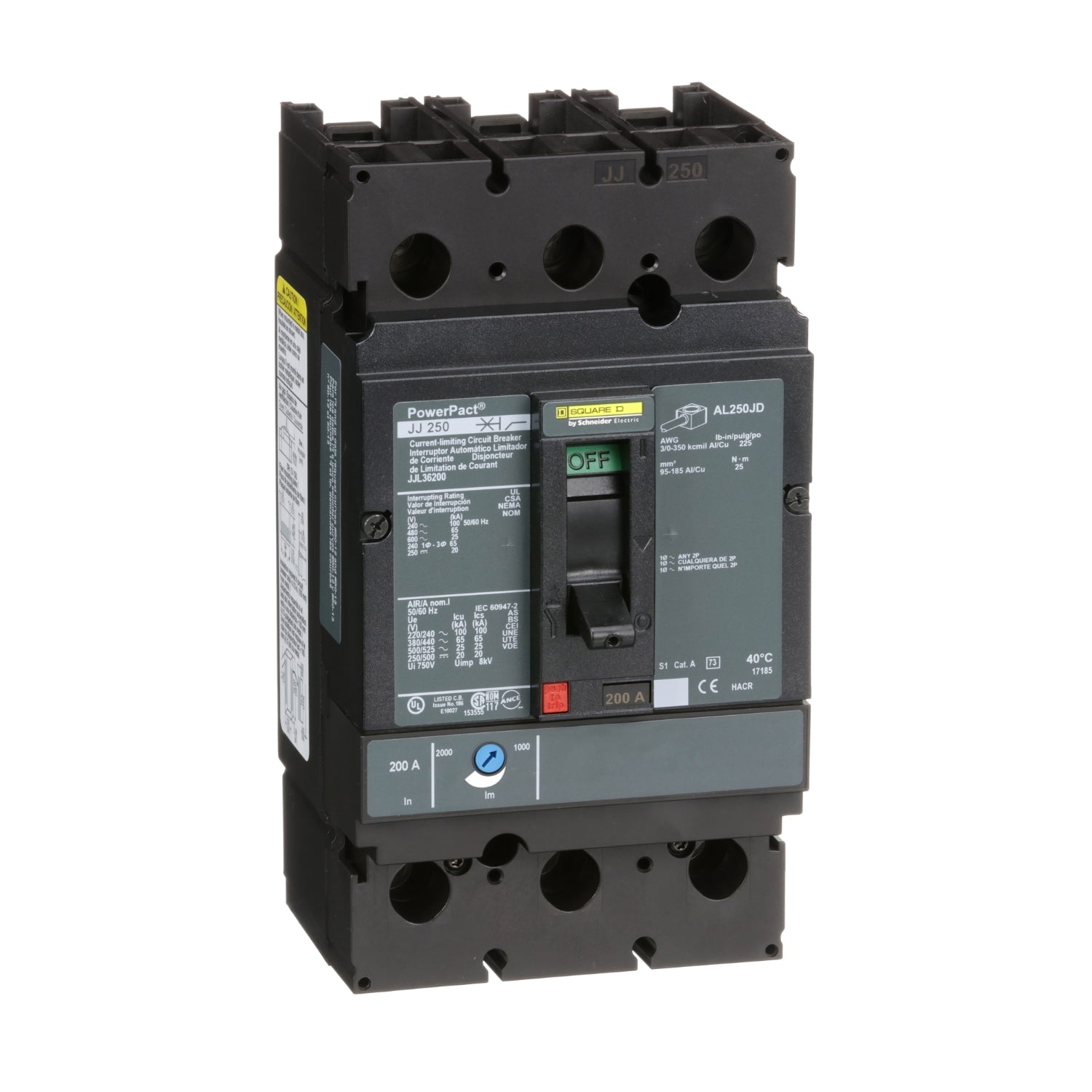

Part #: JJL36200 Manufactured by: Schneider Electric
Regular price
$1,789.00
Sale price
$1,789.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The JJL36200 is a robust circuit breaker from the PowerPacT J-Frame series, designed to offer reliable protection against ...  Read more
