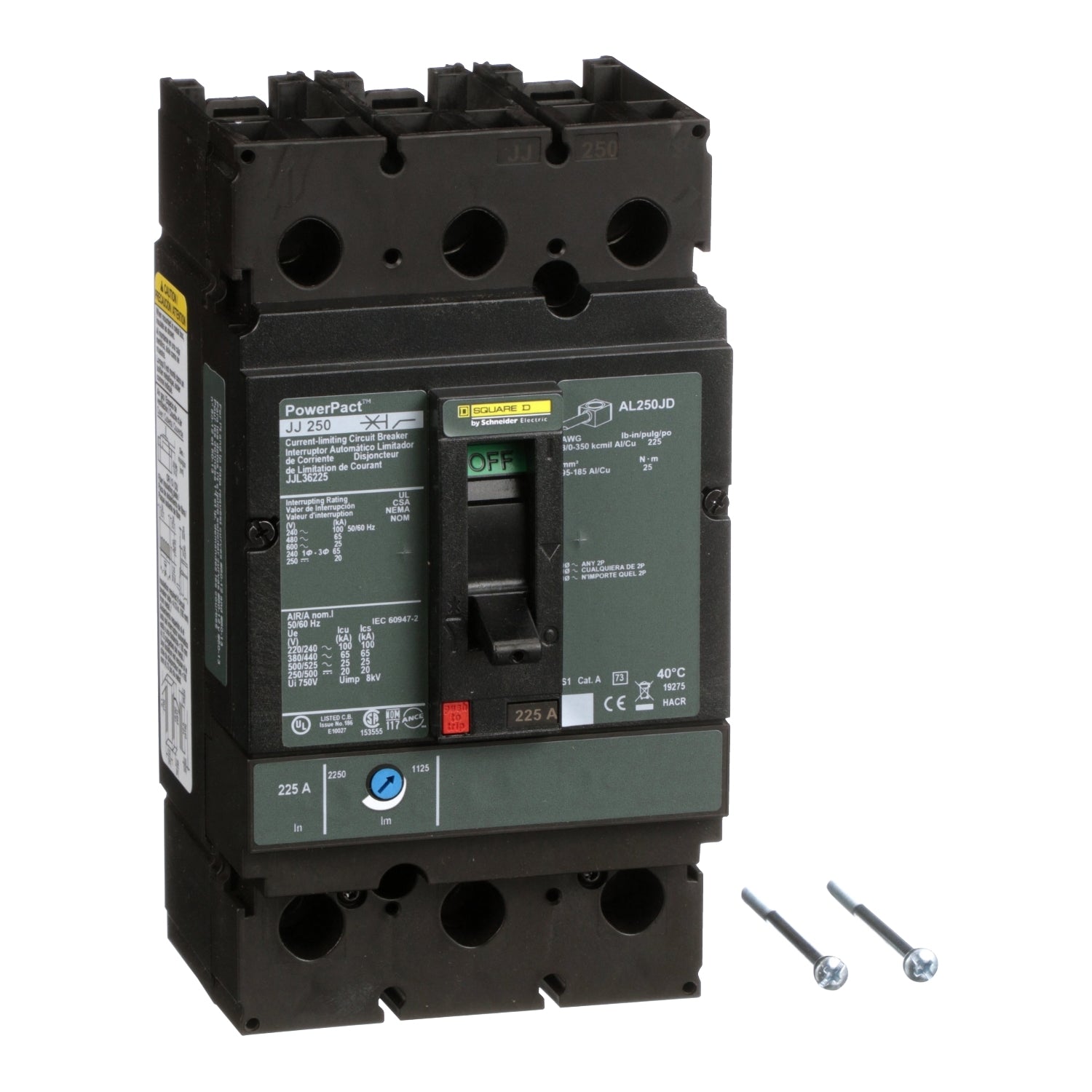

JJL36225 | Schneider Electric Circuit Breaker
- Regular price
- $1,527.00
- Sale price
- $1,527.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JJL36225
Description
The JJL36225 circuit breaker, part of the PowerPacT J series, is designed to safeguard electrical systems against overloads and short circuits. Available with either thermal magnetic or MicroLogic electronic trip protection units, this PowerPacT J-Frame circuit breaker offers thermal magnetic circuit protection with a robust breaking capacity of 25kA at 600VAC.
Equipped with dual-break rotating contacts to mitigate peak current during short circuit faults, all PowerPacT J-Frame circuit breakers feature an integral push-to-trip button in the cover for manual operation. They are available in both 2 and 3-pole configurations, including unit mount and I-Line constructions, and include lugs on both the line and load sides for secure electrical connections.
Technical Specifications
|
Part # |
JJL36225 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
225 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2250 A |
|
Magnetic hold current |
1125 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Protection Type |
Overload protection, Short-circuit protection |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 3/0...350 kcmil aluminium/copper terminals |
|
Local signalling |
Switched off (OFF), 1 trip indicator green |
|
Mounting mode |
Unit mount (lug) |
|
Terminal identifier |
AL250JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
|
Tightening torque |
221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
Information About JJL36225
The JJL36225 circuit breaker from the PowerPacT J-Frame series is specifically engineered to safeguard electrical systems against overloads and short circuits. Offering robust protection capabilities, these circuit breakers are equipped with thermal magnetic trip units, ensuring reliable operation under varying electrical conditions. The breaker features a substantial breaking capacity of 25kA at 600VAC, making it suitable for high-demand applications where reliable performance is critical.
PowerPacT J-Frame circuit breakers are designed with dual-break rotating contacts, which effectively mitigate peak current during short circuit faults, thereby enhancing overall system reliability. Each unit includes an integral push-to-trip button integrated into the cover, facilitating manual circuit interruption when necessary.
Available in both 2 and 3-pole configurations, including unit mount and I-Line constructions, the JJL36225 model is versatile and adaptable to different installation requirements. The inclusion of lugs on both the line and load sides further enhances installation flexibility and ease of use in diverse electrical setups.
