JJL36250 | Schneider Electric Circuit Breaker
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JJL36250
Description

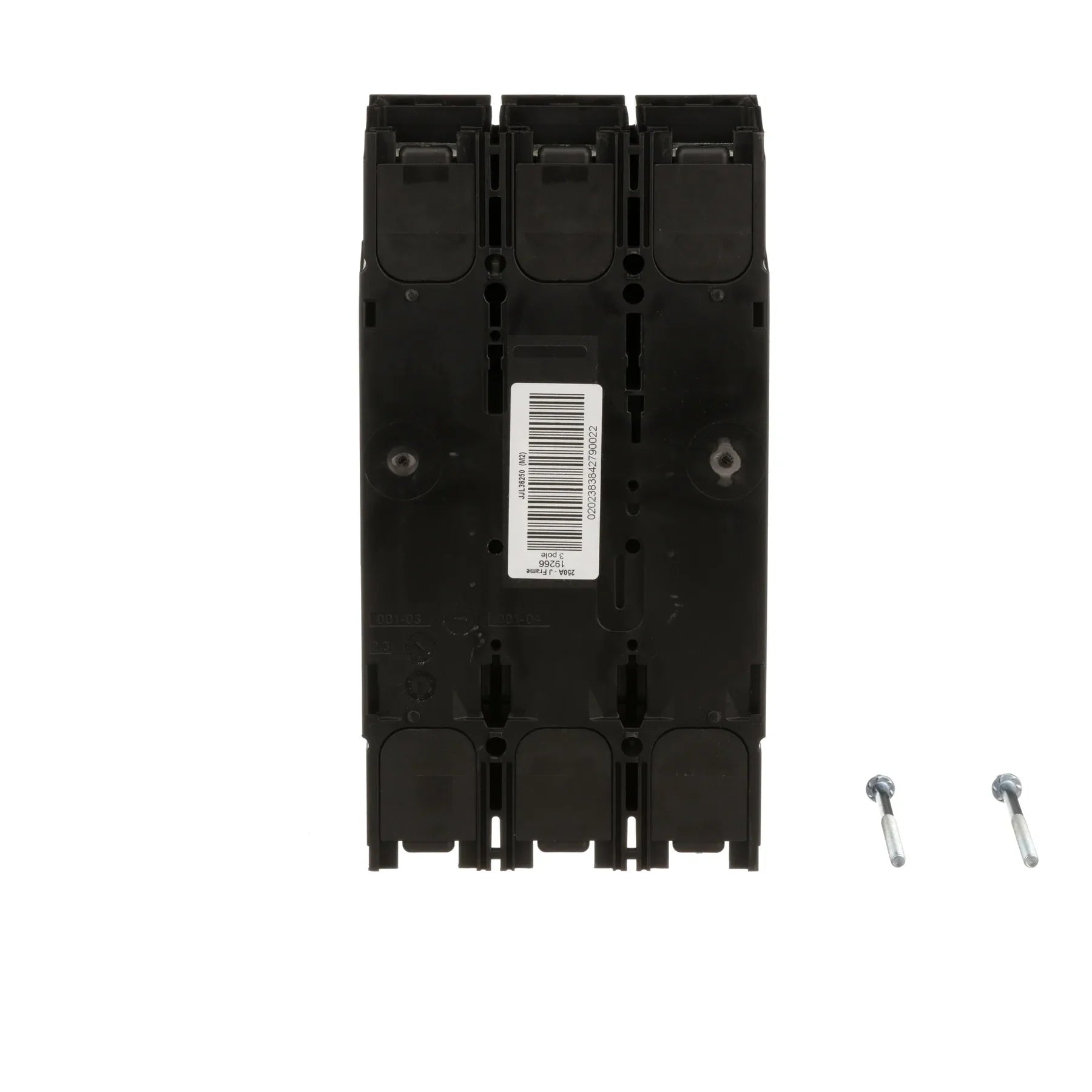

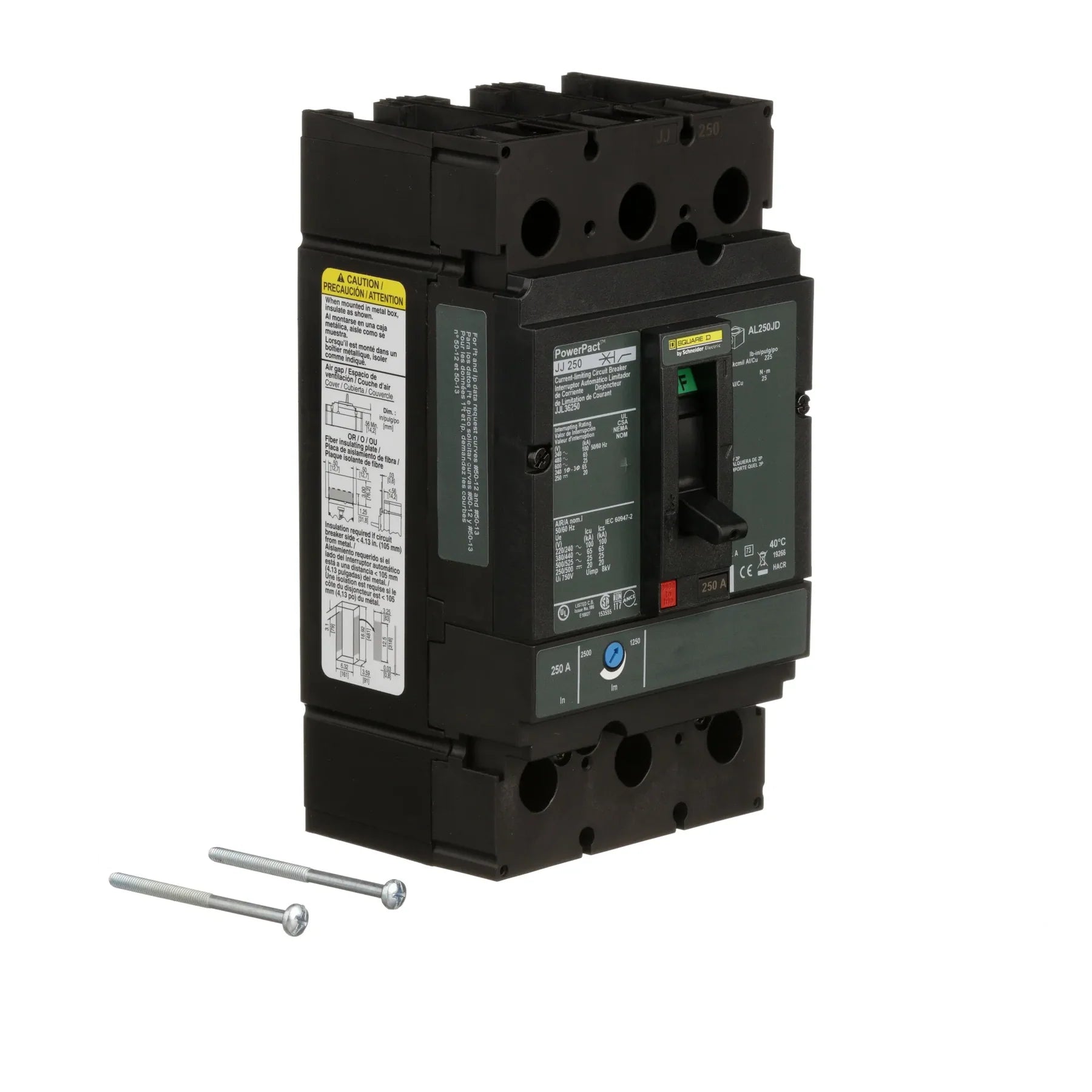

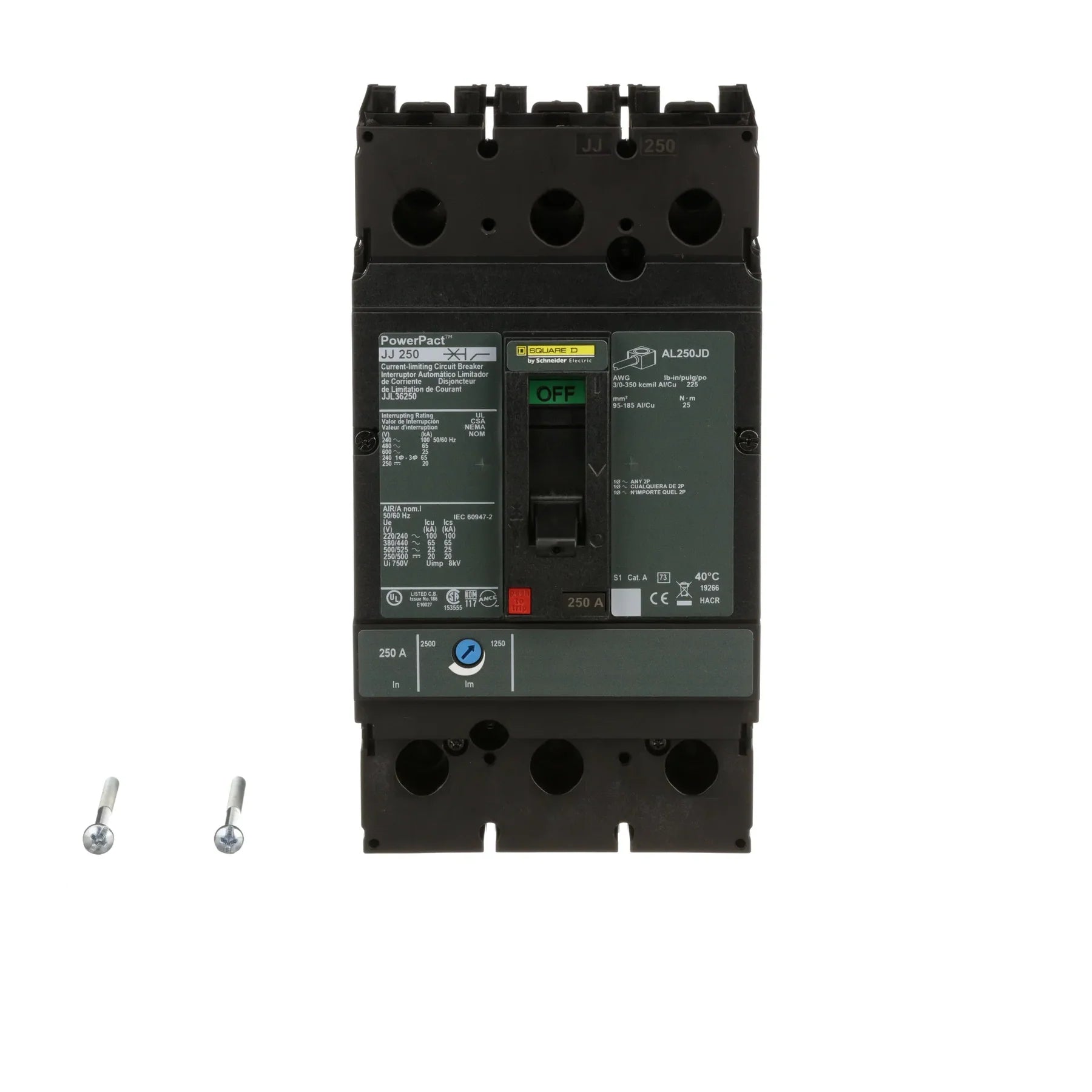

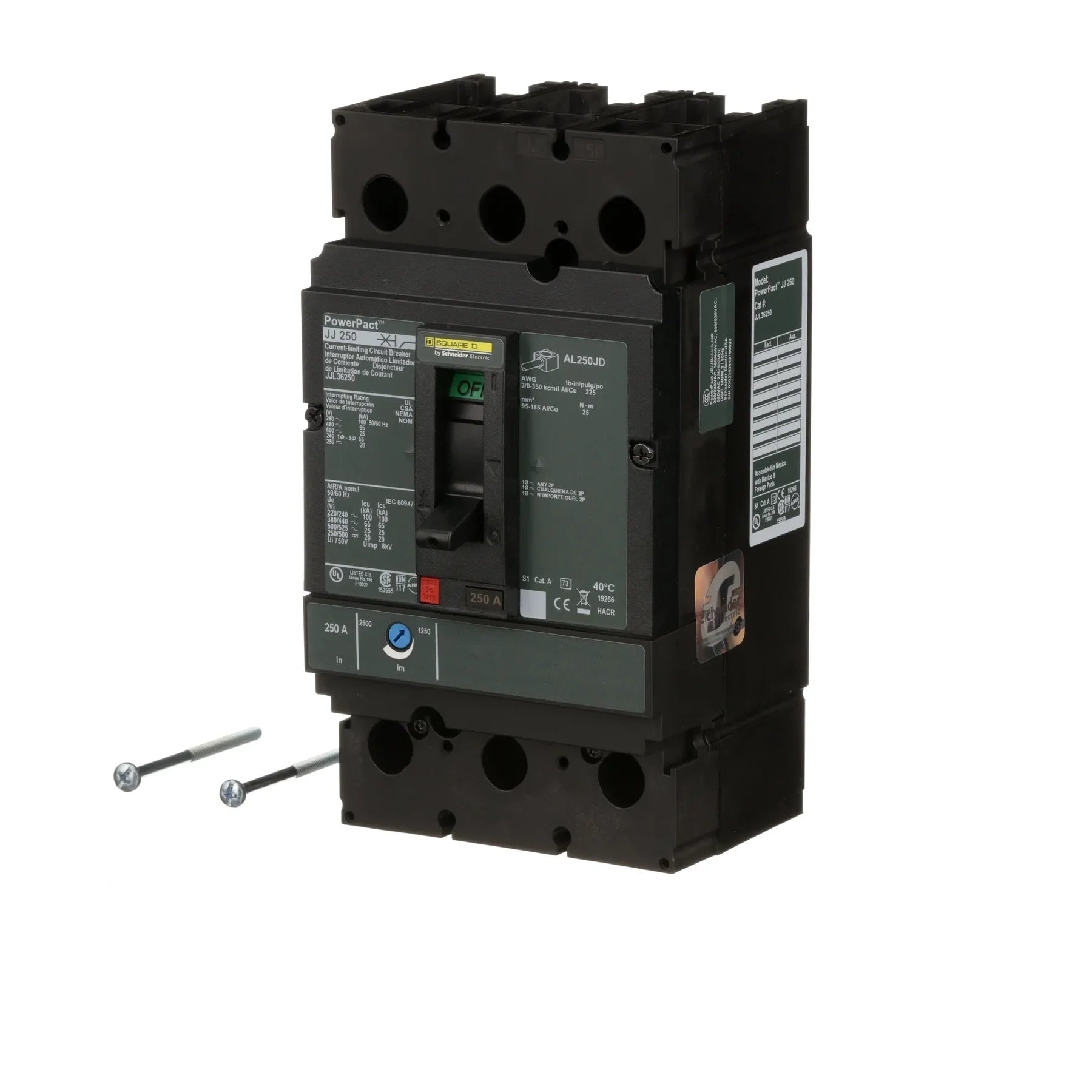

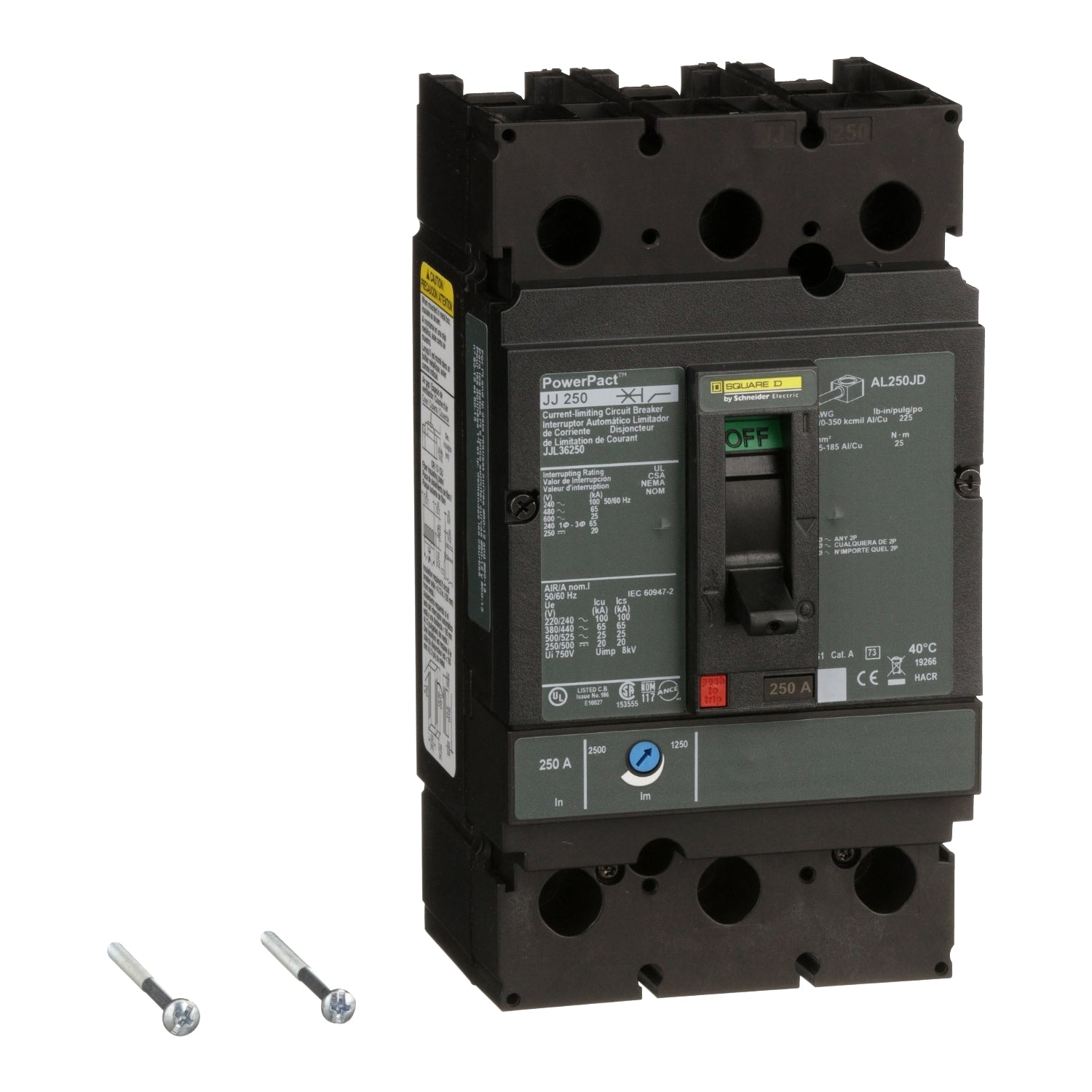

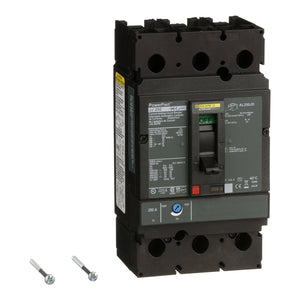

The JJL36250 is a PowerPacT J series circuit breaker engineered to safeguard electrical systems from potential damage caused by overloads and short circuits. Featuring a robust thermal magnetic design, this breaker offers a substantial 250A current rating across its three poles, operating at 600VAC with an impressive 25kA breaking capacity. Equipped with lugs on both the line and load sides, it ensures secure electrical connections.
Technical Specifications
|
Part # |
JJL36250 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact J |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
250 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2500 A |
|
Magnetic hold current |
1250 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Protection Type |
Overload protection, Short-circuit protection |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 3/0...350 kcmil aluminium/copper terminals |
|
Local signalling |
Switched off (OFF), 1 trip indicator green |
|
Mounting mode |
Unit mount lug |
|
Mounting Support |
Lug Terminal identifier AL250JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.3 mm) |
Information About JJL36250
The JJL36250 is a robust circuit breaker from the PowerPacT J-Frame series, engineered to safeguard electrical systems against overloads and short circuits. Available with either thermal magnetic or MicroLogic electronic trip protection units, this breaker offers reliable thermal magnetic circuit protection with a substantial breaking capacity of 25kA at 600VAC. It features dual-break rotating contacts designed to minimize peak current during short circuit faults, enhancing operational safety.
All PowerPacT J-Frame circuit breakers, including the JJL36250, are equipped with an integral push-to-trip button integrated into the cover for manual circuit interruption. Designed for versatile installation, these breakers are available in 2 and 3-pole configurations for both unit mount and I-Line constructions, ensuring flexibility in deployment scenarios.
The JJL36250 specifically features lugs on both the line and load sides, facilitating secure electrical connections. With a continuous current rating of 80%, it reliably manages electrical loads within its rated specifications. Compliant with UL, CSA, NOM, and IEC standards, and bearing the CE mark, the PowerPacT J circuit breakers adhere to stringent international quality and safety regulations.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
