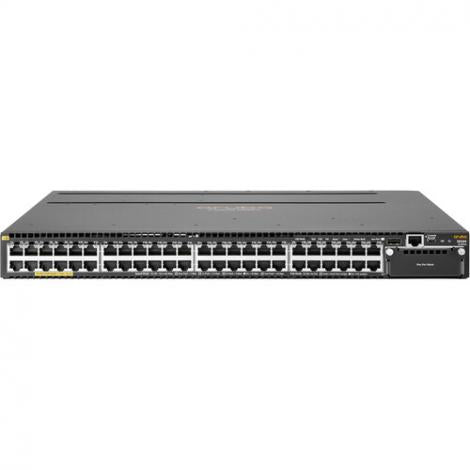

JL074A | HP Networking Aruba 3810M 48G PoE+ 1-Slot Switch
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JL074A
Description
The HP Aruba JL074A 3810M is a fully managed Layer 3 PoE+ switch featuring 48 Gigabit Ethernet ports and modular expansion capabilities. Built for modern enterprise edge and campus deployments, it offers high-performance switching, flexible connectivity, and robust power delivery.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Networking
|
| Part Number | JL074A |
| Subcatecory |
Managed Layer 3 Switches
|
| Ports | 48 x 10/100/1000 PoE+ RJ-45 |
| Uplink Expansion | 1 module slot (supports 4 SFP+ or 1 x 40GbE) |
| MACSec Support | Yes (on all 48 ports) |
|
Management Ports
|
1 x RJ-45 serial console, 1 x RJ-45 out-of-band, 1 x USB |
| Fan Tray | Includes 1 x JL088A (installed) |
| Power Supply Slots | 2 (1 required, ordered separately) |
| Processor | P2020 Dual Core @ 1.2 GHz + Dual ARM Cortex A9 @ 1 GHz |
| Memory | 4 GB DDR3 SDRAM + 1 GB SD Card |
| Packet Buffer | 13.5 MB Internal |
| Form Factor | 1U Rack-mountable |
| Dimensions (W x D x H) | 4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in) |
| Weight | 13.62 lbs |
Information About JL074A
The JL074A Aruba 3810M 48G PoE+ 1-slot Switch is designed for scalable enterprise networks that require both performance and power. It provides 48 autosensing 10/100/1000 PoE+ ports with MACSec security support on all ports, and a modular slot that allows for expansion with either 4 SFP+ uplinks or a 40GbE uplink module. Equipped with a dual-core 1.2 GHz CPU and 4 GB of DDR3 SDRAM, this switch delivers robust processing power, complemented by a 13.5 MB packet buffer and internal 1 GB SD card.
Key Features:
- 48-Port PoE+ Connectivity: delivers IEEE 802.3at Power over Ethernet on all 48 autosensing RJ-45 ports for powering APs, IP phones, and cameras.
- Modular Expansion Slot: supports optional modules including 4 x SFP+ ports or a single 40GbE uplink for future-proofed connectivity.
- MACSec Security: ensures encryption on all ports for secure network access and data protection.
- Advanced Management Options: includes RJ-45 console, out-of-band management port, and dual-personality (RJ-45 or USB) for flexible access.
- Enterprise-Class Performance: powered by dual-core P2020 @ 1.2 GHz and 4 GB DDR3 SDRAM with a 13.5 MB packet buffer for high-speed processing.
- Redundant Power and Cooling: includes one JL088A fan tray and supports two power supply slots (one required), offering high availability and fault tolerance.
The JL074A Aruba 3810M switch delivers a secure, high-performance, and modular solution for enterprises looking to scale network access with future-ready flexibility.
