JL075A | HP Networking Aruba 3810 Series 16x 10GB SFP+ 2x Expansion Module Slot Switch

Description

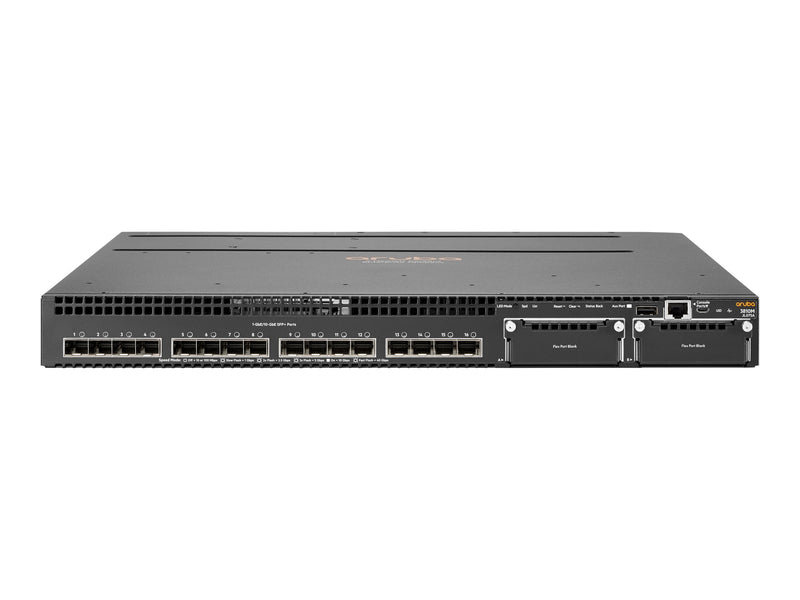

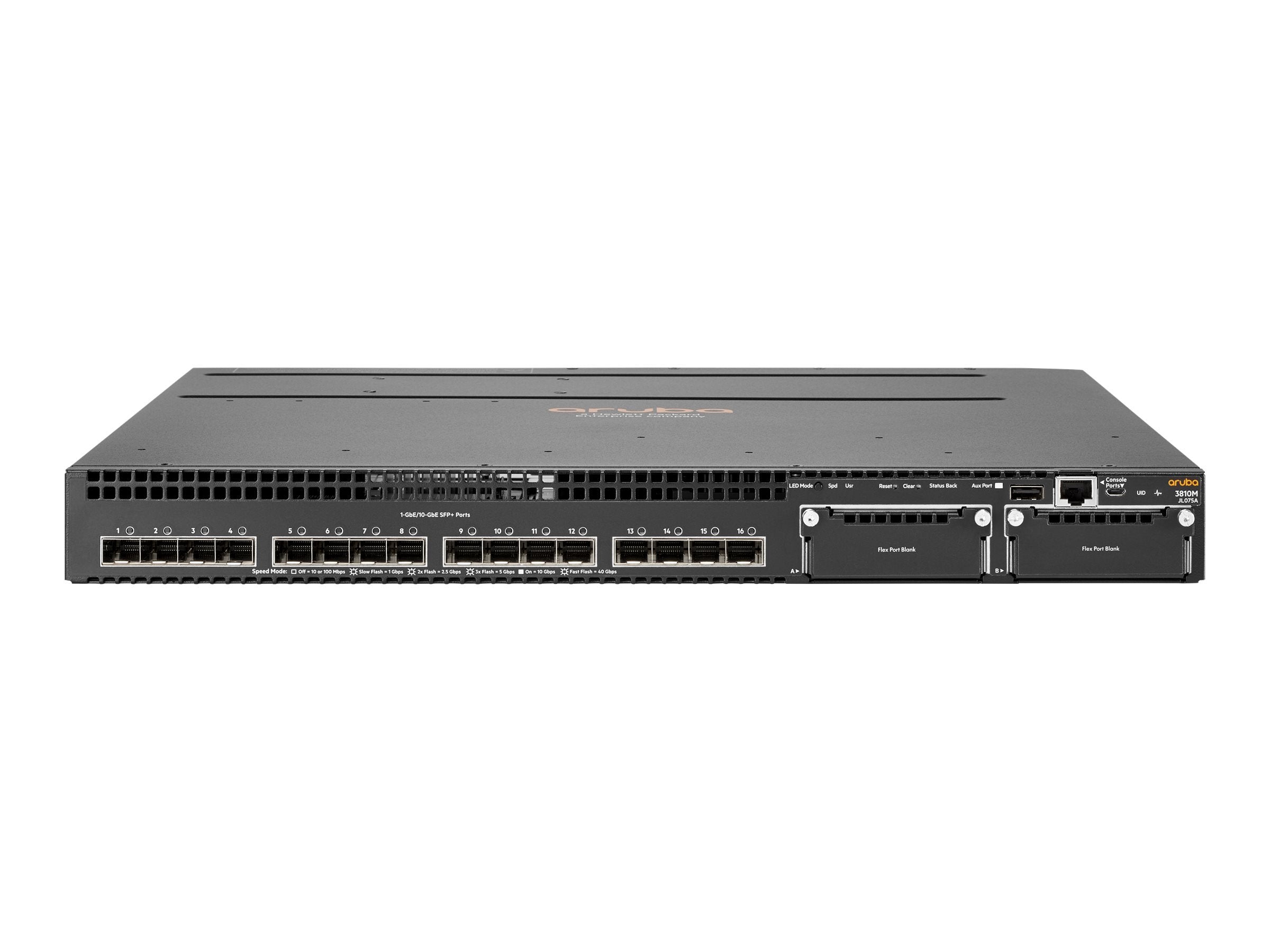

The JL075A Aruba 3810M is a high-performance enterprise-grade switch equipped with 16 fixed SFP+ ports and modular flexibility for future expansion. Designed for scalable aggregation and core access, it delivers secure, high-speed switching with MACsec encryption.





Technical Specifications

Condition	New/Never Used Surplus
Brand	HP Networking
Category	Networking
Part Number	JL075A
Subcatecory	High-Density Modular Switches
Series	Aruba 3810M Series
Ports	16 x 10G SFP+ (MACSec-enabled)
Uplinks	2 x Dual-Personality (RJ-45 or SFP)
Expansion Slots	2 x module slots (SFP+ or 40GbE supported)
Stacking Slot	1 x dedicated stacking module slot
Console Ports	1 x RJ-45, 1 x dual-personality (RJ-45 or USB micro-B)
Management Ports	1 x out-of-band RJ-45
Power Supply Slots	2 (1 required, sold separately)
Throughput	Up to 285.7 Mpps
Dimensions (H x W x D)	4.39 x 44.25 x 43.13 cm (1.73 x 17.42 x 16.98 in)
Weight	12.76 lb (5.79 kg)





Information About JL075A

The JL075A is a powerful and modular Layer 3 switch engineered for enterprise network cores and aggregations. It features 16 fixed 10Gb SFP+ ports, each supporting MACSec encryption, and two open module slots, which enable scalability with up to 8 additional SFP+ ports or 2 x 40GbE ports through optional expansion modules. In addition to the main I/O ports, it includes a dedicated stacking module slot, RJ-45 serial console, out-of-band management port, and a dual-personality port (RJ-45 or USB micro-B) for flexible management access.

Key Features:

• 16 x SFP+ Ports: Fixed 10Gbps ports with MACSec encryption support

• Modular Expansion: Two open module slots support additional SFP+ or 40GbE uplinks

• Dedicated Stack Module Slot: Enables stackable configuration across multiple switches

• Comprehensive Management: Console, USB, and out-of-band ports for flexible admin access

• High Throughput: Handles up to 285.7 Mpps for fast packet forwarding in large networks

• Power Flexibility: Dual internal PSU slots with support for redundant power

The JL075A delivers robust Layer 3 capabilities with a scalable, modular architecture for growing enterprise networks.
