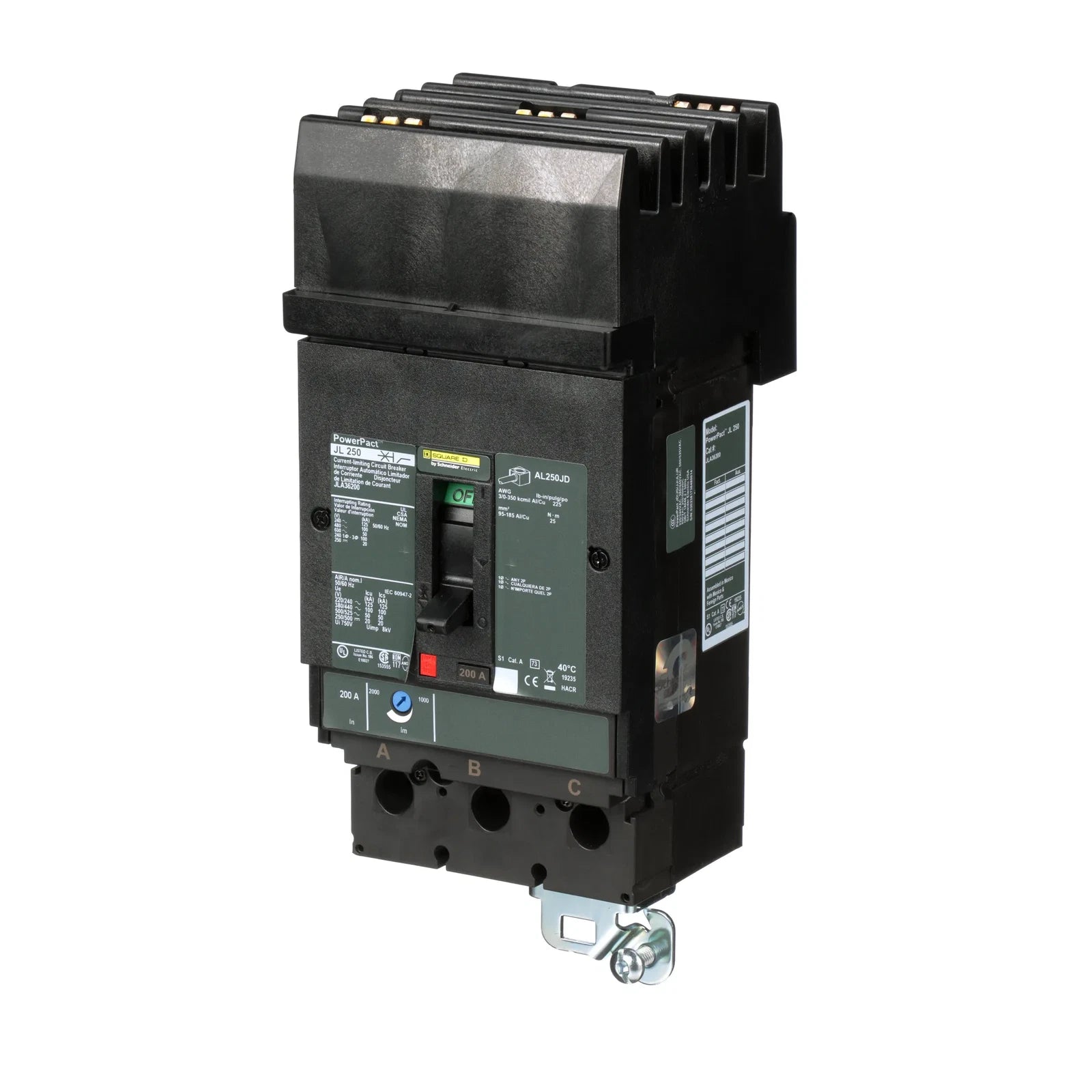

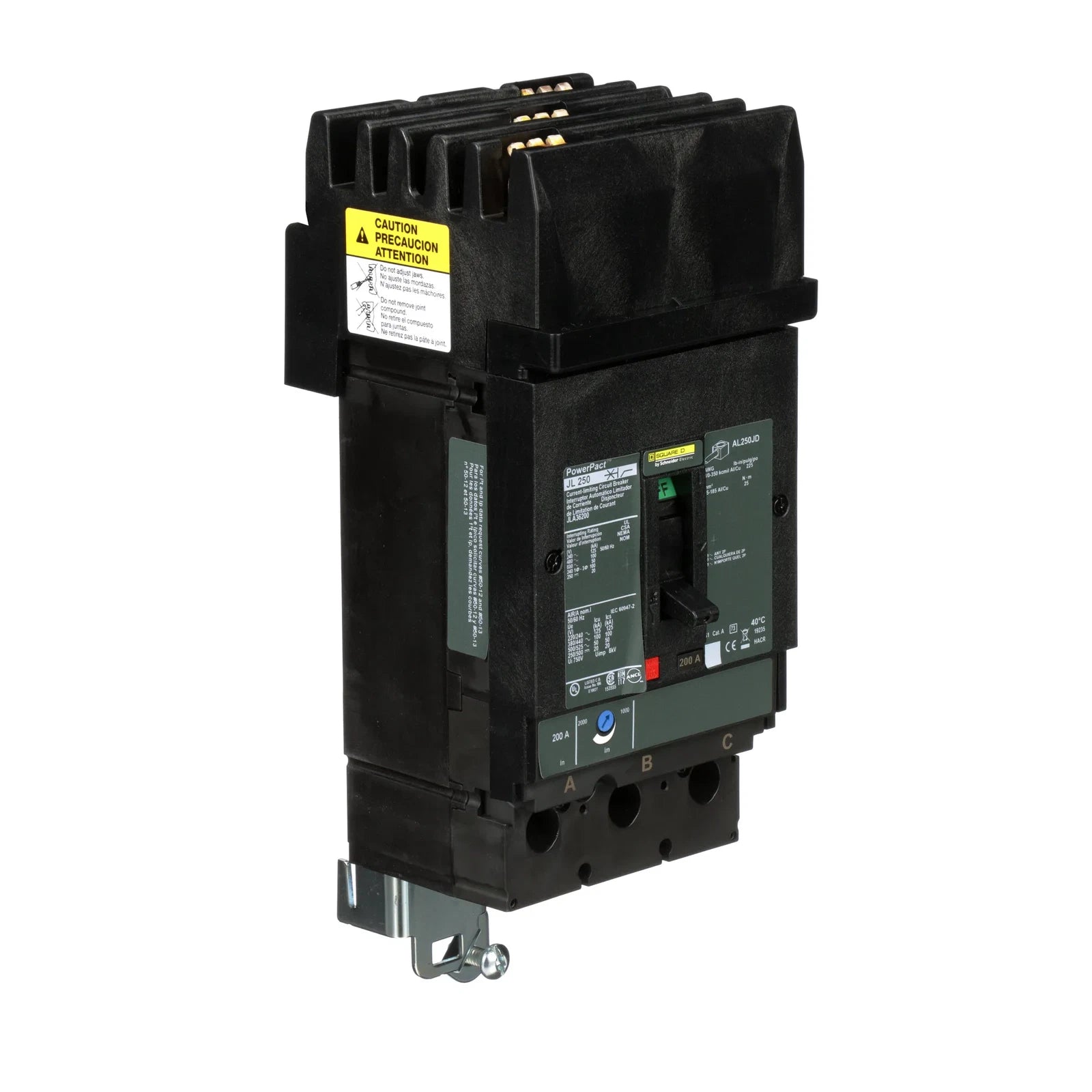

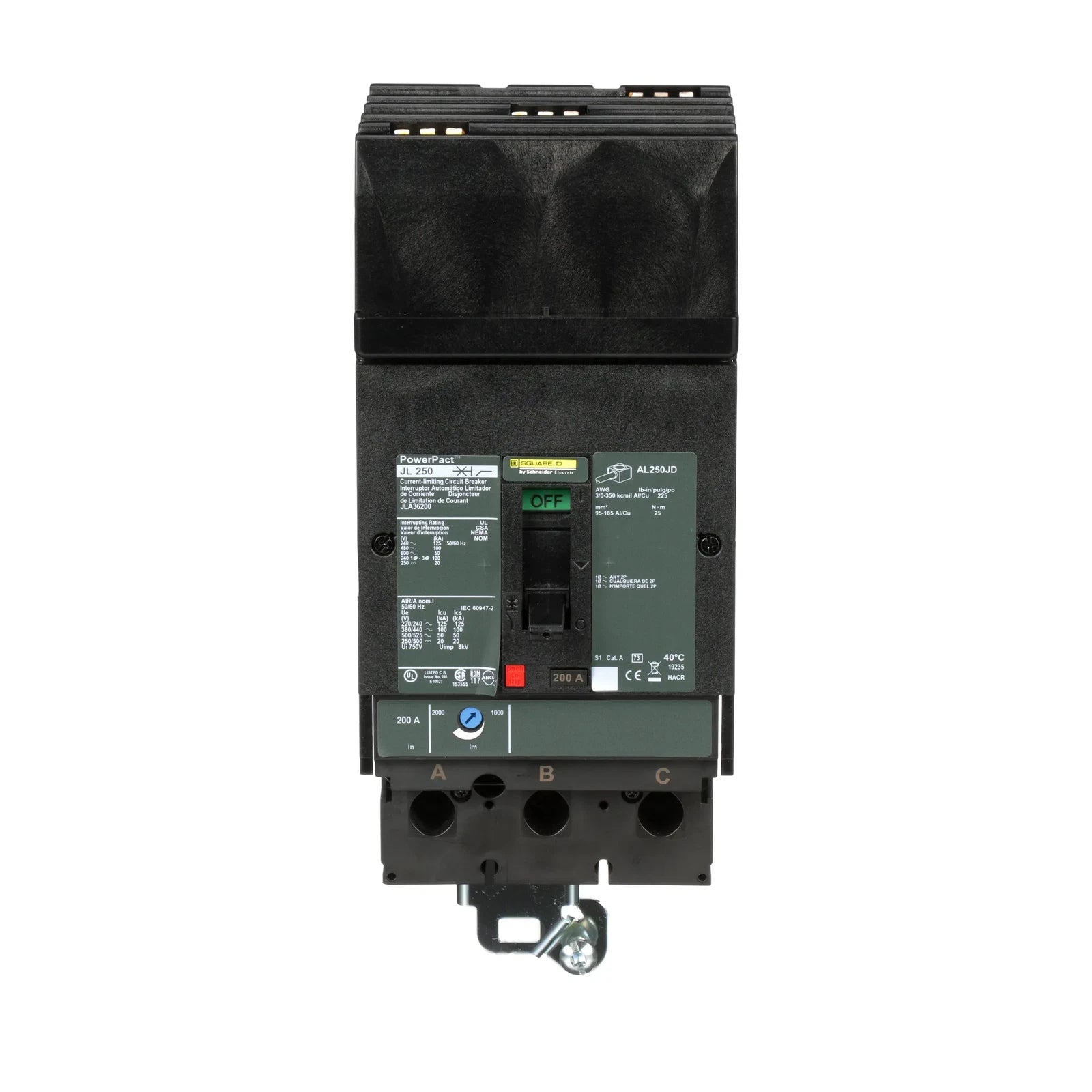

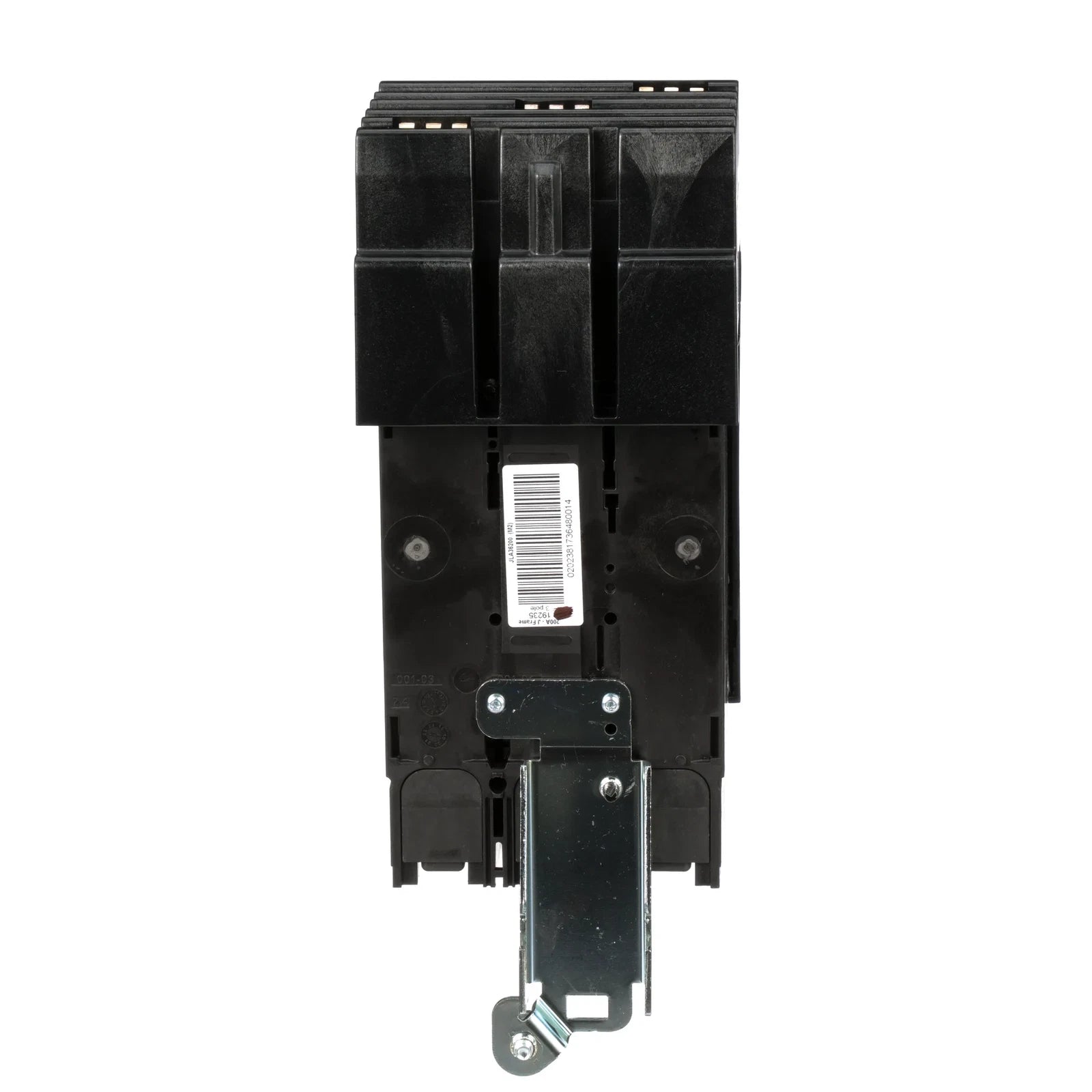

JLA36200 | Schneider Electric 200A J-Frame 600VAC Molded Case Circuit Breaker
- Regular price
- $5,244.00
- Sale price
- $5,244.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JLA36200
Description
The Schneider Electric JLA36200 is a molded case circuit breaker engineered to provide reliable overcurrent and short-circuit protection in commercial and industrial power distribution systems. Rated at 200 amps and 600 VAC, it is designed for three-pole applications requiring stable performance and high interrupting capacity. Its thermomagnetic trip mechanism ensures dependable protection across a wide range of operating conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | JLA36200 |
| Subcategory | Molded Case Circuit Breaker |
| Frame Size | J Frame |
| Breaker Type | Molded Case Circuit Breaker |
| Trip Type | Thermomagnetic |
| Current Rating | 200 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Interrupt Rating | 50 kA |
| Frequency | 50/60 Hz |
| Terminal Style | I-Line |
| IP Rating | IP40 |
| Operating Temperature | -25°C to 70°C |
| Standards & Certifications | UL 489, IEC 60947-2, CSA, CE, NEMA AB1, NOM, RoHS |
| Weight | 7.00 lbs |
Information About JLA36200
The JLA36200 is part of Schneider Electric’s J-frame molded case circuit breaker lineup, designed for medium-capacity power distribution applications. It features a thermomagnetic trip unit that combines thermal overload sensing with instantaneous magnetic short-circuit protection. The breaker is built with a molded insulating case and I-Line terminal style to support secure installation in compatible panelboards and switchgear. Its design meets multiple international electrical standards, ensuring safe operation in demanding industrial environments.
Key Features:
- J-Frame Construction: Designed for medium-duty industrial and commercial circuit protection applications.
- 200 Amp Rating: Supports reliable protection of feeder and branch circuits with higher current demands.
- Thermomagnetic Trip Unit: Provides combined overload and instantaneous short-circuit protection.
- 600 VAC Operation: Suitable for high-voltage AC distribution systems.
- Three-Pole Configuration: Enables protection of three-phase electrical circuits.
- I-Line Terminal Style: Allows secure and efficient installation in compatible Schneider Electric systems.
- High Interrupt Rating: Rated to safely interrupt fault currents up to 50 kA.
The JLA36200 delivers the reliability and precision required for industrial and commercial circuit protection.
