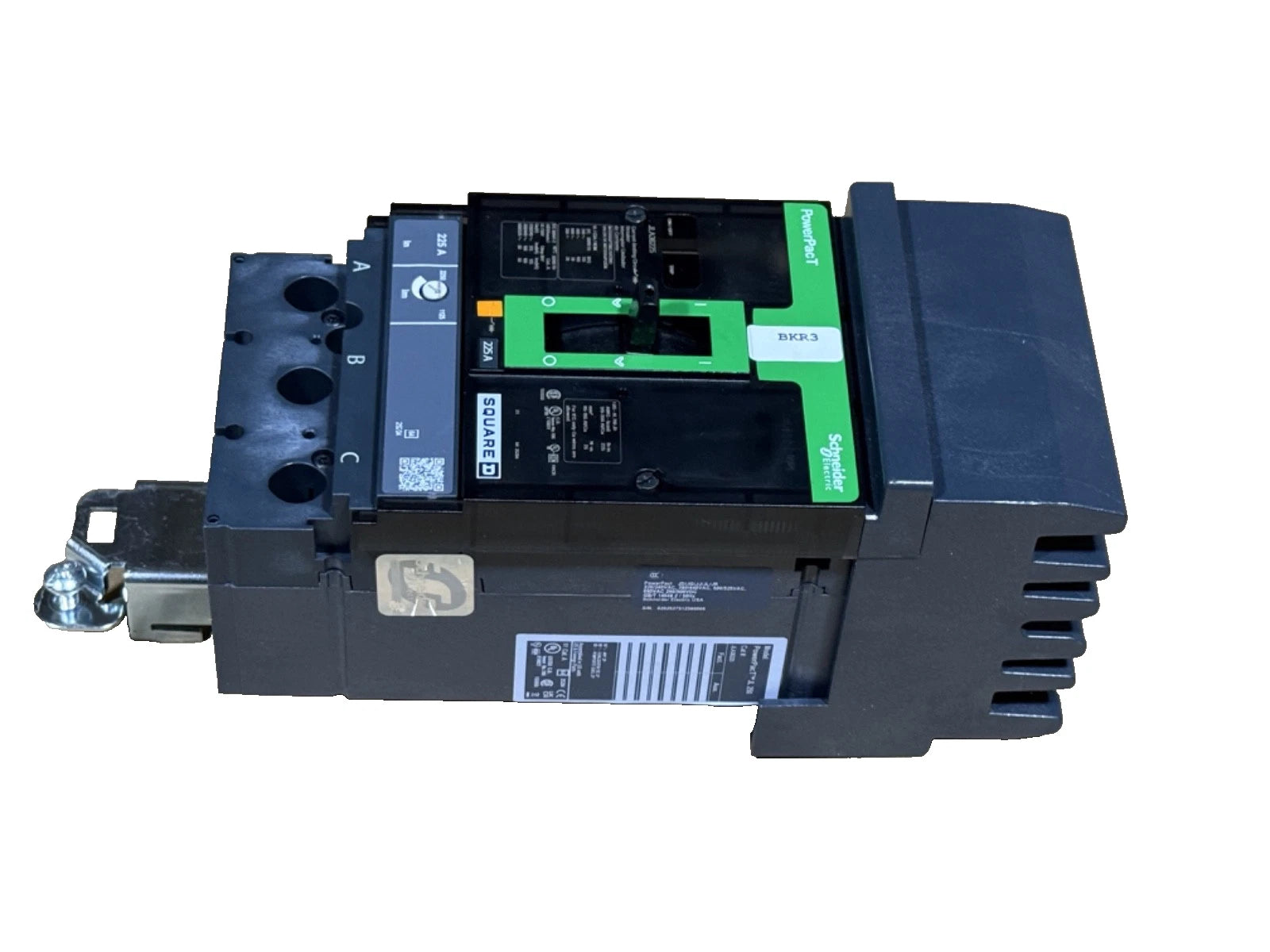

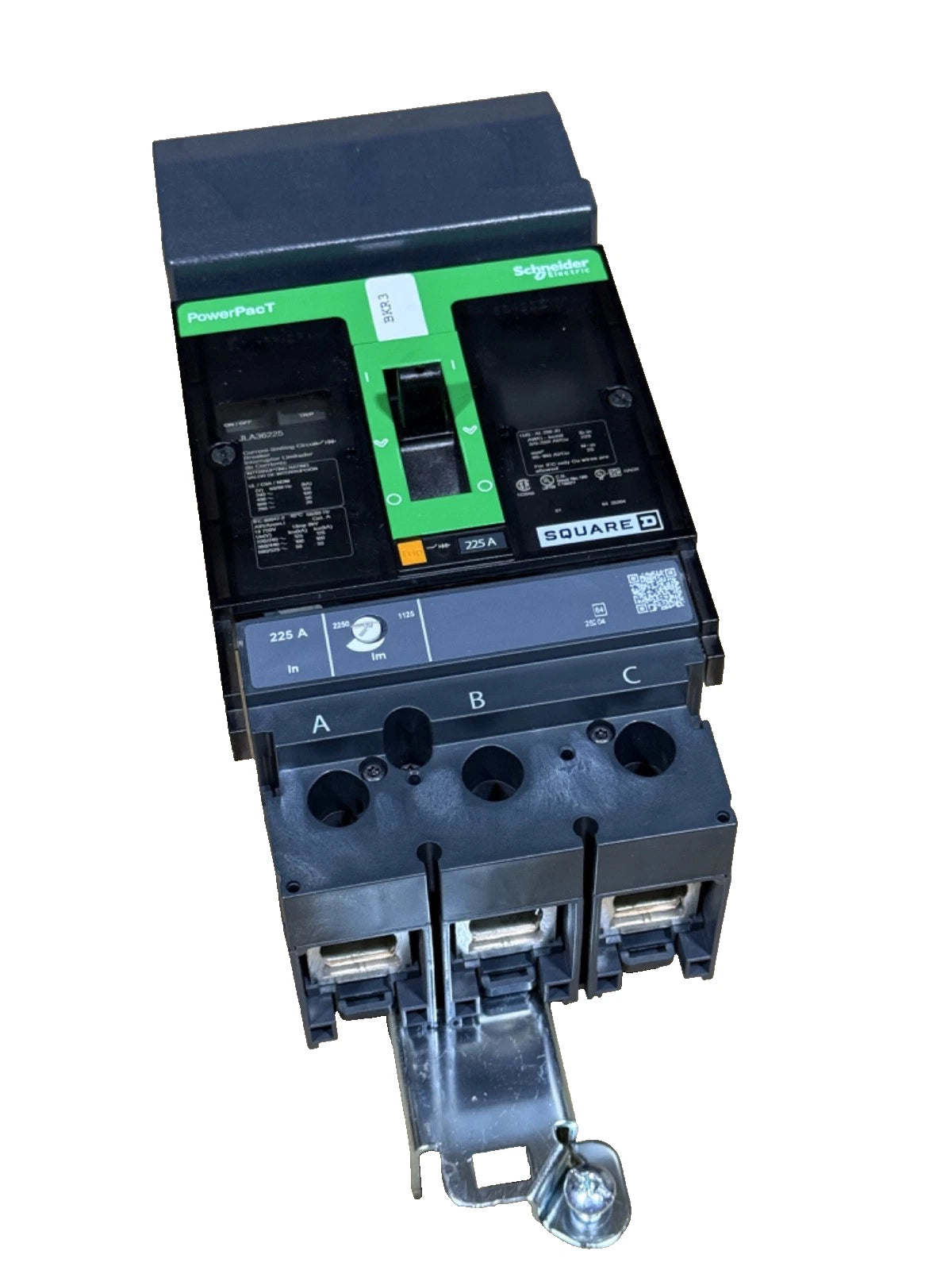

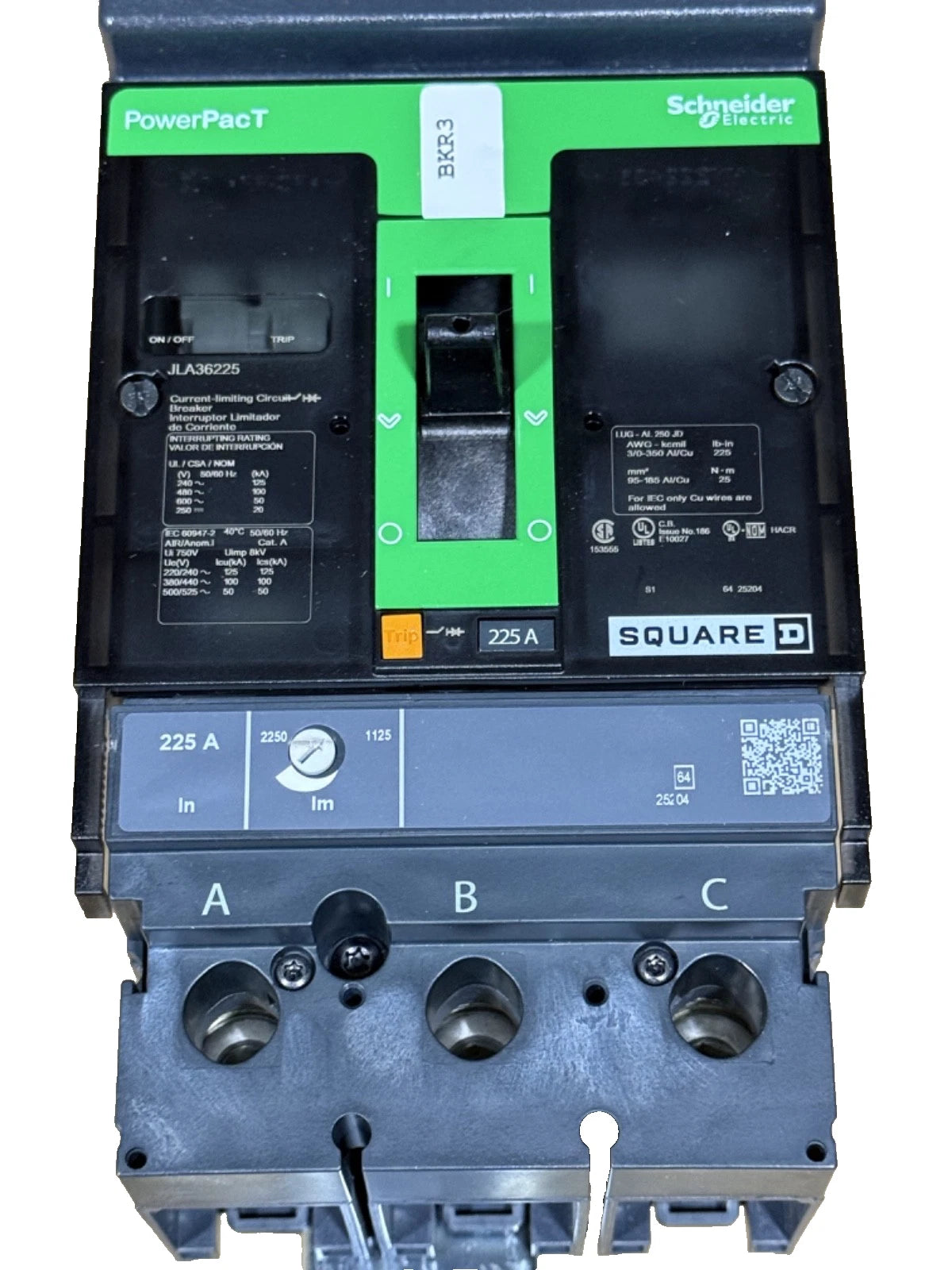

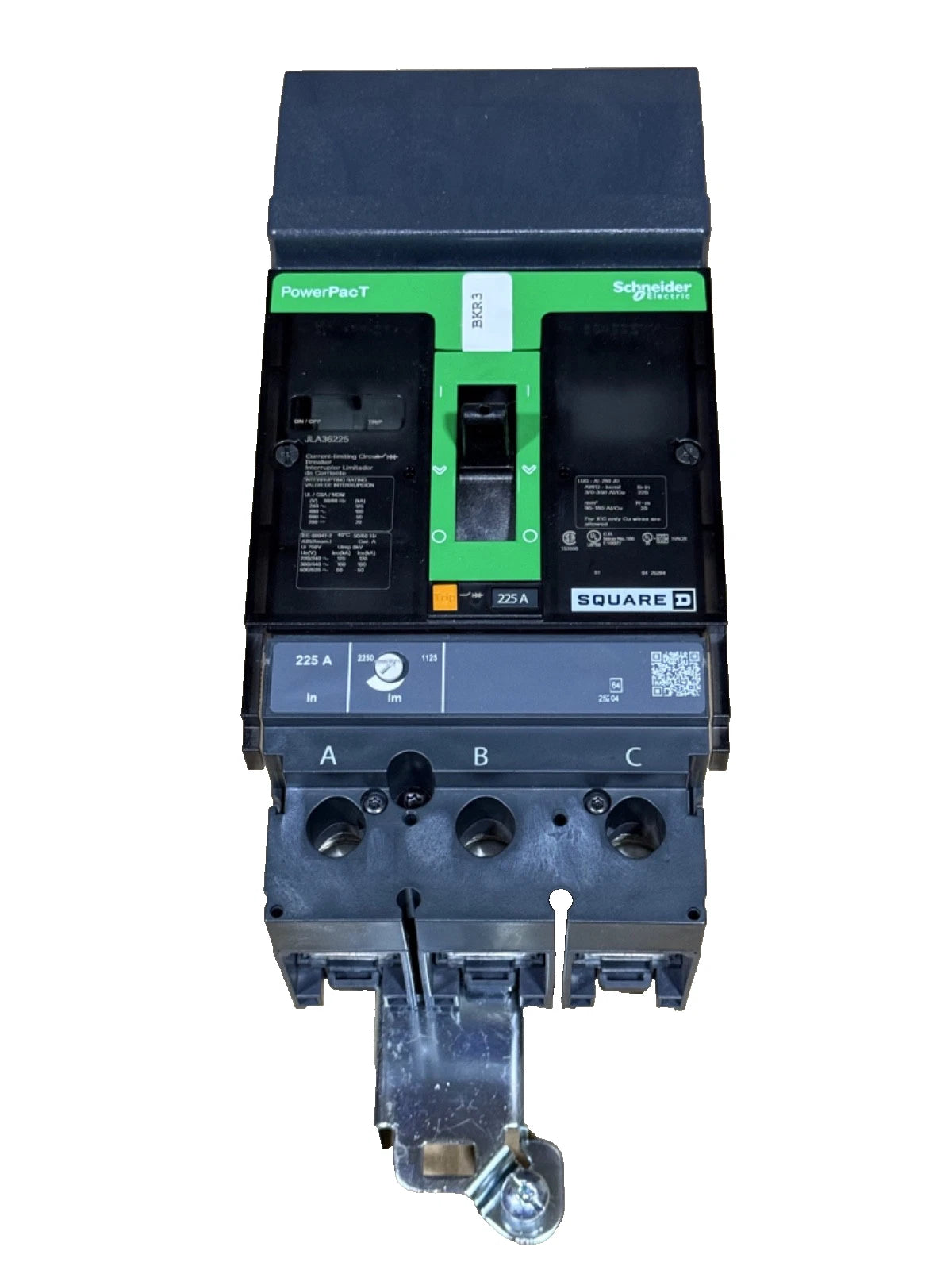

JLA36225 | Schneider Electric 225A 3-Pole 600V I-Line Molded Case Circuit Breaker
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JLA36225
Description
The Schneider Electric JLA36225 is a 3-pole molded case circuit breaker engineered for protection of three-phase electrical systems at up to 600 V. The part number JLA36225 operates at a 225 A current rating and provides thermal magnetic trip functionality to safeguard circuits against overloads and short circuits. It is suited for industrial and commercial power distribution where dependable fault interruption is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | JLA36225 |
| Subcategory | Molded Case Circuit Breaker |
| Voltage Rating | 600 VAC |
| Amperage Rating | 225 A |
| Number of Poles | 3 |
| Interrupt Rating | 50 kA @ 600 V AC |
| Trip Type | Thermal Magnetic |
| Frame Size | J Frame |
| Terminal Style | I-Line Plug-In |
| Frequency | 50/60 Hz |
| Overload Protection | Yes |
| Standards & Certifications | UL 489, CSA C22.2 No. 5, IEC 60947-2, CE, NOM, CCC, RoHS, REACH, UKCA, California Prop 65 |
| Operating Temperature | -25 to 70 °C |
| IP Rating | IP40 |
| Actuator Type | Toggle |
| Weight | 6.07 lbs |
Information About JLA36225
The JLA36225 is part of Schneider Electric’s PowerPact J-Frame molded case circuit breaker family, designed for robust circuit protection and integration into I-Line distribution systems. It features a thermomagnetic trip unit with long-time and instantaneous protection functions for coordinated response to overcurrent and fault conditions. Its I-Line plug-in construction and toggle actuator enable secure mounting and serviceability with compatible panels. This breaker is typically used in industrial, commercial, and infrastructure power distribution to enhance electrical safety and reliability.
Key Features:
- 225 A current rating: Supports moderate to high current loads in three-phase systems.
- Thermal magnetic trip unit: Combines overload and short-circuit protection in one mechanism.

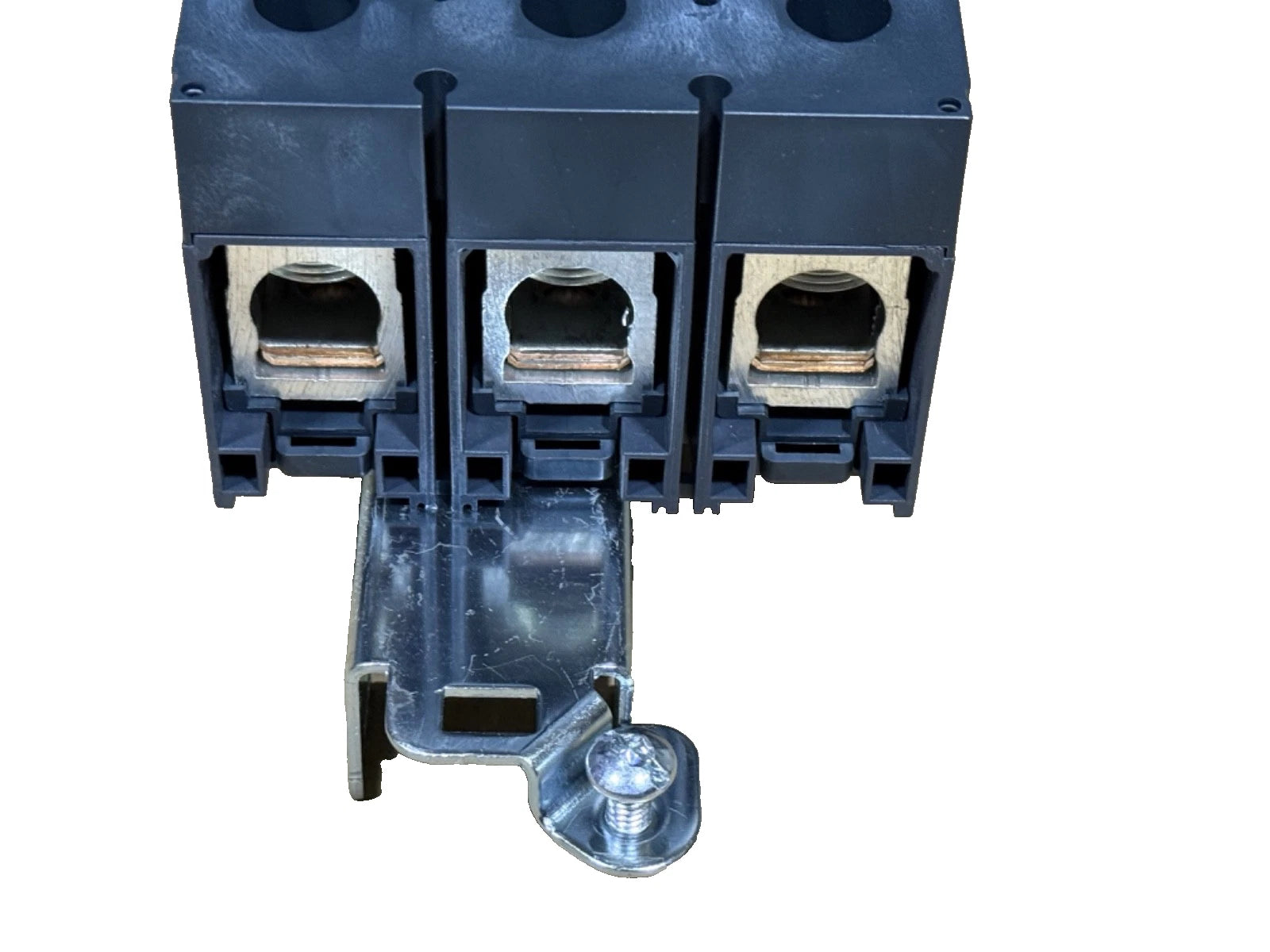

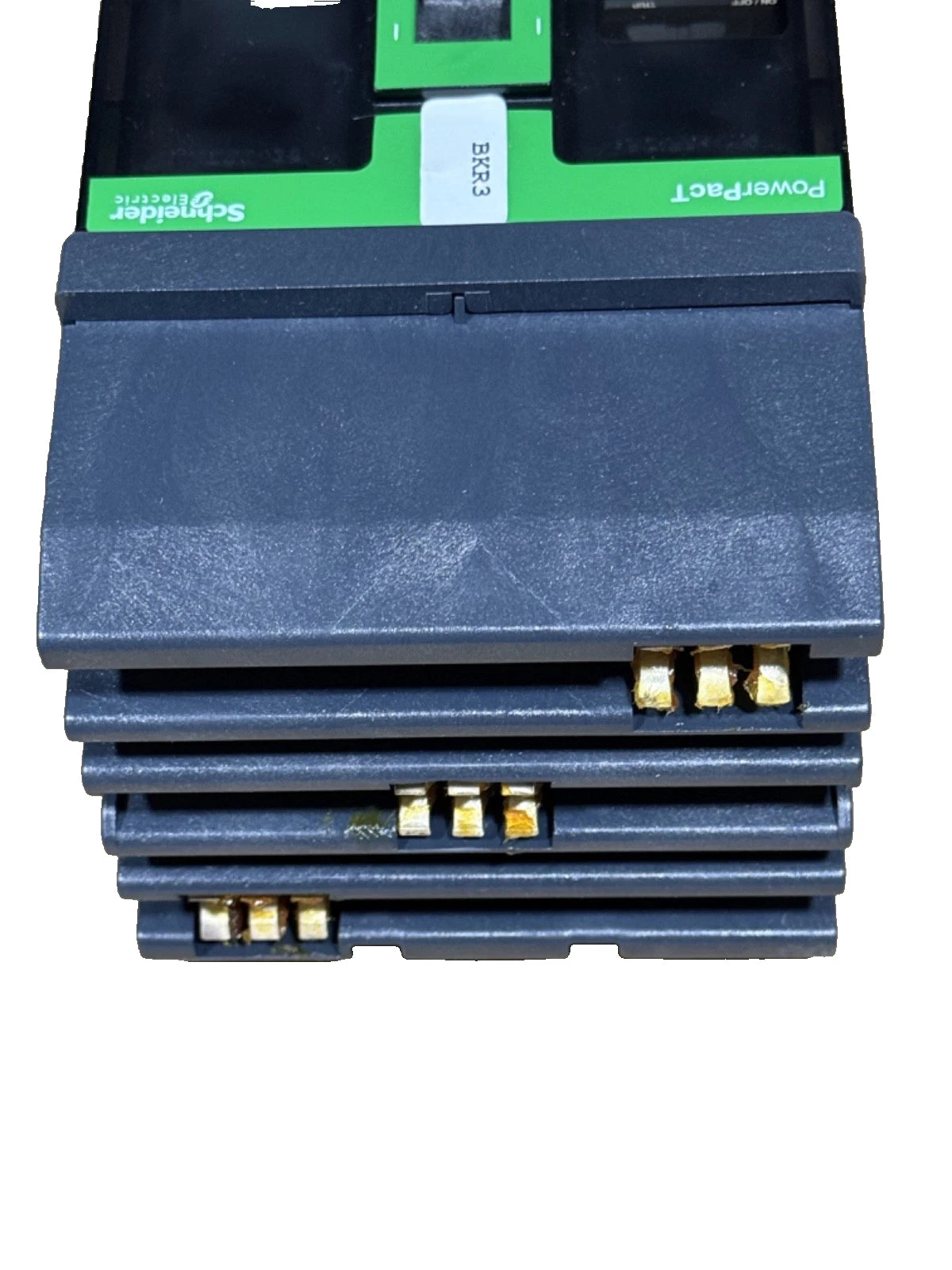

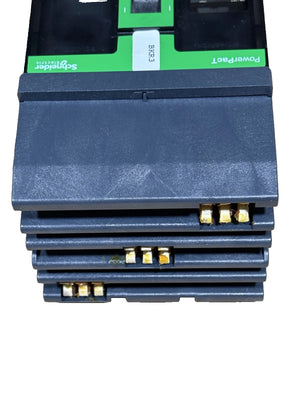

- I-Line connection: Plug-in design for compatible panelboard integration.
- 600 VAC capability: Rated for operation up to 600 V AC.
- 50 kA interrupt rating @ 600 V: Safely interrupts significant fault currents.
- J-Frame construction: PowerPact J-Frame platform for durable performance.
- 3-pole configuration: Ensures balanced phase protection in 3-phase systems.
- Toggle actuator: Manual ON/OFF operation with clear position indication.
The JLA36225 delivers the reliability and precision required for dependable molded case circuit protection in industrial and commercial power systems.
