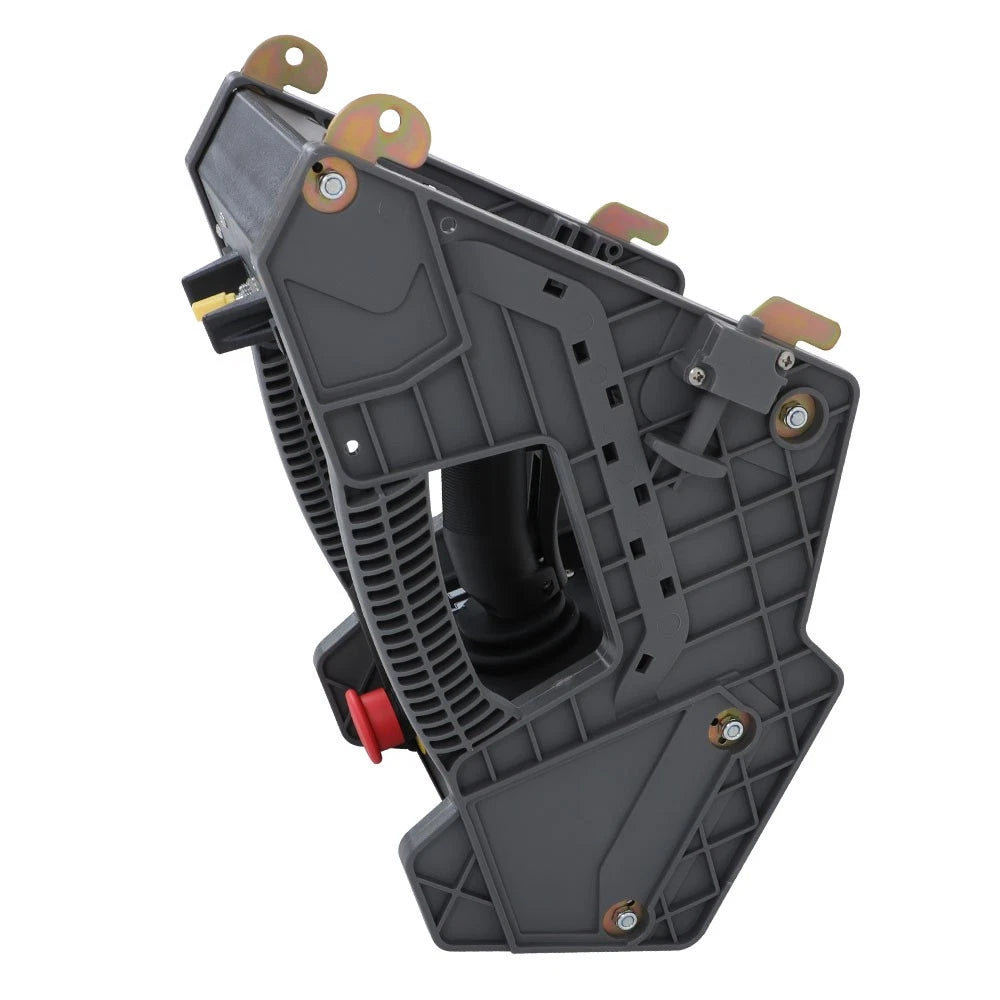

JLG 1001091153 Upper Platform Joystick Control Box Assembly with 9-Pin Plug for Electric Scissor Lifts
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1001091153
Description
The JLG 1001091153 is an upper platform joystick control box assembly designed for compatible JLG electric scissor lifts. It provides proportional operator control of drive, steering, and lift functions through an integrated joystick and platform-mounted control interface. The assembly uses a 9-pin connection for integration with the machine control system.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | JLG |
| Category | Controls & Electronics |
| Part Number | 1001091153 |
| Subcategory | Platform Control Boxes |
| Product Type | Upper Platform Joystick Control Box |
| Alternate Part Numbers | 0272778, 1001091154 |
| Control Type | Proportional |
| Control Interface | Integrated Joystick |
| Connector Type | 9-Pin Plug |
| Equipment Type | Electric Scissor Lifts |
| Compatible Series | JLG ES Series |
| Compatible Models | 1230ES, 1930ES, 2030ES, 2032ES, 2630ES, 2632ES, 2646ES, 3246ES |
| Primary Functions | Drive, Steering, Lift Control |
| Installation Location | Upper Platform Operator Station |
| Package Specification | Approximately 30 × 30 × 50 cm |
| Weight | Approximately 5.0 kg (11.0 lb) |
Information About 1001091153

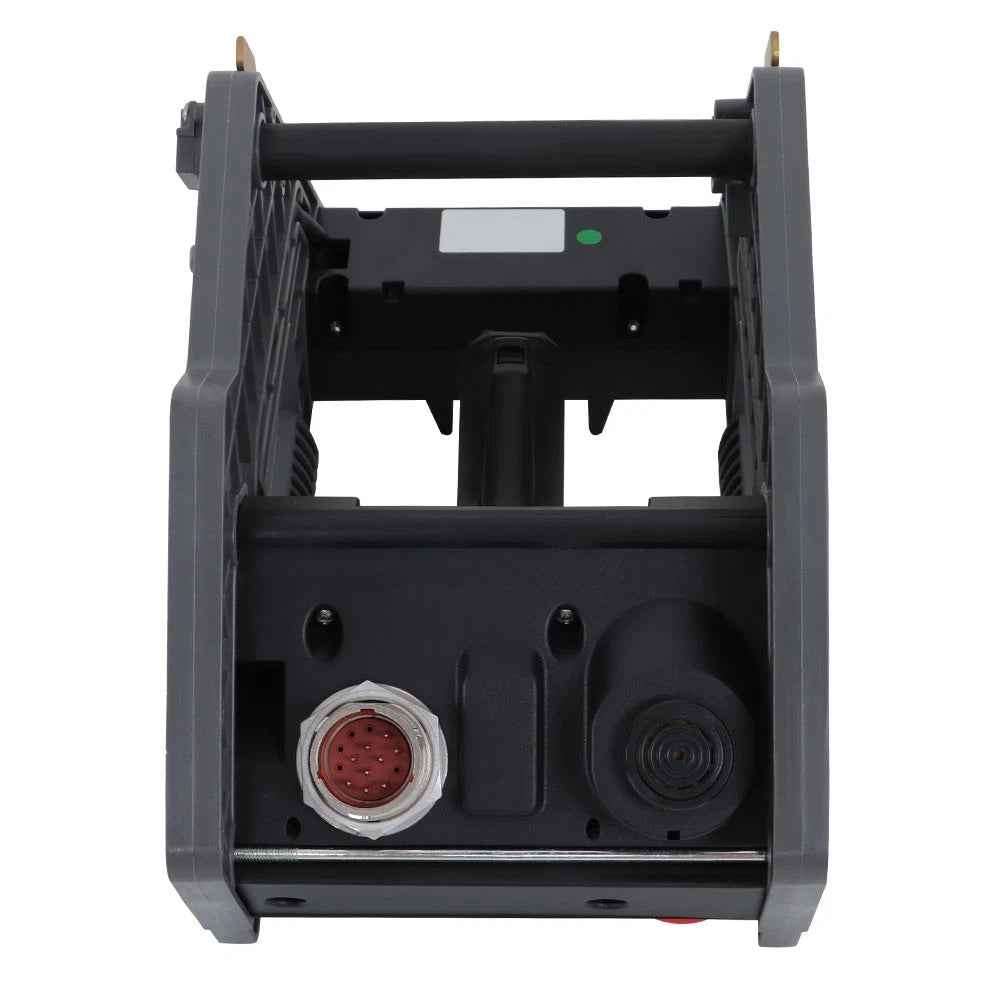

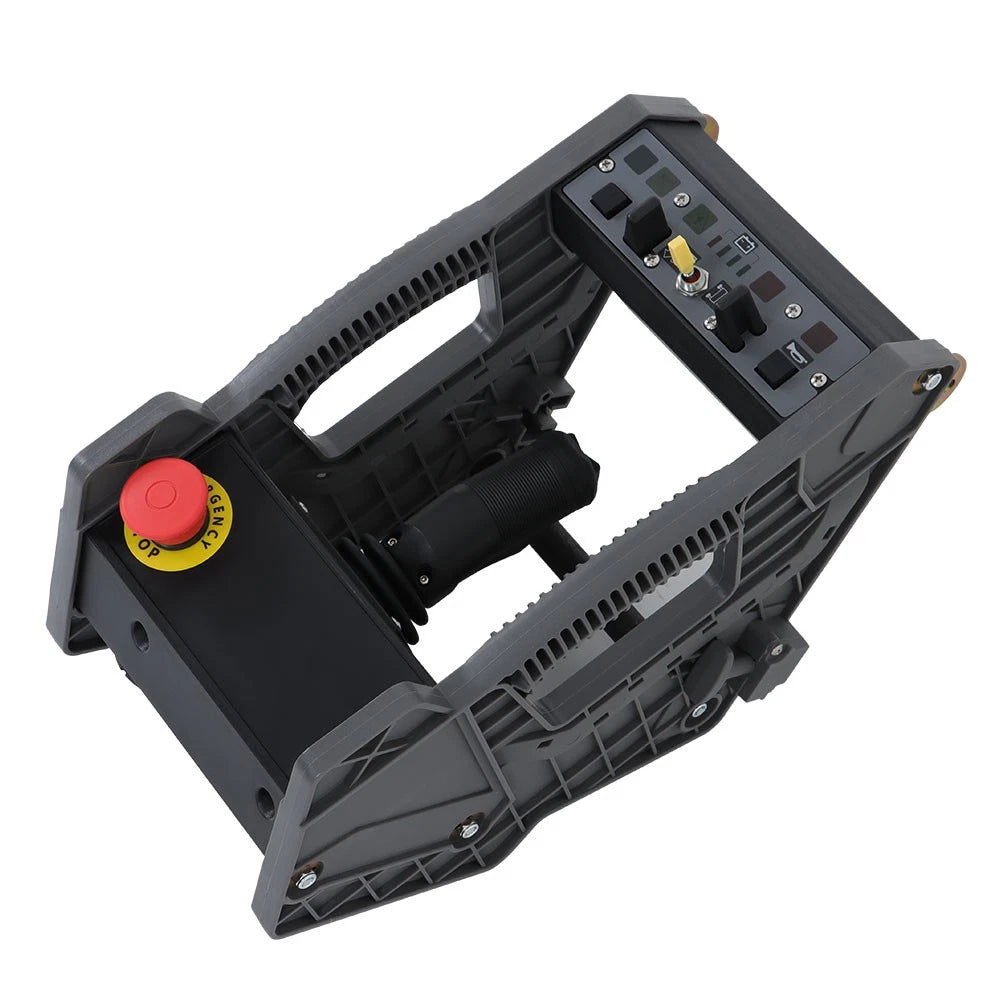

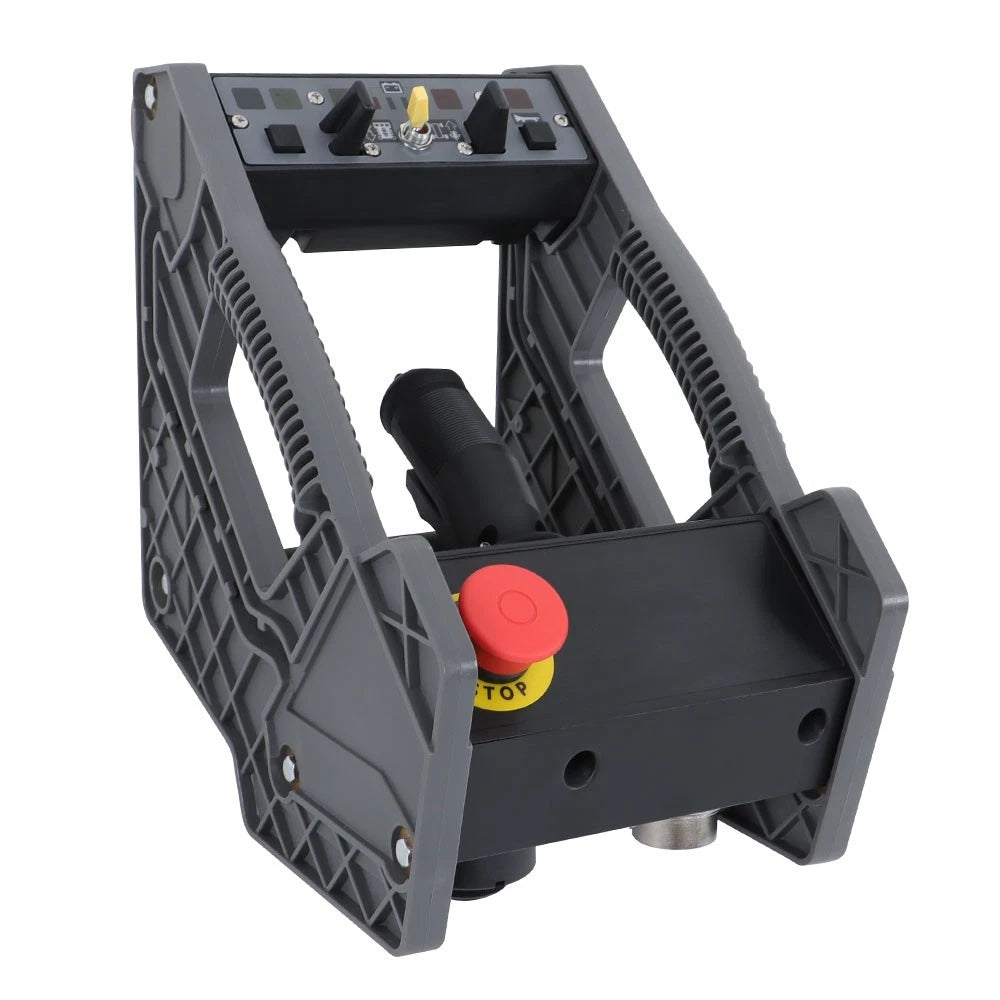

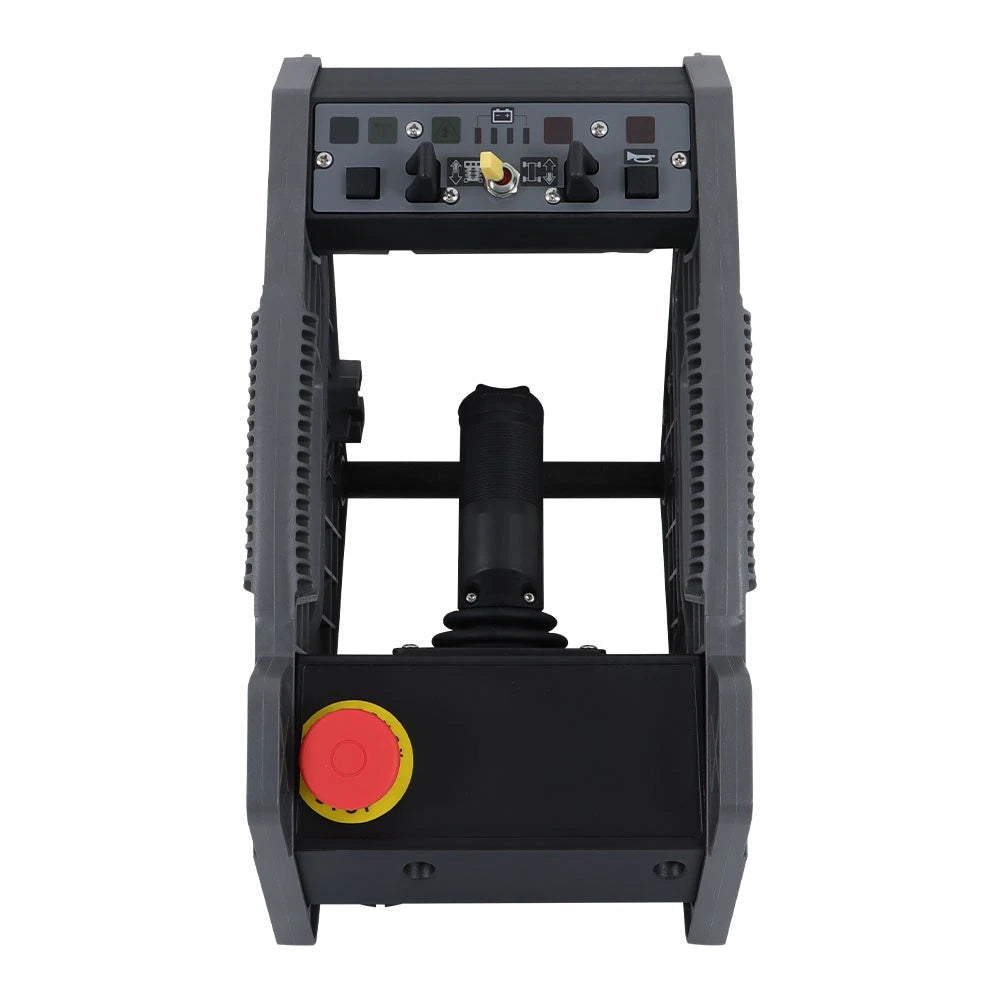

The 1001091153 is a platform control box assembly for JLG ES Series electric scissor lifts and related compatible models. Its enclosed operator interface combines the joystick, function selectors, emergency stop control, and associated electrical components into one assembly. Compatibility includes models such as the 1230ES, 1930ES, 2030ES, 2032ES, 2630ES, 2632ES, 2646ES, and 3246ES. A 9-pin electrical connector provides the interface between the platform controls and the lift's electrical control system.
Key Features:
- Platform Control Assembly: Provides the primary upper-platform interface for operating compatible JLG scissor lifts.
- Proportional Joystick: Supports controlled operator input for travel and machine movement functions.
- 9-Pin Connection: Uses a 9-pin electrical plug for connection to the compatible machine wiring system.

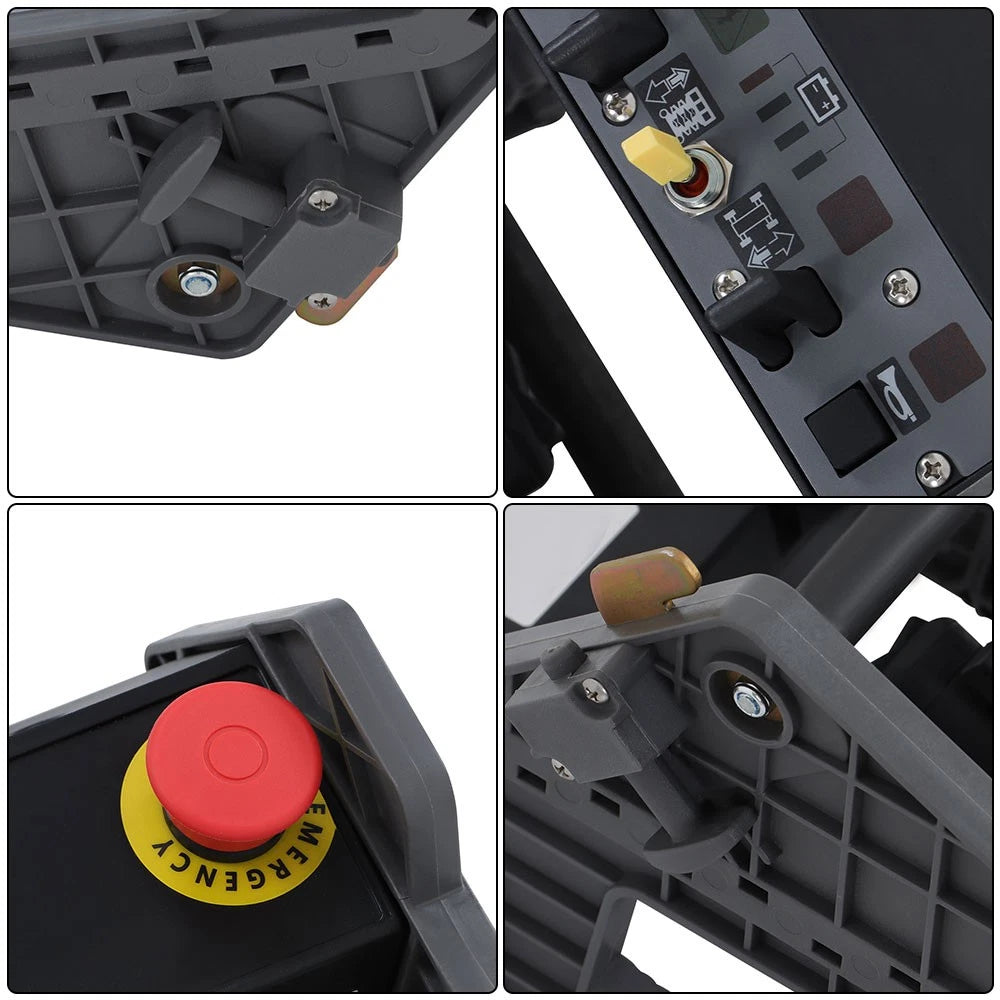

- Integrated Controls: Combines the joystick, function selectors, and emergency stop control in one enclosure.
- ES Series Compatibility: Configured for multiple JLG electric scissor lift models in the ES product family.
- Multiple Part References: Associated with part numbers 1001091153, 0272778, and 1001091154.
- Operator-Station Installation: Designed for mounting at the upper platform control position.
- Complete Assembly Design: Consolidates essential platform command components into a single replaceable control unit.
The 1001091153 delivers the reliability and precision required for platform control of compatible JLG electric scissor lifts.
