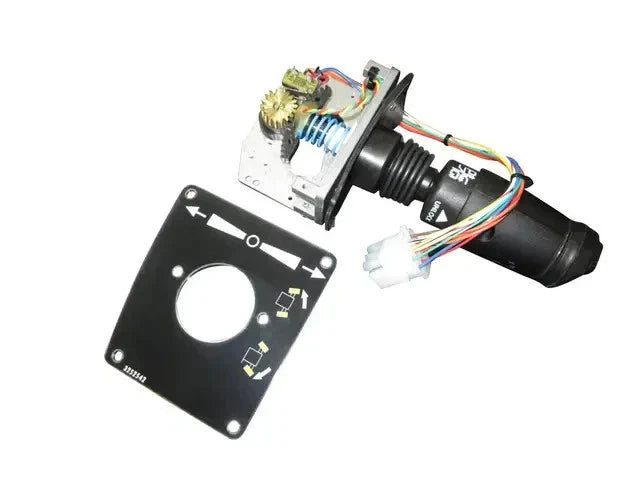

JLG 1600276 Single-Axis Joystick Controller for Electric Scissor Lifts
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 1600276
Description
The JLG 1600276 is a single-axis joystick controller designed for proportional travel control on JLG electric scissor lifts. Installed in the platform control system, it converts operator lever movement into directional and speed-control signals for smooth forward and reverse machine travel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | JLG |
| Category | Lift Controls |
| Part Number | 1600276 |
| Subcategory | Joystick Controllers |
| Product Type | Platform Joystick Controller |
| Control Type | Proportional |
| Axis Configuration | Single-Axis |
| Primary Function | Forward/Reverse Travel and Speed Control |
| Control Element | Potentiometer |
| Potentiometer Rating | 20K |
| Installation Location | Platform Control Box |
| Equipment Type | Electric Scissor Lift |
| Compatible Series | JLG E-Series |
| Compatible Models | 1532E, 1932E, 2033E, 2046E, 2646E, 2658E |
| Cross-Reference Numbers | 1600276S, 1600276JL, JL1600276 |
| Weight | Approximately 1.30 lb (0.59 kg) |
Information About 1600276
The 1600276 is a single-axis platform joystick controller used with selected JLG electric scissor lifts, particularly E-Series machines. Its control architecture uses a proportional potentiometer-based interface to translate lever position into an electrical command for machine travel. The controller is installed within the platform control box and provides forward/reverse direction and variable travel-speed input. Compatibility includes JLG 1532E, 1932E, 2033E, 2046E, 2646E, and 2658E models.
Key Features:
- Single-Axis Control: Provides proportional forward and reverse travel input through one lever axis.
- Platform Control Function: Designed for installation within the lift's operator platform control system.
- Proportional Operation: Lever displacement regulates both travel direction and commanded machine speed.
- Potentiometer-Based Design: Uses a 20K potentiometer-type control architecture for proportional signal generation.
- Electric Scissor Lift Application: Intended for selected JLG electric scissor lift platforms.
- E-Series Compatibility: Supports multiple JLG E-Series models including 1532E, 1932E, 2033E, 2046E, 2646E, and 2658E.
- Cross-Reference Identification: Commonly referenced as 1600276, 1600276S, 1600276JL, or JL1600276.
The 1600276 delivers the reliability and precision required for proportional travel control in compatible JLG electric scissor lifts.
