JM60200-3CR | Eaton Bussmann Series JM Modular Fuse Block
- Regular price
- $487.00
- Sale price
- $487.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JM60200-3CR
Description

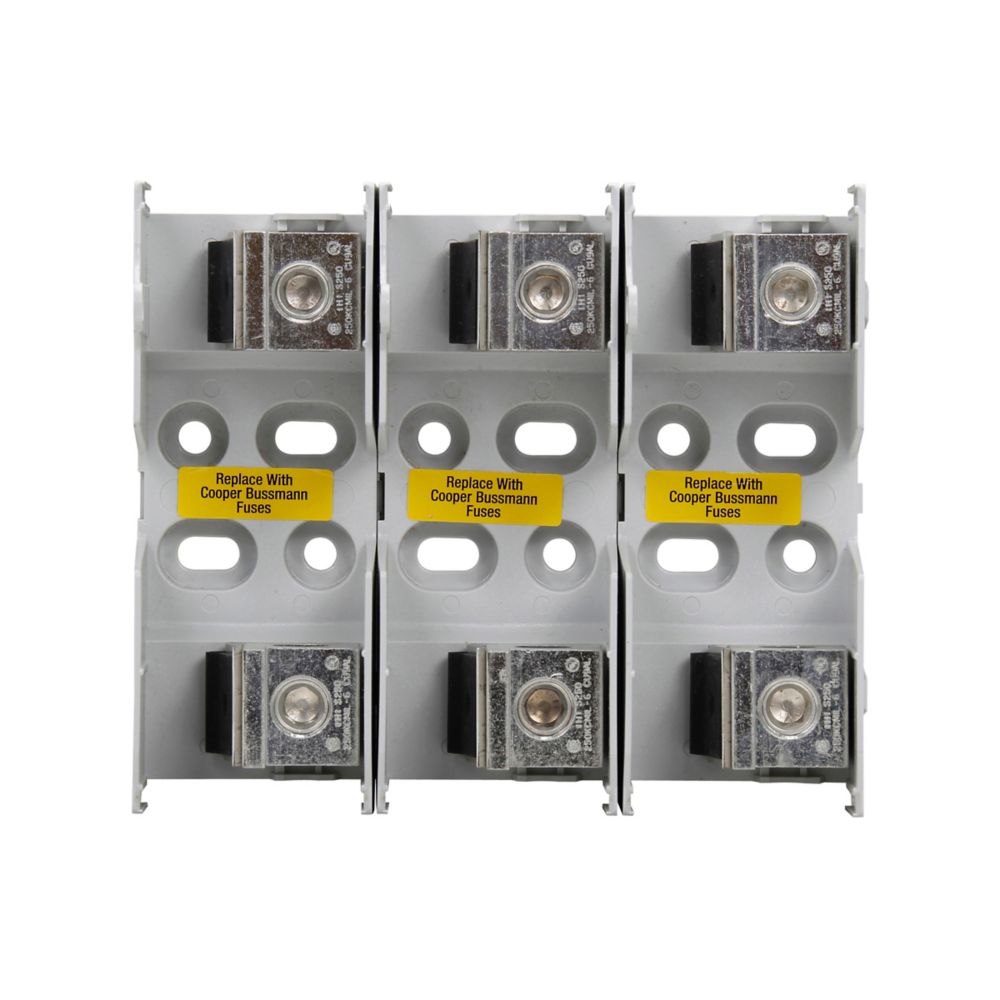

The JM60200-3CR is a modular fuse block manufactured by Eaton Bussmann series. It is designed to accommodate CR fuses with a current rating ranging from 110 to 200 A. This fuse block is configured for three poles and utilizes Class J fuses. It features a knife blade end x knife blade end connection and has an interrupt rating of 200 kAIC at 600 V, ensuring robust protection in electrical systems.
Technical Specifications
|
Brand |
Eaton Bussmann series |
|
Voltage Rating |
600 VAC |
|
Amperage Rating |
110 to 200 A |
|
Number Of Poles |
3 |
|
Class |
J |
|
Wire Size |
1 to 3/0 AWG, 6 to 2 AWG, 1 AWG to 200 kcmil |
|
Mounting Type |
Hole |
|
Temperature Rating |
-40 to 120 deg C |
|
Suitable For Use With |
Knife Blade Cartridge Fuse |
|
Material |
Thermoplastic |
|
Dimensions |
7.3 in L x 7.9 in W x 3.8 in H |
Information About JM60200-3CR
The JM60200-3CR is a modular fuse block manufactured by Eaton Bussmann Series. Designed for industrial applications, this fuse block accommodates CR fuses with a current rating ranging from 110 to 200 A. Configured for three poles, it is compatible with Class J fuses, ensuring efficient protection against overcurrent conditions.
Featuring a knife blade end x knife blade end connection, the JM60200-3CR fuse block provides a secure and reliable electrical connection. With an interrupt rating of 200 kAIC at 600 V, it offers robust protection for electrical systems, minimizing the risk of damage or downtime due to overcurrent events.
Constructed from durable thermoplastic material, this fuse block is designed to withstand harsh industrial environments. Its mounting holes facilitate easy installation in electrical panels or enclosures, providing a convenient and secure mounting solution.
The JM60200-3CR fuse block supports a wide range of wire sizes, accommodating 1 to 3/0 AWG, 6 to 2 AWG, and 1 AWG to 200 kcmil wires. It offers versatility in wiring configurations, allowing for flexibility in electrical system design and installation.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
