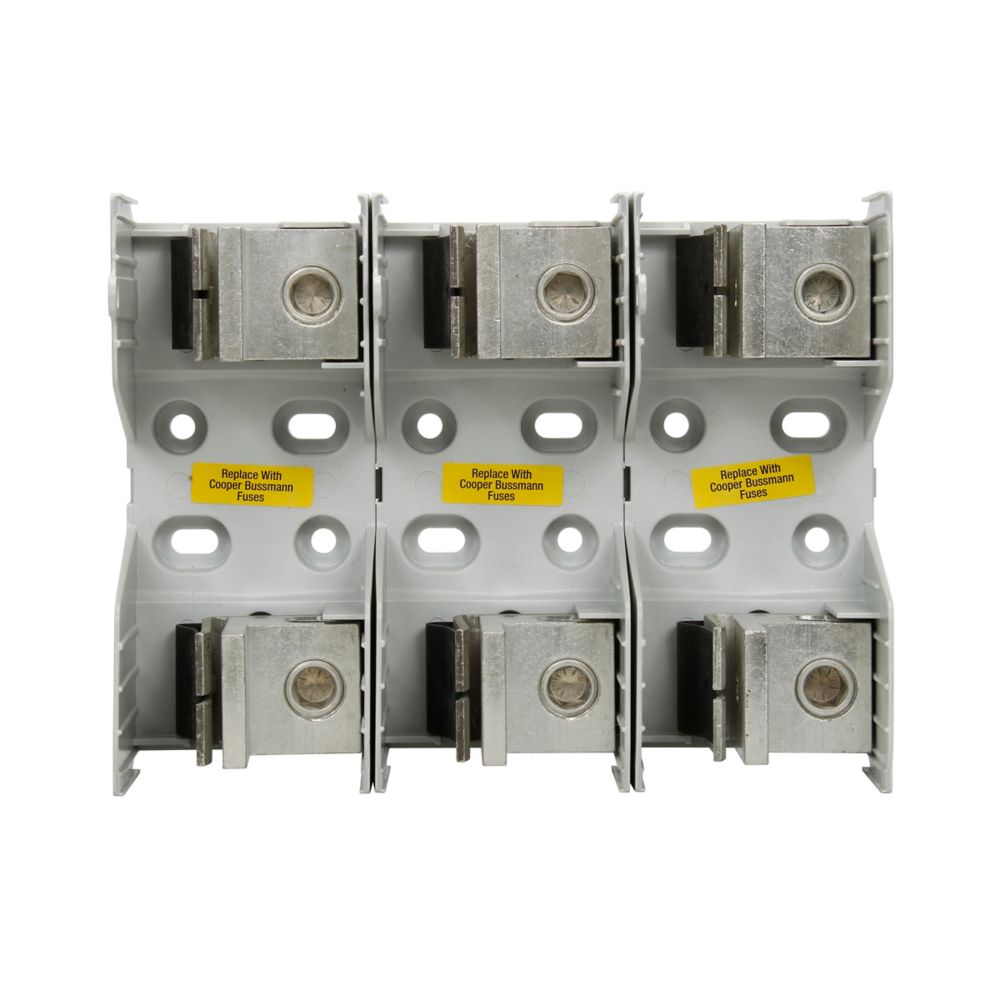

JM60400-3CR | Eaton Series JM Modular Fuse Block
- Regular price
- $1,835.00
- Sale price
- $1,835.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JM60400-3CR
Description
Bussmann Fuse Block, Modular, Series: JM Series, 600 V, 225 to 400 A, 3 Pole, Class: J, Knife Blade End, 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 8.7 in L x 10.4 in W x 4.9 in H.
Technical Specifications
| Brand | Eaton |
| Category | Panel Accessories |
| Part Number | JM60400-3CR |
| Subcategory | Fuse Holder |
| Amperage Rating | 225 to 400 A |
| Class | J |
| Connection type | Knife Blade End |
| Dimensions | 8.7 in L x 10.4 in W x 4.9 in H |
| Material | Thermoplastic |
| Mounting type | Hole |
| Number of Poles | 3 |
| Series | JM Series |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 600 V |
| Wire Size | 600 kcmil, (2) 4 to 3/0 AWG Al Solid/Stranded, 600 kcmil, 4 to 3/0 AWG |
Information About JM60400-3CR
The Eaton JM60400-3CR Modular Fuse Block is a high-quality component from the Bussmann Series JM, designed to provide reliable overcurrent protection in industrial and commercial applications. This modular fuse block is rated for 600 V and supports current ratings from 225 to 400 A, making it versatile for various high-power installations.
The JM60400-3CR features a 3-pole configuration and is compatible with Class J fuses, providing robust protection against electrical faults. Its knife blade end design ensures secure and efficient fuse installation and replacement. The block accommodates 600 kcmil and dual 4 to 3/0 AWG aluminum solid or stranded wires, offering flexibility in wiring options.
Constructed with durable thermoplastic material, the fuse block is designed for hole mounting, ensuring a secure and stable installation. It operates effectively within a wide temperature range of -40 to 120 degrees Celsius, making it suitable for various environmental conditions.
The Eaton JM60400-3CR Modular Fuse Block is specifically designed for use with knife blade cartridge fuses, ensuring optimal performance and safety. Its compact dimensions of 8.7 inches in length, 10.4 inches in width, and 4.9 inches in height make it suitable for integration into electrical panels while maintaining operational reliability and ease of access for maintenance and fuse replacement.
Features
Integral dovetails allow assembly of multiple poles at point-of-use for greater application flexibility
Up to four mounting holes per pole increase installation flexibility
Standard phase barriers between poles for additional safety
Design meets UL creep and clearance requirements for industrial power circuits
200 to 600 A blocks meet the higher UL creep and clearance requirements for power distribution standards
Standard fuse clip reinforcing springs enhance electrical contact
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
