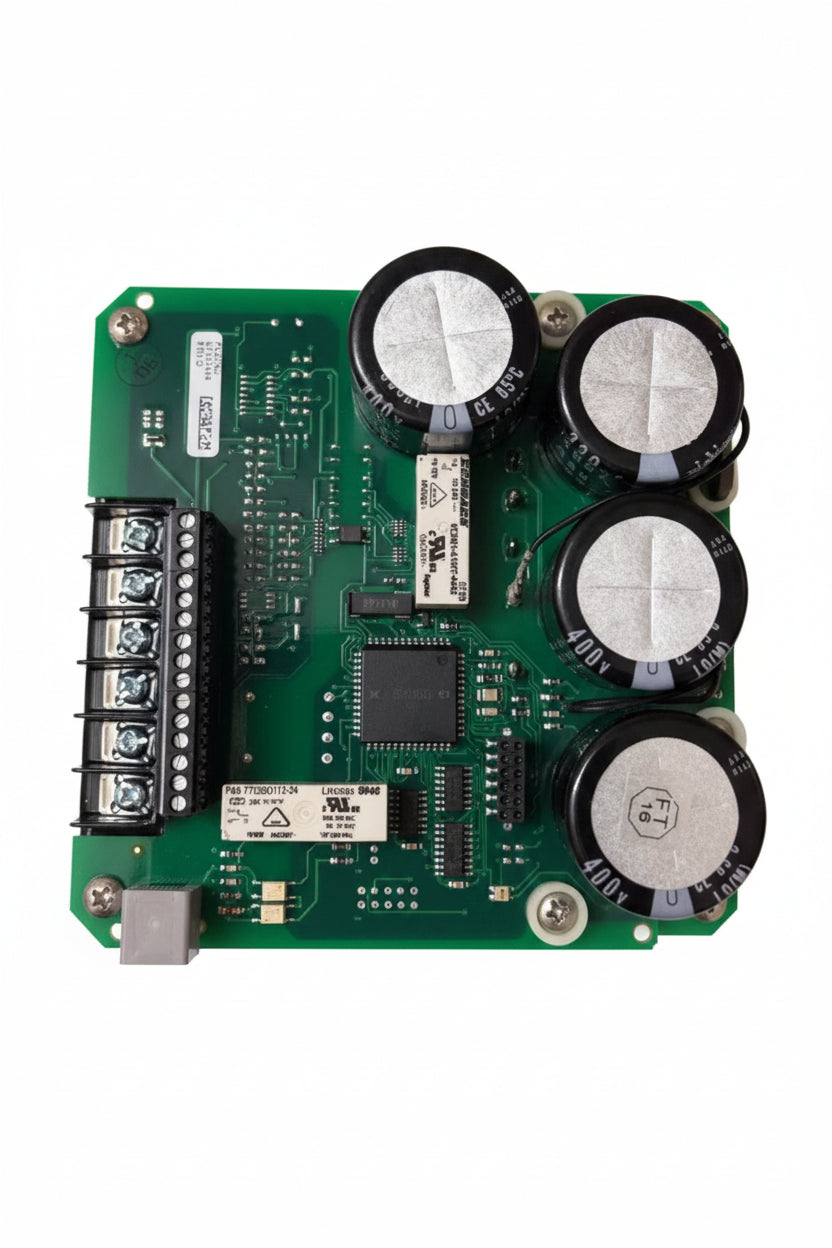

Johnson Controls 024-30468-002 Variable-Speed Oil Pump Drive
- Regular price
- $3,499.00
- Sale price
- $3,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 024-30468-002
Description
The Johnson Controls 024-30468-002 is a variable-speed oil pump drive used in YORK centrifugal chiller systems. It is a three-phase variable-speed drive designed for the oil pump application, with the 002 version specified for higher-voltage electrical configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Drives |
| Part Number | 024-30468-002 |
| Subcategory | Drive |
| Application | Variable-Speed Oil Pump |
| Drive Type | Variable-Speed Drive |
| Drive Technology | PWM Transistorized Inverter |
| Phase | Three-Phase |
| Input Voltage | 380/400/415 VAC at 50 Hz; 460/575 VAC at 60 Hz |
| Maximum Output Rating | 440 VAC at 60 Hz |
| Rated Current | 4.2 A at 440 VAC / 60 Hz |
| Cooling Method | Air-Cooled |
| Application Equipment | YORK Centrifugal Chillers |
| Replacement Part | 371-05506-002 |
| Manufacturer Status | Discontinued |
| Weight | 0.53 lb |
Information About 024-30468-002
The 024-30468-002 is a YORK variable-speed oil pump drive associated with Johnson Controls chiller equipment. It is an air-cooled, transistorized PWM inverter incorporating pre-charge, rectification, DC bus, and inverter sections. The drive is specified for 380/400/415 VAC at 50 Hz and 460/575 VAC at 60 Hz configurations, with a maximum output rating of 440 VAC at 60 Hz. The original part has been discontinued and is identified as replaced by 371-05506-002.
Key Features:
- Variable-Speed Drive: Controls the speed of the oil pump motor in compatible YORK chiller systems.
- Oil Pump Application: Designed specifically for variable-speed oil pump assemblies.
- Three-Phase Operation: Used as a three-phase oil pump drive in YORK centrifugal chillers.
- PWM Inverter: Uses pulse-width-modulated inverter technology for variable-speed motor control.
- High-Voltage Version: Part 024-30468-002 is specified for 380–415 VAC 50 Hz and 460–575 VAC 60 Hz applications.
- Air-Cooled Design: Uses an air-cooled drive construction for thermal management.
- Compact Construction: Provides a compact drive package for integration into variable-speed oil pump panels.
- Replacement Part: The original 024-30468-002 is discontinued and has been replaced by 371-05506-002.
The 024-30468-002 delivers the reliability and precision required for variable-speed oil pump control in YORK centrifugal chiller systems.
