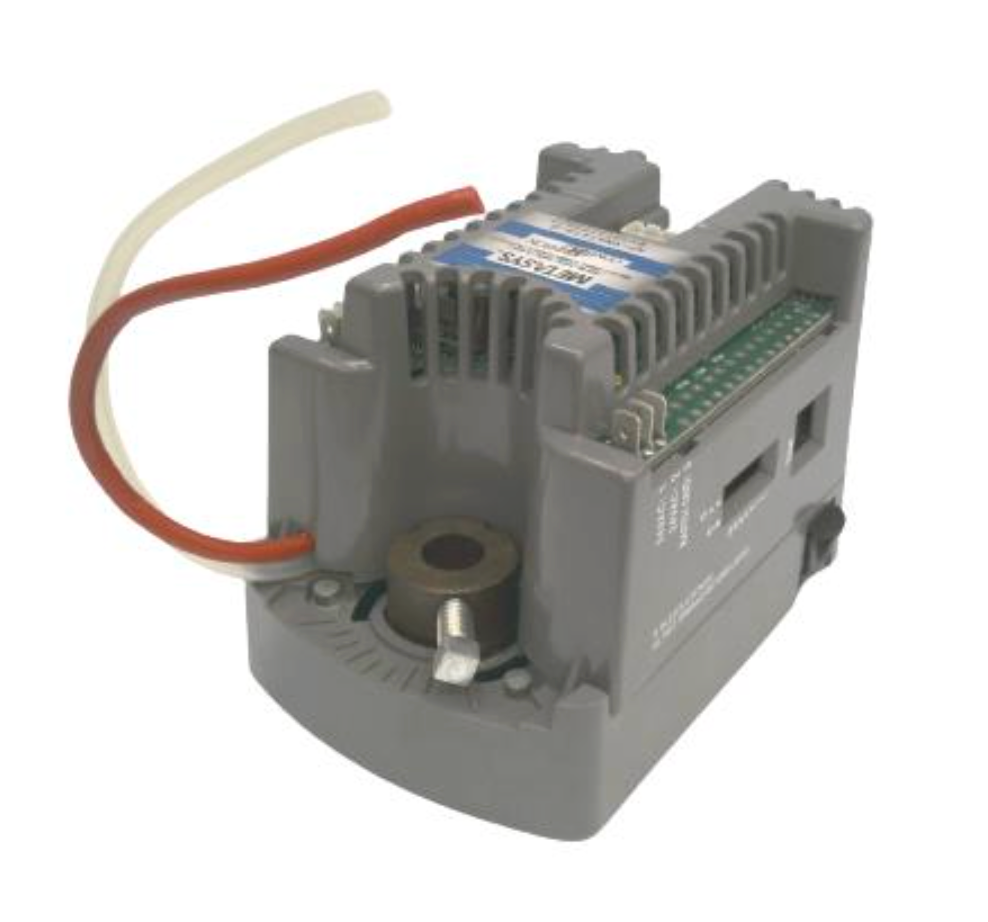

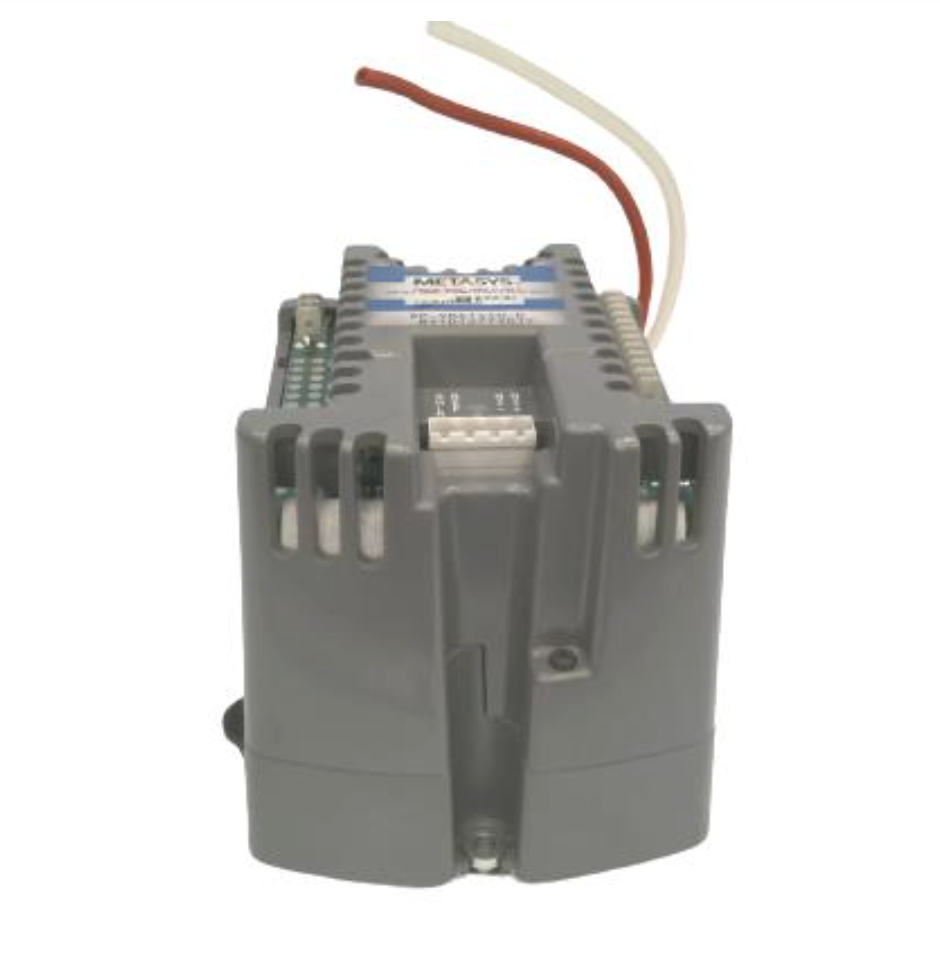

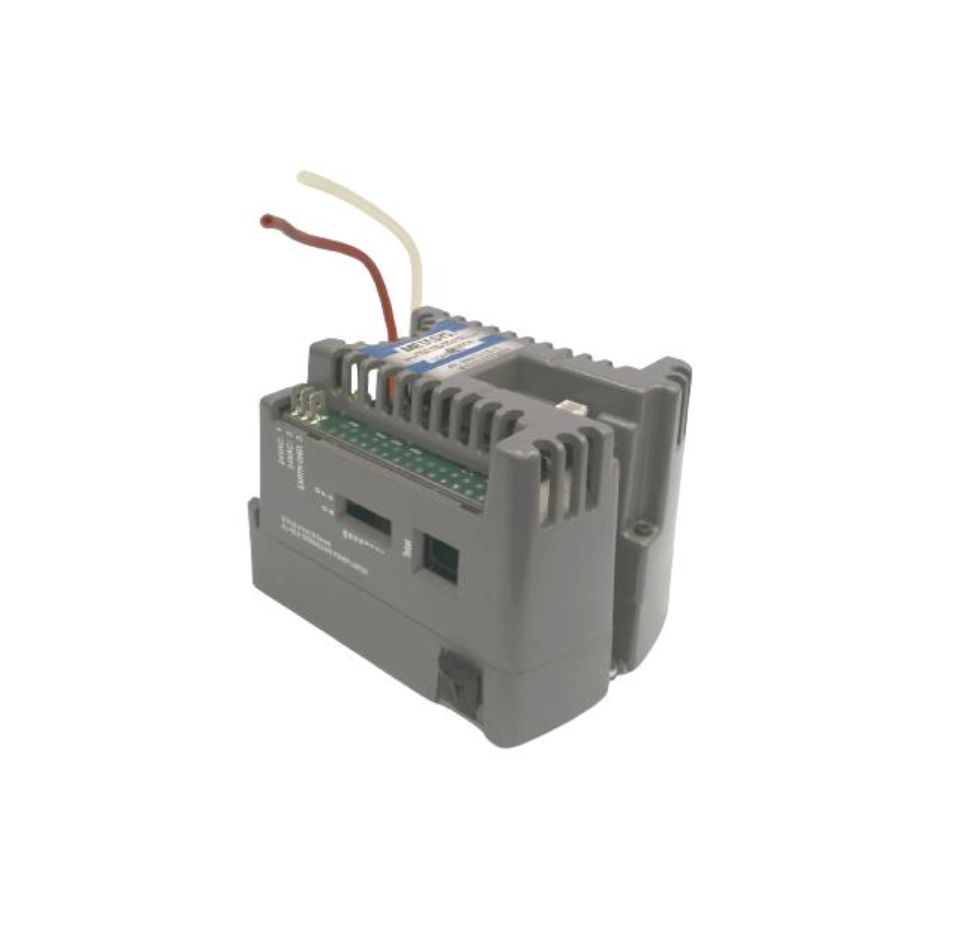

Johnson Controls AP-VMA1410-0 Integrated VAV Controller Actuator for Cooling Applications
- Regular price
- $457.00
- Sale price
- $457.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AP-VMA1410-0
Description
The Johnson Controls AP-VMA1410-0 is an integrated Variable Air Volume (VAV) controller, actuator, and pressure sensor assembly designed for cooling-only HVAC applications. It combines proportional damper control, airflow sensing, and programmable control functions into a single compact unit for commercial building automation systems. Although discontinued by the manufacturer, the AP-VMA1410-0 remains a dependable replacement for maintaining existing Metasys VAV installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | AP-VMA1410-0 |
| Subcategory | HVAC Accessory & Rebuild Kit & Seal Kit |
| Product Type | Electric Motor Actuator / VAV Modular Assembly |
| Series | VMA1400 Series |
| Application | Cooling-Only Variable Air Volume Terminal Units |
| Supply Voltage | 24–30 VAC/DC |
| Frequency | 50/60 Hz |
| Power Consumption | 10 VA Maximum |
| Actuator Type | Proportional Electric Actuator |
| Actuator Torque | 35 in-lb (4 N·m) Minimum |
| Response Time | 30 Seconds |
| Communication Interfaces | N2 Bus and Zone Bus |
| Pressure Sensor | Integrated Differential Pressure Sensor |
| Mounting | Direct VAV Box Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 1.13 kg |
Information About AP-VMA1410-0
The AP-VMA1410-0 is part of the Johnson Controls VMA1400 Series of Variable Air Volume Modular Assemblies developed for Metasys building automation systems. It integrates a programmable controller, electric actuator, and differential pressure sensor into one assembly, reducing installation time while improving airflow regulation and zone temperature control. The unit communicates over the N2 Bus and Zone Bus and is configurable using HVAC PRO software for commissioning and maintenance. Designed for cooling-only VAV terminal units, it provides accurate airflow measurement and proportional damper positioning for commercial HVAC applications.
Key Features:
- Integrated VAV Assembly: Combines controller, actuator, and pressure sensor into one compact device.
- Cooling-Only Application: Specifically designed for cooling-only Variable Air Volume terminal units.
- Proportional Damper Control: Provides accurate proportional actuator positioning with a 30-second response time.
- High Actuator Torque: Delivers a minimum torque of 35 in-lb (4 N·m) for dependable damper operation.
- N2 and Zone Bus Communication: Supports seamless integration with Johnson Controls Metasys systems.
- 24–30 VAC/DC Operation: Operates from low-voltage AC or DC power at 50/60 Hz.
- Compact Installation: Mounts directly to VAV terminal units using a single mounting screw.
- Built-In Airflow Measurement: Includes an integrated differential pressure sensor for precise airflow control.
The AP-VMA1410-0 delivers the reliability and precision required for proportional Variable Air Volume control in commercial HVAC systems.
