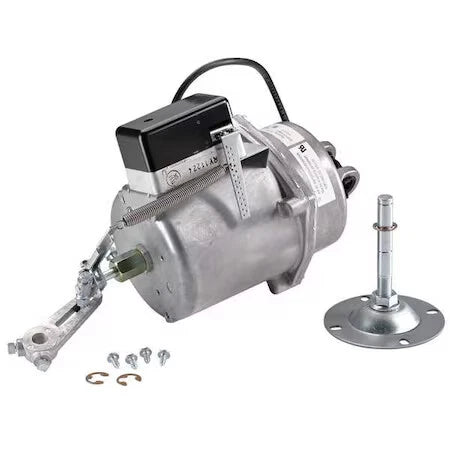

Johnson Controls D-3153-4 Pneumatic Damper Actuator with Positioner and Auxiliary Mounting Bracket
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D-3153-4
Description
The Johnson Controls D-3153-4 is a pneumatic damper actuator that converts control air pressure into linear movement for HVAC damper positioning. It provides a 3-inch stroke and an 8–13 psi nominal spring range, with a D-9502 positioner and auxiliary mounting bracket included.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Pneumatics |
| Part Number | D-3153-4 |
| Subcategory | Pneumatic Damper Actuators |
| Series | D-3153 |
| Actuator Type | Linear pneumatic actuator |
| Application | HVAC damper positioning |
| Stroke | 3 in. (76 mm) |
| Nominal Spring Range | 8–13 psi |
| HVAC Control Air Pressure | 0–20 psig (0–138 kPa) |
| Return Action | Spring return down |
| Included Positioner | D-9502 |
| Included Mounting Hardware | Auxiliary mounting bracket |
| Air Connection | 1/8 in. NPT straight barbed fitting |
| Compatible Tubing | 5/32 in. or 1/4 in. outside-diameter polytubing |
| Effective Diaphragm Area | 15 in² (97 cm²) |
| Construction Materials | Die-cast aluminum body; synthetic elastomer diaphragm |
| Ambient Operating Temperature | −20°F to 150°F (−29°C to 66°C) |
| Weight | 10.5 lb (4.8 kg) |
Information About D-3153-4
The D-3153-4 is part of the Johnson Controls D-3153 pneumatic actuator series. Its die-cast aluminum body houses a synthetic elastomer diaphragm with an effective area of 15 square inches. The assembly responds to signals from a compatible pneumatic controller or electro-pneumatic transducer. Its linkage arrangement transfers actuator travel to the connected damper mechanism.
Key Features:
- Pneumatic Operation: Uses control air pressure to position compatible HVAC dampers.
- Linear Stroke: Provides 3 inches of travel for the connected linkage.
- Nominal Spring Range: Features an 8–13 psi spring range.
- Included Positioner: Supplied with a D-9502 pneumatic positioner.
- Auxiliary Mounting Bracket: Includes the bracket specified for this actuator configuration.
- Aluminum Construction: Uses a die-cast aluminum body.
- Synthetic Diaphragm: Incorporates a synthetic elastomer diaphragm for pressure-driven operation.
- Barbed Air Connection: Provides a 1/8-inch NPT straight barbed fitting for compatible pneumatic tubing.
The D-3153-4 delivers the reliability and precision required for pneumatic damper positioning in compatible HVAC systems.
