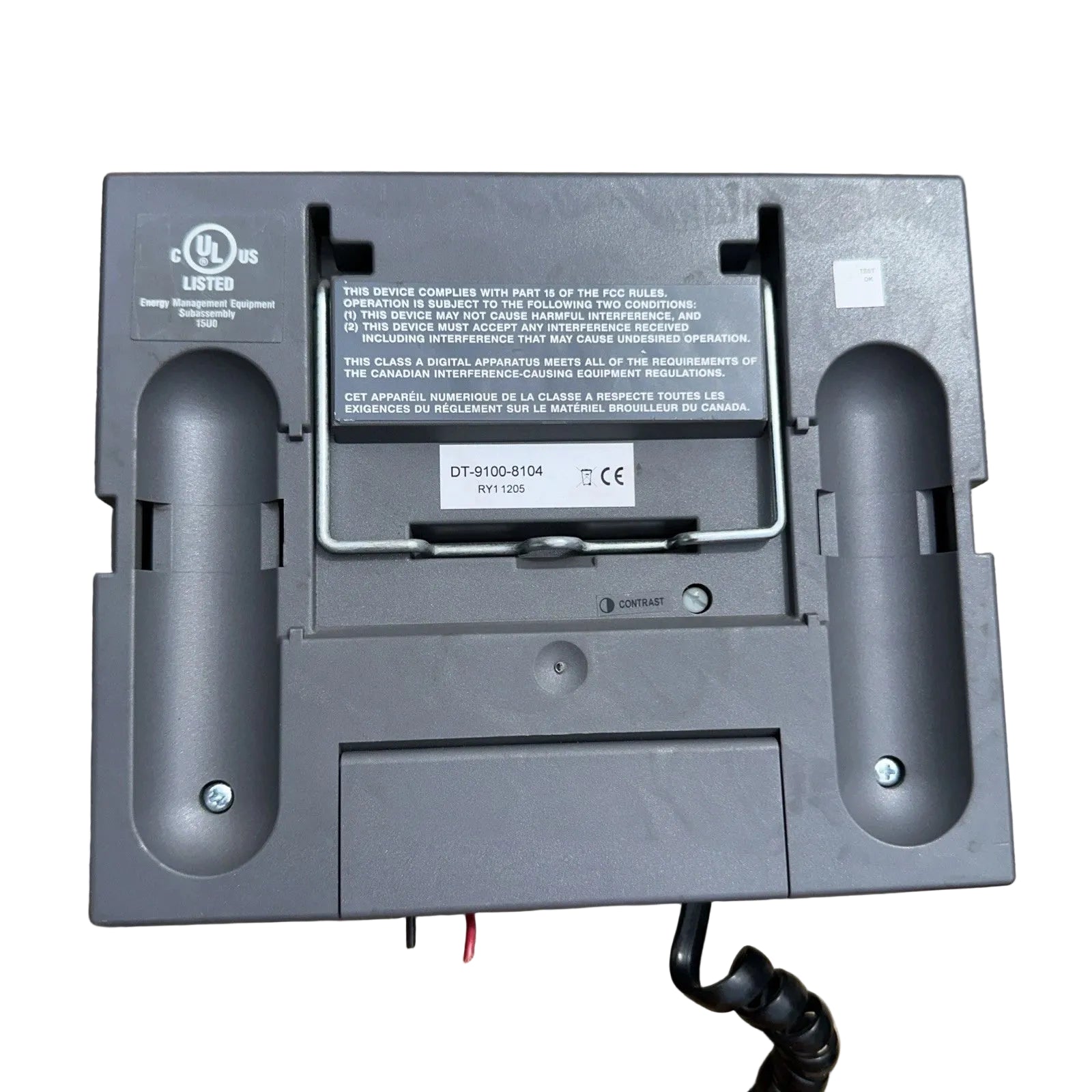

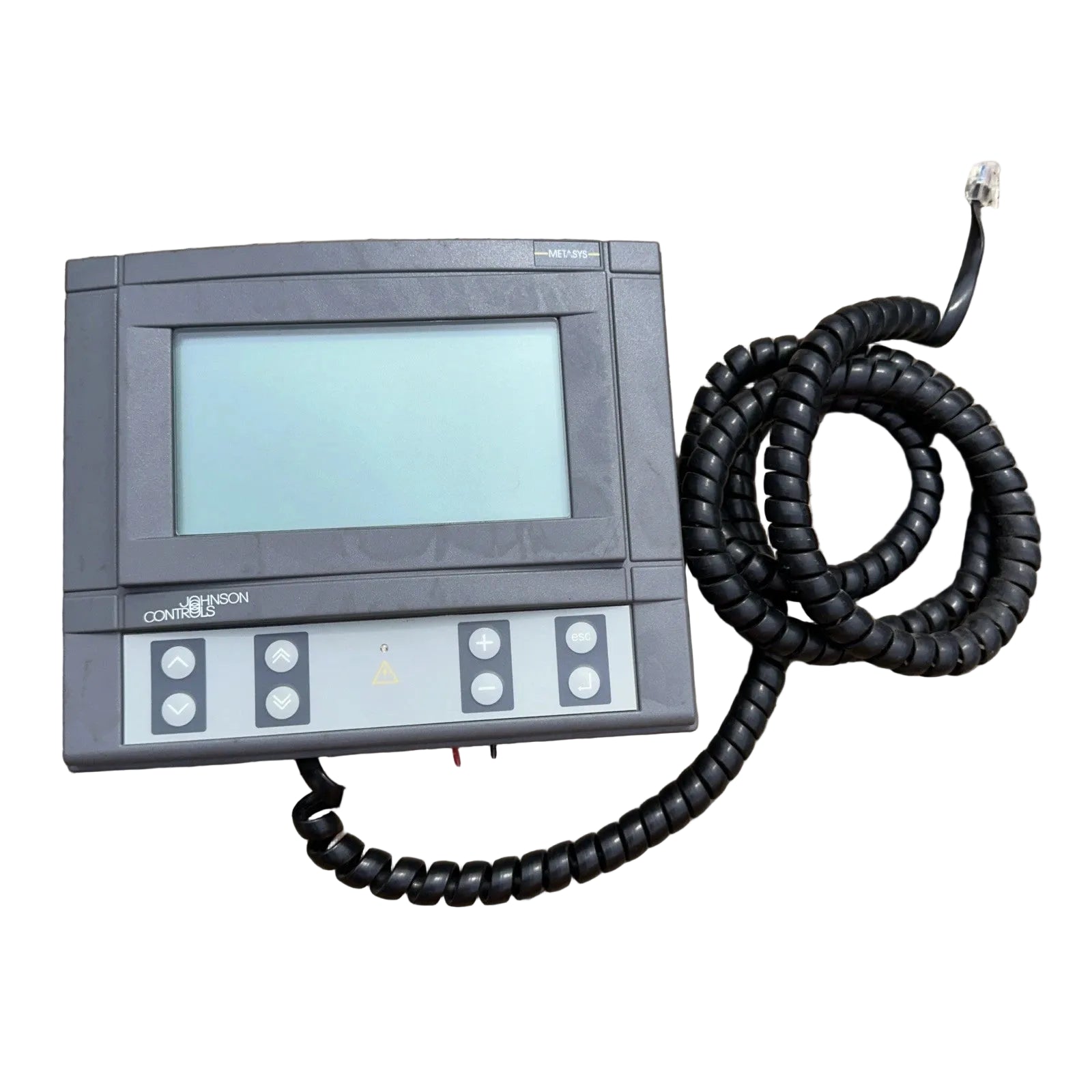

Johnson Controls DT-9100-8104 Metasys DX LCD Controller Display HMI for Building Automation
- Regular price
- $1,842.00
- Sale price
- $1,842.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DT-9100-8104
Description
The Johnson Controls DT-9100-8104 is a Metasys DX LCD display interface designed to provide local monitoring, configuration, and diagnostics for compatible Johnson Controls building automation controllers. Featuring a backlit graphical display and support for multiple controllers over the N2 Bus, the DT-9100-8104 enables efficient commissioning, troubleshooting, and day-to-day system operation in commercial HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Building Automation |
| Part Number | DT-9100-8104 |
| Subcategory | Controller Display HMI |
| Series | Metasys DX Series |
| Product Type | LCD Display Human-Machine Interface |
| Display Type | Backlit LCD |
| Display Resolution | 240 × 128 pixels |
| System Compatibility | Johnson Controls Metasys Building Automation Systems |
| Communication Protocol | Metasys N2 Bus |
| Maximum Connected Controllers | Up to 8 |
| Configuration Storage | 8 configurations with up to 96 points each |
| Functions | Monitoring, configuration, diagnostics, alarm viewing |
| Alarm Output | Hardware alarm contacts (Version 3) |
| Mounting Options | Panel Mount, Wall Mount, Handheld |
| Operating Interface | Graphical menu-driven display |
| Application | HVAC monitoring, commissioning, controller programming, building automation diagnostics |
| Weight | Approximately 0.6 kg |
Information About DT-9100-8104
The DT-9100-8104 is part of the Johnson Controls Metasys DX Series of human-machine interface (HMI) devices developed for local interaction with building automation equipment. It provides operators and service personnel with a convenient method for viewing real-time operating data, adjusting controller parameters, reviewing alarms, and performing diagnostics without requiring a separate workstation. The display communicates with compatible Metasys controllers through the N2 Bus and can store multiple controller configurations, allowing technicians to quickly switch between connected devices. Designed for flexible installation, the unit can be panel-mounted, wall-mounted, or used as a portable handheld display, making it well suited for commissioning and maintenance tasks.
Key Features:
- Graphical LCD display: 240 × 128-pixel backlit screen provides clear visualization of operating data.
- Metasys DX compatibility: Designed for Johnson Controls Metasys building automation systems.
- Multi-controller support: Communicates with up to eight compatible controllers through the N2 Bus.
- Configuration storage: Stores up to eight controller configurations with as many as 96 monitored points each.
- Live system monitoring: Displays real-time operating values, alarms, and controller status.
- Local configuration interface: Allows technicians to modify controller parameters directly from the display.
- Alarm contact output: Hardware alarm contacts available on Version 3 units.
- Diagnostic functions: Simplifies commissioning, troubleshooting, and preventive maintenance.
- Flexible mounting: Supports panel, wall, or handheld operation.
- User-friendly interface: Intuitive menu navigation for fast access to system information.
- Durable industrial design: Built for long-term operation in commercial control environments.
- Reliable communication: Uses the Metasys N2 network for dependable controller connectivity.
The DT-9100-8104 delivers the reliability and precision required for local HVAC monitoring, controller diagnostics, and building automation system management.
