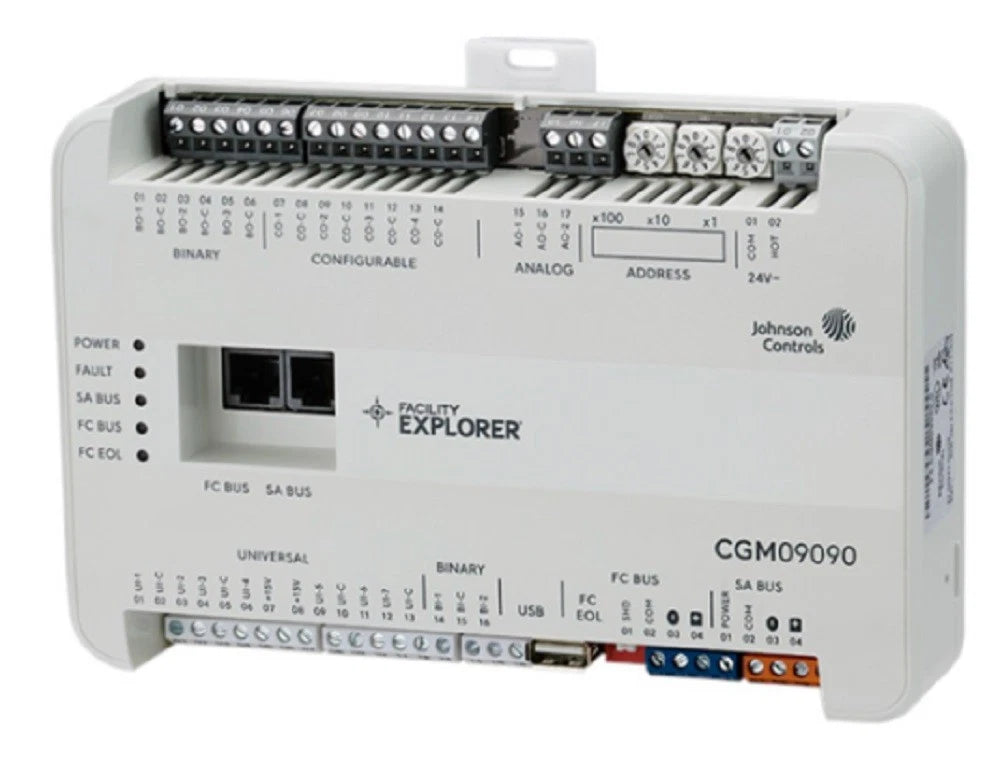

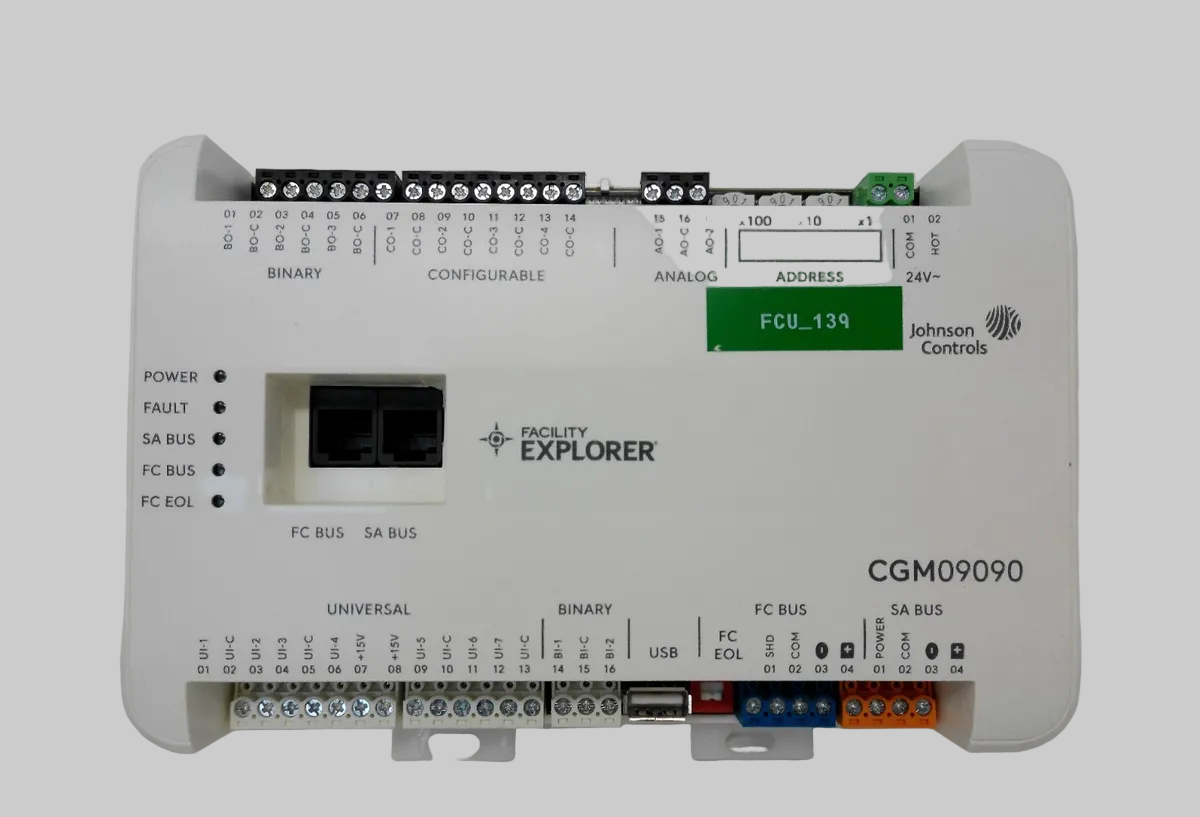

Johnson Controls F4-CGM09090-0 18-Point HVAC Controller
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F4-CGM09090-0
Description
The Johnson Controls F4-CGM09090-0 is an 18-point programmable general-purpose controller designed for HVAC and building automation applications. Operating on 24 VAC, it supports BACnet MS/TP and N2 communication protocols while providing flexible I/O for reliable monitoring and control of commercial HVAC equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Part Number | F4-CGM09090-0 |
| Product Family | F4 CGM |
| Category | HVAC |
| Subcategory | HVAC Control System Board |
| Product Type | General-Purpose Programmable Controller |
| Power Supply | 24 VAC (20–30 VAC) |
| Universal Inputs | 7 |
| Binary Inputs | 2 |
| Configurable Outputs | 4 |
| Analog Outputs | 2 |
| Binary Outputs | 3 |
| Total I/O Points | 18 |
| Processor | 32-Bit Microprocessor |
| Communication Protocols | BACnet MS/TP, N2 |
| Communication Ports | FC Bus, SA Bus |
| Real-Time Clock | Integrated |
| Mounting | DIN Rail or Surface Mount |
Information About F4-CGM09090-0
The F4-CGM09090-0 is part of the Johnson Controls Facility Explorer F4 CGM controller family, developed for general-purpose HVAC and facility automation applications. It is ideal for controlling air handling units, fan coil units, packaged HVAC equipment, and central plant systems. Equipped with a 32-bit microprocessor, integrated real-time clock, and advanced control technologies, the controller delivers fast processing and precise equipment management. Supporting BACnet MS/TP and N2 communications, it integrates easily into both new and legacy building automation systems.
Key Features:
- 18-Point General-Purpose Controller: Designed for commercial HVAC and building automation systems.
- Flexible I/O Configuration: Includes 7 universal inputs, 2 binary inputs, 4 configurable outputs, 2 analog outputs, and 3 binary outputs.
- 24 VAC Operation: Compatible with standard HVAC control systems.
- BACnet MS/TP & N2 Communication: Supports seamless integration into modern and legacy automation networks.
- 32-Bit Microprocessor: Provides fast processing and dependable controller performance.
- Integrated Real-Time Clock: Enables scheduling, trend logging, and standalone operation.
- Auto-Tuned Control Loops: Optimizes system performance while minimizing commissioning time.
- P-Adaptive & PRAC Technology: Improves control accuracy and energy efficiency.
The F4-CGM09090-0 delivers the reliability and flexibility required for advanced HVAC equipment control and building automation.
