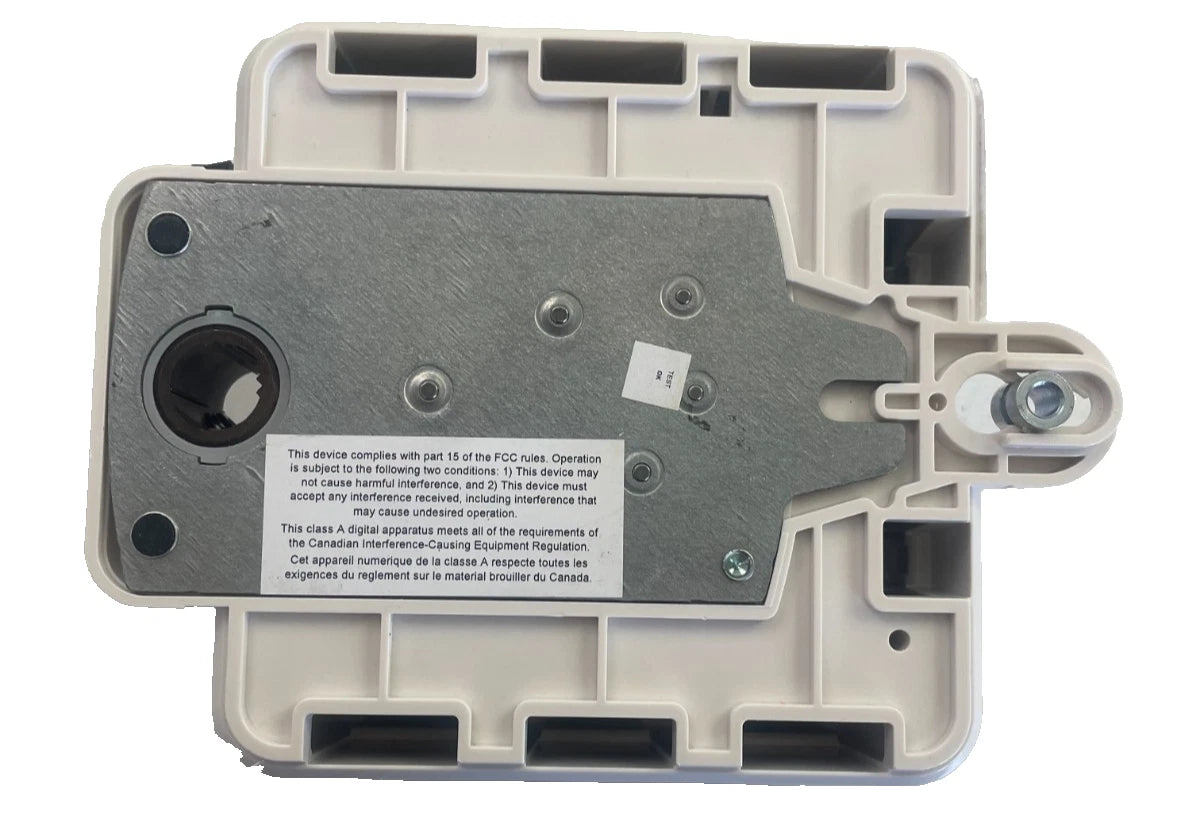

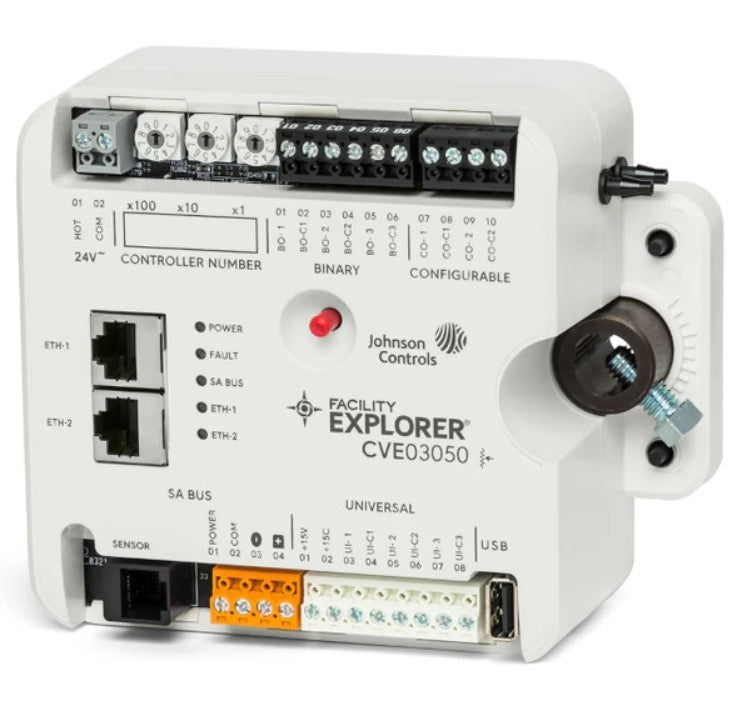

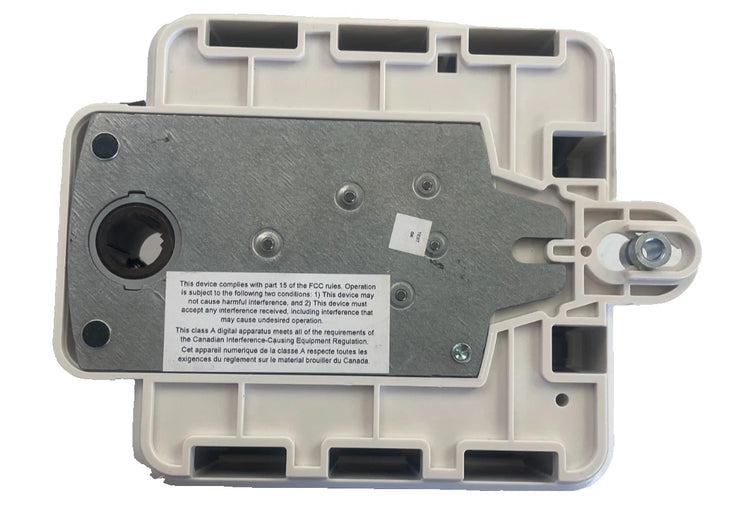

Johnson Controls F4-CVE03050-0P VAV Box Controller with Integrated Actuator and DPT Sensor
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F4-CVE03050-0P
Description
The Johnson Controls F4-CVE03050-0P is an advanced variable air volume box controller designed to optimize airflow management and zone temperature regulation in building automation systems. Equipped with an integrated damper actuator and a digital differential pressure transducer sensor, it delivers precise airflow measurement and mechanical control for commercial HVAC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Building Automation |
| Part Number | F4-CVE03050-0P |
| Subcategory | Programmable Controllers |
| Power Requirement | 24 VAC, 50/60 Hz |
| Power Consumption | 10 VA typical, 14 VA maximum |
| Processor | 32-bit Renesas Microcontroller |
| Communications Protocol | BACnet/IP, BACnet/SC |
| Actuator Torque Rating | 4 Nm (35 lb-in) |
| Total I/O Points | 8 (3 UI, 2 CO, 3 BO) |
| Pressure Sensor Range | -2 in. to 2 in. H2O |
| Networking Interfaces | Dual 10/100 Mbps Ethernet Ports |
| Operating Temperature | 32 F to 122 F |
| Weight | 1.52 lbs |
Information About F4-CVE03050-0P
The F4-CVE03050-0P is a core component of the Facility Explorer CV series, featuring a robust housing crafted from self-extinguishing materials to withstand demanding environmental conditions. This controller utilizes a 32-bit microprocessor and includes eight distinct input and output points, making it fully adaptable to various preloaded or customized automation applications. It is strictly designed for seamless compatibility with standard IT networks and legacy control frameworks, offering intuitive configuration through the Mobile Access Portal Gateway. Engineered for continuous operation even when offline, the unit employs a real-time clock and precise position feedback to maintain accurate environmental monitoring without uninterrupted central supervision.
Key Features:
- Integrated Actuator: incorporates a 35 lb-in damper actuator for direct control of airflow mechanics within the VAV cabinet.
- Digital DPT Sensor: utilizes a highly accurate differential pressure transducer to monitor exact air volumes and variations.
- Secure Communication: supports both BACnet/IP and BACnet/SC protocols for encrypted data transmission over standard networks.
- Position Feedback: features a built-in potentiometer to continuously monitor and report the actual physical position of the damper.
- Comprehensive I/O: includes three universal inputs, two configurable outputs, and three binary outputs to interface with external hardware.
- Real-Time Clock: ensures localized schedule execution and trend data logging even during communication disruptions.
- Dual Ethernet Ports: allows for daisy-chain networking architectures using RJ-45 connections to simplify installation wiring.
The F4-CVE03050-0P delivers the reliability and precision required for comprehensive VAV zone control and secure building automation networking.
