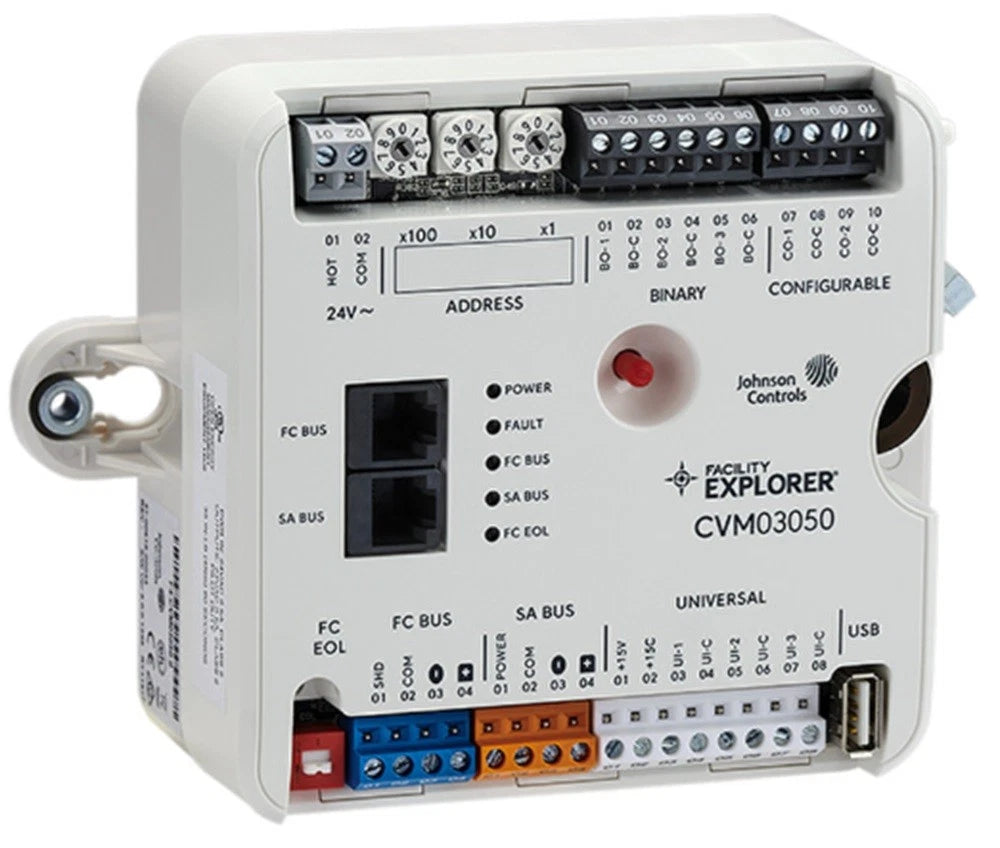

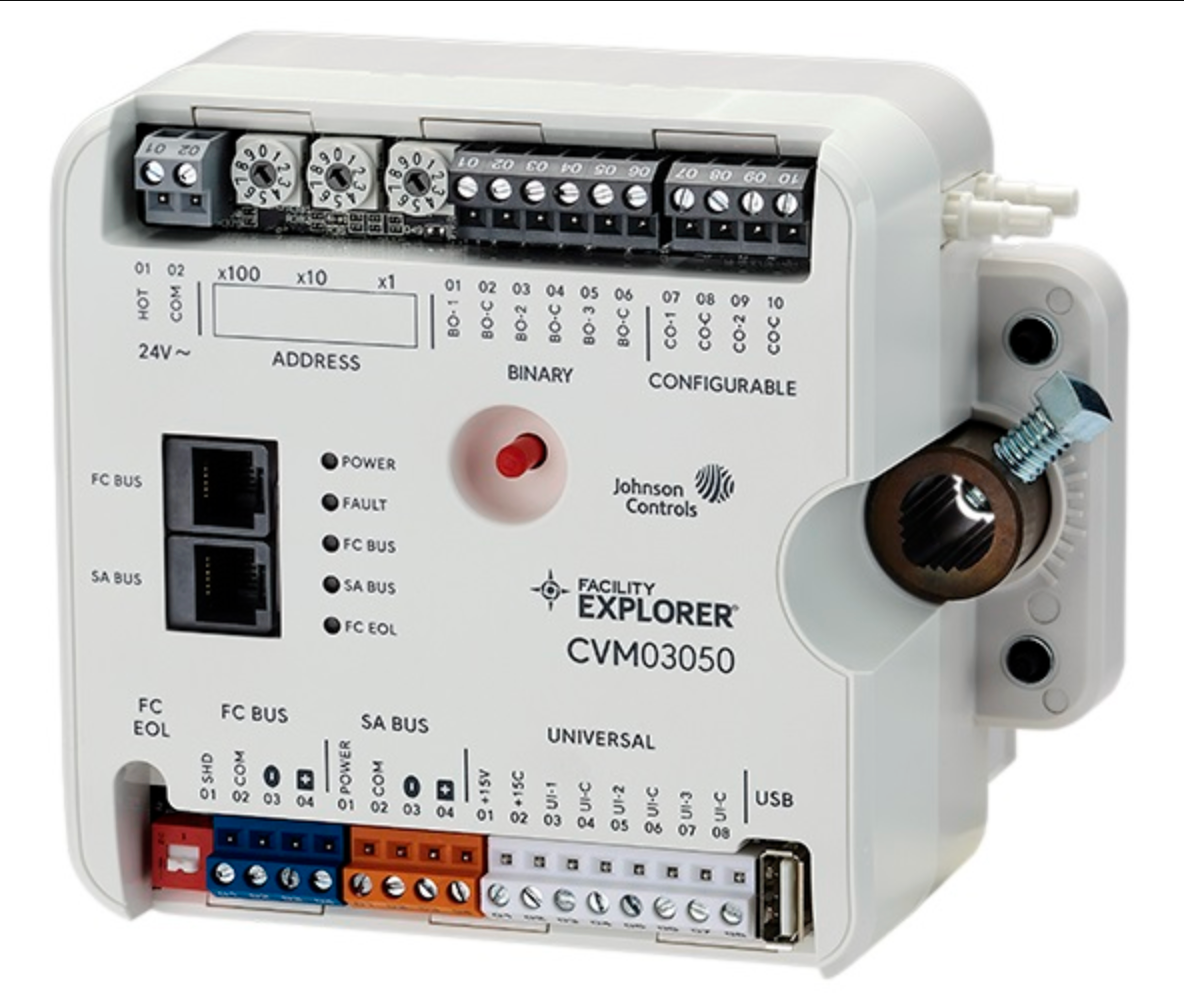

Johnson Controls F4-CVM03050-0 Programmable VAV Box Controller with Integrated Actuator and DPT Sensor
- Regular price
- $925.00
- Sale price
- $925.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F4-CVM03050-0
Description
The Johnson Controls F4-CVM03050-0 is a programmable VAV box controller with an integrated actuator and differential pressure transmitter (DPT) sensor designed for precise airflow regulation in commercial HVAC systems. As part of the Metasys® F4 Series, it combines intelligent control, integrated sensing, and network communications into a compact field device for variable air volume applications. Supporting BACnet MS/TP and N2 protocols, the controller enables reliable integration into Johnson Controls building automation systems. (docs.johnsoncontrols.com
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | F4-CVM03050-0 |
| Subcategory | VAV Box Controller |
| Product Type | Programmable VAV Controller with Integrated Actuator |
| Controller Family | F4 Series |
| Application | General Purpose, Variable Air Volume (VAV) |
| Power Supply | 20–30 VAC Nominal |
| Communication Network | BACnet MS/TP, N2 |
| Input/Output Capacity | 8 Points |
| I/O Configuration | 3 Universal Inputs, 2 Configurable Outputs, 3 Binary Outputs |
| Integrated Actuator | Yes |
| Integrated Sensor | Differential Pressure Transmitter (DPT) |
| Communication Ports | FC Bus Port, SA Bus Port, USB |
| Mounting | Damper Shaft Mount, Duct Mount |
| Programming | Programmable |
| Typical Application | Commercial HVAC Variable Air Volume Terminal Units |
| Weight | 0.70 kgs |
Information About F4-CVM03050-0
The F4-CVM03050-0 is a fourth-generation programmable VAV controller developed by Johnson Controls for commercial variable air volume terminal units. It integrates a direct-coupled damper actuator, differential pressure transmitter sensor, programmable control logic, and eight onboard input/output points into a single compact assembly, simplifying installation while reducing wiring requirements. Designed for both BACnet MS/TP and N2 communication networks, the controller connects directly to Metasys® supervisory systems while supporting local field devices through dedicated FC Bus and SA Bus ports. Operating from a nominal 24 VAC supply, it is suitable for pressure-independent VAV boxes requiring accurate airflow control, temperature regulation, and energy-efficient zone management. (docs.johnsoncontrols.com
Key Features:
- Integrated VAV Controller: Combines programmable control, actuator, and airflow sensing in one device.
- Built-In Differential Pressure Sensor: Measures airflow for accurate pressure-independent VAV control.
- Integrated Damper Actuator: Directly drives VAV dampers without requiring an external actuator.
- Eight Onboard I/O Points: Includes 3 universal inputs, 2 configurable outputs, and 3 binary outputs.
- BACnet MS/TP and N2 Communications: Supports integration with Johnson Controls Metasys® building automation systems.
- Multiple Communication Ports: Includes FC Bus, SA Bus, and USB ports for networking and commissioning.
- 24 VAC Operation: Designed for standard HVAC control power installations.
- Programmable Control Platform: Supports custom VAV applications for improved comfort and energy efficiency.
The F4-CVM03050-0 delivers the reliability and precision required for variable air volume control and commercial building automation applications.
