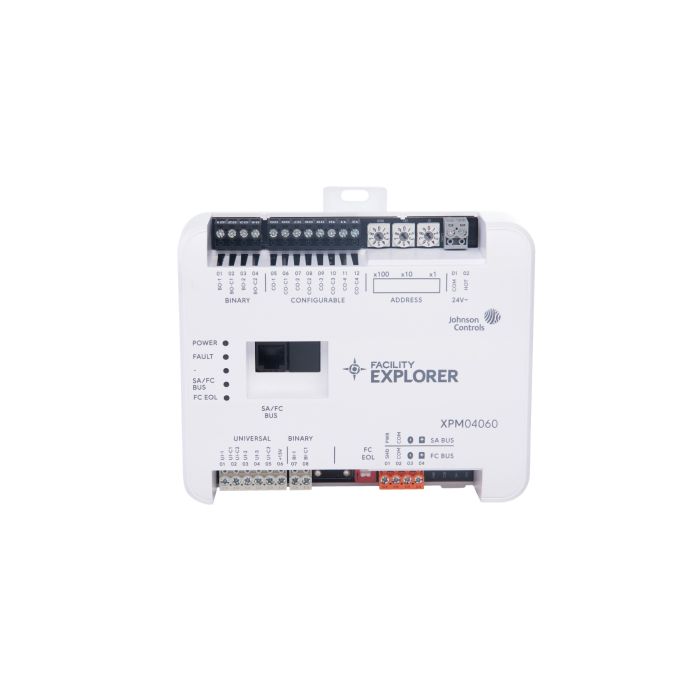

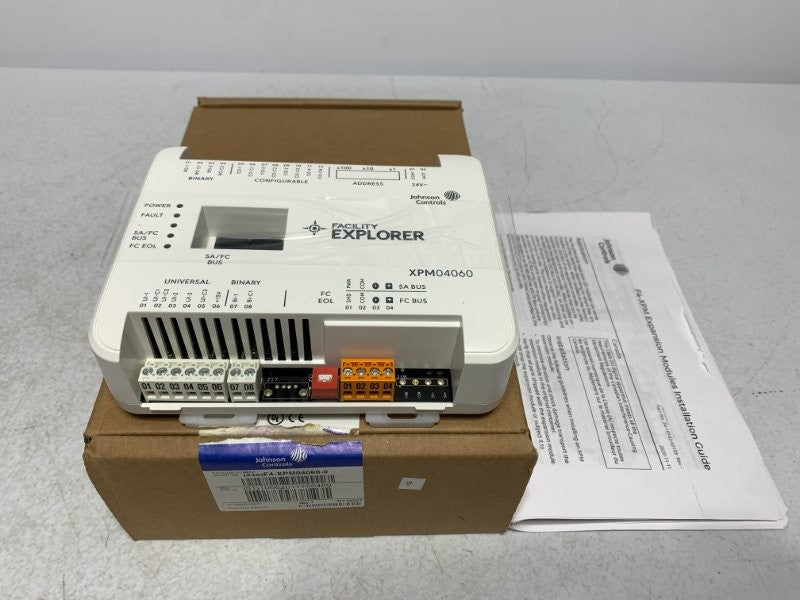

Johnson Controls F4-XPM04060-0 Facility Explorer 10-Point Input/Output Expansion Module with BACnet MS/TP
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F4-XPM04060-0
Description
The Johnson Controls F4-XPM04060-0 is a 10-point input/output expansion module designed to extend the capabilities of Facility Explorer® equipment controllers and supervisory controllers in commercial building automation systems. Supporting BACnet MS/TP communications and operating from a 24 VAC power supply, the module provides additional field I/O for monitoring and control applications. Its flexible architecture allows it to function either as an equipment controller expansion module or as an I/O point multiplexor within Facility Explorer networks. (docs.johnsoncontrols.com
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | F4-XPM04060-0 |
| Subcategory | Input/Output Expansion Module |
| Product Type | Facility Explorer I/O Expansion Module |
| Controller Family | Facility Explorer F4-XPM Series |
| Configuration | 10-Point |
| Input/Output Capacity | 10 Points |
| Input Configuration | 3 Universal Inputs, 1 Binary Input |
| Output Configuration | 4 Configurable Outputs, 2 Binary Outputs |
| Communication Protocol | BACnet MS/TP |
| Network Connection | SA Bus, FC Bus |
| Power Supply | 24 VAC |
| Application | Commercial HVAC and Building Automation |
| Operating Modes | SA Bus Expansion Module or FC Bus Point Multiplexor |
| Typical Use | Equipment Controller Expansion and Distributed I/O |
| Weight | 0.45 kg (0.99 lb) |
Information About F4-XPM04060-0
The F4-XPM04060-0 is part of the Johnson Controls Facility Explorer® F4-XPM Series of programmable input/output expansion modules developed for commercial HVAC and building automation systems. When connected to the Sensor/Actuator (SA) Bus of a compatible Facility Explorer equipment controller, it expands the available field input and output capacity by providing ten additional I/O points for sensors, actuators, and controlled devices. When installed on the Field Controller (FC) Bus of a Facility Explorer supervisory controller, the module functions as an I/O point multiplexor, enabling centralized monitoring, peer-to-peer point sharing, and distributed control across the BACnet MS/TP network. Powered by 24 VAC and supporting native BACnet MS/TP communications, the module integrates seamlessly into Johnson Controls Facility Explorer building automation installations.
Key Features:
- 10-Point Expansion Module: Adds ten configurable field I/O points to compatible Facility Explorer controllers.
- Dual Installation Modes: Operates as an SA Bus expansion module or an FC Bus point multiplexor.
- BACnet MS/TP Communication: Supports reliable integration with Facility Explorer automation networks.
- Flexible I/O Configuration: Provides 3 universal inputs, 1 binary input, 4 configurable outputs, and 2 binary outputs.
- 24 VAC Operation: Compatible with standard HVAC control power supplies.
- Facility Explorer Compatibility: Designed specifically for Johnson Controls Facility Explorer equipment and supervisory controllers.
- Peer-to-Peer Point Sharing: Supports distributed control applications between compatible controllers on the FC Bus.
- Commercial Building Automation: Suitable for HVAC equipment monitoring, control expansion, and energy management applications.
The F4-XPM04060-0 delivers the reliability and precision required for scalable input/output expansion in commercial building automation and HVAC control systems.
