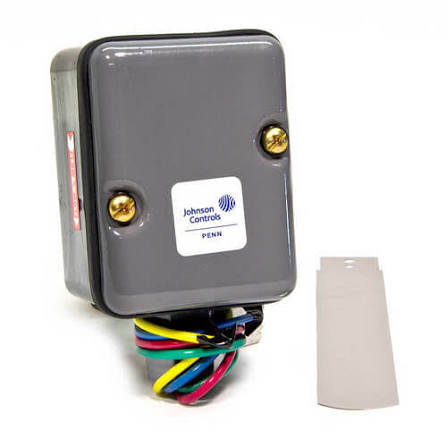

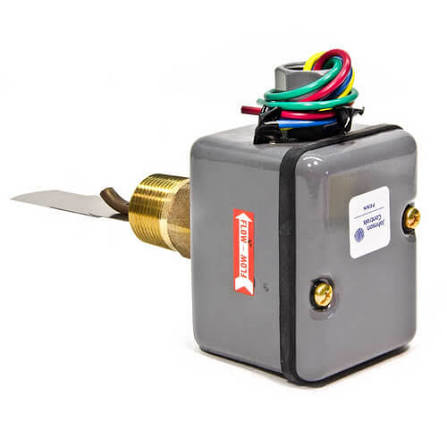

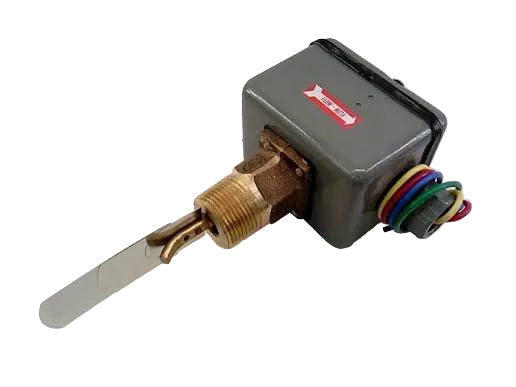

Johnson Controls F61MB-1C 1-Inch MNPT 760 GPM SPDT Flow Switch
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F61MB-1C
Description
The Johnson Controls F61MB-1C is a mechanical flow switch designed to monitor liquid flow in piping systems and provide SPDT switching for connected control equipment. It features a 1-inch MNPT connection, NEMA 3R enclosure, and a 3-inch paddle with an additional 6-inch paddle for different installation requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Sensors & Switches |
| Part Number | F61MB-1C |
| Subcategory | Flow Switch |
| Product Type | Mechanical Flow Switch |
| Connection Size | 1 inch MNPT |
| Contact Configuration | SPDT |
| Maximum Flow Rating | 760 GPM |
| Enclosure Rating | NEMA 3R |
| Standard Paddle | 3 inch |
| Additional Paddle | 6 inch |
| Application | Fluid flow monitoring and control |
| Manufacturer Status | Discontinued by manufacturer |
| Weight | 1.95 lbs |
Information About F61MB-1C
The F61MB-1C is a Johnson Controls F61 Series flow switch configured for applications requiring mechanical flow detection and switching. Its SPDT contact arrangement allows the switch to interface with compatible control and monitoring circuits based on changes in flow. The device uses a 1-inch male NPT connection and is rated for flow applications up to 760 GPM. Its NEMA 3R enclosure provides protection suitable for installations where the device may be exposed to outdoor or damp environmental conditions.
Key Features:
- Flow Monitoring: Detects liquid flow changes in compatible piping systems.
- SPDT Switching: Provides a single-pole double-throw contact configuration for control circuits.
- 1-Inch Connection: Uses a 1-inch male NPT connection for compatible piping installations.
- Flow Capacity: Rated for applications with flow rates up to 760 GPM.
- NEMA 3R Enclosure: Provides enclosure protection for suitable outdoor and damp-location installations.
- 3-Inch Paddle: Includes a standard 3-inch paddle for flow detection.
- Additional Paddle: Includes an extra 6-inch paddle to accommodate different pipe configurations.
- Mechanical Design: Provides direct mechanical flow actuation without requiring electronic sensing.
The F61MB-1C delivers the reliability and precision required for mechanical flow monitoring and control in compatible piping and fluid-handling systems.
