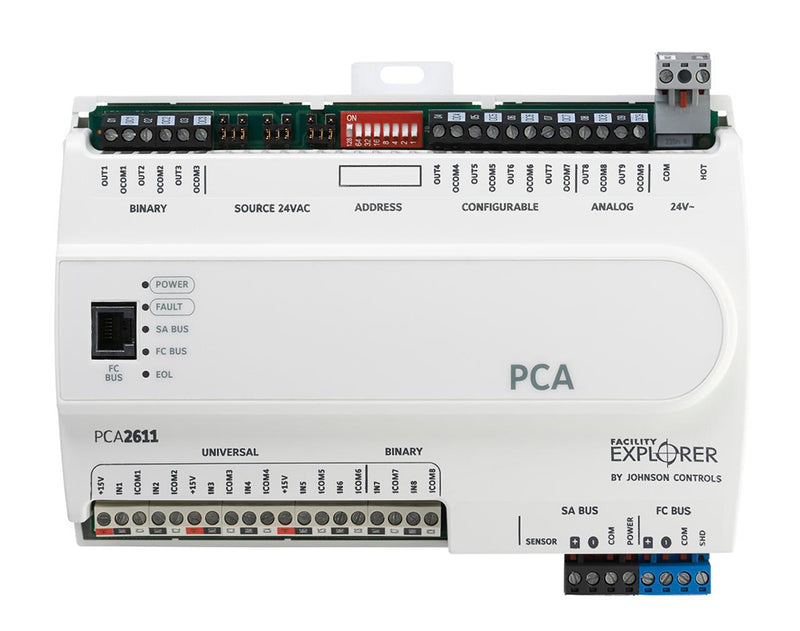

Johnson Controls FX-PCA2611-0 Facility Explorer 17-Point Controller
- Regular price
- $5,599.00
- Sale price
- $5,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FX-PCA2611-0
Description
Johnson Controls FX-PCA2611-0 is a 17-point Facility Explorer programmable controller for building automation and HVAC applications. It provides configurable sensor inputs and control outputs, with BACnet MS/TP or N2 communication over RS-485.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | FX-PCA2611-0 |
| Subcategory | Programmable Controllers |
| Product Family | Facility Explorer FX-PC |
| Controller Type | 17-point advanced application programmable controller |
| Universal Inputs | 6 |
| Binary Inputs | 2 |
| Configurable Outputs | 4 |
| Binary Outputs | 3 |
| Analog Outputs | 2 |
| Communications | RS-485; selectable BACnet MS/TP or N2 |
| Bus Support | FC Bus and SA Bus |
| Supply Voltage | 24 VAC nominal |
| Power Consumption | 14 VA maximum |
| Dimensions | 150 × 190 × 53 mm, including terminals and mounting clips |
| Weight | 0.5 kg |
Information About FX-PCA2611-0
The FX-PCA2611-0 belongs to Johnson Controls’ Facility Explorer FX-PC programmable controller family. Its 17 configurable points comprise 6 universal inputs, 2 binary inputs, 4 configurable outputs, 3 binary outputs, and 2 analog outputs. The controller communicates over RS-485 using selectable BACnet MS/TP or N2 protocols and connects to FC and SA buses for supervisory controllers and field devices. An integral real-time clock and 24 VAC supply support local control and scheduling functions.
Key Features:
- 17-Point Programmable Controller: Provides configurable inputs and outputs for building automation and HVAC equipment control.
- Six Universal Inputs: Accepts supported sensor signals including voltage, current, resistance, and dry-contact inputs.
- Multiple Output Types: Includes 2 analog outputs, 3 binary outputs, and 4 configurable outputs for connected equipment.
- Selectable BACnet MS/TP or N2: Communicates over RS-485 using the supported building automation protocol.
- FC and SA Bus Support: Connects with supervisory controllers, network sensors, and compatible field devices.
- Integral Real-Time Clock: Supports controller timekeeping and scheduled control functions.
The FX-PCA2611-0 delivers the reliability and precision required for programmable HVAC and building automation control.
