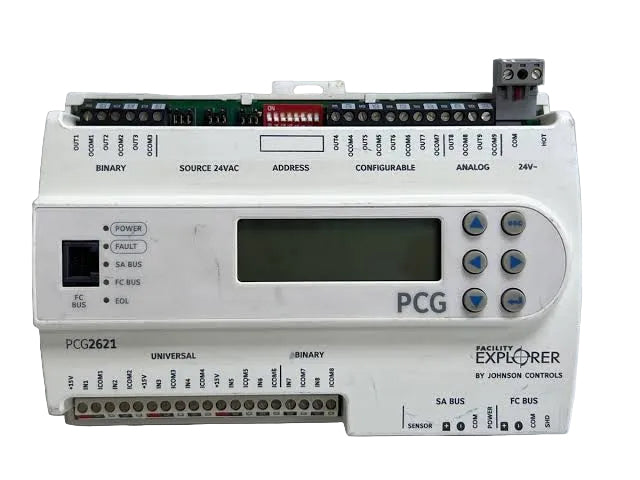

Johnson Controls FX-PCG2621-0 17-Point Programmable HVAC Controller with Display
- Regular price
- $2,332.00
- Sale price
- $2,332.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FX-PCG2621-0
Description
The Johnson Controls FX-PCG2621-0 is a programmable general-purpose HVAC controller with 17 points, an integral display, and a push-button interface. It provides configurable inputs and outputs, FC Bus and SA Bus communication, and 24 VAC operation for building automation and HVAC control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | FX-PCG2621-0 |
| Subcategory | HVAC Control System Board |
| Controller Type | Programmable General-Purpose Controller |
| Point Capacity | 17 points |
| Supply Voltage | 24 VAC nominal; 20–30 VAC range |
| Power Frequency | 50/60 Hz |
| Maximum Power Consumption | 20 VA |
| Processor | H8SX/166xR Renesas microcontroller |
| Memory | 1 MB Flash; 512 KB RAM |
| Universal Inputs | 6 |
| Binary Inputs | 2 |
| Binary Outputs | 3 |
| Analog Outputs | 2 |
| Configurable Outputs | 4 |
| Analog Input Resolution | 16-bit |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Communication | 3-wire FC Bus; 4-wire SA Bus |
| Mounting | 35 mm DIN rail or flat-surface screw mounting |
| Housing Material | ABS and polycarbonate, UL94 5VB |
| Protection Class | IP20 |
| Dimensions | 150 × 190 × 53 mm (5-7/8 × 7-1/2 × 2-1/8 in.) |
| Weight | 1.16 lbs |
Information About FX-PCG2621-0
The FX-PCG2621-0 is an FX-PC Series field controller built around a Renesas H8SX/166xR microcontroller with 1 MB of Flash memory and 512 KB of RAM. Its I/O configuration includes universal inputs, binary inputs, binary outputs, analog outputs, and configurable outputs for connection to HVAC sensors and actuators. The controller communicates through a 3-wire FC Bus and 4-wire SA Bus and can provide 15 VDC bus power to compatible devices. It supports field addressing from 4 through 127 and can be mounted on a 35 mm DIN rail or directly on a flat surface.
Key Features:
- Programmable Controller: Provides general-purpose programmable control for HVAC and building automation applications.
- 17-Point I/O: Combines universal, binary, analog, and configurable inputs and outputs in one controller.
- Integral Display: Includes a built-in display with push-button interface for local operation and configuration.
- Dual Bus Communication: Supports 3-wire FC Bus and 4-wire SA Bus communication architectures.
- Flexible Inputs: Six universal inputs support voltage, current, resistance, and dry-contact signals.
- Configurable Outputs: Four outputs can be configured for 0–10 VDC or 24 VAC Triac operation.
- Memory Capacity: Provides 1 MB Flash memory and 512 KB RAM for controller operation and application data.
- DIN Rail Mounting: Supports horizontal installation on a single 35 mm DIN rail or surface mounting.
The FX-PCG2621-0 delivers the reliability and precision required for programmable HVAC control, sensor integration, and building automation applications.
