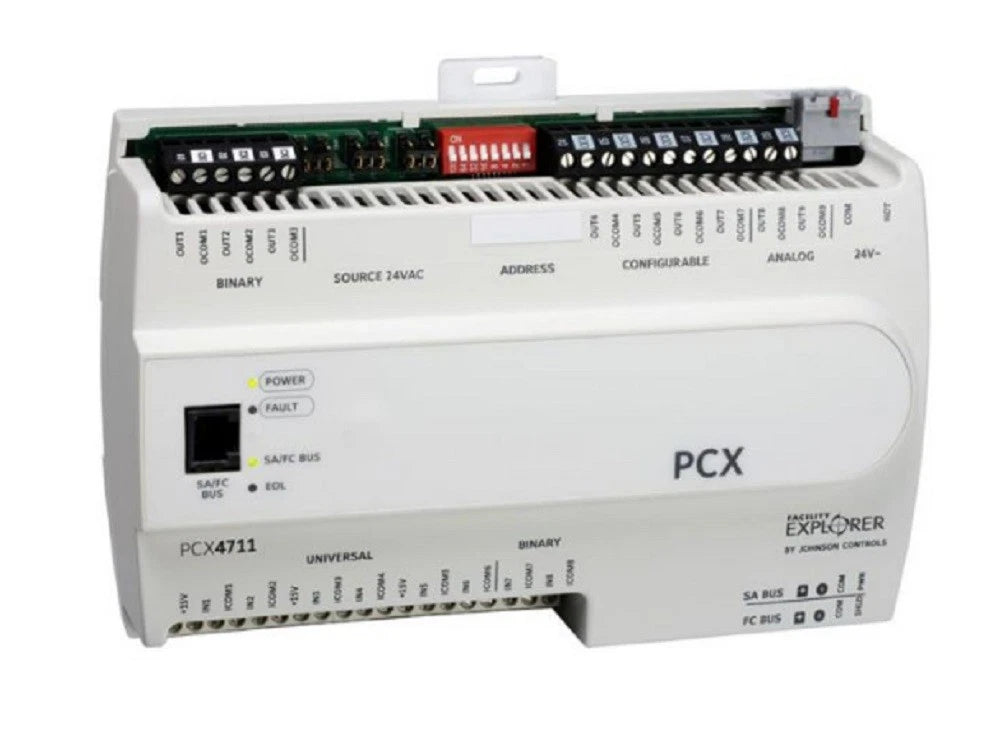

Johnson Controls FX-PCX4711-0 Facility Explorer 17-Point Expansion I/O Module
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FX-PCX4711-0
Description
The Johnson Controls FX-PCX4711-0 is a 17-point expansion input/output module for Facility Explorer programmable controllers. It provides 6 universal inputs, 2 binary inputs, 3 binary outputs, 2 analog outputs, and 4 configurable outputs for HVAC and building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC & Building Automation |
| Part Number | FX-PCX4711-0 |
| Subcategory | I/O Modules |
| Product Family | Facility Explorer FX-PC |
| Product Type | 17-Point Expansion I/O Module |
| Universal Inputs | 6 |
| Binary Inputs | 2 |
| Binary Outputs | 3 |
| Analog Outputs | 2 |
| Configurable Outputs | 4 |
| Supply Voltage | 24 VAC nominal |
| Communication | BACnet MS/TP, RS-485 |
| Bus Support | FC Bus and SA Bus |
| Processor | 32-bit Renesas H8SX/166xR |
| Flash Memory | 512 KB |
| RAM | 128 KB |
| Output Resolution | 16-bit |
| Mounting | 35 mm DIN Rail or Screw Mount |
| Dimensions | 150 × 190 × 53 mm (5-7/8 × 7-1/2 × 2-1/8 in.) |
| Weight | 1.1 lb |
Information About FX-PCX4711-0
The FX-PCX4711-0 is part of the Johnson Controls Facility Explorer FX-PC programmable controller family and expands the available I/O points of compatible controllers. It communicates over an RS-485 BACnet MS/TP network and supports both FC Bus and SA Bus connections. The module uses a 32-bit microcontroller with 512 KB flash memory and 128 KB RAM for field-level control functions. Its configurable I/O architecture supports voltage, current, resistance, dry-contact, pulse, and other control signals used in HVAC systems.
Key Features:
- Expansion I/O: Provides 17 configurable input and output points for Facility Explorer systems.
- Universal Inputs: Includes 6 universal inputs supporting 0–10 VDC, 4–20 mA, resistance, and binary signals.
- Binary Inputs: Provides 2 binary inputs for maintained dry-contact or pulse-counting applications.
- Binary Outputs: Includes 3 24 VAC Triac binary outputs with selectable internal or external power.
- Analog Outputs: Provides 2 outputs configurable for 0–10 VDC or 4–20 mA operation.
- Configurable Outputs: Includes 4 outputs supporting 0–10 VDC or 24 VAC/DC FET binary operation.
- BACnet Communication: Supports BACnet MS/TP over RS-485 with FC Bus and SA Bus connectivity.
- DIN Rail Mounting: Designed for horizontal installation on a 35 mm DIN rail or screw mounting.
The FX-PCX4711-0 delivers the reliability and precision required for expanding I/O capacity in HVAC and building automation systems.
