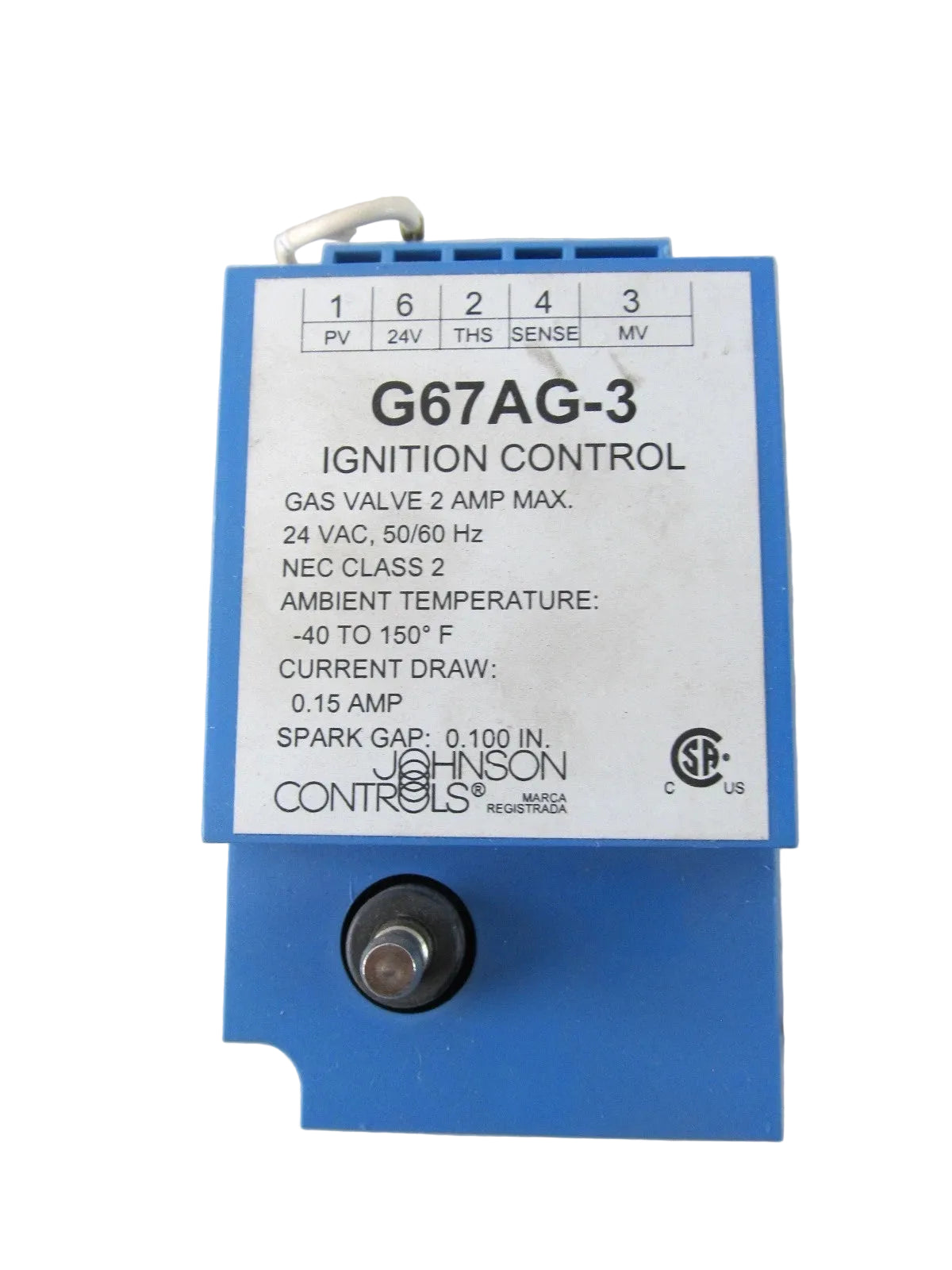

Johnson Controls G67AG-3 Intermittent Pilot Ignition Control With Spark Ignition and Flame Monitoring
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: G67AG-3
Description
The Johnson Controls G67AG-3 is an intermittent pilot ignition control for compatible gas-fired heating equipment. It uses high-voltage spark ignition to light the pilot and permits main burner operation after the pilot flame is detected.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | G67AG-3 |
| Subcategory | Ignition Control Modules |
| Series | G67 |
| Ignition System | Intermittent pilot; indirect ignition |
| Control Construction | Solid-state, self-checking |
| Power Supply | 24 VAC nominal, 50/60 Hz |
| Nominal Operating Current | 0.15 A plus connected gas valve loads |
| Ignition Source | High-voltage spark, capacitive discharge |
| Flame Detection | Flame rectification |
| Minimum Flame Current | 0.2 microampere |
| Flame Failure Response | 0.8 second maximum |
| Ignition Trial | Continuous while heat demand remains; non-100% lockout design |
| Nominal Spark Gap | 0.1 inch / approximately 2.5 mm |
| Gas Valve Contact Ratings | Pilot and main valve: each 2 A continuous, 5 A inrush |
| Operating Environment | −40 to 150°F / −40 to 66°C; maximum 95% relative humidity, noncondensing |
| Lifecycle Status | Discontinued by manufacturer |
| Weight | 0.25 lbs |
Information About G67AG-3
The G67AG-3 is a self-checking model in the Johnson Controls G67 ignition control family. Its solid-state circuitry integrates spark generation, flame monitoring, and pilot and main gas valve control. It operates with a compatible thermostat, pilot burner, flame sensor, and redundant main gas valve arrangement. The control uses flame rectification to verify combustion and responds to flame loss by de-energizing the main valve and restarting the ignition sequence.
Key Features:
- Intermittent pilot operation: Energizes the pilot during a heating demand and shuts it off when the demand ends.
- Spark ignition: Uses capacitive-discharge high-voltage spark to ignite the pilot burner.
- Flame verification: Uses flame rectification before permitting main gas valve operation.
- Flame-loss response: De-energizes the main valve within a maximum of 0.8 second after loss of proven flame.
- Continuous ignition trial: Continues attempting pilot ignition while the thermostat calls for heat.
- Low-voltage supply: Operates from nominal 24 VAC power at 50/60 Hz.
- Ambient capability: Supports operating temperatures from −40 to 150°F.
- Specified spark gap: Uses a nominal electrode gap of 0.1 inch.
The G67AG-3 delivers the reliability and precision required for coordinated pilot ignition and flame supervision in compatible gas heating systems.
