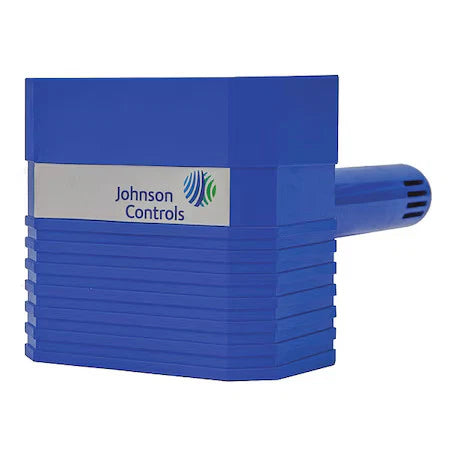

Johnson Controls HE-69130NP-0 Duct Humidity and Temperature Sensor
- Regular price
- $659.00
- Sale price
- $659.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HE-69130NP-0
Description
The Johnson Controls HE-69130NP-0 is a duct-mounted humidity and temperature sensor designed for HVAC and building automation systems. It combines relative humidity measurement with temperature sensing in a single duct probe assembly for environmental monitoring and control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Control Equipment |
| Part Number | HE-69130NP-0 |
| Subcategory | Duct Humidity and Temperature Sensors |
| Product Type | Duct-Mounted Humidity and Temperature Sensor |
| Humidity Accuracy | ±3% RH |
| Humidity Range | 0% to 100% RH |
| Temperature Sensor | Thin-Film Nickel RTD |
| Temperature Sensor Resistance | 1K Ohm at 70°F |
| Output Signal | 0–10 VDC Proportional |
| Power Requirements | 14–30 VDC or 20–30 VAC |
| Frequency | 50/60 Hz |
| Duct Probe Length | 6.25 in |
| Operating Temperature | -20°F to 140°F (-29°C to 60°C) |
| Enclosure Material | All-Plastic |
| Mounting Type | Duct Mounted |
| Application | HVAC / Building Automation |
| Weight | 0.50 lbs |
Information About HE-69130NP-0
The HE-69130NP-0 uses a 6.25-inch duct probe to measure conditions within air-handling ductwork. Its humidity sensing element provides ±3% RH accuracy, while temperature is measured using a thin-film nickel RTD rated at 1K ohm at 70°F. The sensor provides a selectable 0–10 VDC proportional output for humidity indication and operates from either 14–30 VDC or 20–30 VAC. Its all-plastic enclosure is designed for duct applications and supports installation in plenum environments.
Key Features:
- Dual Environmental Sensing: Combines relative humidity and temperature measurement in one duct-mounted device.
- Humidity Accuracy: Provides relative humidity measurement with ±3% RH accuracy.
- Temperature Sensing: Uses a thin-film nickel RTD rated at 1K ohm at 70°F.
- Proportional Output: Provides a 0–10 VDC output proportional to measured humidity.
- Flexible Power: Operates from 14–30 VDC or 20–30 VAC at 50/60 Hz.
- Duct Probe: Includes a 6.25-inch probe for sensing conditions inside HVAC ductwork.
- Wide RH Range: Supports measurement across 0% to 100% relative humidity.
- Plastic Enclosure: Uses an all-plastic housing designed for thermal performance and plenum applications.
The HE-69130NP-0 delivers the reliability and precision required for duct humidity monitoring, temperature measurement, HVAC control, and building automation applications.
