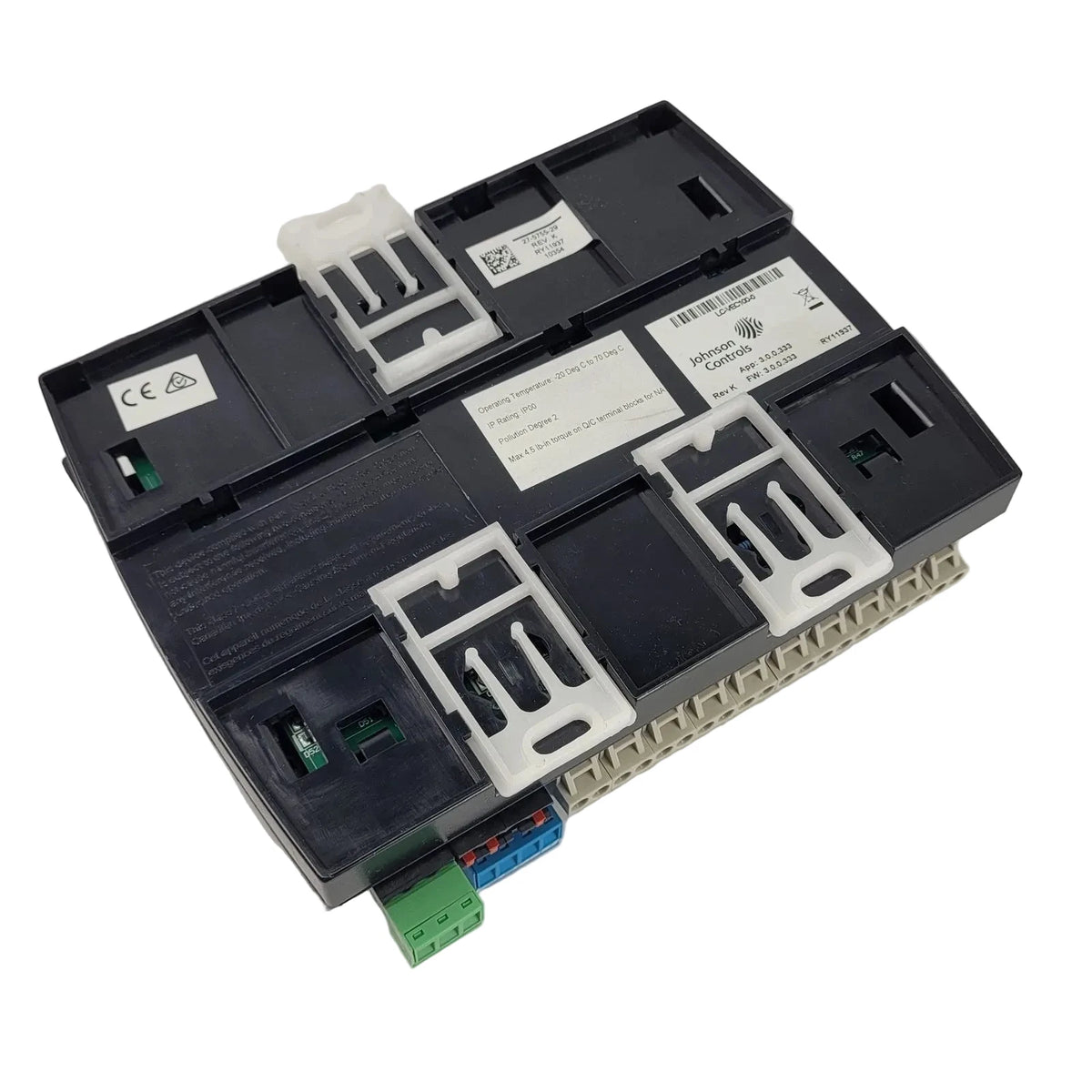

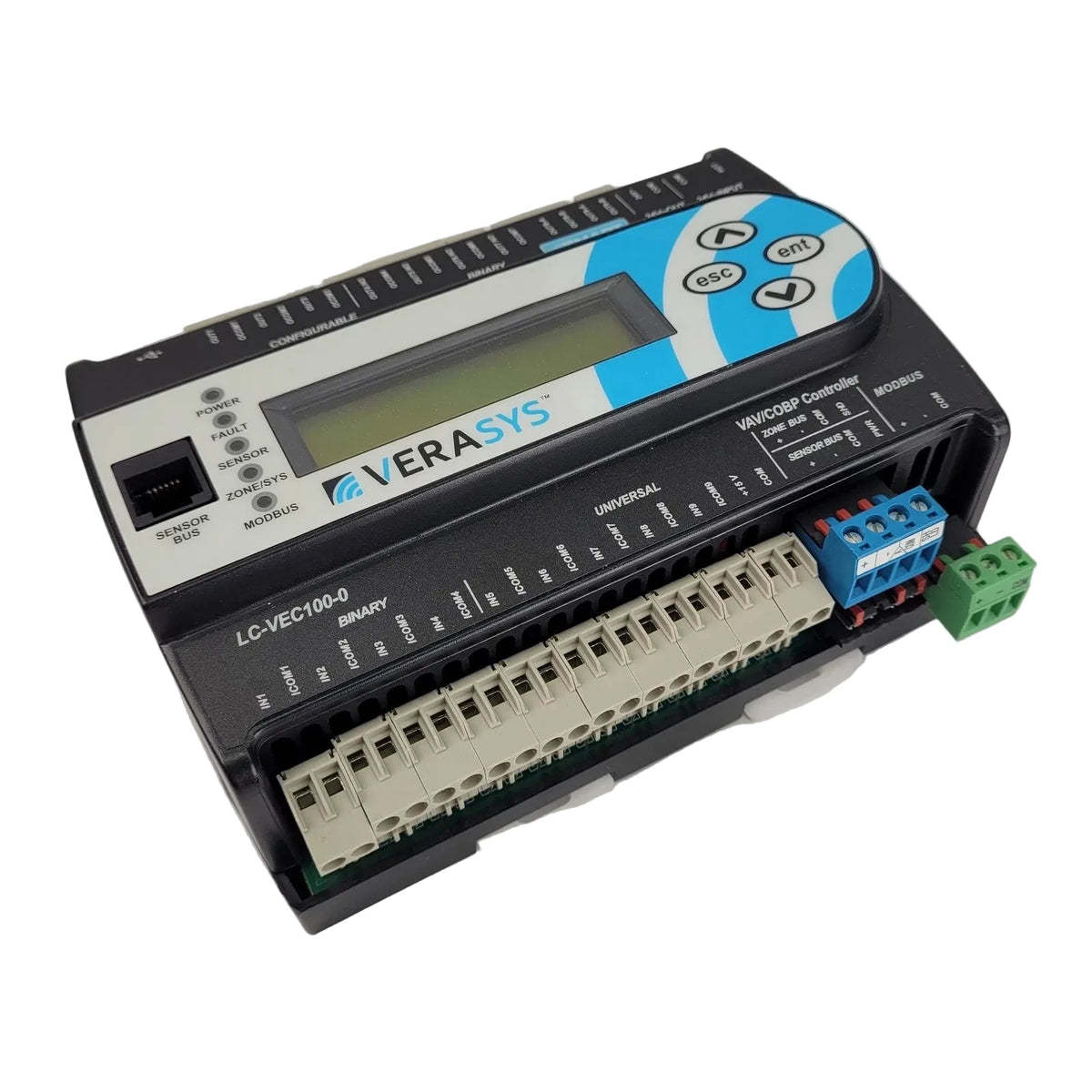

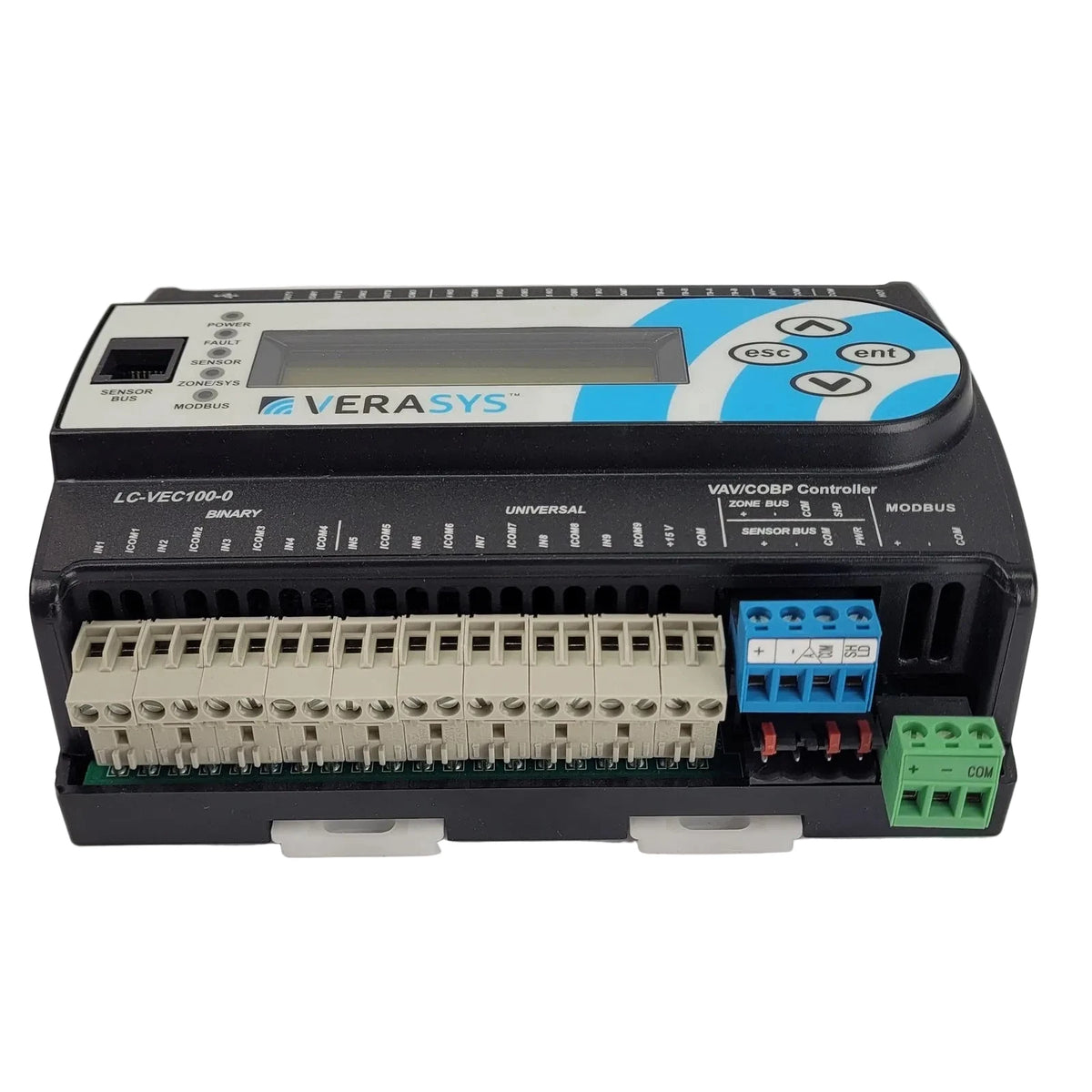

Johnson Controls LC-VEC100-0 Verasys 24VAC Equipment Controller with Display
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LC-VEC100-0
Description
The Johnson Controls LC-VEC100-0 is a Verasys Equipment Controller designed to monitor and control HVAC equipment, including variable air volume (VAV) and changeover bypass (COBP) systems. It operates on 24 VAC power and includes an integrated display for local equipment status and controller interaction.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | LC-VEC100-0 |
| Subcategory | Equipment Controllers |
| Product Type | Verasys Equipment Controller |
| Product Series | Verasys SMART Equipment Controller |
| Supply Voltage | 24 VAC |
| Operating Voltage Range | 20–30 VAC |
| Frequency | 50/60 Hz |
| Maximum Power Consumption | 20 VA, excluding peripheral loads |
| Universal Inputs | 5 |
| Binary Inputs | 4 |
| Configurable Outputs | 3 |
| Communication Protocol | BACnet MS/TP |
| Processor | Renesas RX631 32-bit microcontroller |
| Memory | 16 MB flash, 8 MB RAM |
| Mounting Type | 35 mm DIN rail or flat surface |
| Dimensions (H × W × D) | 6.45 × 4.92 × 2.08 in, excluding terminals and mounting clips |
| Operating Temperature | −4°F to 158°F (−20°C to 70°C) |
| Weight | 1.10 lb |
Information About LC-VEC100-0
The LC-VEC100-0 belongs to the Johnson Controls Verasys SMART Equipment Controller family and runs configurable applications for commercial HVAC systems. Its control platform processes analog and binary input signals while operating relays and configurable outputs to manage connected equipment. BACnet MS/TP communication supports integration with compatible supervisory controllers, while the sensor bus connects supported network sensors and peripheral devices. The controller includes an RX631 32-bit microcontroller, onboard memory, and mounting options for DIN rails or flat surfaces.
-
Controller Type: Verasys Equipment Controller for HVAC monitoring and control.
-
Supply Voltage: Operates on 24 VAC, with an allowable range of 20–30 VAC.
-
Integrated Display: Provides a local interface for viewing controller information.
-
Universal Inputs: Five configurable inputs support voltage, current, resistive, or dry-contact signals.
-
Binary Inputs: Four inputs support compatible dry-contact monitoring.
-
Configurable Outputs: Three outputs support 0–10 VDC analog or 24 VAC triac operation.
-
Communication: Supports BACnet MS/TP networking with compatible building automation equipment.
-
Mounting Options: Supports horizontal 35 mm DIN-rail mounting or flat-surface screw mounting.
The LC-VEC100-0 delivers the reliability and precision required for HVAC equipment automation, monitoring, and staged temperature control.
