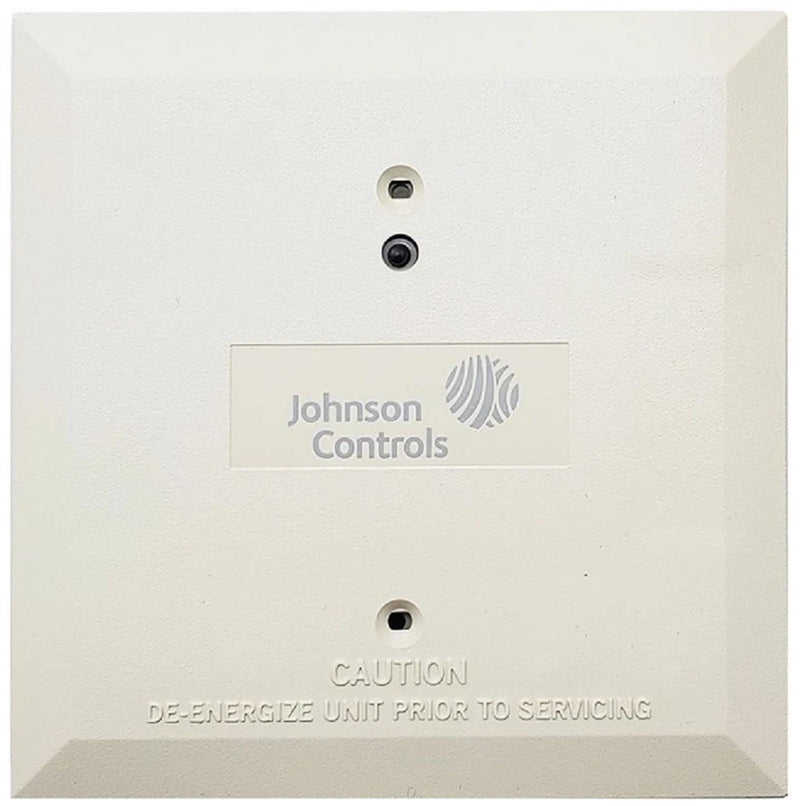

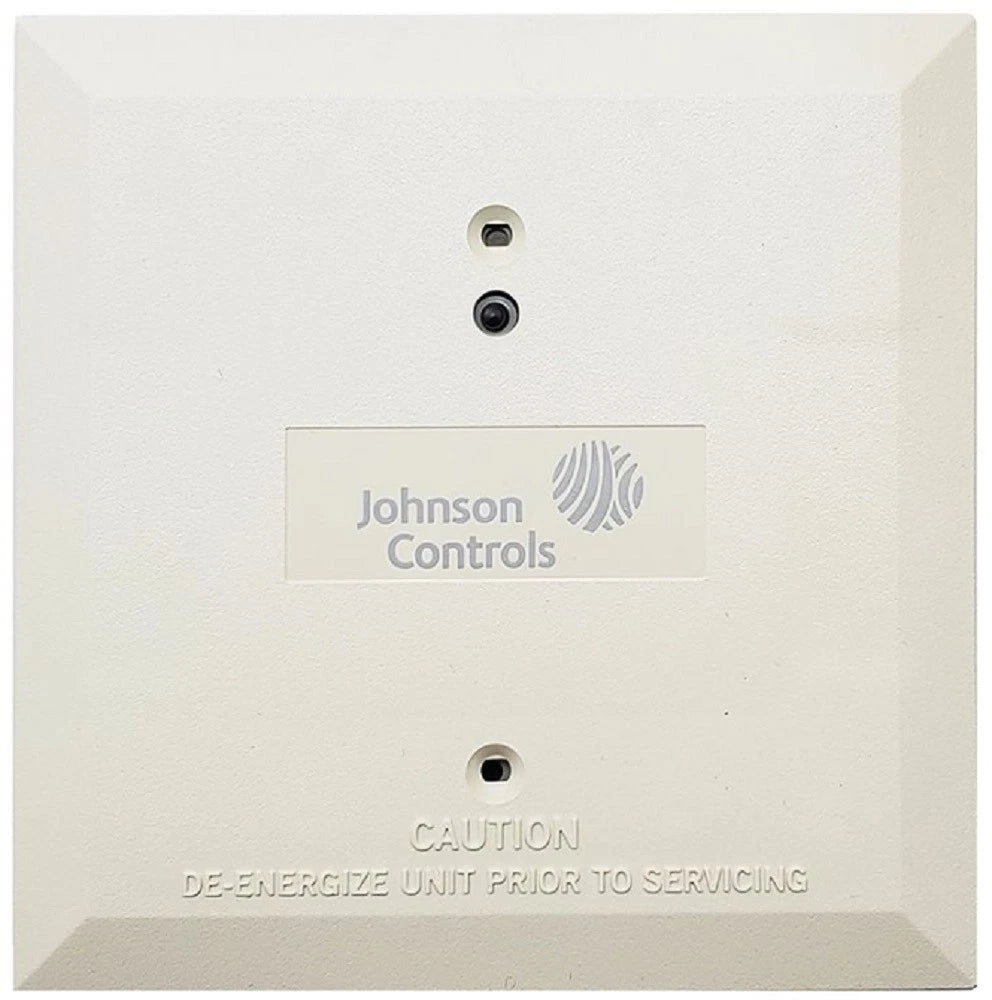

Johnson Controls M300RJ Intelligent Addressable Dual Form-C Relay Module
- Regular price
- $119.00
- Sale price
- $119.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M300RJ
Description
The Johnson Controls M300RJ is an intelligent addressable relay control module designed for compatible two-wire fire alarm systems. It provides two isolated Form-C dry-contact relay outputs for controlling auxiliary equipment such as fans, dampers, and other control devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Fire Alarm |
| Part Number | M300RJ |
| Subcategory | Relay Control Module |
| Module Type | Intelligent Addressable Relay Module |
| Contact Configuration | Dual Form-C |
| Contact Arrangement | DPDT |
| Output Type | Dry Contact |
| Operating Voltage | 15–32 VDC |
| Maximum Current Draw | 6.5 mA with LED on |
| Average Operating Current | 230 µA direct poll; 255 µA group poll |
| Addressing | Rotary Switches |
| Mounting | 4-Inch Square Electrical Box |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10%–93% Non-Condensing |
| Dimensions | 4.5 × 4 × 1.25 in |
| Weight | 0.2 lbs |
Information About M300RJ
The M300RJ is an addressable control module used with compatible Johnson Controls intelligent fire alarm control panels. Its two isolated Form-C contacts operate together as a DPDT switching arrangement and are controlled by commands from the fire alarm panel. Built-in rotary switches provide module addressing, while a panel-controlled LED indicates communication and activation status. The module operates from a 15–32 VDC signaling loop and mounts directly to a standard 4-inch square electrical box.
Key Features:
- Addressable Relay Module: Provides intelligent relay control on compatible two-wire fire alarm systems.
- Dual Form-C Contacts: Includes two isolated Form-C contact sets operating together as a DPDT switch.
- Dry-Contact Output: Provides relay contacts for switching connected auxiliary control equipment.
- Rotary Addressing: Uses built-in rotary switches for assigning the module address.
- Panel-Controlled LED: Provides visual indication of communication and relay activation status.
- Auxiliary Equipment Control: Suitable for controlling fans, dampers, and other external equipment.
- Direct Mounting: Mounts directly to a standard 4-inch square electrical box.
- Wide Voltage Range: Operates from a 15–32 VDC signaling loop.
The M300RJ delivers the reliability and precision required for intelligent fire alarm relay control and auxiliary equipment interface applications.
