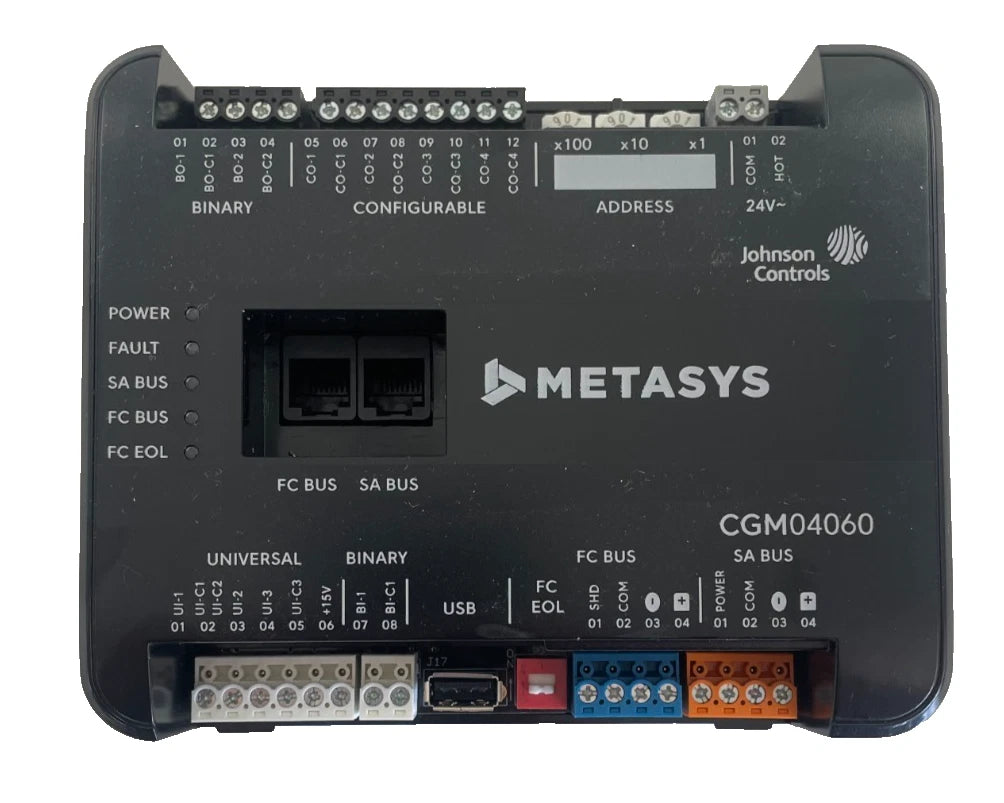

Johnson Controls M4-CGM04060-0 10-Point Application Controller
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M4-CGM04060-0
Description
The Johnson Controls M4-CGM04060-0 is a 10-point general-purpose application controller designed for HVAC and building automation systems. It provides flexible I/O, programmable control, and support for BACnet MS/TP, N2, and optional Zigbee® wireless communication, making it ideal for commercial automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Part Number | M4-CGM04060-0 |
| Product Line | M4 Controllers |
| Category | Controls & Indicators |
| Subcategory | CPU/Control Board |
| Product Type | General-Purpose Application Controller |
| Processor | Renesas RX64M 32-Bit Microcontroller |
| Power Supply | 15 VDC |
| Power Consumption | 100 mA |
| Universal Inputs | 3 |
| Binary Inputs | 1 |
| Binary Outputs | 2 |
| Configurable Outputs | 4 |
| Total I/O Points | 10 |
| Analog Input Types | 0–10 VDC, 4–20 mA |
| Communication Protocols | BACnet MS/TP, N2, Optional Zigbee® |
| Weight | 1.20 lb |
Information About M4-CGM04060-0
The M4-CGM04060-0 is part of the Johnson Controls M4 Controller family, engineered to deliver reliable control for a wide range of HVAC and facility automation systems. It features a Renesas RX64M 32-bit microcontroller and flexible input/output configuration for monitoring and controlling mechanical equipment. Supporting BACnet MS/TP, N2, and optional Zigbee wireless communication via expansion modules, the controller integrates easily into both new and existing building management systems. Its configurable outputs and multiple analog input modes provide excellent flexibility for commercial control applications.
Key Features:
- 10-Point General-Purpose Controller: Designed for HVAC and facility automation applications.
- Flexible I/O Configuration: Includes 3 universal inputs, 1 binary input, 2 binary outputs, and 4 configurable outputs.
- Multiple Input Types: Supports 0–10 VDC, 4–20 mA, and dry contact signals.
- BACnet MS/TP & N2 Communication: Compatible with modern and legacy building automation systems.
- Optional Zigbee® Wireless: Supports wireless connectivity using add-on communication modules.
- 32-Bit Renesas Processor: Delivers fast processing and dependable controller performance.
- Configurable Outputs: Supports both analog (0–10 VDC) and binary (24 VAC Triac) output modes.
- Compact Design: Suitable for commercial HVAC control panels and automation systems.
The M4-CGM04060-0 delivers the reliability and flexibility required for advanced HVAC equipment control and building automation.
