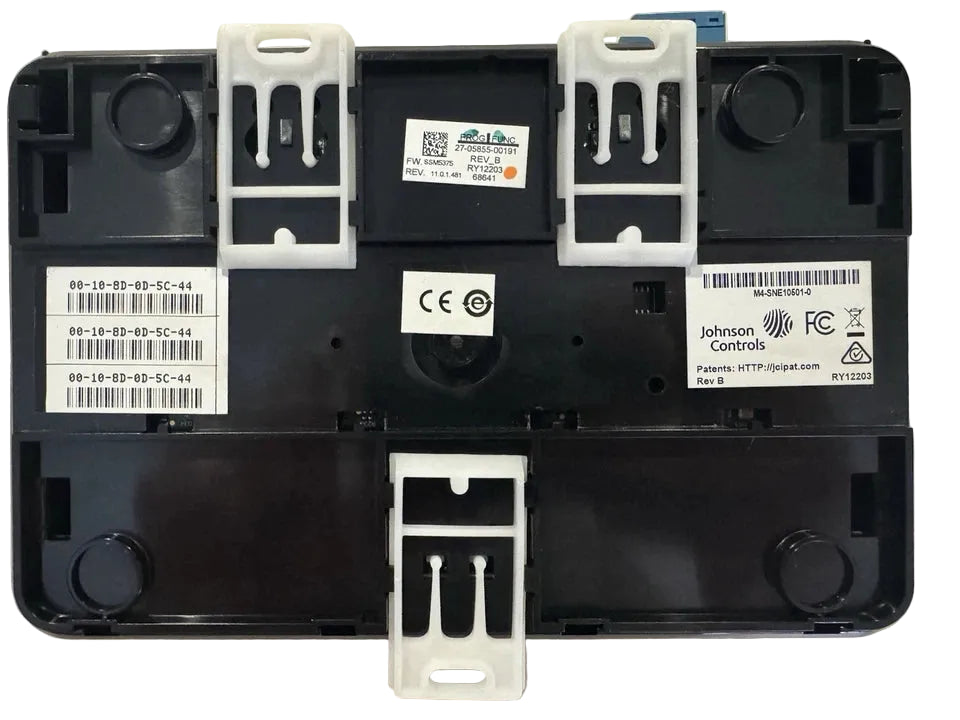

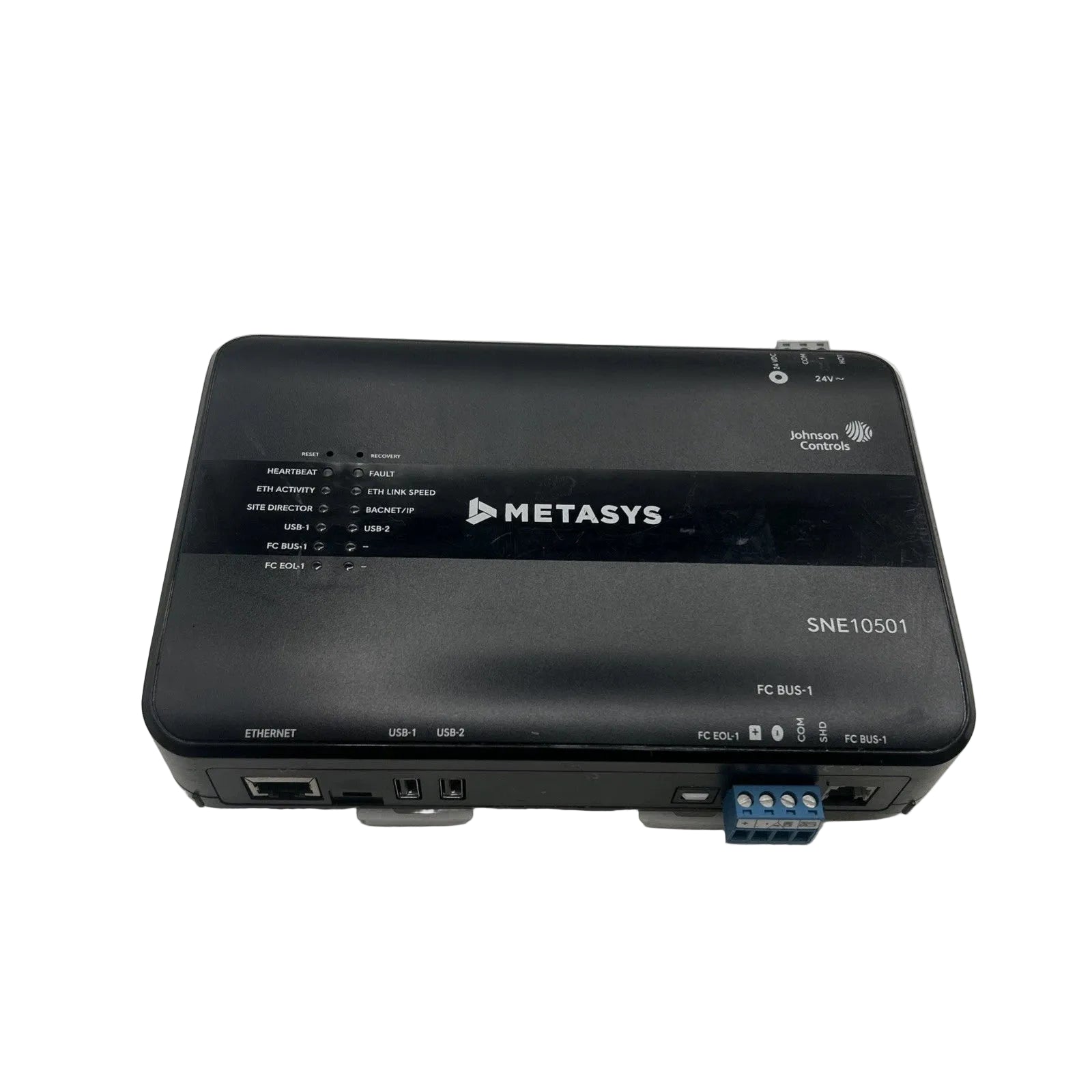

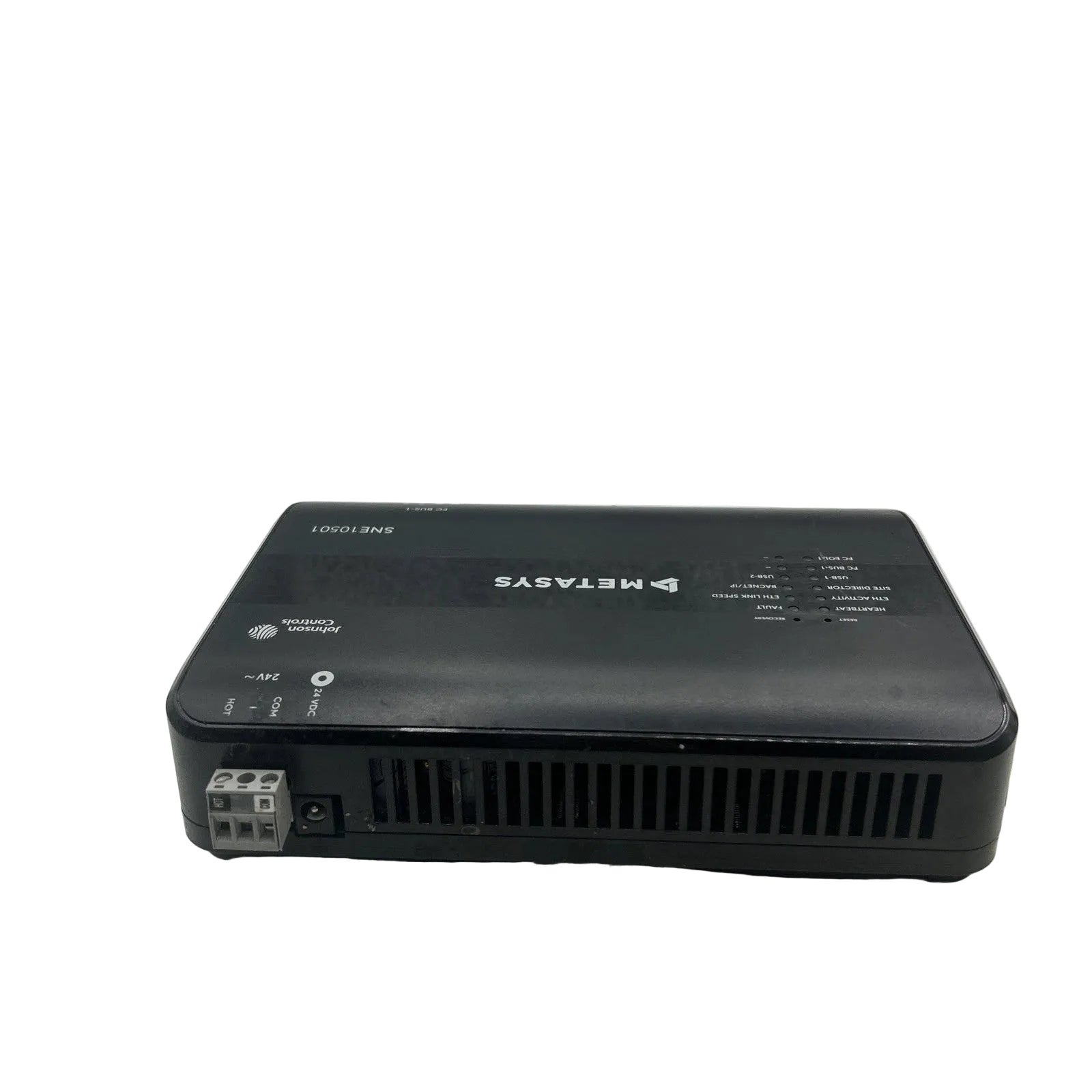

Johnson Controls M4-SNE10501-0 SNE Series Supervisory Network Engine Single Fieldbus Integration
- Regular price
- $3,189.00
- Sale price
- $3,189.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M4-SNE10501-0
Description
The Johnson Controls M4-SNE10501-0 is a Supervisory Network Engine designed to provide centralized monitoring, integration, and control for Metasys building automation systems. It supports single fieldbus integration with up to 50 devices on a field bus trunk while providing secure communication, data management, and web-based system access. The M4-SNE10501-0 is engineered for commercial HVAC and facility automation applications requiring reliable supervisory control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | M4-SNE10501-0 |
| Subcategory | Burner Control |
| Product Type | Supervisory Network Engine |
| Series | SNE Series |
| Fieldbus Integration | Single Fieldbus |
| Maximum Devices | 50 Devices per Trunk |
| Supply Voltage | 24 VAC Class 2 or 24 VDC |
| Power Consumption | 38 VA Maximum |
| Processor | NXP i.MX6 DualLite Dual-Core Cortex-A9, 1.0 GHz |
| Flash Memory | 16 GB |
| SDRAM | 2 GB |
| Ethernet Port | 1 × RJ-45 10/100 Mbps |
| RS-485 Port | 1 Galvanically Isolated Port |
| USB Ports | 3 (1 Micro-B, 2 USB Type-A) |
| Mounting | DIN Rail or Panel Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 1.36 kg |
Information About M4-SNE10501-0
The M4-SNE10501-0 is part of the Johnson Controls SNE Series of Supervisory Network Engines developed for the Metasys building automation platform. It functions as a supervisory controller that integrates field controllers, manages alarms, scheduling, historical data, and system communication through a web-based interface. The network engine supports a single fieldbus integration with a maximum of 50 field devices while communicating with BACnet/IP, BACnet MS/TP, and other supported protocols depending on system configuration. Its modern dual-core processor, high-capacity memory, Ethernet connectivity, and DIN rail or panel mounting make it suitable for commercial offices, healthcare facilities, educational campuses, and industrial buildings.
Key Features:
- Supervisory Network Engine: Provides centralized monitoring and control for Metasys building automation systems.
- Single Fieldbus Integration: Supports one fieldbus trunk with up to 50 connected devices.
- High-Performance Processor: Features a dual-core NXP i.MX6 Cortex-A9 processor operating at 1.0 GHz.
- Large Memory Capacity: Includes 16 GB Flash memory and 2 GB SDRAM for applications and historical data.
- Ethernet Connectivity: Provides one 10/100 Mbps RJ-45 Ethernet interface for network communication.
- Multiple USB Interfaces: Includes one Micro-USB port and two USB Type-A ports for service and peripheral connectivity.
- Flexible Mounting: Supports DIN rail and panel mounting for convenient installation.
- Web-Based Management: Enables browser-based configuration, monitoring, diagnostics, and system administration.
The M4-SNE10501-0 delivers the reliability and precision required for centralized building automation supervision and commercial HVAC management.
