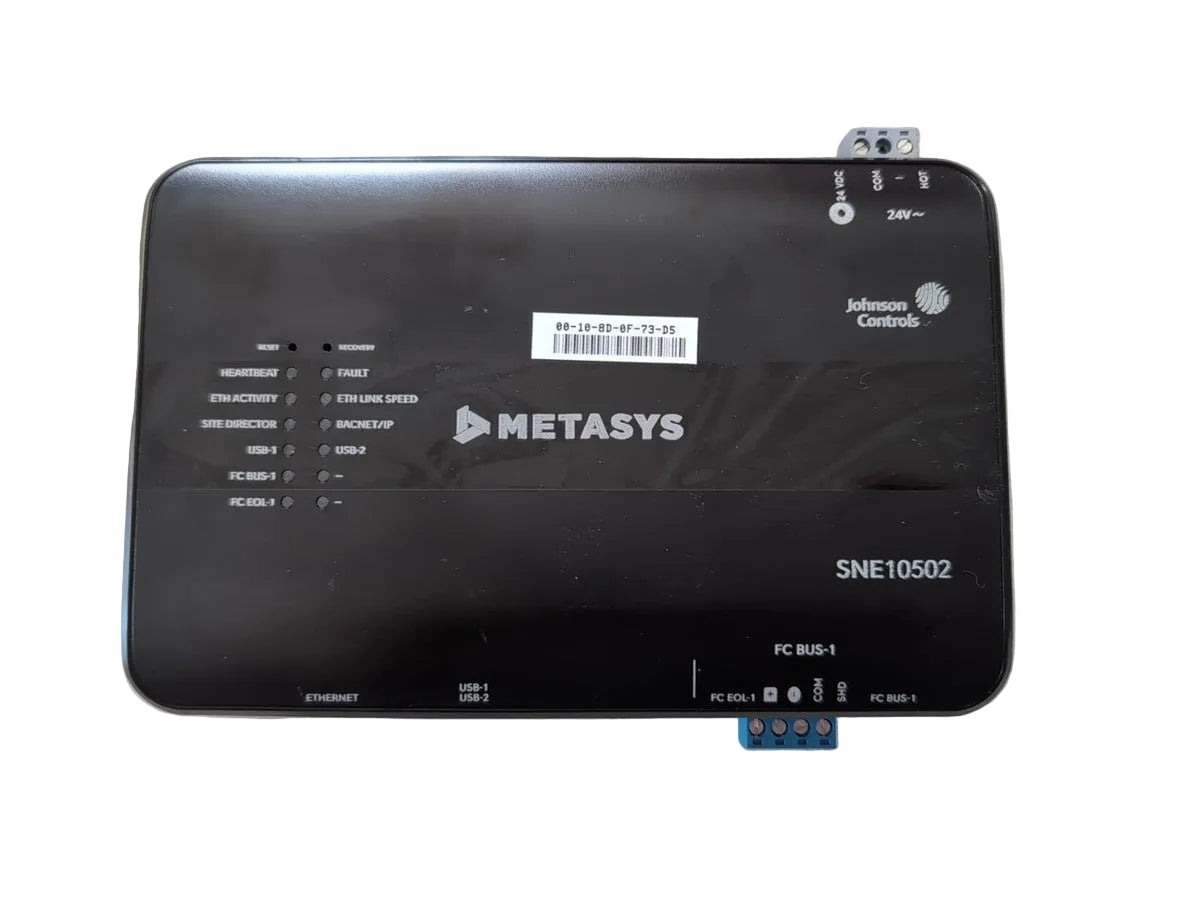

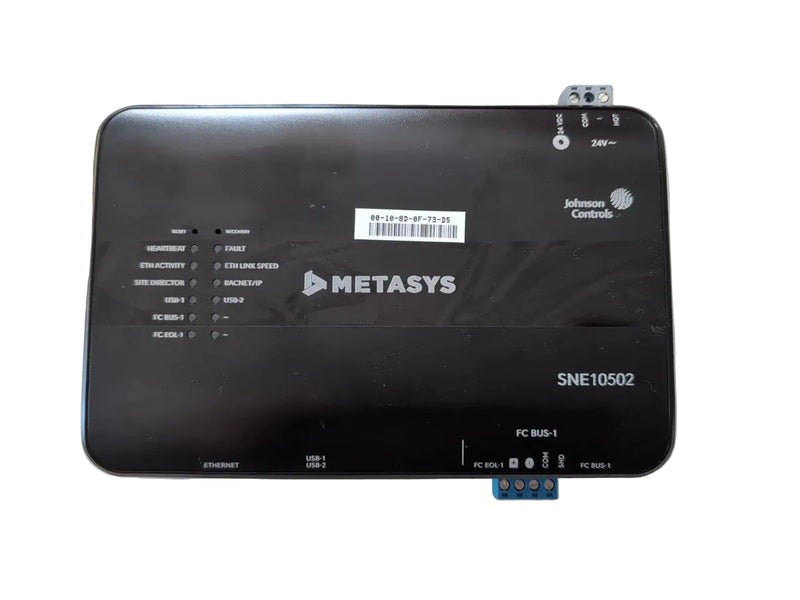

Johnson Controls M4-SNE10502-0 Metasys SNE Supervisory Network Engine
- Regular price
- $5,617.00
- Sale price
- $5,617.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M4-SNE10502-0
Description
The Johnson Controls M4-SNE10502-0 is a Metasys SNE Series supervisory network engine designed to connect field-level building controllers and equipment networks with the building automation management network. It supports a single local RS-485 fieldbus integration and Ethernet-based supervisory communication while providing processing, data storage, alarming, scheduling, trending, and network management functions for building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | M4-SNE10502-0 |
| Subcategory | Burner Control |
| Series | Metasys SNE1050 Series |
| Product Type | Supervisory Network Engine |
| Fieldbus Capacity | 1 Local RS-485 Fieldbus |
| Processor | NXP i.MX6 DualLite, Dual-Core Cortex-A9 |
| Processor Speed | 1.0 gigahertz |
| Flash Memory | 16 gigabytes nonvolatile |
| Dynamic Memory | 2 gigabytes synchronous dynamic random-access memory |
| Ethernet Interface | 1 × 100/10 megabits per second, 8-pin RJ-45 |
| Serial Interface | 1 × Galvanically Isolated RS-485 |
| Universal Serial Bus Interfaces | 3 × Ports: 1 Micro-B and 2 Type-A |
| Power Supply | Nominal 24 volts alternating current, 50/60 hertz; alternate nominal 24 volts direct current |
| Maximum Power Consumption | 38 volt-amperes |
| Operating System | Wind River Linux Long-Term Support 19 |
| Weight | 3.00 lbs |
Information About M4-SNE10502-0
The M4-SNE10502-0 is a Johnson Controls Metasys SNE1050 Series supervisory network engine designed for building automation system integration and field device supervision. The unit uses an NXP i.MX6 DualLite dual-core Cortex-A9 processor operating at 1.0 gigahertz, with 16 gigabytes of nonvolatile flash memory and 2 gigabytes of synchronous dynamic random-access memory. It provides one Ethernet connection, one field controller bus connection, one galvanically isolated RS-485 connection, and three Universal Serial Bus ports for network, fieldbus, and peripheral connectivity. The engine supports BACnet Internet Protocol, BACnet Secure Connect, BACnet Master-Slave/Token-Passing, N2 Bus, LonWorks, Modbus, KNX, M-Bus, and additional supported integrations within the Metasys architecture.
Key Features:
- Single Fieldbus Integration: Supports one local RS-485 fieldbus for connecting compatible building automation controllers and field devices.
- Dual-Core Processing: Uses an NXP i.MX6 DualLite dual-core Cortex-A9 processor operating at 1.0 gigahertz with 512 kilobytes of Level 2 cache.
- Integrated Memory: Provides 16 gigabytes of nonvolatile flash storage and 2 gigabytes of synchronous dynamic random-access memory for system and operational data.
- Ethernet Networking: Includes an 8-pin RJ-45 Ethernet interface for connection to the Metasys building network and supported Internet Protocol integrations.
- Multiple Universal Serial Bus Ports: Provides three ports consisting of one Micro-B connection and two Type-A connections; the Micro-B port is currently inactive according to manufacturer documentation.
- BACnet Integration: Supports BACnet Internet Protocol, BACnet Secure Connect, and BACnet Master-Slave/Token-Passing communication for supervisory and field-level integration.
- Multiple Building Protocols: Supports integrations including N2 Bus, LonWorks, Modbus, KNX, M-Bus, Message Queuing Telemetry Transport, and OPC Unified Architecture.
- Metasys Supervisory Functions: Supports data sharing, alarming, scheduling, trending, device management, and network management within a Metasys building automation system.
The M4-SNE10502-0 delivers the reliability and precision required for supervisory building automation control, fieldbus integration, equipment monitoring, and network-level system management.
