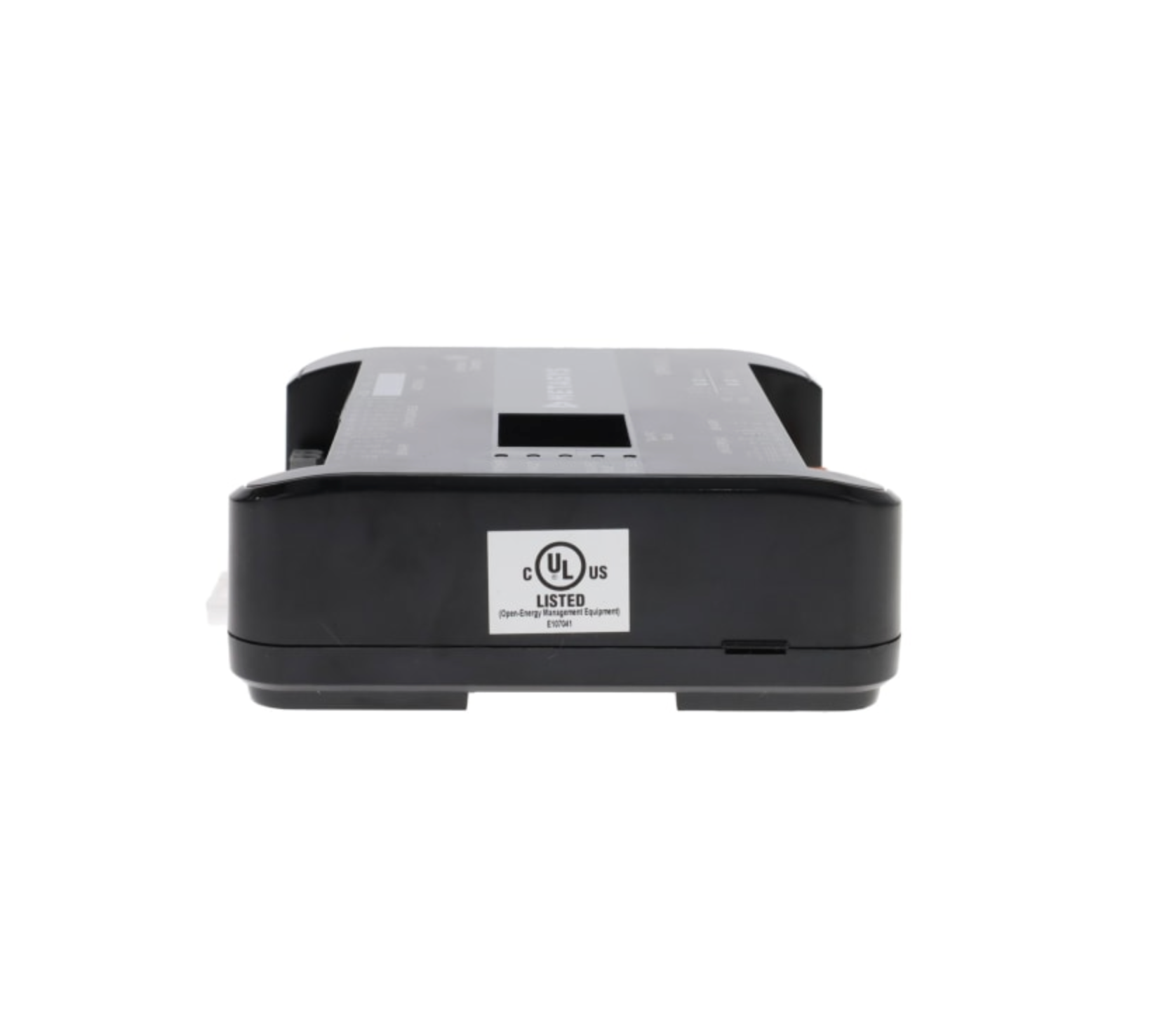

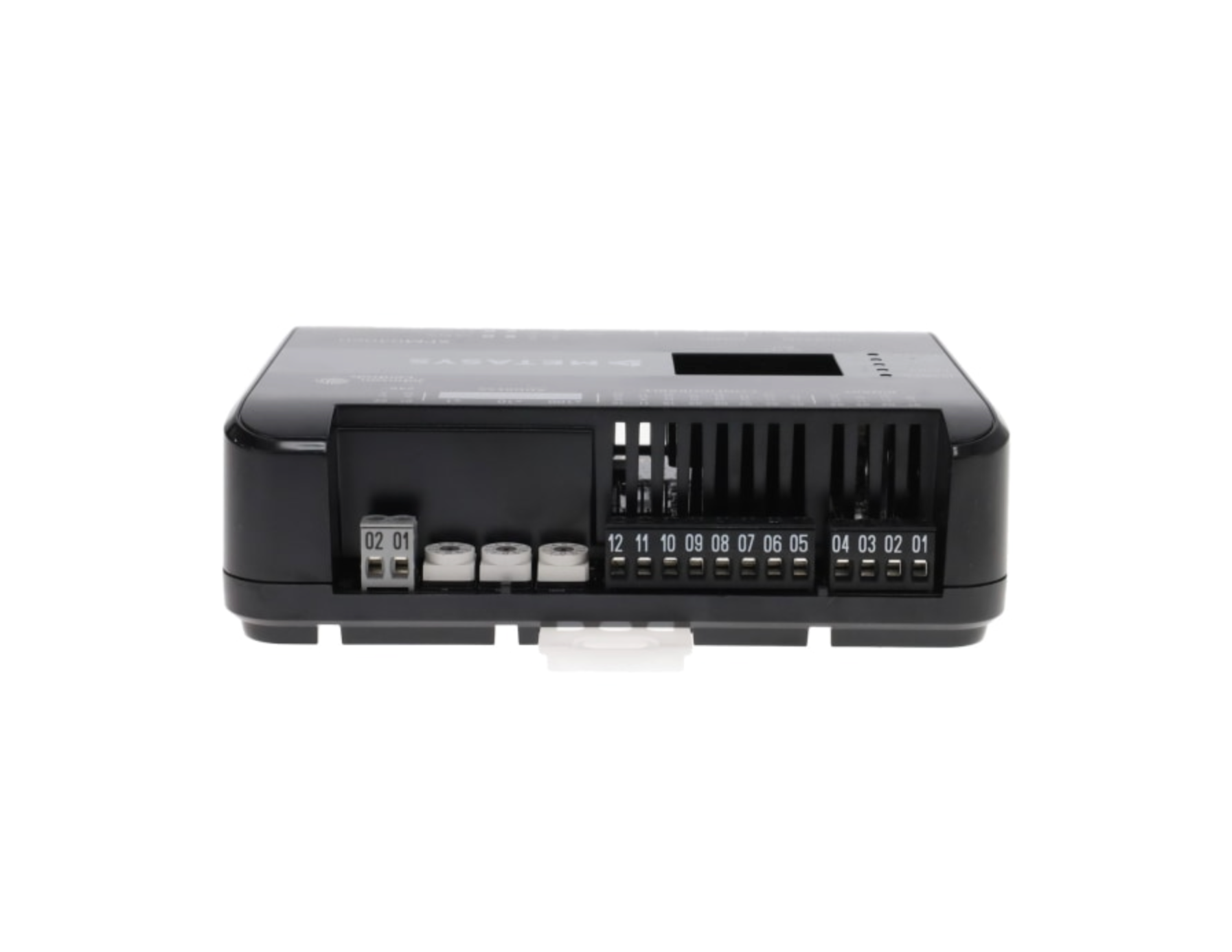

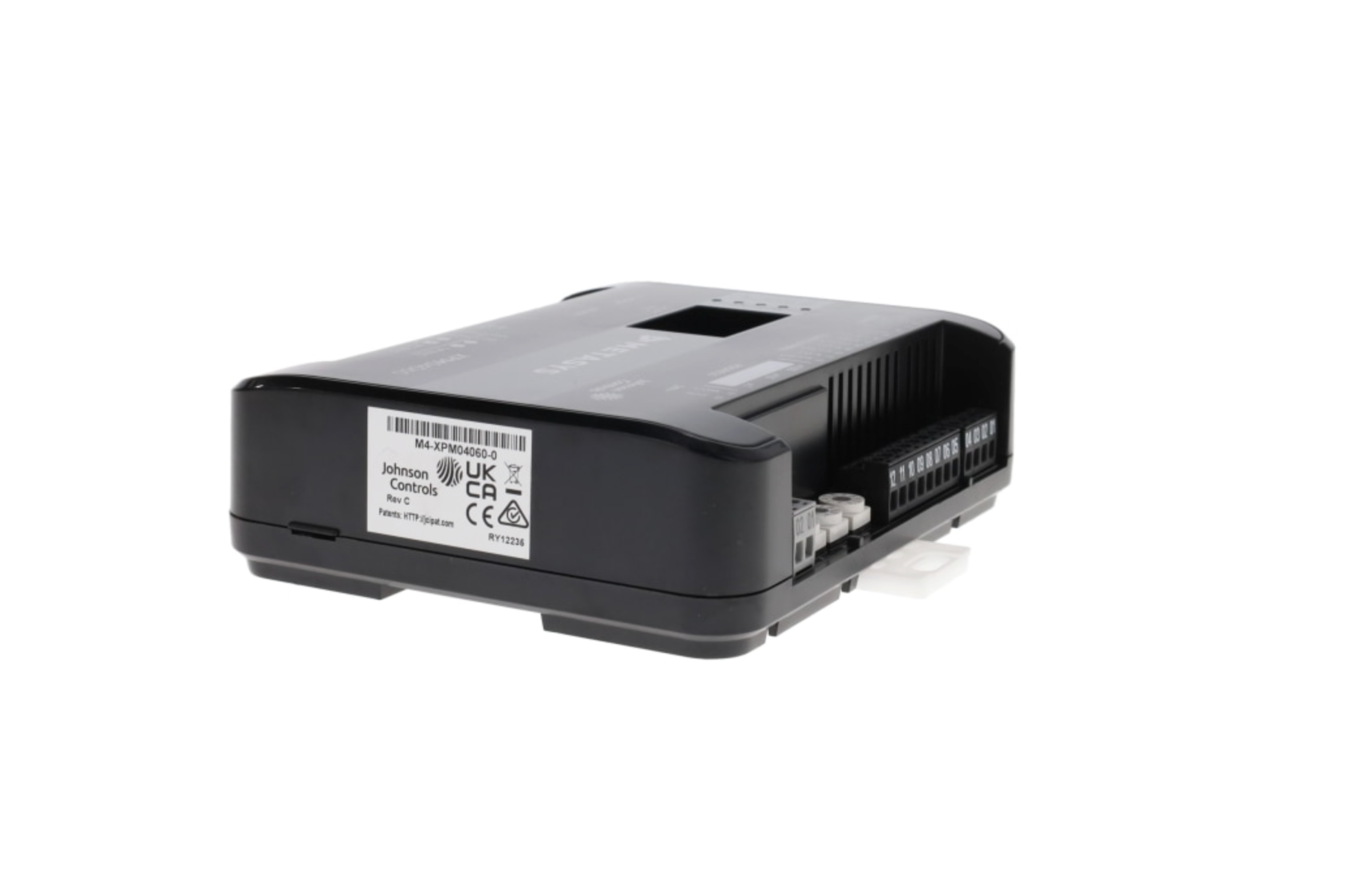

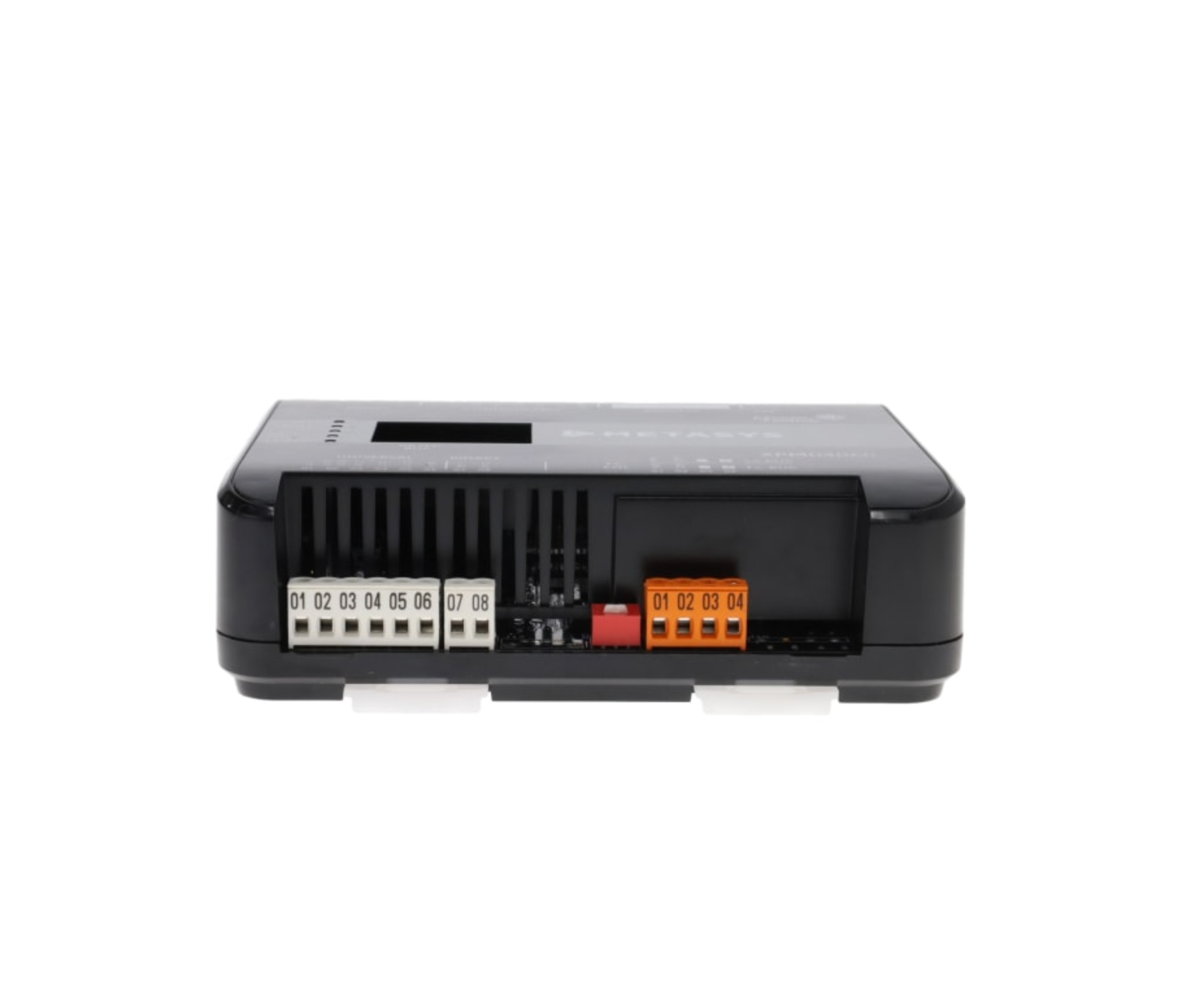

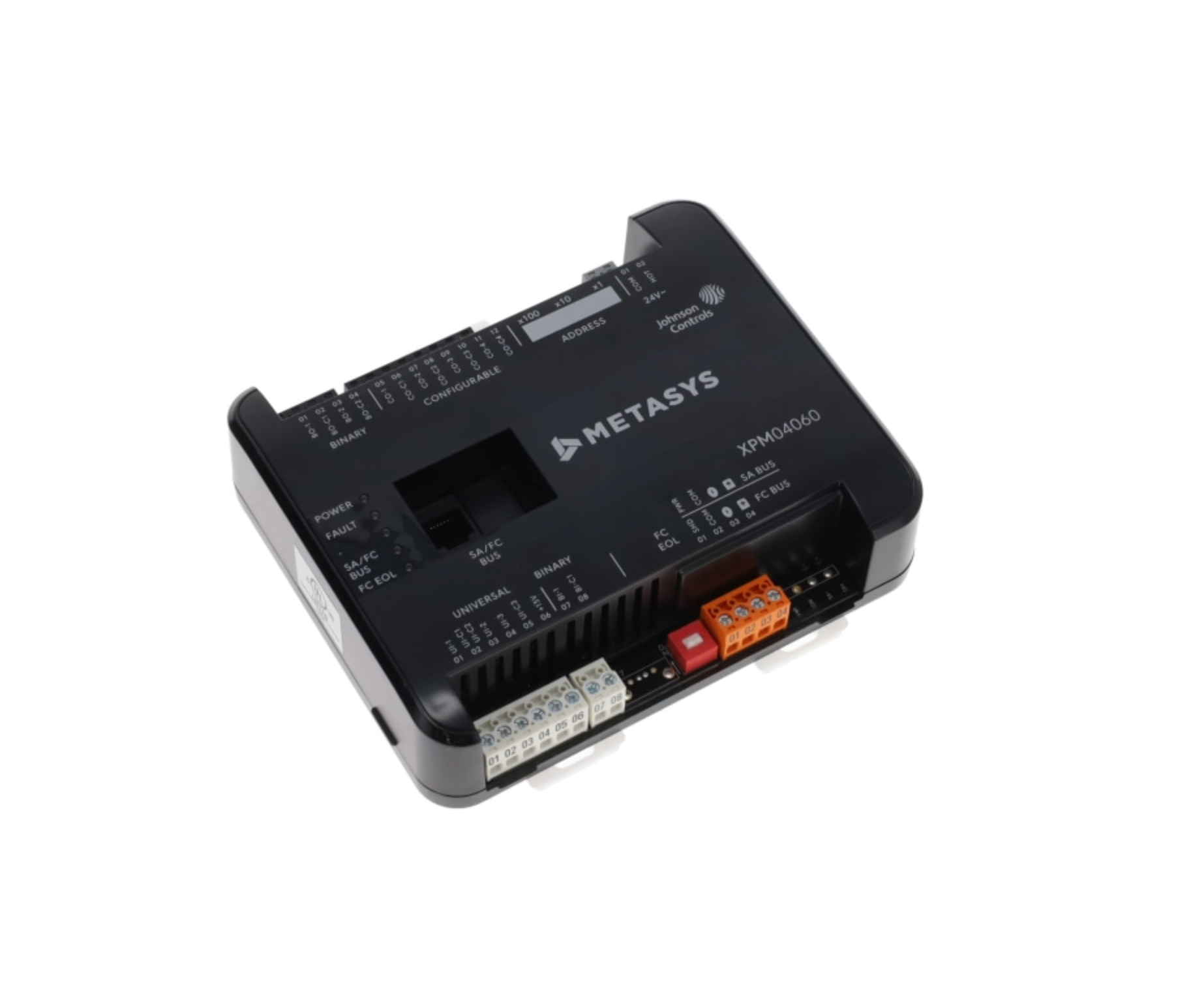

Johnson Controls M4-XPM04060-0 10-Point Input/Output Expansion Module for Metasys Building Automation Systems
- Regular price
- $1,499.00
- Sale price
- $1,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M4-XPM04060-0
Description
The Johnson Controls M4-XPM04060-0 is a 10-point input/output expansion module designed to increase the field I/O capacity of Metasys® CG and CV equipment controllers in commercial building automation systems. Operating from a 24 VAC power supply and supporting BACnet MS/TP communications, it provides flexible expansion for HVAC monitoring and control applications. The module can also function as an I/O point multiplexor when connected to a Metasys network engine, enabling scalable distributed control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | M4-XPM04060-0 |
| Subcategory | Control |
| Product Type | Input/Output Expansion Module |
| Controller Family | Metasys® M4-XPM Series |
| Configuration | 10-Point Expansion Module |
| Power Supply | 24 VAC Nominal (20–30 VAC), 50/60 Hz |
| Communication Protocol | BACnet MS/TP |
| Communication Bus | RS-485 SA Bus / FC Bus |
| Input Configuration | 3 Universal Inputs, 1 Binary Input |
| Output Configuration | 4 Configurable Outputs, 2 Binary Outputs |
| Processor | Renesas® RX64M 32-Bit Microcontroller |
| Memory | 16 MB Flash, 8 MB SDRAM |
| Certification | BTL Listed, BACnet Smart Actuator (B-SA) Profile |
| Application | Commercial HVAC and Building Automation |
| Weight | 0.70 lb (0.32 kg) |
Information About M4-XPM04060-0
The M4-XPM04060-0 is part of the Johnson Controls Metasys® M4-XPM Series of programmable input/output expansion modules developed for commercial HVAC and building automation systems. When installed on the Sensor/Actuator (SA) Bus of a compatible CG or CV equipment controller, it expands available field inputs and outputs for sensors, actuators, and controlled devices. When connected to the Field Controller (FC) Bus of a Metasys network engine, it operates as an I/O point multiplexor, allowing centralized monitoring, distributed control, and peer-to-peer point sharing between controllers. The module communicates over an RS-485 BACnet MS/TP network, is BACnet Testing Laboratories (BTL) listed to the BACnet Smart Actuator (B-SA) profile, and incorporates a 32-bit Renesas® RX64M processor with onboard flash memory for dependable operation.
Key Features:
- 10-Point Expansion Module: Adds ten configurable field I/O points to compatible Metasys controllers.
- Dual Operating Modes: Functions as an SA Bus expansion module or an FC Bus I/O multiplexor.
- BACnet MS/TP Communications: Supports RS-485 BACnet networking for seamless Metasys integration.
- Flexible I/O Configuration: Includes 3 universal inputs, 1 binary input, 4 configurable outputs, and 2 binary outputs.
- 24 VAC Power Input: Compatible with standard commercial HVAC control power supplies.
- 32-Bit Processing Platform: Utilizes a Renesas® RX64M microprocessor for reliable performance.
- BTL Listed Device: Certified to the BACnet Smart Actuator (B-SA) profile for interoperability.
- Commercial HVAC Expansion: Designed for equipment controller I/O expansion and distributed building automation applications.
The M4-XPM04060-0 delivers the reliability and precision required for scalable HVAC input/output expansion and commercial building automation systems.
