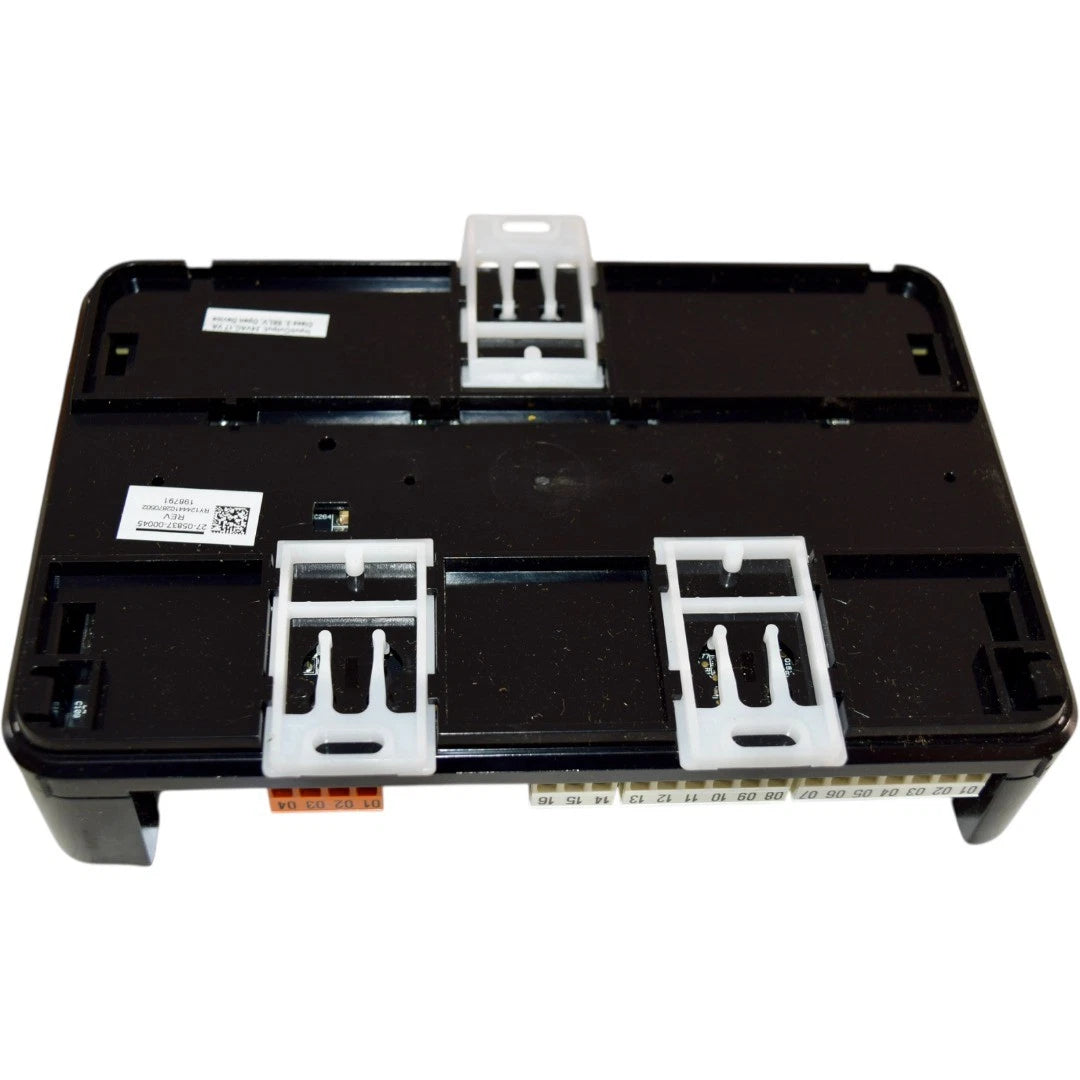

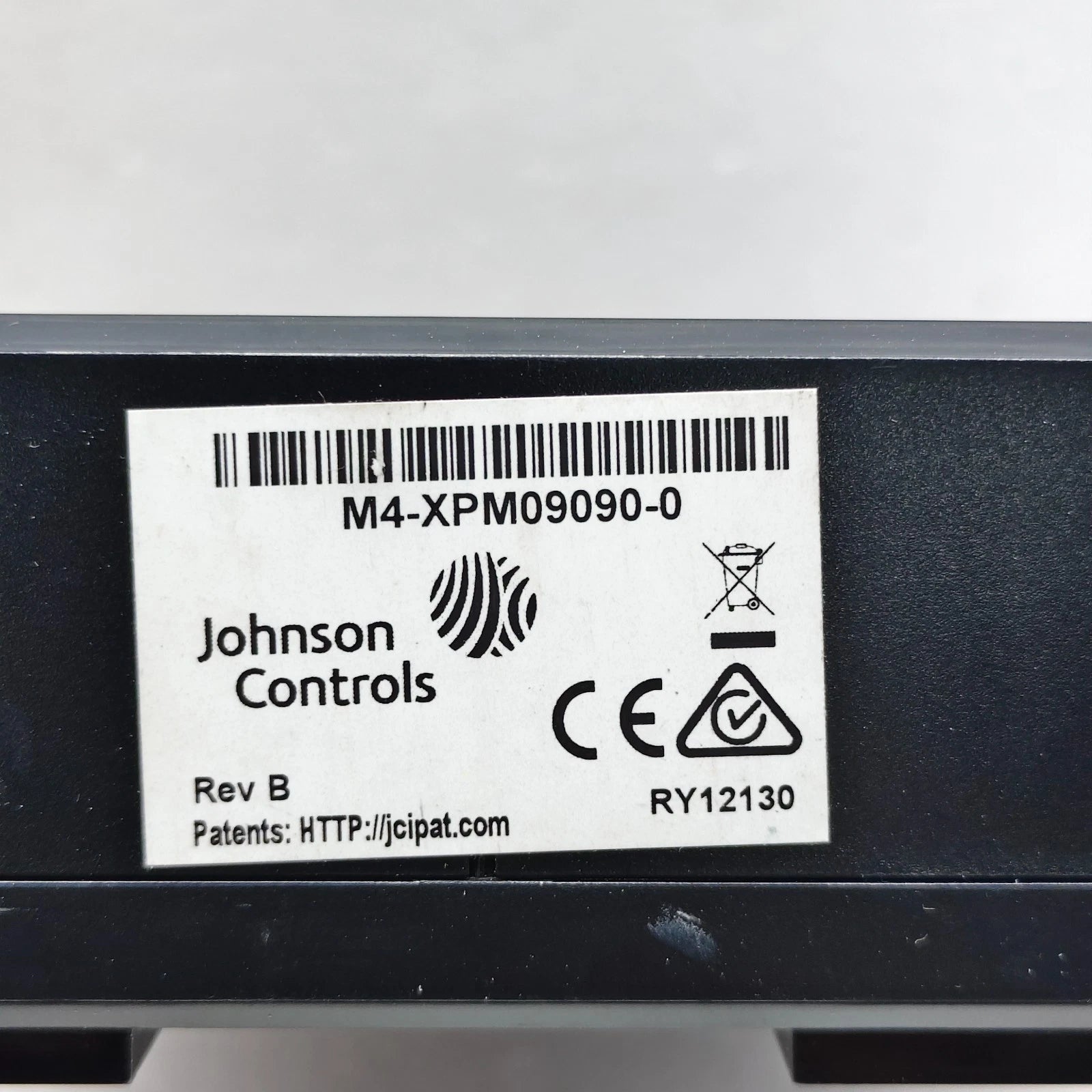

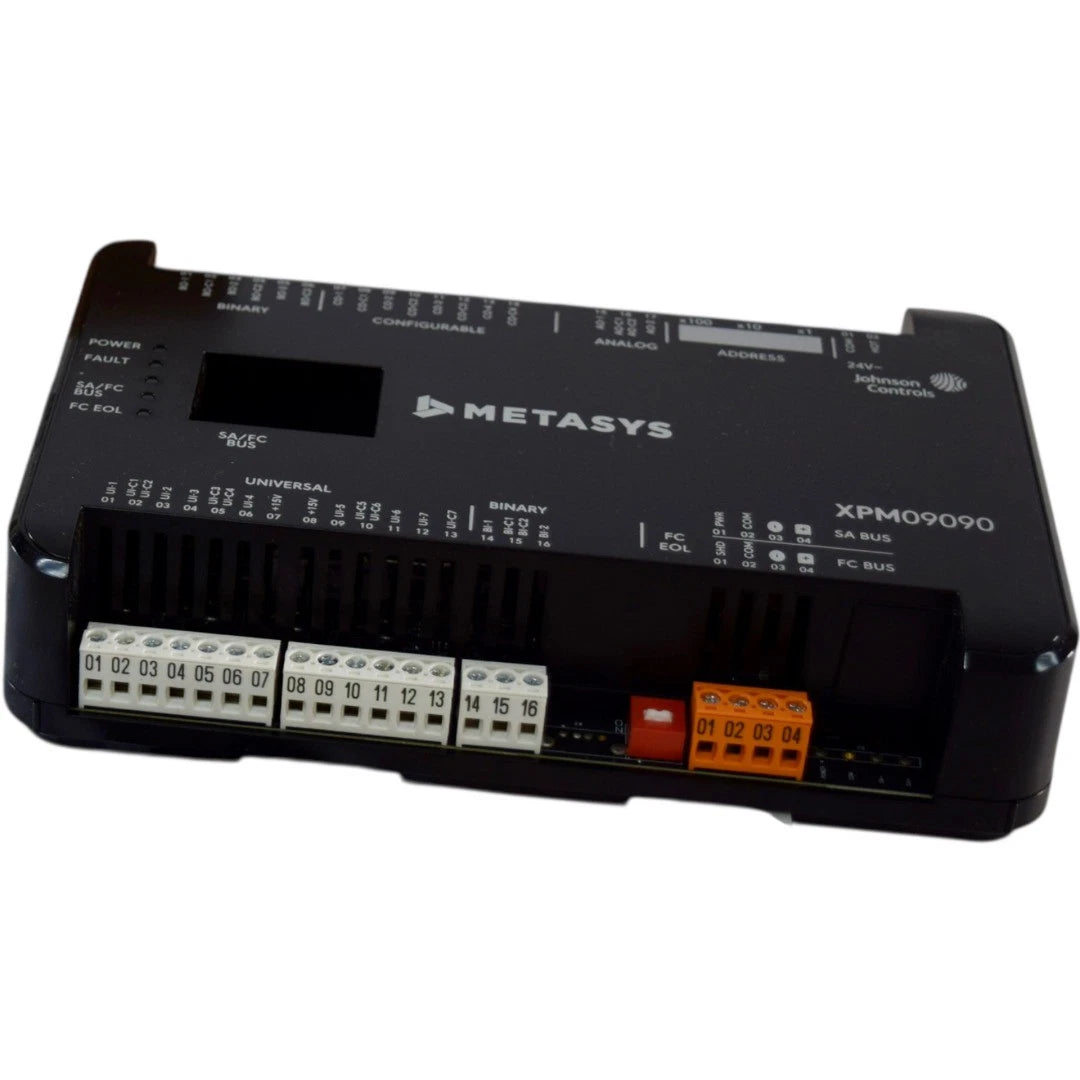

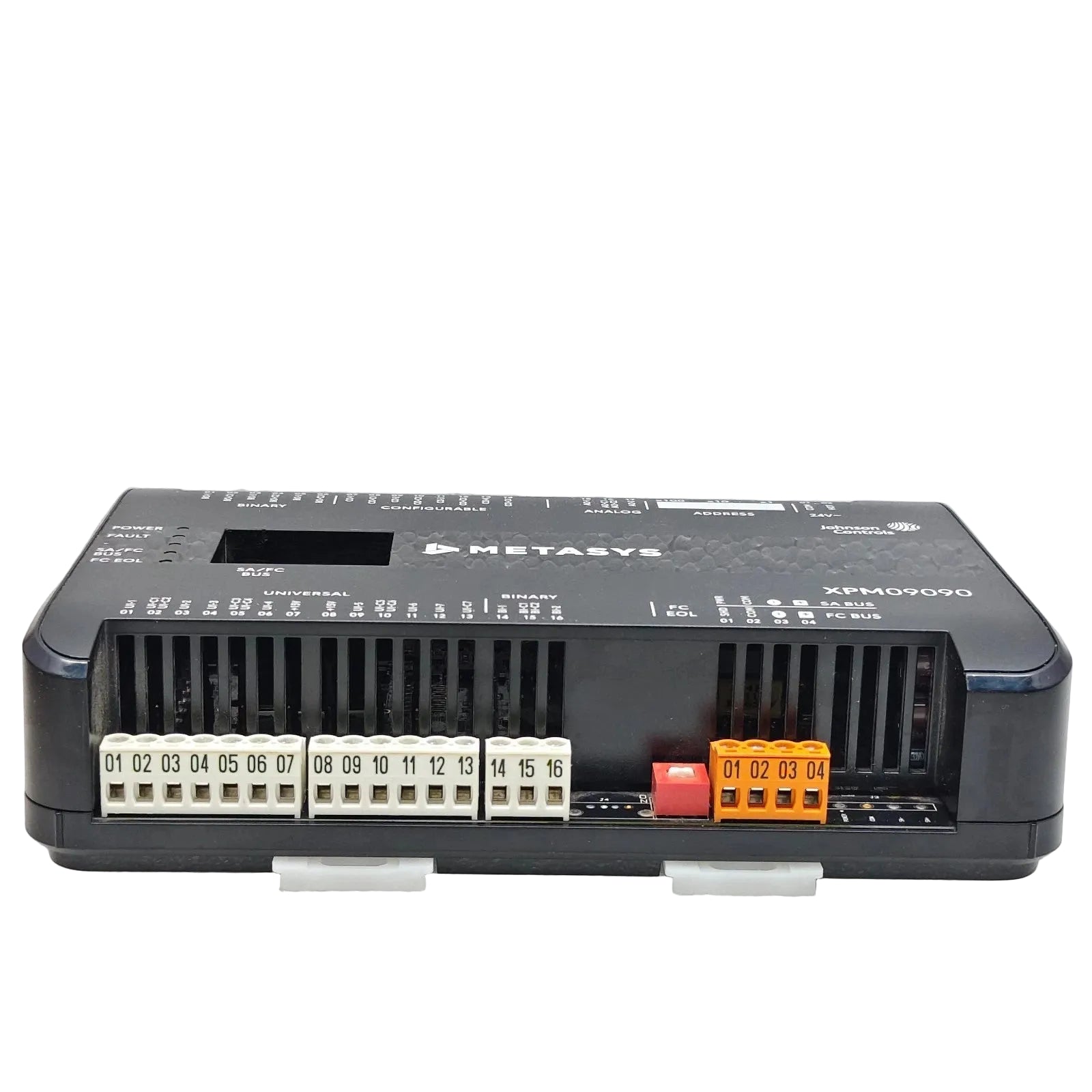

Johnson Controls M4-XPM09090-0 18-Point Input/Output Expansion Module for Metasys Building Automation
- Regular price
- $1,075.00
- Sale price
- $1,075.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M4-XPM09090-0
Description
The Johnson Controls M4-XPM09090-0 is an 18-point input/output expansion module designed to extend the control capabilities of Metasys® CG and CV equipment controllers in commercial HVAC and building automation systems. Operating from a 24 VAC power supply and communicating through BACnet MS/TP, it provides additional field inputs and outputs for scalable monitoring and equipment control. The module can also operate as an I/O point multiplexor when installed on a Metasys network engine, enabling flexible distributed automation architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | M4-XPM09090-0 |
| Subcategory | Control |
| Product Type | Input/Output Expansion Module |
| Controller Family | Metasys® M4-XPM Series |
| Configuration | 18-Point Expansion Module |
| Power Supply | 24 VAC Nominal (20–30 VAC), 50/60 Hz |
| Communication Protocol | BACnet MS/TP (RS-485) |
| Communication Bus | SA Bus / FC Bus |
| Input Configuration | 7 Universal Inputs, 2 Binary Inputs |
| Output Configuration | 4 Configurable Outputs, 2 Analog Outputs, 3 Binary Outputs |
| Power Consumption | 14 VA Maximum |
| Dimensions | 150 × 190 × 44.5 mm |
| Certification | BTL Listed, BACnet Smart Actuator (B-SA) Profile |
| Application | Commercial HVAC and Building Automation |
| Weight | 2.00 lb (0.91 kg) |
Information About M4-XPM09090-0
The M4-XPM09090-0 is a member of the Johnson Controls Metasys® M4-XPM Series of programmable input/output expansion modules developed for commercial building automation applications. When connected to the Sensor/Actuator (SA) Bus of a compatible CG or CV equipment controller, it expands the available field interfaces by providing eighteen additional configurable input and output points for sensors, actuators, and controlled equipment. Installed on the Field Controller (FC) Bus of a Metasys network engine, the module functions as an I/O point multiplexor, supporting centralized monitoring, peer-to-peer point sharing, and distributed control throughout the BACnet MS/TP network. It incorporates a 32-bit processing platform, supports RS-485 BACnet MS/TP communications, is BTL listed to the BACnet Smart Actuator (B-SA) profile, and is designed for dependable long-term operation in demanding commercial HVAC environments.
Key Features:
- 18-Point Expansion Module: Adds eighteen configurable field input/output points to compatible Metasys controllers.
- Flexible Installation: Operates as an SA Bus expansion module or FC Bus point multiplexor.
- BACnet MS/TP Networking: Supports native RS-485 BACnet communications for Metasys integration.
- Advanced I/O Configuration: Includes 7 universal inputs, 2 binary inputs, 4 configurable outputs, 2 analog outputs, and 3 binary outputs.
- 24 VAC Power Input: Compatible with standard commercial HVAC control systems.
- BTL Listed Device: Certified to the BACnet Smart Actuator (B-SA) profile for interoperability.
- Expandable Building Automation: Simplifies system growth without replacing existing equipment controllers.
- Commercial HVAC Integration: Suitable for air handling units, central plants, packaged equipment, and other building automation applications.
The M4-XPM09090-0 delivers the reliability and precision required for scalable HVAC input/output expansion and commercial building automation systems.
