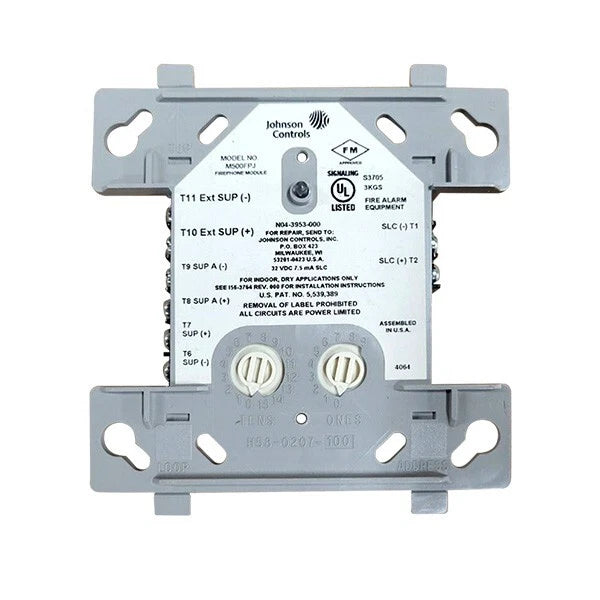

Johnson Controls M500FPJ Intelligent Addressable Firephone Control Module
- Regular price
- $495.00
- Sale price
- $495.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M500FPJ
Description
The Johnson Controls M500FPJ is an intelligent addressable firephone control module designed to connect remote firefighter telephone handsets to a centralized telephone console. It supervises the telephone wiring and reports normal, trouble, or telephone status to a compatible fire alarm control panel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Fire Alarm |
| Part Number | M500FPJ |
| Subcategory | Firephone Control Module |
| Module Type | Intelligent Addressable Firephone Control Module |
| System Type | FlashScan |
| Operating Voltage | 15–32 VDC |
| Maximum Current Draw | 7.5 mA with LED on |
| Average Operating Current | 2.4 mA with LED flashing |
| Handset Off-Hook Resistance | 400–1500 Ohms |
| SLC Wiring Resistance | 40 Ohms |
| Supervisory Wiring Resistance | 50 Ohms |
| External Supply Voltage | 24 VDC Regulated |
| Addressing | Rotary Switches |
| Mounting | 4-Inch Square Electrical Box |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10%–93% Non-Condensing |
| Dimensions | 4.5 × 4.275 × 1.4 in |
| Weight | 6.3 oz |
Information About M500FPJ
The M500FPJ is a FlashScan-compatible module used in intelligent two-wire fire alarm systems. It provides an interface between remote firefighter telephone stations and the centralized firephone console. Built-in rotary switches allow individual module addressing, while the supervised wiring monitors connected telephone jacks and handsets. The module operates from a 15–32 VDC signaling loop and mounts to a standard 4-inch square electrical box.
Key Features:
- Firephone Control: Connects remote firefighter telephone stations to a centralized telephone console.
- Addressable Operation: Uses rotary switches to assign the module address on the signaling loop.
- FlashScan Compatibility: Designed for compatible FlashScan intelligent fire alarm systems.
- Supervised Wiring: Monitors connected telephone jacks and handsets for system status.
- Status Reporting: Reports NORMAL, TROUBLE, or TELEPHONE conditions to the fire alarm panel.
- Two-Wire System: Operates as an intelligent device on a two-wire signaling loop.
- Fault-Tolerant Wiring: Provides two pairs of output termination points for fault-tolerant connections.
- Panel-Controlled LED: Includes an LED indicator controlled by the fire alarm panel.
The M500FPJ delivers the reliability and precision required for firefighter telephone communication and intelligent fire alarm system applications.
