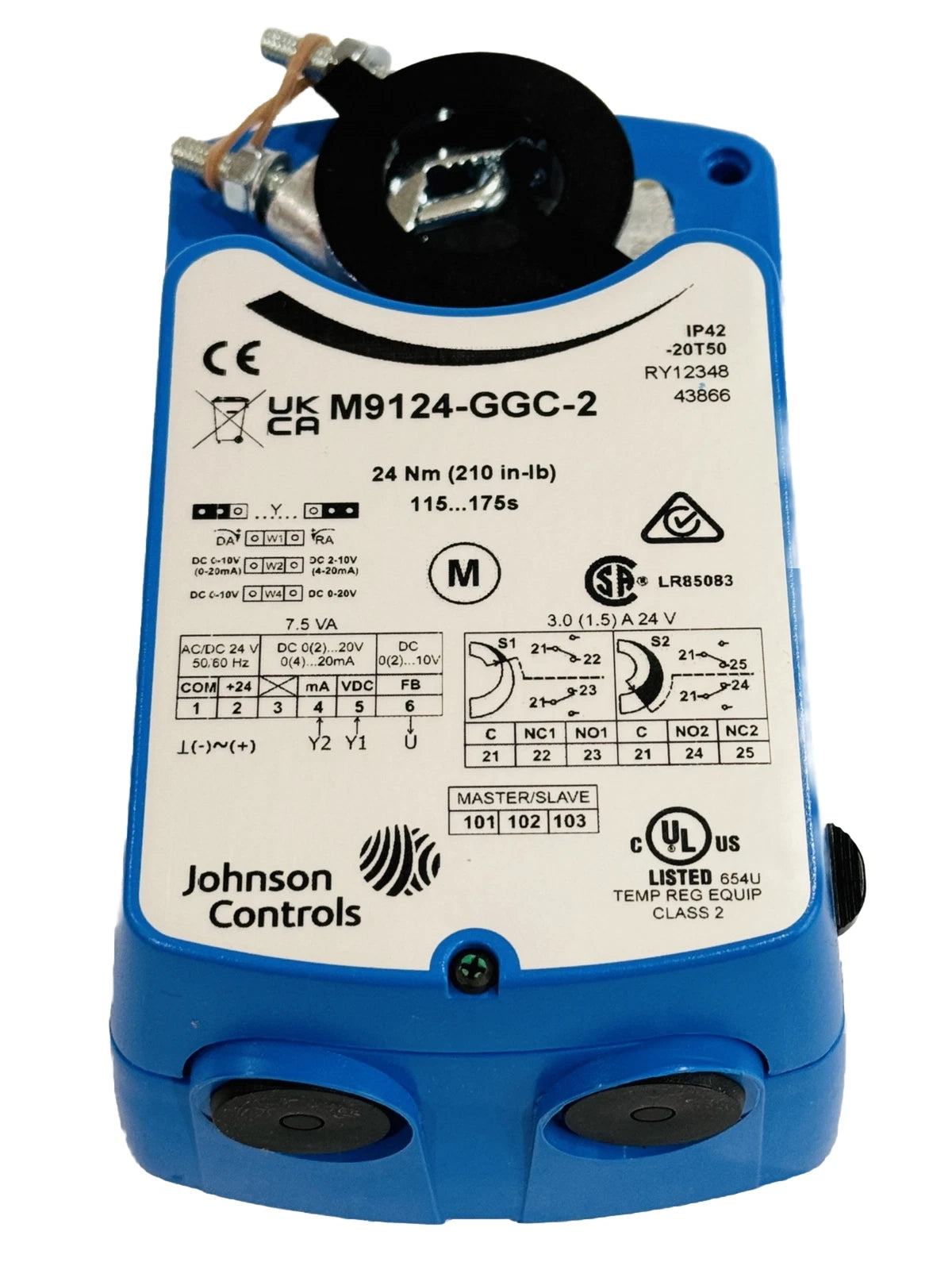

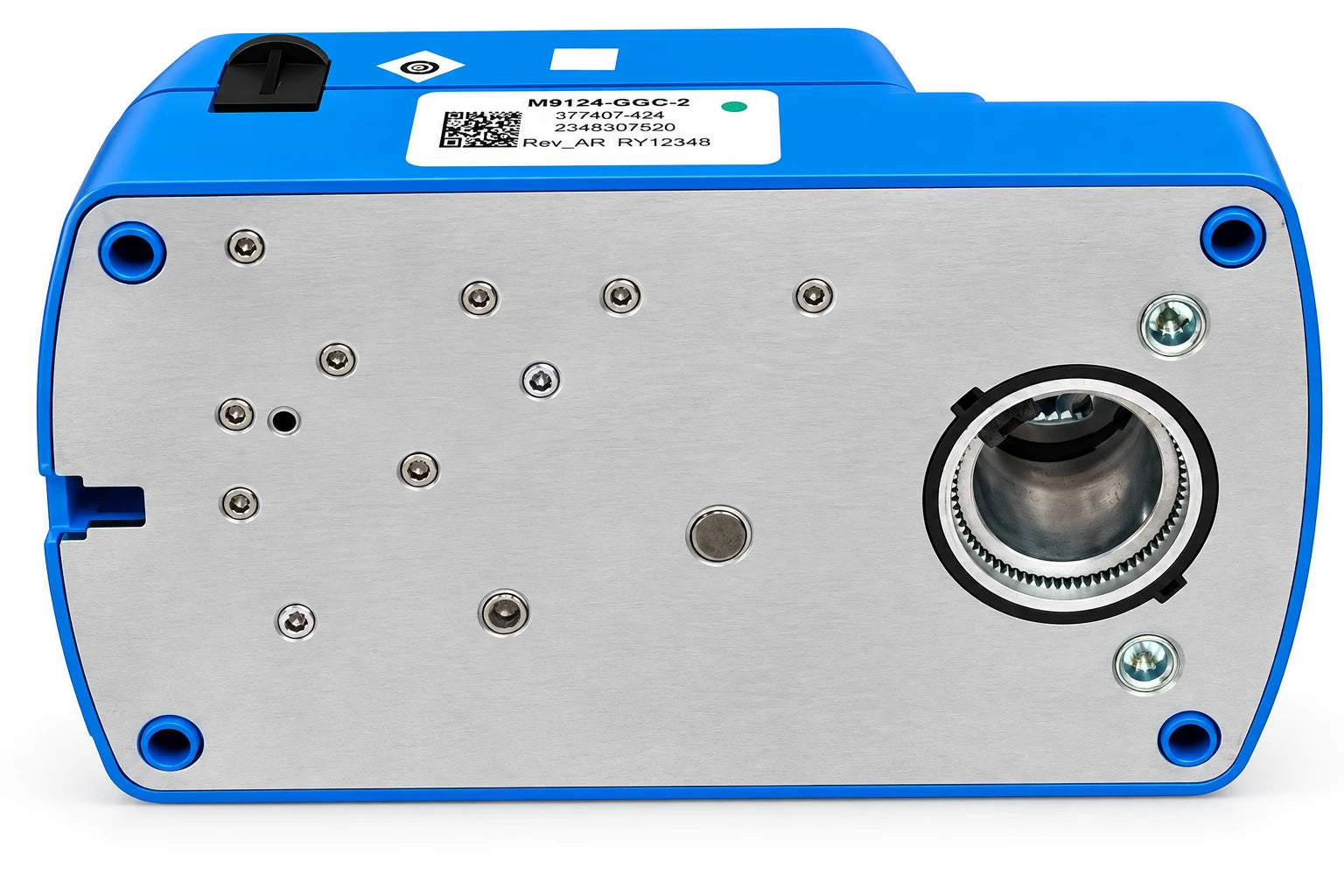

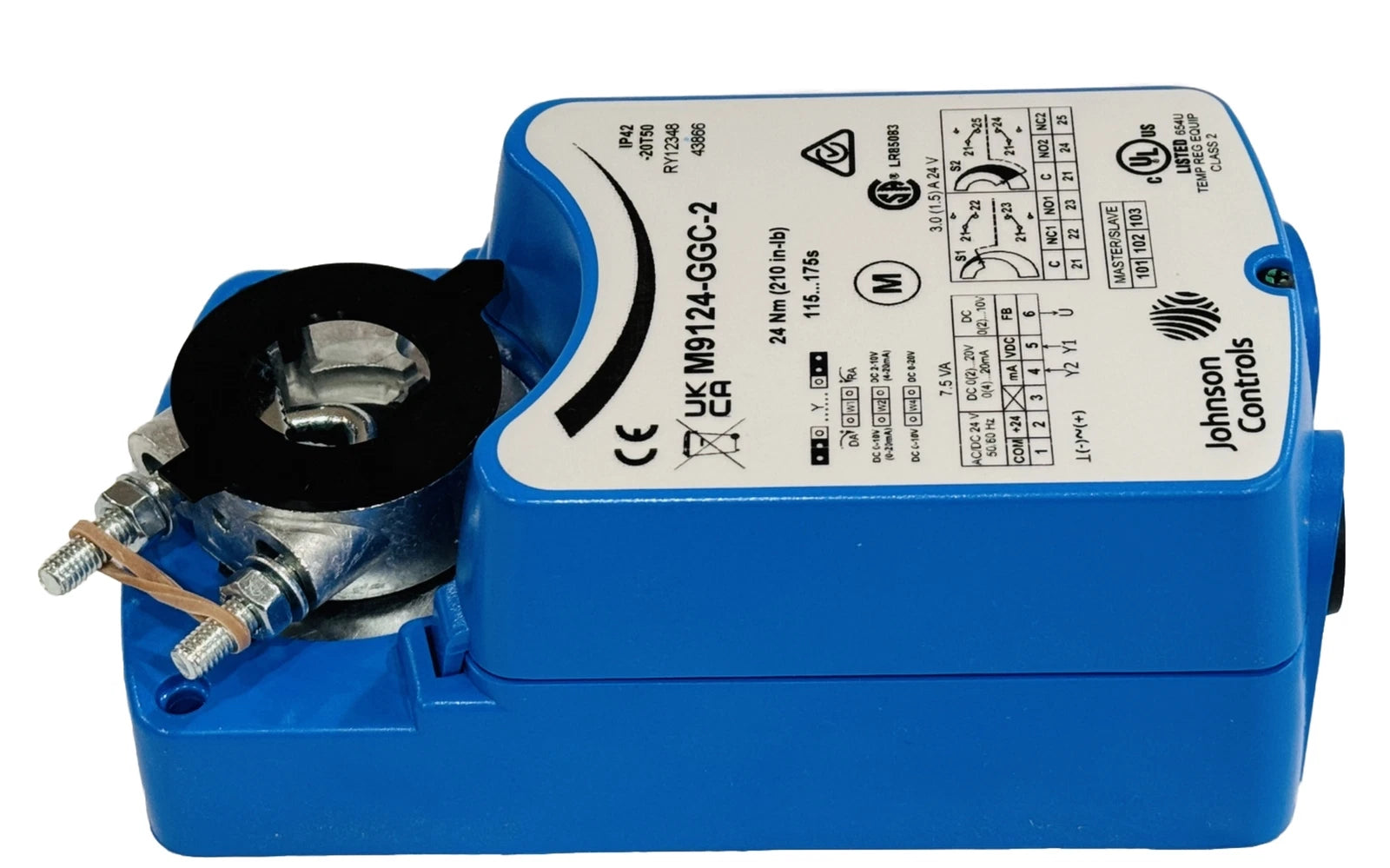

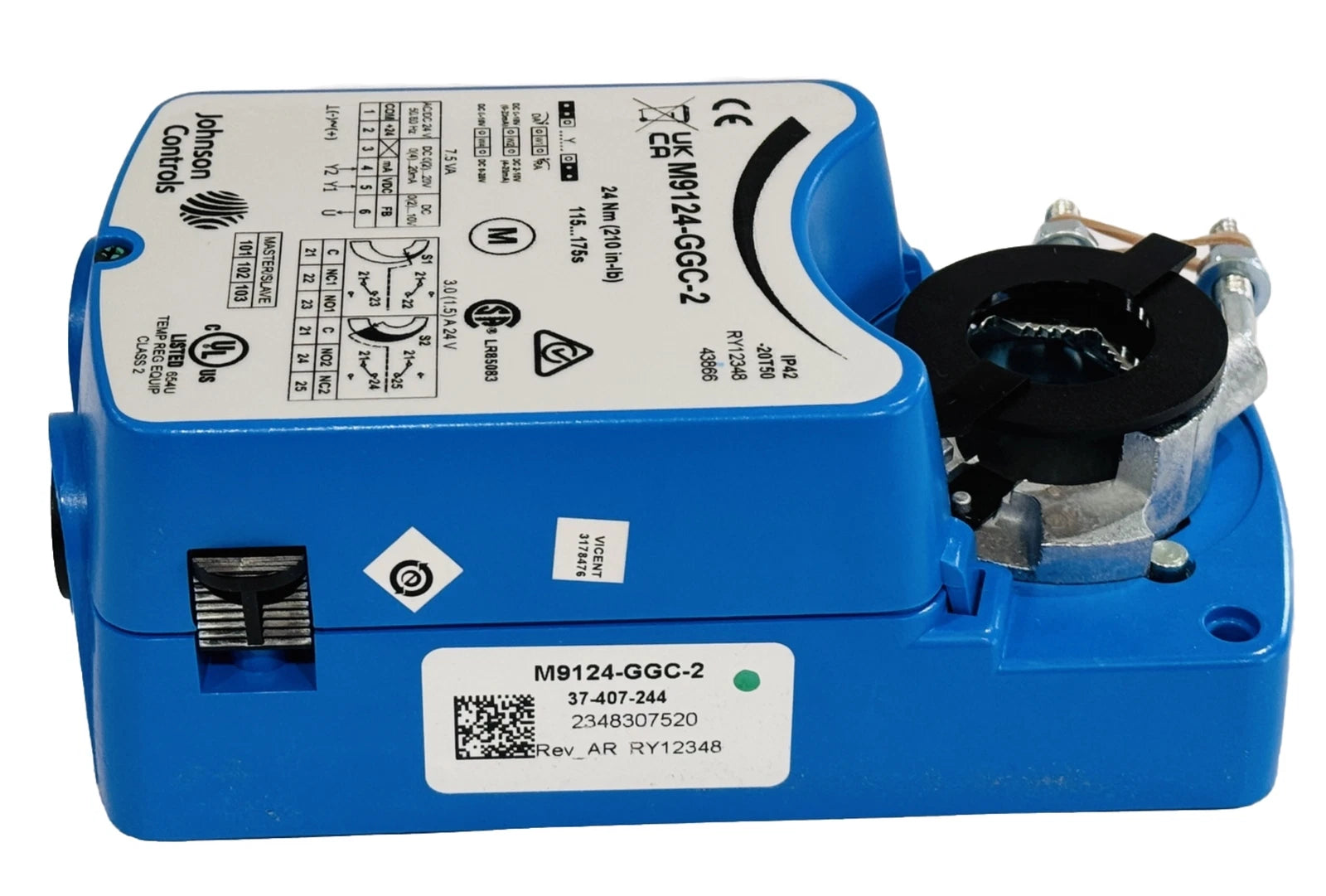

Johnson Controls M9124-GGC-2 Tandem Electric Damper Actuator
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9124-GGC-2
Description
The Johnson Controls M9124-GGC-2 is a tandem electric non-spring return actuator designed for proportional damper control with a 0–10 VDC feedback signal. It provides 210 in-lb (24 N·m) torque output, 24 VAC/VDC power, adjustable 0° to 90° rotation, and two SPDT auxiliary switches.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Actuators |
| Part Number | M9124-GGC-2 |
| Subcategory | Electric Damper Actuators |
| Product Type | Electric Non-Spring Return Actuator |
| Series | M9124 |
| Control Signal | 0–10 VDC or 4–20 mA |
| Torque Output | 210 in-lb (24 N·m) |
| Power Supply | 24 VAC/VDC |
| Rotation Range | 0°–90° |
| Auxiliary Switches | 2 SPDT |
| Manual Override | Yes |
| Weight | 2.5 kg |
Information About M9124-GGC-2
The M9124-GGC-2 belongs to the Johnson Controls M9124 Series of electric damper actuators. It supports analog control signals of 0–10 VDC or 4–20 mA and uses a direct-mount configuration with an anti-rotation bracket. The actuator includes a manual disengage button and is compatible with round shafts up to 3/4 inch and square shafts up to 5/8 inch. Its operating range is -20°C to 50°C with 0–90% relative humidity, non-condensing.
Key Features:
- Tandem Actuator: Provides coordinated electric actuator operation for compatible damper applications.
- Torque Output: Delivers 210 in-lb (24 N·m) of rated torque.
- Proportional Control: Supports analog control through 0–10 VDC or 4–20 mA signals.
- Auxiliary Switches: Includes two SPDT 24 VAC auxiliary switches for equipment control and status functions.
- Adjustable Rotation: Provides 0° to 90° rotation with mechanical adjustment in 5° increments.
- Manual Override: Features a disengage button for manual positioning during service.
- Shaft Compatibility: Accepts round shafts up to 3/4 inch and square shafts up to 5/8 inch.
- Direct Mounting: Uses a direct-mount design with an anti-rotation bracket.
The M9124-GGC-2 delivers the reliability and precision required for proportional damper control in HVAC air-handling applications.
