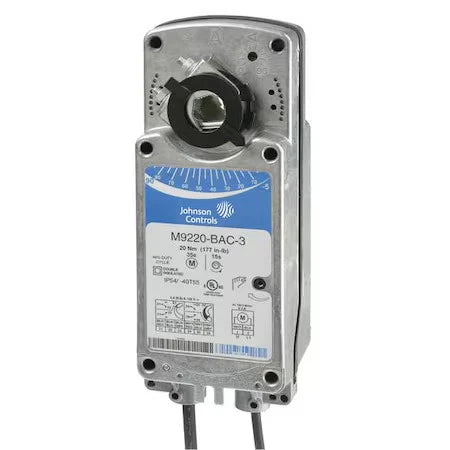

Johnson Controls M9220-BAA-3 On/Off Spring Return Direct-Coupled Damper Actuator
- Regular price
- $449.00
- Sale price
- $449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9220-BAA-3
Description
The Johnson Controls M9220-BAA-3 is an electric, two-position spring-return actuator for operating HVAC dampers. It supplies 177 lb-in of torque from a 120 VAC power source, with powered travel of 24–57 seconds through 90 degrees.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | M9220-BAA-3 |
| Subcategory | Spring Return Damper Actuators |
| Series | M9220-Bxx-3 |
| Actuator Type | Electric, direct coupled |
| Control Signal | On/Off, two-position |
| Supply Voltage | 120 VAC +10%/−15% |
| Frequency | 60 Hz |
| Running and Spring-Return Torque | 177 lb-in (20 N·m) |
| Powered Rotation Time | 24–57 seconds through 90°; 35 seconds nominal at full rated load |
| Spring-Return Time | 11–15 seconds at room temperature; longer at low temperatures |
| Rotation Range | Mechanically limited to 90° |
| Spring-Return Direction | CW or CCW, determined by mounting orientation |
| Auxiliary Switches | None |
| Electrical Connections | 48 in. (1.2 m) cable with 18 AWG leads |
| Current Consumption | Running: 0.25 A; holding: 0.13 A |
| Enclosure | Aluminum, NEMA 2 / IP54 |
| Weight | 7.6 lb (3.5 kg) |
Information About M9220-BAA-3
The M9220-BAA-3 is part of the Johnson Controls M9220-Bxx-3 actuator series. Its direct-coupled construction connects to a compatible damper shaft using the supplied clamp. Reversible mounting determines the spring-return direction to suit the installation. This model has no auxiliary switches and uses a factory-fitted cable for electrical connections.
Key Features:
- On/Off Control: Provides two-position operation for compatible HVAC dampers.
- Output Torque: Delivers 177 lb-in (20 N·m) during powered operation and spring return.
- Mechanical Spring Return: Returns the connected damper when supply power is removed.
- Powered Travel: Completes 90° movement in 24–57 seconds, depending on load and operating conditions.
- Return Timing: Provides an 11–15-second spring return at room temperature.
- Direct Shaft Mounting: Uses a shaft clamp to transfer torque directly to the damper.
- Reversible Installation: Allows clockwise or counterclockwise spring return through mounting orientation.
- Factory-Fitted Cable: Includes 48 inches of cable with 18 AWG wire leads.
The M9220-BAA-3 delivers the reliability and precision required for two-position airflow control and mechanical return in compatible HVAC systems.
