Johnson Controls M9220-GGA-3 24V Spring Return Proportional Damper Actuator
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9220-GGA-3
Description

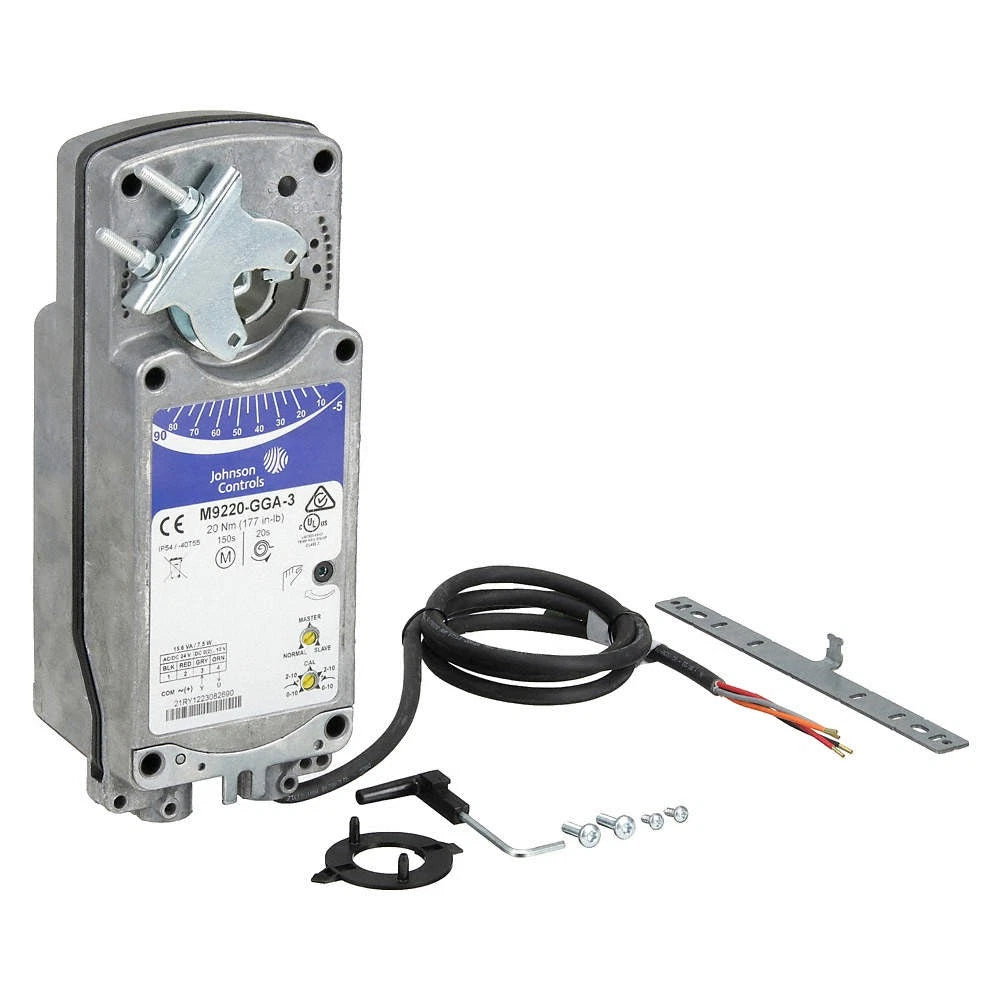

The Johnson Controls M9220-GGA-3 is a direct-coupled spring-return electric actuator designed for HVAC damper and valve control. It operates on 24 VAC/VDC power and provides proportional control with 177 lb-in of running and spring-return torque.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Control Equipment |
| Part Number | M9220-GGA-3 |
| Subcategory | Damper Actuators |
| Product Type | Electric Spring-Return Actuator |
| Actuator Type | Rotary Actuator |
| Control Type | Proportional |
| Input Power | 24 VAC / 24 VDC |
| AC Frequency | 50/60 Hz |
| Torque | 177 lb-in (20 N·m) |
| Control Signals | 0–10 VDC, 2–10 VDC, 0/4–20 mA |
| Power-On Run Time | 150 seconds |
| Connection | 48 in Cable with Wire Leads |
| Wire Configuration | 4 Color Wire |
| Power Consumption | 7.5 W |
| Apparent Power | 15.6 VA |
| Enclosure Rating | NEMA 2 (IP54) |
| Return Type | Spring Return |
| Mounting | Direct Coupled |
| Round Shaft Compatibility | 1/2–3/4 in (12–19 mm) |
| Square Shaft Compatibility | 3/8–1/2 in (10, 12, 14 mm) |
| Auxiliary Switches | Available on applicable xxC models |
| Application | HVAC Damper and Valve Control |
| Weight | 7.50 lbs |
Information About M9220-GGA-3
The M9220-GGA-3 is part of the M9220 series of bidirectional electric spring-return actuators for dampers and valves. It supports proportional control signals including 0–10 VDC, 2–10 VDC, and 0/4–20 mA with a 500-ohm resistor and includes a 48-inch cable with wire leads. The actuator mounts directly to compatible shafts without requiring a separate damper linkage and accepts round or square shafts within the specified dimensions. Its NEMA 2 enclosure and spring-return design make it suitable for controlled indoor HVAC installations.
Key Features:
- Spring Return: Provides running and spring-return operation with 177 lb-in of torque.
- Proportional Control: Supports 0–10 VDC, 2–10 VDC, and 0/4–20 mA control signals.
- 24V Operation: Operates on 24 VAC at 50/60 Hz or 24 VDC.
- Direct Coupling: Mounts directly to dampers without requiring a separate linkage.
- Bidirectional Operation: Supports rotation in both directions for compatible damper and valve applications.
- Shaft Compatibility: Supports 1/2–3/4 inch round shafts and specified square shaft sizes.
- Manual Installation: Includes a standard shaft clamp for direct mechanical installation.
- Cable Connection: Includes a 48-inch cable with wire leads for system connection.
The M9220-GGA-3 delivers the reliability and precision required for HVAC damper and valve positioning, proportional control, and spring-return applications.
