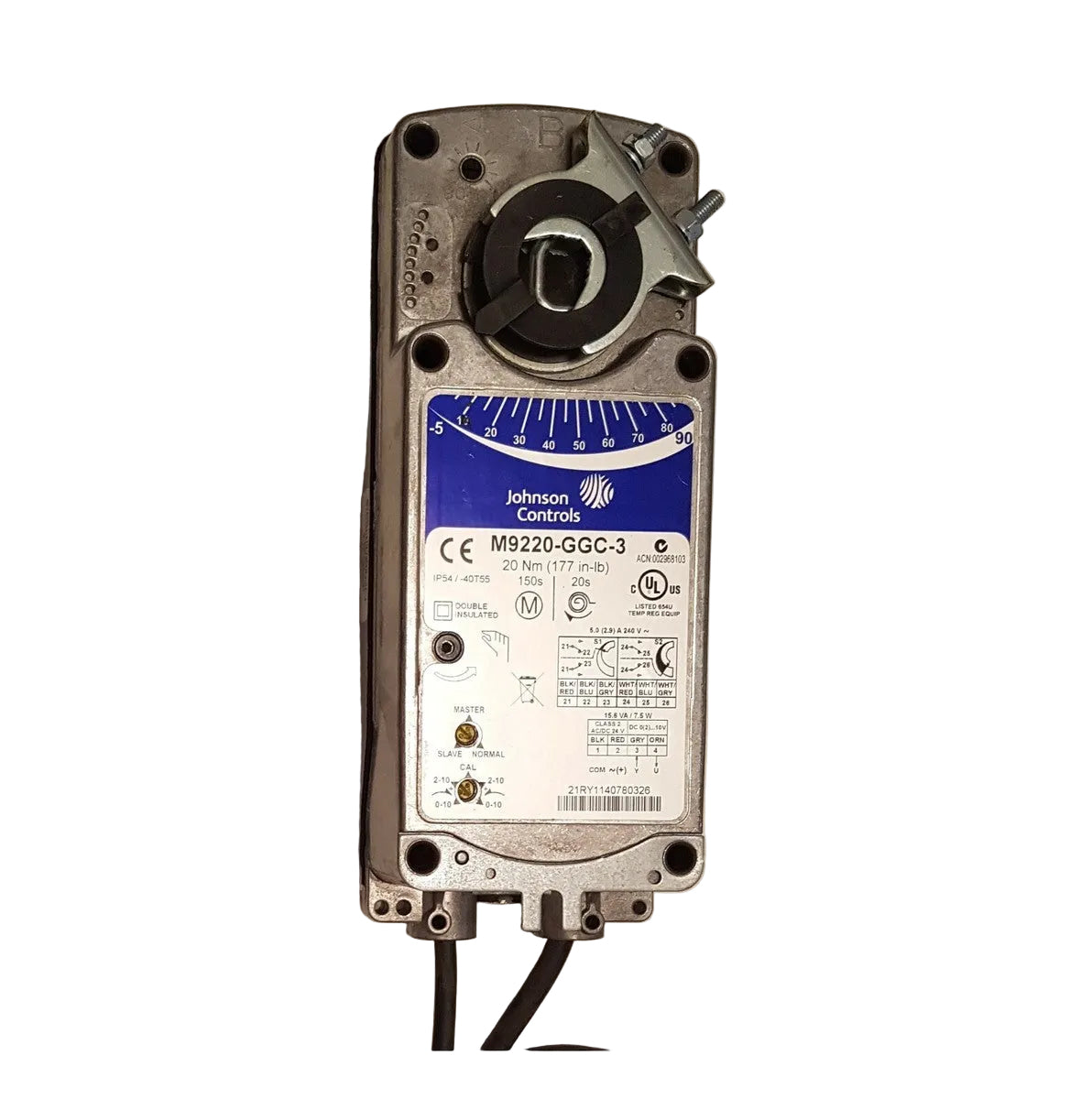

Johnson Controls M9220-GGC-3 24V Spring-Return Proportional Damper Actuator
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9220-GGC-3
Description
The Johnson Controls M9220-GGC-3 is a direct-mount, spring-return electric actuator for proportional control of HVAC dampers and valves. It operates on 24 VAC/VDC power and provides 177 lb·in (20 N·m) of torque with 0–10 VDC, 2–10 VDC, or 0(4)–20 mA control input compatibility.
Technical Specification
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC Controls |
| Part Number | M9220-GGC-3 |
| Subcategory | Damper Actuators |
| Actuator Type | Direct-Mount Spring-Return Electric Actuator |
| Torque | 177 lb·in (20 N·m) |
| Tandem Torque Capacity | Up to 531 lb·in (60 N·m) |
| Supply Voltage | 24 VAC ±20% at 50/60 Hz or 24 VDC ±10% |
| Power Consumption | 15.5 VA running; 7.7 VA holding |
| Control Input | 0–10 VDC, 2–10 VDC, or 0(4)–20 mA |
| Feedback Signal | 0(2)–10 VDC |
| Running Time | 150 seconds |
| Spring Return Time | 20 seconds |
| Rotational Stroke | 90° to 93° |
| Shaft Compatibility | 1/2–3/4 in round; 3/8 and 1/2 in square |
| Auxiliary Switches | Two SPDT |
| Enclosure Rating | NEMA 2 (IP54) |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Motor Type | Microprocessor-controlled brushless DC |
| Electrical Connection | 48 in (1.2 m), 18 AWG appliance cable |
| Weight | 6.40 lbs |
Information About M9220-GGC-3
The M9220-GGC-3 is a member of the Johnson Controls M9220 actuator series and uses a microprocessor-controlled brushless DC motor for consistent operating time across varying loads. Its reversible mounting configuration allows spring return in either direction, while integrated electronic stall detection protects the motor during overload conditions. Two SPDT auxiliary switches provide fixed and adjustable switching points for position indication or external control functions. The actuator is designed for direct coupling to compatible round or square damper shafts and includes a NEMA 2 (IP54) aluminum enclosure for protection in commercial HVAC installations.
Key Features:
- Spring-Return Operation: Provides fail-safe positioning with spring return available in either rotational direction.
- 177 lb·in Torque: Delivers 20 N·m of running and spring-return torque for damper and valve positioning.
- Proportional Control: Accepts 0–10 VDC, 2–10 VDC, or 0(4)–20 mA control signals.
- Brushless DC Motor: Uses microprocessor-controlled motor technology for consistent run time under varying torque loads.
- Electronic Stall Detection: Detects overload conditions throughout the rotation range and deactivates the motor.
- Auxiliary Switches: Includes two SPDT switches with one fixed and one adjustable switching point.
- Manual Override: Provides a locking manual override with automatic release and integrated crank storage.
- Direct-Mount Design: Supports compatible damper shafts without requiring a separate damper linkage.
The M9220-GGC-3 delivers the reliability and precision required for proportional damper and valve control in commercial HVAC systems.
