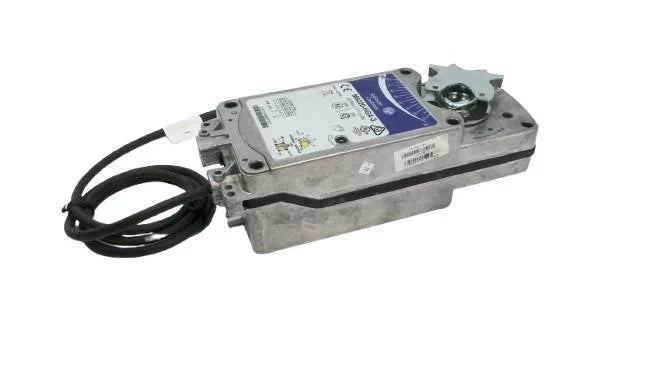

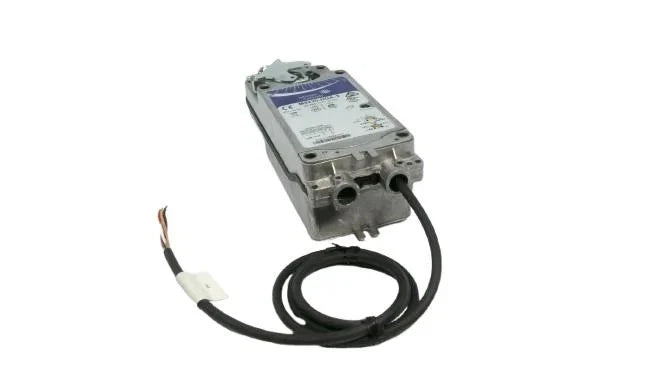

Johnson Controls M9220-HGA-3 177 in-lb 24V Proportional Spring Return Actuator
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: M9220-HGA-3
Description
The Johnson Controls M9220-HGA-3 is a proportional spring-return electric actuator designed for modulating control of HVAC dampers and compatible rotary valves. Johnson Controls part number M9220-HGA-3 operates from 24 VAC/VDC power, delivers 177 in-lb (20 N·m) of torque, and provides adjustable zero and span for integration with building automation control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC & Building Automation |
| Part Number | M9220-HGA-3 |
| Subcategory | Spring Return Actuators |
| Series | M9200 Series |
| Product Type | Proportional Electric Damper / Valve Actuator |
| Actuator Type | Spring Return / Modulating |
| Rated Torque | 177 in-lb / 20 N·m |
| Power Supply | 24 VAC/VDC |
| Control Signal | Proportional, Nominal 0–10 VDC |
| Adjustment | Adjustable Zero and Span |
| Powered Runtime | Approx. 150 Seconds |
| Operating Temperature | -40°F to 131°F (-40°C to 55°C) |
| Enclosure Rating | NEMA 2 |
| Electrical Connection | Approx. 4 ft Appliance Cable |
| Mounting Type | Direct Coupled |
| Replaces | Johnson Controls M9216-HGA-2 |
| Weight | Approx. 2.9 kg (6.4 lb) |
Information About M9220-HGA-3
The M9220-HGA-3 is a Johnson Controls M9200 Series spring-return actuator engineered for commercial HVAC damper and valve positioning applications. Its proportional control architecture accepts a nominal 0–10 VDC control signal with adjustable zero and span, allowing the actuator response to be matched to specific building-control requirements. The actuator drives the connected device electrically during normal operation and uses its mechanical spring-return mechanism to move toward a predetermined fail-safe position when operating power is removed. With a 24 VAC/VDC supply, 177 in-lb torque rating, approximately 150-second powered runtime, and factory-connected appliance cable, it is suitable for air handlers, ventilation systems, economizers, and other automated HVAC equipment.
Key Features:
- Spring-return operation: Mechanically returns the connected damper or valve toward its fail-safe position when actuator power is removed.
- 177 in-lb torque: Provides approximately 20 N·m of torque for compatible HVAC dampers and rotary valves.
- Proportional control: Supports modulating positioning rather than basic two-position open/closed operation.
- Adjustable zero and span: Allows the proportional control range to be configured for specific system requirements.
- 0–10 VDC control: Designed for integration with compatible analog-output HVAC and building automation controllers.
- 24 VAC/VDC power: Supports standard low-voltage commercial HVAC control power.
- 150-second runtime: Provides controlled powered travel for smooth damper or valve positioning.
- Direct-coupled design: Mounts directly to compatible rotary shafts, reducing the need for external linkage components.
- Factory cable connection: Equipped with an approximately 4 ft appliance cable to simplify electrical installation.
- NEMA 2 enclosure: Provides protection appropriate for applicable indoor HVAC equipment and control installations.
- Wide temperature capability: Rated for operation across approximately -40°F to 131°F (-40°C to 55°C).
- Replacement application: Identified as a replacement for the earlier Johnson Controls M9216-HGA-2 actuator.
The M9220-HGA-3 delivers the reliability and precision required for proportional HVAC damper and valve positioning with spring-return fail-safe operation.
