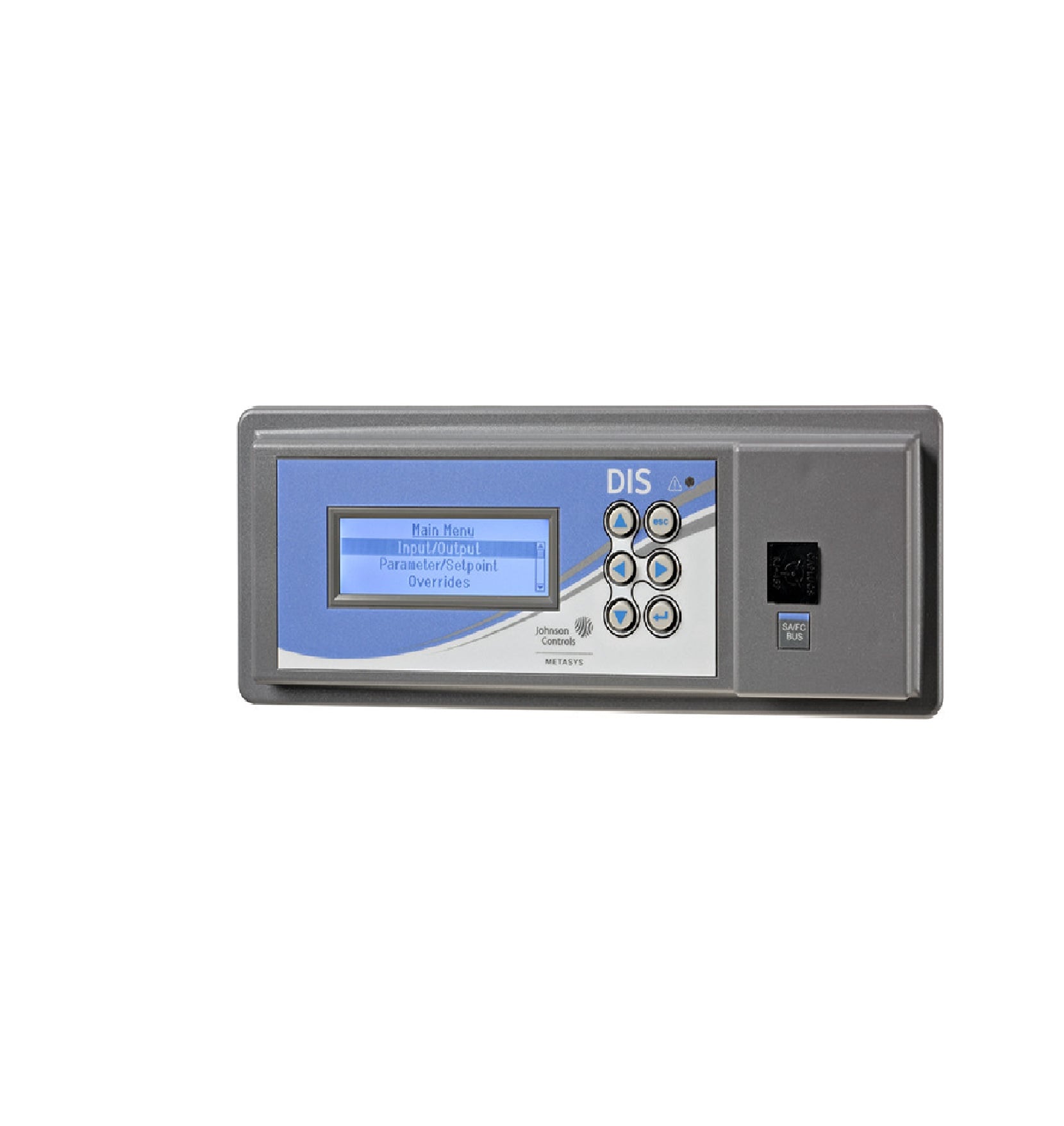

Johnson Controls MS-DIS1710-0 Local LCD Controller Display for Metasys FEC and FAC Controllers
- Regular price
- $629.00
- Sale price
- $629.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-DIS1710-0
Description
The Johnson Controls MS-DIS1710-0 is a local LCD controller display designed to provide a convenient user interface for Metasys® Field Equipment Controllers (FEC) and Field Application Controllers (FAC). The display allows operators and service personnel to monitor equipment status, view alarms, adjust parameters, and access controller diagnostics directly at the enclosure without requiring a workstation. Its compact panel-mounted design and SA Bus connectivity make it an effective interface for commercial HVAC and building automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Controls & Indicators |
| Part Number | MS-DIS1710-0 |
| Subcategory | Indicator/Display |
| Product Type | Local Controller Display |
| Display Type | LCD |
| Status | Discontinued by Manufacturer |
| Compatible Controllers | FEC1611, FEC2611, FAC Models, NCE Controllers |
| Power Requirement | Nominal 15 V supplied by connected controller over SA Bus |
| Power Consumption | 2 VA Maximum |
| Communication Interface | SA Bus |
| Connection Type | RJ-12 6-Pin Jack |
| Processor | Renesas® H8S-2398 16-Bit Microprocessor |
| Memory | 256 KB Flash, 8 KB RAM |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Application | Local Controller Monitoring and Configuration |
| Weight | 1.15 lb (0.52 kg) |
Information About MS-DIS1710-0
The MS-DIS1710-0 is a standalone local controller display developed by Johnson Controls for use with Metasys® building automation systems. It is designed for installation on the front panel of an equipment enclosure and connects directly to compatible FEC1611, FEC2611, FAC, and Network Control Engine (NCE) controllers through the Sensor/Actuator (SA) Bus using an RJ-12 connection. The display provides an intuitive LCD interface for viewing configured points, alarms, schedules, controller information, diagnostic data, and system parameters while allowing authorized users to modify setpoints and operating values. Powered directly by the connected controller, the unit incorporates a Renesas® 16-bit processor, onboard flash memory, and browser-free local operation for dependable field service and commissioning.
Key Features:
- Local LCD Interface: Provides direct access to controller data without requiring a computer.
- Metasys Compatibility: Supports Johnson Controls FEC1611, FEC2611, FAC, and compatible NCE controllers.
- SA Bus Connection: Connects through an RJ-12 interface for simple installation and communication.
- Controller Configuration Access: Displays points, alarms, trends, schedules, diagnostics, and controller information.
- Parameter Adjustment: Allows authorized users to modify operating parameters and setpoints locally.
- Panel Mount Design: Installs on equipment enclosure doors for convenient operator access.
- Controller-Powered Operation: Receives operating power directly from the connected controller.
- Commercial HVAC Service Tool: Simplifies commissioning, maintenance, and troubleshooting of Metasys field controllers.
The MS-DIS1710-0 delivers the reliability and precision required for local monitoring, configuration, and diagnostics of commercial HVAC and building automation controllers.
