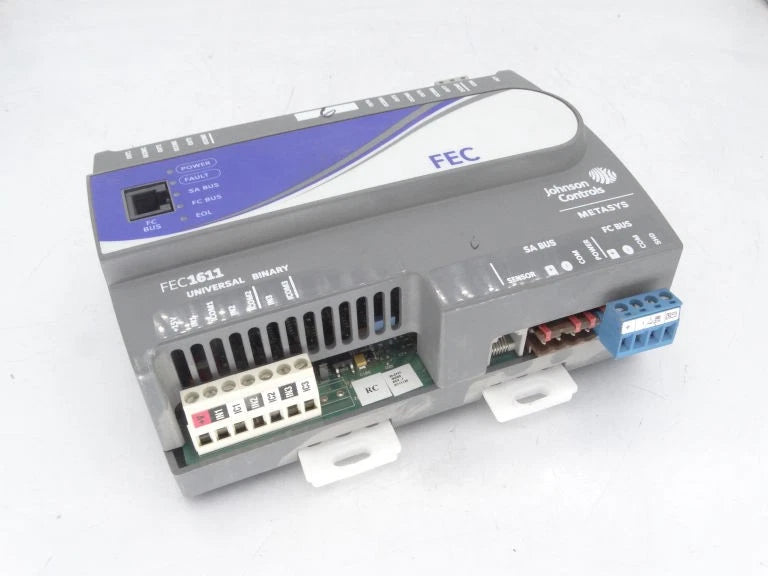

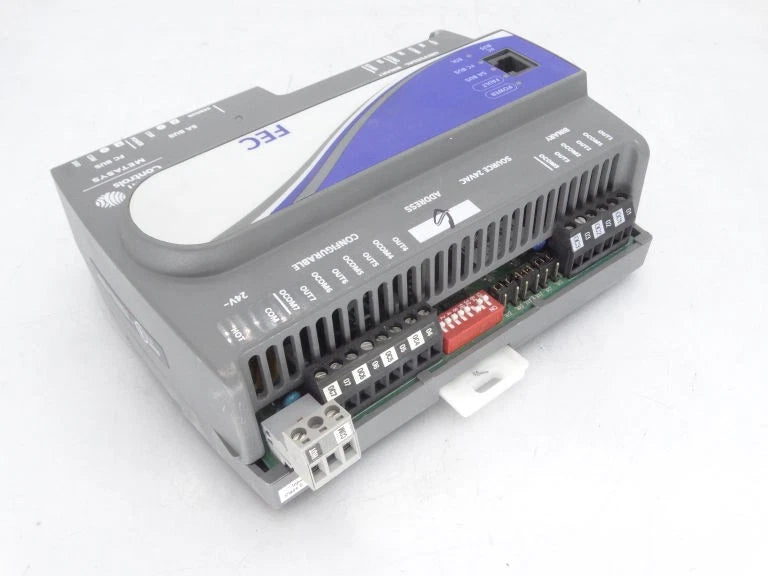

Johnson Controls MS-FEC1611-0 10-Point Field Equipment Controller for Metasys Building Automation Systems
- Regular price
- $839.00
- Sale price
- $839.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-FEC1611-0
Description
The Johnson Controls MS-FEC1611-0 is a 10-point Field Equipment Controller designed to provide programmable control for HVAC equipment and commercial building automation systems. Operating from a 24 VAC power supply, the MS-FEC1611-0 supports BACnet MS/TP communication over the FC Bus and SA Bus, enabling reliable integration with Metasys building management systems. Although discontinued by the manufacturer, it remains a proven replacement controller for maintaining existing automation installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | PLCs/Machine Control |
| Part Number | MS-FEC1611-0 |
| Subcategory | PLC Module/Rack |
| Product Type | Field Equipment Controller |
| Series | FEC16 Series |
| Control Capacity | 10-Point Controller |
| Input Configuration | 2 Universal Inputs, 1 Binary Input |
| Output Configuration | 3 Binary Outputs, 4 Configurable Outputs |
| Supply Voltage | 24 VAC Nominal (20–30 VAC), 50/60 Hz |
| Power Consumption | 14 VA Maximum |
| Communication Protocols | BACnet MS/TP, N2 |
| Communication Interface | FC Bus and SA Bus (RS-485) |
| Processor | 32-Bit Renesas H8SX/166xR Microcontroller |
| Memory | 640 KB Flash Memory, 128 KB RAM |
| Electrical Termination | Fixed Screw Terminal Blocks |
| Mounting | 35 mm DIN Rail or Panel Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.43 kg |
Information About MS-FEC1611-0
The MS-FEC1611-0 is part of the Johnson Controls FEC16 Series of Field Equipment Controllers developed for programmable control of HVAC equipment within the Metasys building automation platform. It features a 10-point input and output configuration consisting of two universal inputs, one binary input, three binary outputs, and four configurable outputs, providing flexibility for a wide range of control applications. The controller communicates using BACnet MS/TP or N2 protocols through the FC Bus and SA Bus, allowing seamless integration with supervisory controllers, network sensors, and expansion modules. Its compact DIN rail or panel-mounted design makes it suitable for rooftop units, air handling units, heat pumps, fan coil units, and other commercial HVAC equipment.
Key Features:
- 10-Point Controller: Provides 2 universal inputs, 1 binary input, 3 binary outputs, and 4 configurable outputs.
- BACnet MS/TP Communication: Supports BACnet MS/TP and N2 communication for Metasys integration.
- 24 VAC Operation: Designed for standard Class 2 HVAC control power systems.
- Programmable Control Platform: Supports customized control strategies for HVAC and building automation equipment.
- High-Performance Processor: Utilizes a 32-bit Renesas microcontroller for dependable control performance.
- Flexible Mounting Options: Supports DIN rail and panel mounting for convenient installation.
- FC Bus and SA Bus Support: Connects directly to field devices, sensors, and supervisory controllers.
- Compact Industrial Design: Engineered for reliable long-term operation in commercial building environments.
The MS-FEC1611-0 delivers the reliability and precision required for programmable HVAC equipment control and commercial building automation systems.
