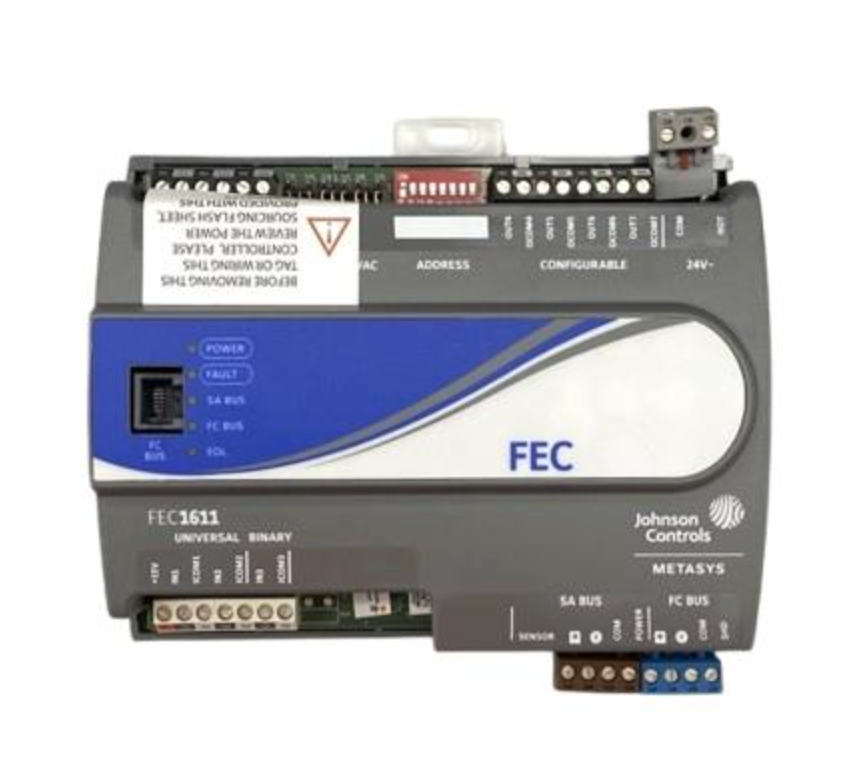

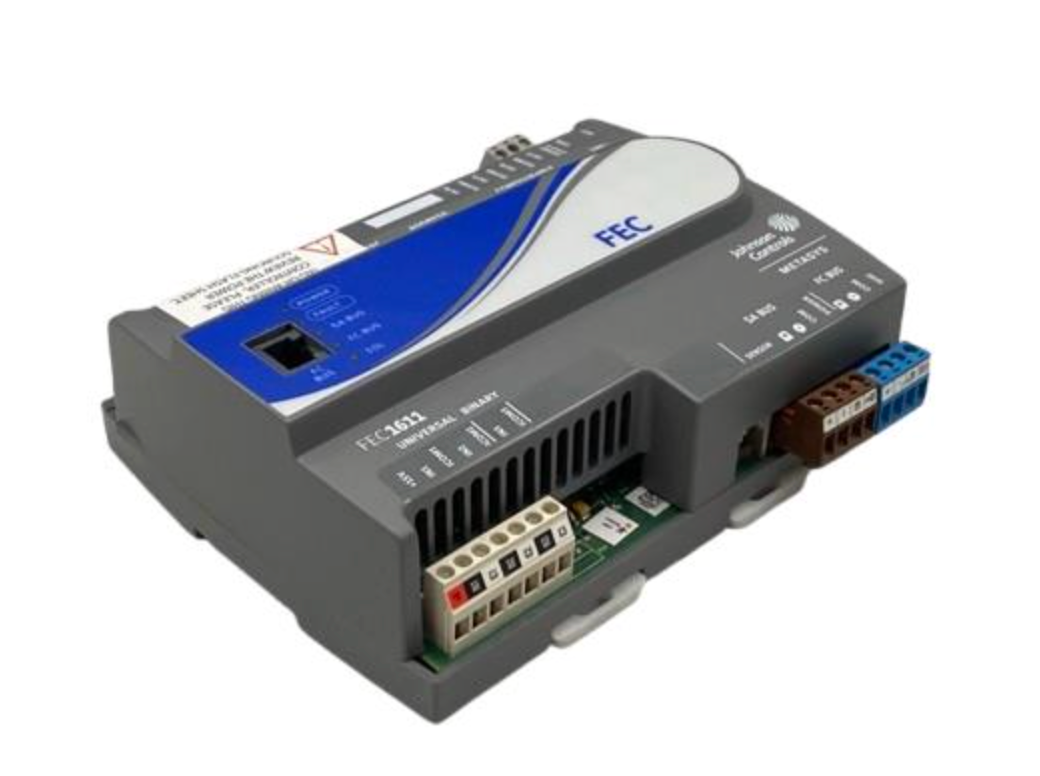

Johnson Controls MS-FEC1611-1 10-Point Field Equipment Controller
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-FEC1611-1
Description
The Johnson Controls MS-FEC1611-1 is a 10-point Field Equipment Controller (FEC) designed for HVAC and building automation applications. Operating on 24 VAC, it supports BACnet MS/TP and N2 communication protocols while providing flexible I/O for monitoring and controlling commercial HVAC equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Part Number | MS-FEC1611-1 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Product Type | Field Equipment Controller (FEC) |
| Power Supply | 24 VAC, 50/60 Hz |
| Processor | Renesas H8SX/166xR 32-Bit Microcontroller |
| Memory | 640 KB Flash, 128 KB RAM |
| Universal Inputs | 2 |
| Binary Inputs | 2 |
| Binary Outputs | 3 |
| Configurable Outputs | 4 |
| Total I/O Points | 10 |
| Communication Protocols | BACnet MS/TP, N2 |
| Network Interface | RS-485 FC Bus and SA Bus |
| Protection Rating | IP20 |
| Mounting | DIN Rail or Surface Mount |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | 0.86 lb |
Information About MS-FEC1611-1
The MS-FEC1611-1 is part of the Johnson Controls Metasys® Field Equipment Controller (FEC) family, developed for reliable control of HVAC equipment in commercial buildings. Featuring a 32-bit Renesas processor, the controller supports both pre-engineered and custom-programmed applications using the Controller Configuration Tool (CCT). It communicates over BACnet MS/TP or Johnson Controls N2 protocols and provides 10 integrated I/O points for flexible control of air handlers, rooftop units, heat pumps, VAV systems, and other mechanical equipment. Its compact design and multiple communication options allow seamless integration into new or existing building automation systems.
Key Features:
- 10-Point Field Equipment Controller: Designed for commercial HVAC and building automation systems.
- Flexible I/O Configuration: Includes 2 universal inputs, 2 binary inputs, 3 binary outputs, and 4 configurable outputs.
- 24 VAC Operation: Compatible with standard building automation control systems.
- BACnet MS/TP & N2 Communication: Supports both open BACnet and legacy Johnson Controls networks.
- 32-Bit Processor: Delivers fast and reliable application performance.
- Programmable Controller: Supports custom applications using Johnson Controls CCT software.
- High-Resolution I/O: Features 16-bit analog input and output resolution for precise control.
- DIN Rail or Surface Mount: Offers flexible installation options for control panels.
The MS-FEC1611-1 delivers the reliability and flexibility required for advanced HVAC equipment control and building automation.
