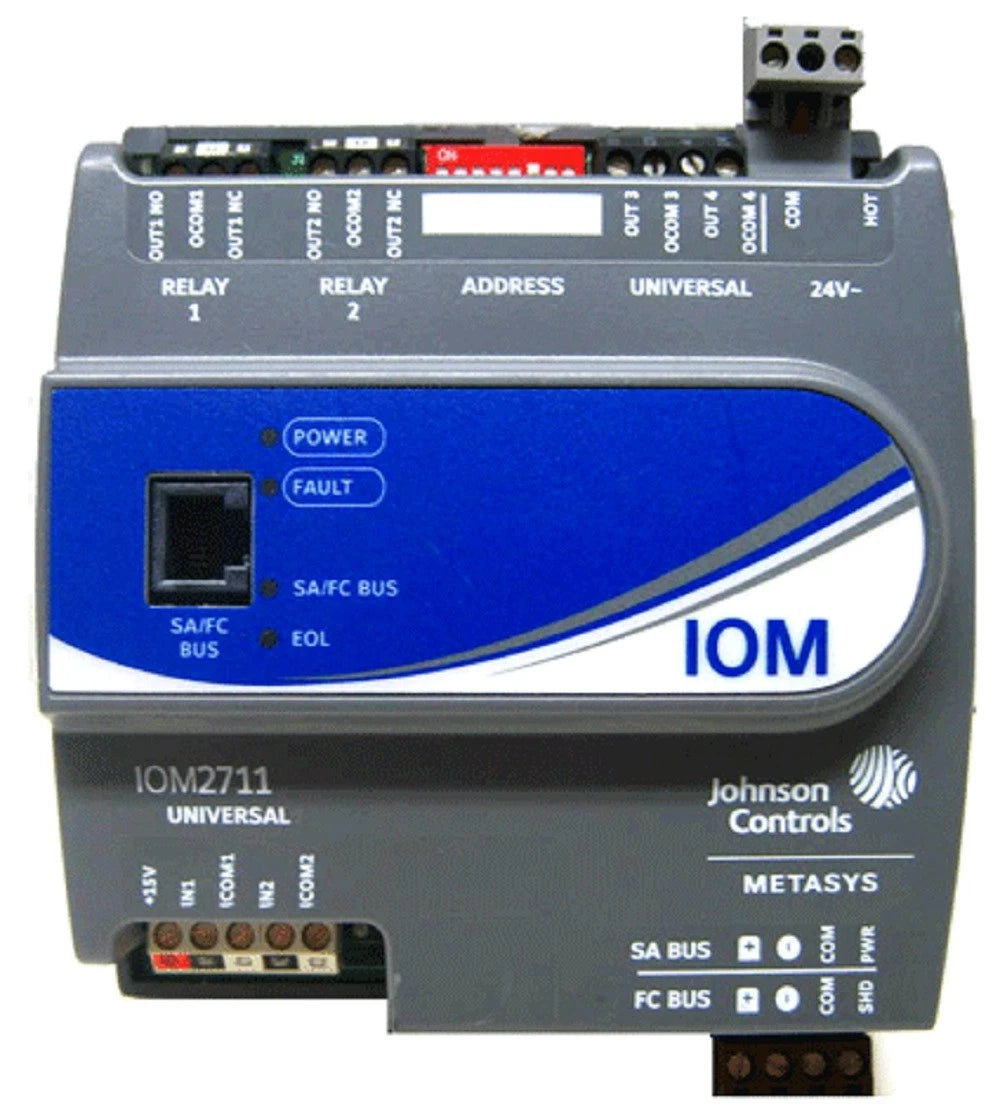

Johnson Controls MS-IOM-2711-0 6-Point Input Output Module with FC Bus and SA Bus Support
- Regular price
- $382.00
- Sale price
- $382.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-IOM-2711-0
Description
The Johnson Controls MS-IOM-2711-0 is a 6-point Input/Output Module designed to expand field controller capabilities in Metasys building automation systems. The module provides two universal inputs, two universal outputs, and two relay binary outputs while supporting communication over the FC Bus and SA Bus. Designed for commercial HVAC and automation applications, the MS-IOM-2711-0 enables reliable field device integration and distributed I/O expansion.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | PLCs/Machine Control |
| Part Number | MS-IOM-2711-0 |
| Subcategory | PLC Module/Rack |
| Series | IOM Series |
| Product Type | Input/Output Module |
| Control Capacity | 6-Point Module |
| Universal Inputs | 2 |
| Universal Outputs | 2 |
| Binary Outputs | 2 Relay Outputs |
| Relay Rating | 120/240 VAC |
| Supply Voltage | 24 VAC Class 2, 50/60 Hz |
| Communication Protocol | BACnet MS/TP |
| Communication Interface | FC Bus and SA Bus |
| Processor | H8SX/166xR Renesas 32-Bit Microcontroller |
| Memory | 512 KB Flash, 128 KB RAM |
| Analog Resolution | 16-Bit Inputs and Outputs |
| Electrical Termination | Fixed Screw Terminal Blocks |
| Mounting | 35 mm DIN Rail |
| Weight | 0.48 kg |
Information About MS-IOM-2711-0
The MS-IOM-2711-0 is part of the Johnson Controls IOM Series, developed to extend the input and output capacity of Metasys Field Equipment Controllers. It communicates over BACnet MS/TP using the FC Bus and SA Bus, allowing seamless integration with Johnson Controls supervisory controllers and field devices. The module features two universal inputs, two universal outputs, and two relay binary outputs rated for 120/240 VAC, making it suitable for controlling HVAC equipment, relays, actuators, and monitoring field sensors. Its compact enclosure, screw terminal connections, and DIN rail mounting simplify installation while providing dependable performance in commercial building automation systems.
Key Features:
- Six-Point I/O Module: Provides 2 universal inputs, 2 universal outputs, and 2 binary relay outputs.
- FC Bus and SA Bus Support: Integrates directly with Johnson Controls Metasys controllers using BACnet MS/TP communication.
- 120/240 VAC Relay Outputs: Relay contacts are rated for switching 120/240 VAC loads.
- 24 VAC Operation: Operates from a standard Class 2 24 VAC building automation power supply.
- High-Resolution Analog Processing: Supports 16-bit analog input and output resolution for precise control.
- 32-Bit Microcontroller: Uses a Renesas 32-bit processor for dependable automation performance.
- Flexible Installation: Features fixed screw terminals and DIN rail mounting for efficient field installation.
- Commercial HVAC Integration: Designed for expanding I/O capacity in HVAC and facility automation applications.
The MS-IOM-2711-0 delivers the reliability and precision required for expanding field controller input/output capacity in commercial HVAC and building automation systems.
