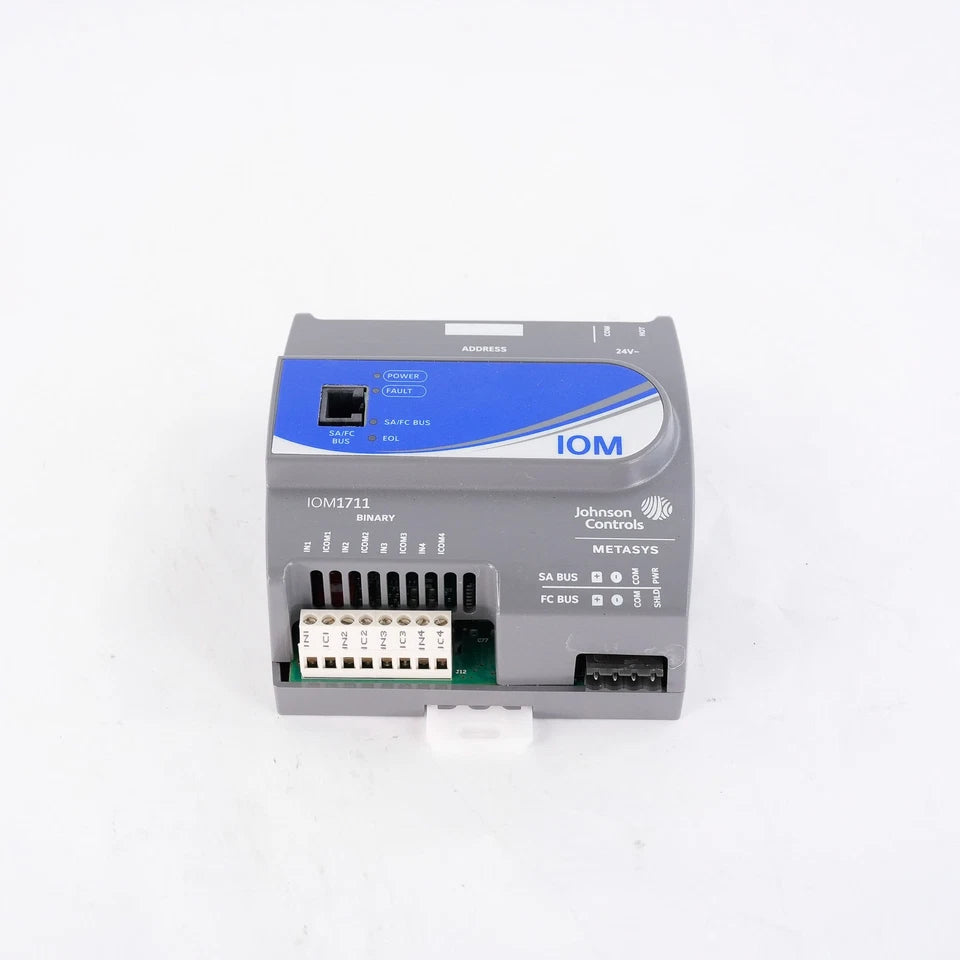

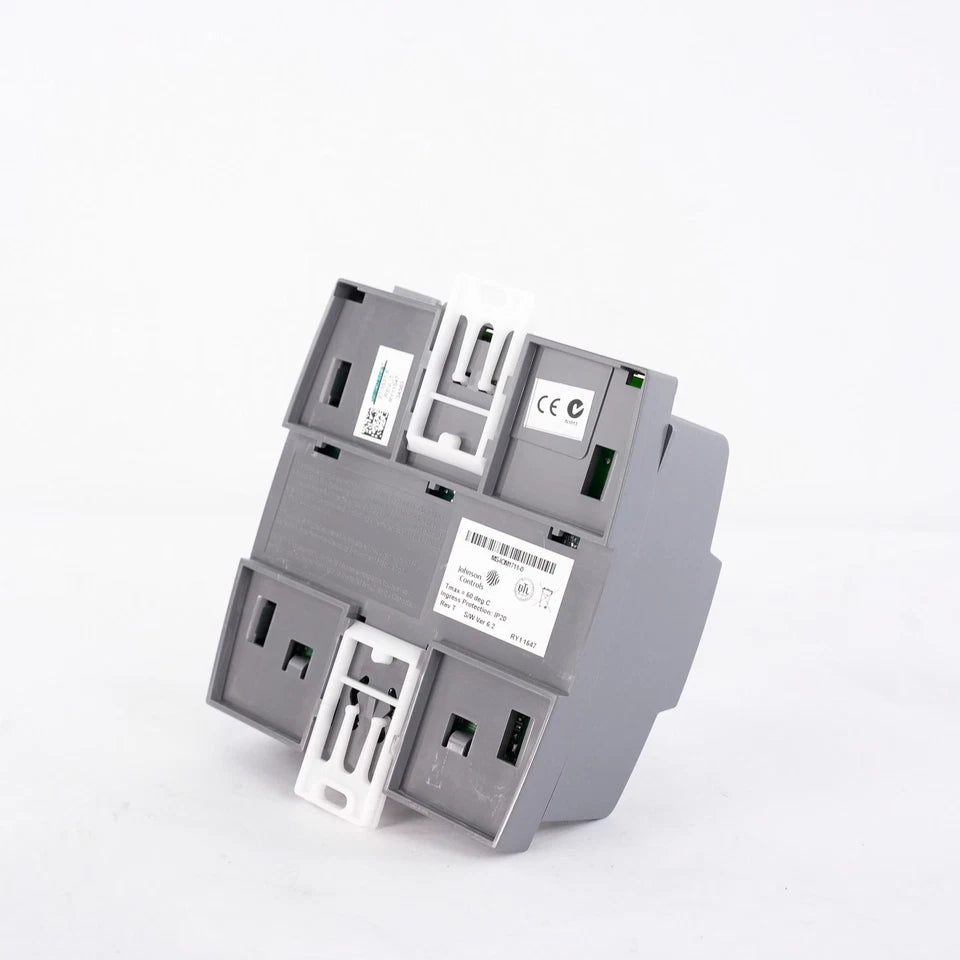

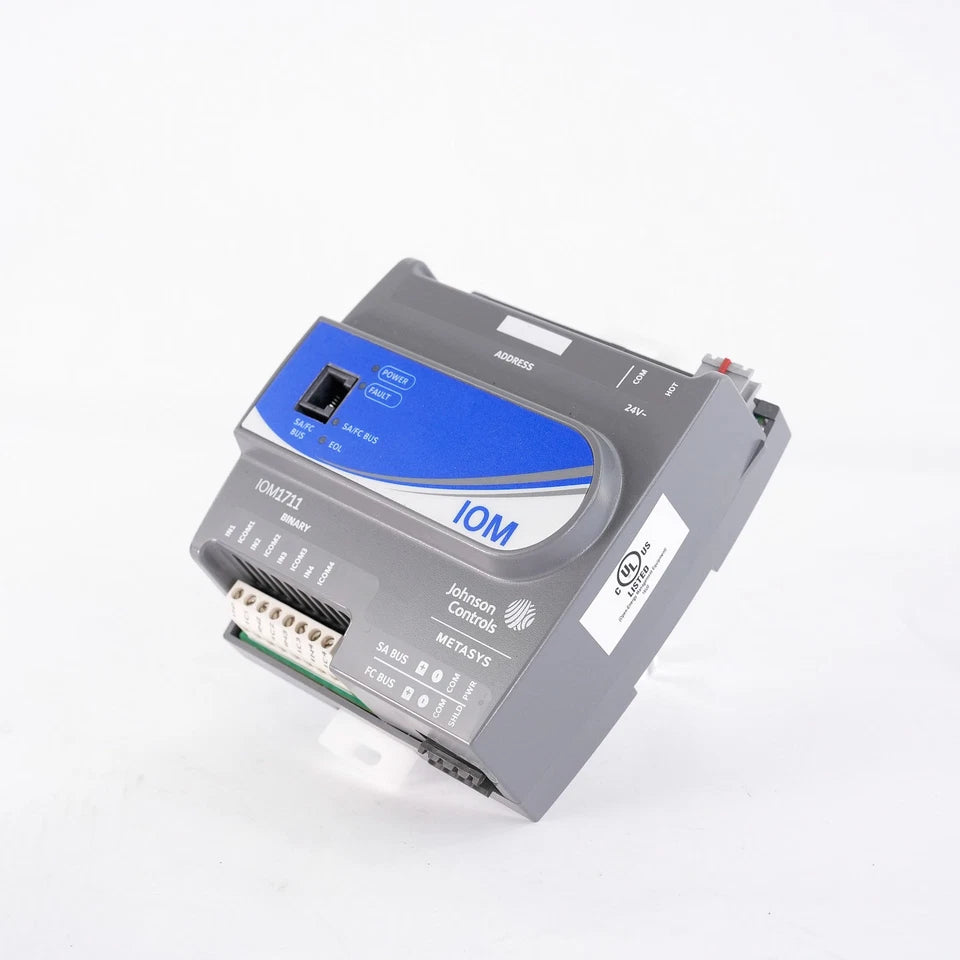

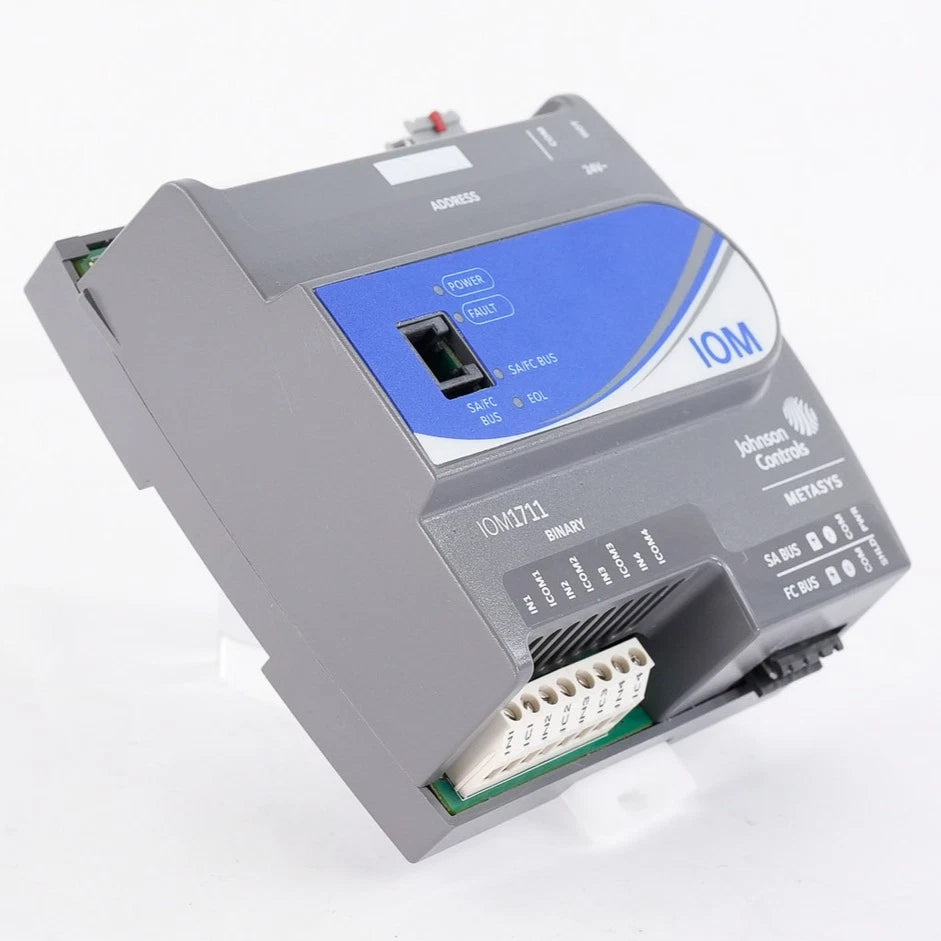

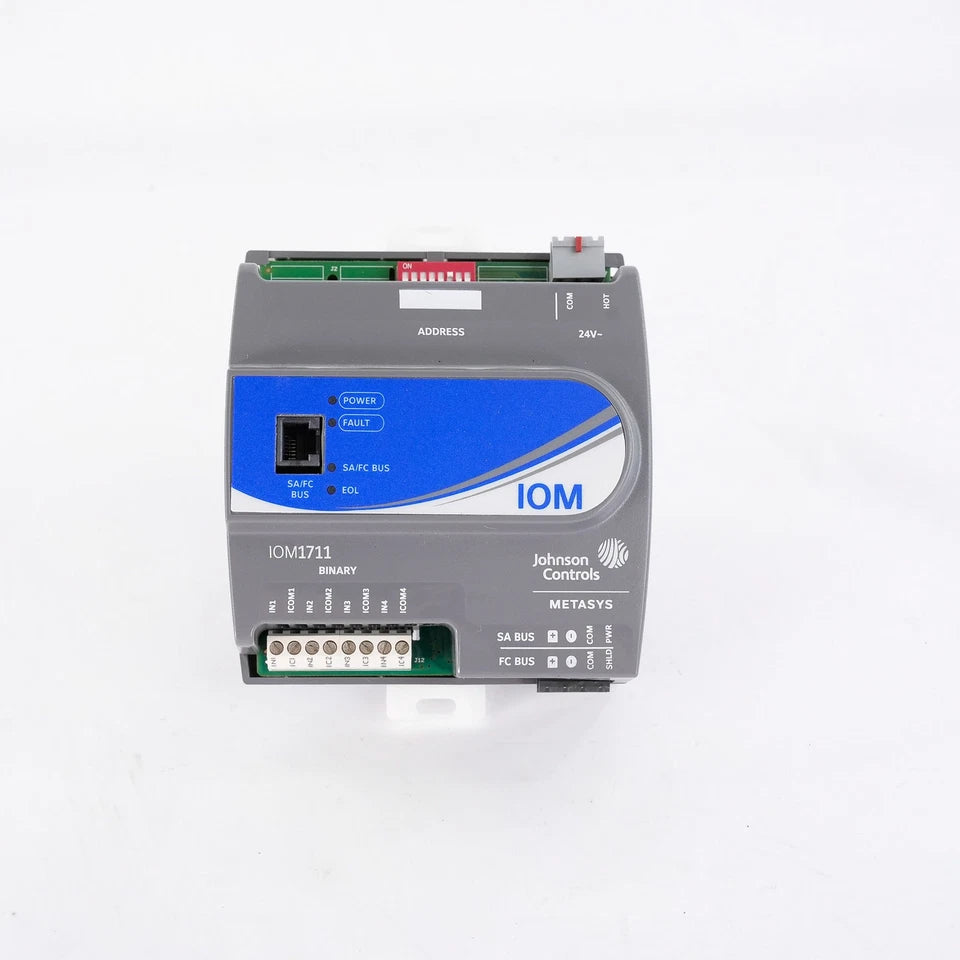

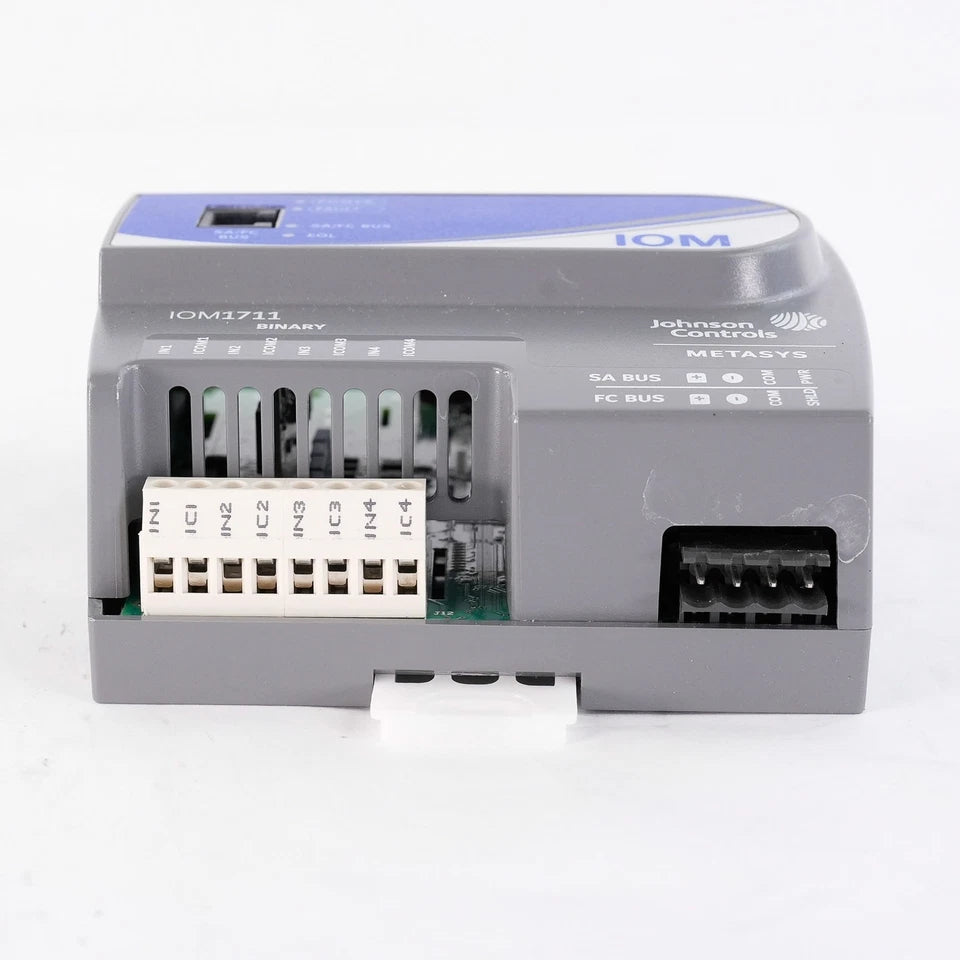

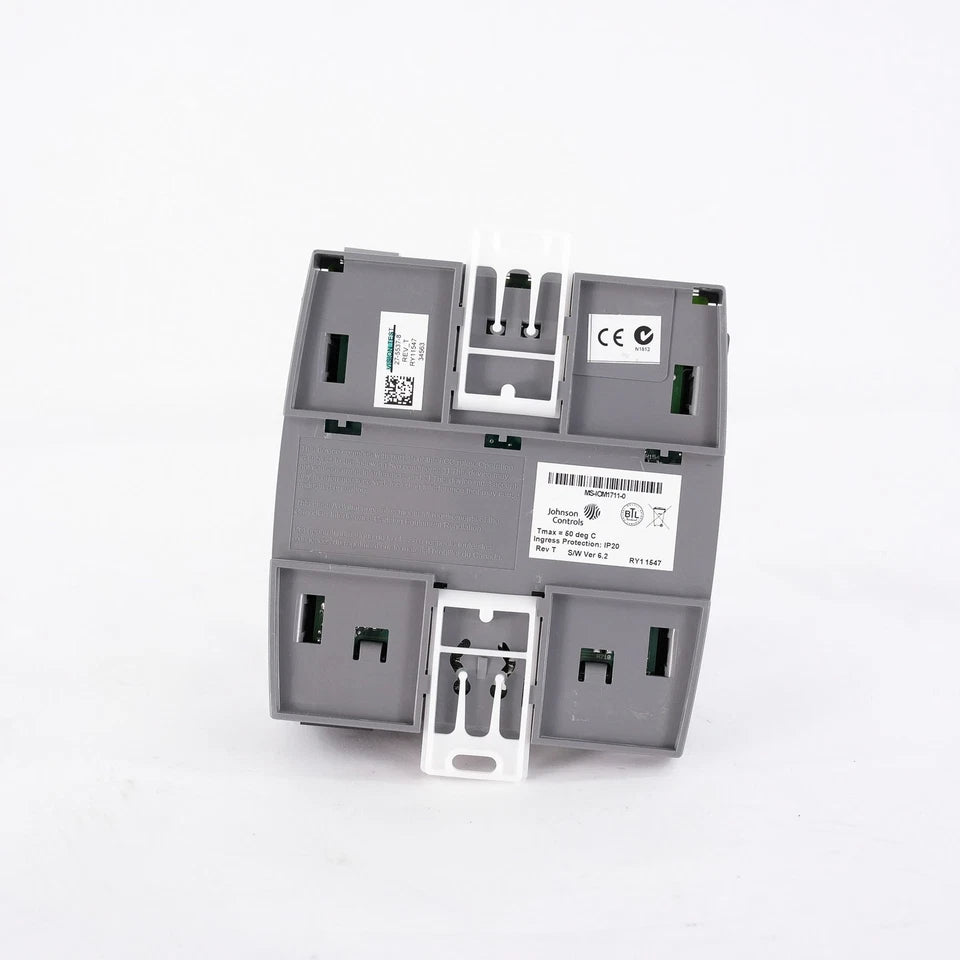

Johnson Controls MS-IOM1711-0 IOM Series Four-Point Input Output Module for Metasys Building Automation
- Regular price
- $262.00
- Sale price
- $262.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-IOM1711-0
Description
The Johnson Controls MS-IOM1711-0 is a four-point input/output expansion module designed to extend the monitoring capabilities of Metasys building automation systems. It provides four binary inputs for connecting field devices and integrates with BACnet MS/TP networks through the FC Bus and SA Bus. The MS-IOM1711-0 is intended for HVAC control applications where reliable field input expansion and seamless controller communication are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | PLCs/Machine Control |
| Part Number | MS-IOM1711-0 |
| Subcategory | PLC Module/Rack |
| Series | IOM Series |
| Product Type | Input/Output Module |
| Input Capacity | 4 Binary Inputs |
| Input Resolution | 16-Bit |
| Supply Voltage | 24 VAC Nominal (20–30 VAC) |
| Power Consumption | 14 VA Maximum |
| Communication Protocol | BACnet MS/TP |
| Communication Interface | FC Bus and SA Bus (RS-485) |
| Flash Memory | 512 KB |
| RAM | 128 KB |
| Electrical Termination | Fixed Screw Terminal Blocks |
| Mounting | 35 mm DIN Rail or Panel Mount |
| Protection Rating | IP20 |
| Weight | 0.29 kg |
Information About MS-IOM1711-0
The MS-IOM1711-0 is part of the Johnson Controls IOM Series used within the Metasys Field Equipment Controller family for expanding controller input capacity. It is designed to operate alongside Network Automation Engines, Field Equipment Controllers, Advanced Application Field Equipment Controllers, and VAV Modular Assembly controllers in commercial building automation systems. The module communicates over BACnet MS/TP using FC Bus and SA Bus connections while utilizing a 32-bit Renesas microcontroller with 512 KB Flash memory and 128 KB RAM for dependable operation. Its compact DIN rail or panel-mount design makes it suitable for HVAC equipment, air handling units, central plants, and other building control applications requiring additional binary input points.
Key Features:
- Four Binary Inputs: Supports four dry-contact or pulse counter input points for field device monitoring.
- Metasys System Integration: Designed for seamless operation with Johnson Controls Metasys controllers.
- BACnet MS/TP Communication: Connects through FC Bus and SA Bus using RS-485 communication.
- 24 VAC Power Input: Operates from a nominal 24 VAC Class 2 power source.
- High-Resolution Processing: Utilizes 16-bit input processing with a 32-bit Renesas microcontroller.
- Integrated Memory: Includes 512 KB Flash memory and 128 KB RAM for firmware and application storage.
- Flexible Mounting: Supports DIN rail or panel mounting for convenient installation.
- Screw Terminal Connections: Uses fixed screw terminal blocks for secure field wiring.
The MS-IOM1711-0 delivers the reliability and precision required for expanding field input capacity in commercial building automation and HVAC control systems.
