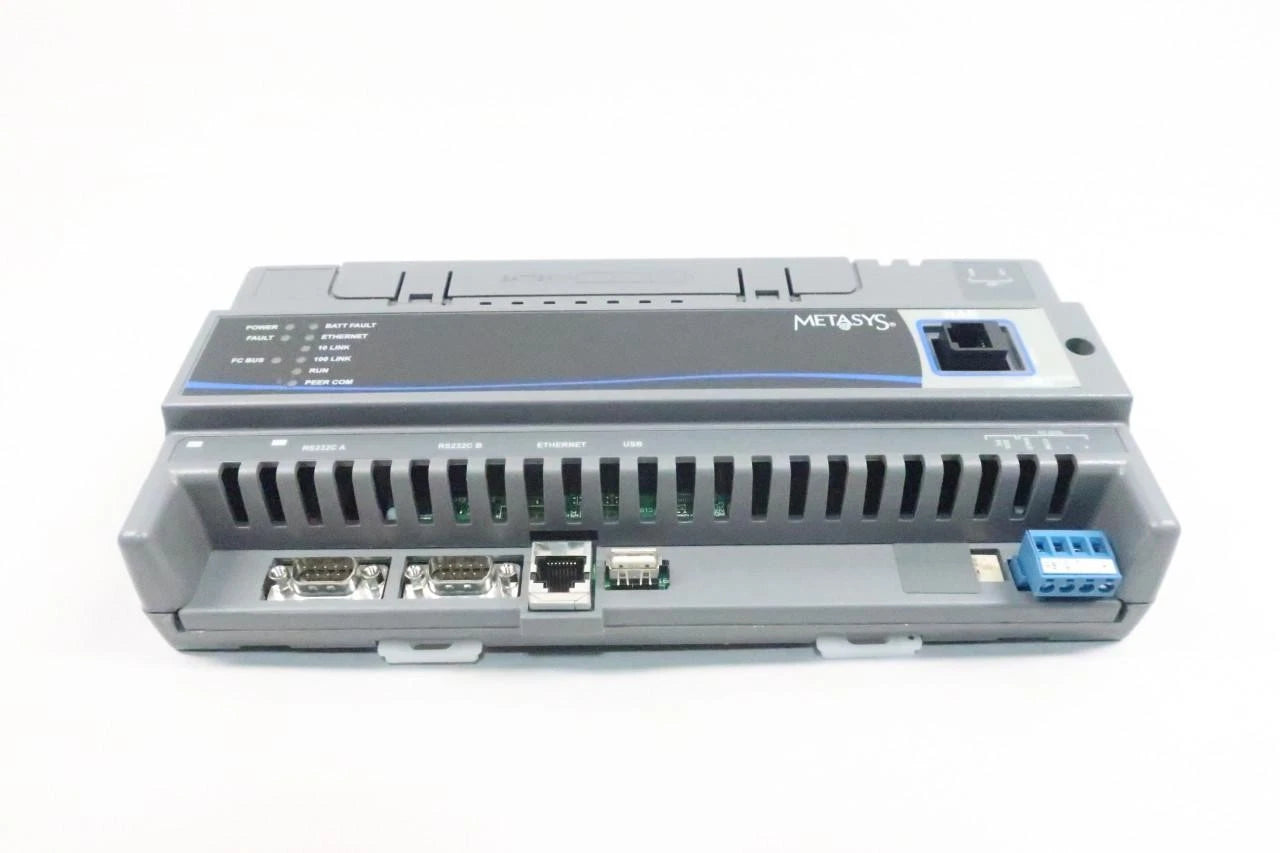

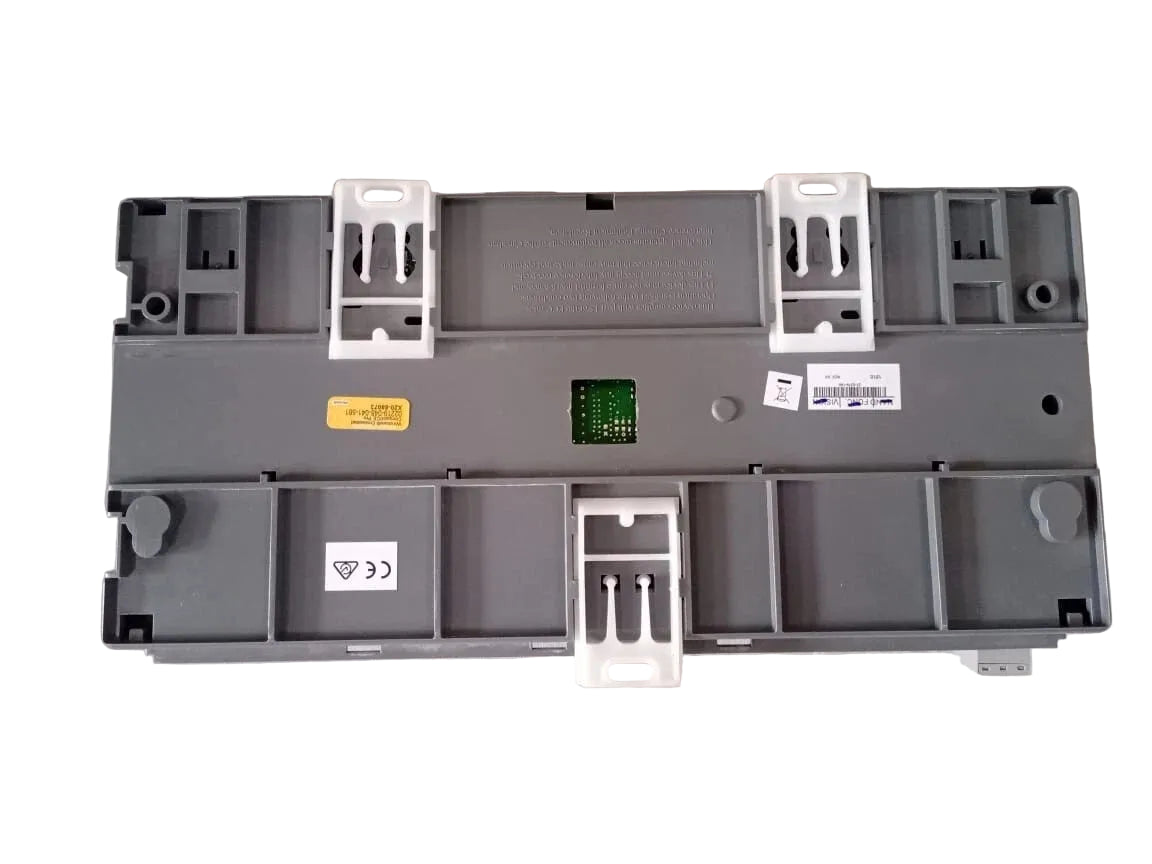

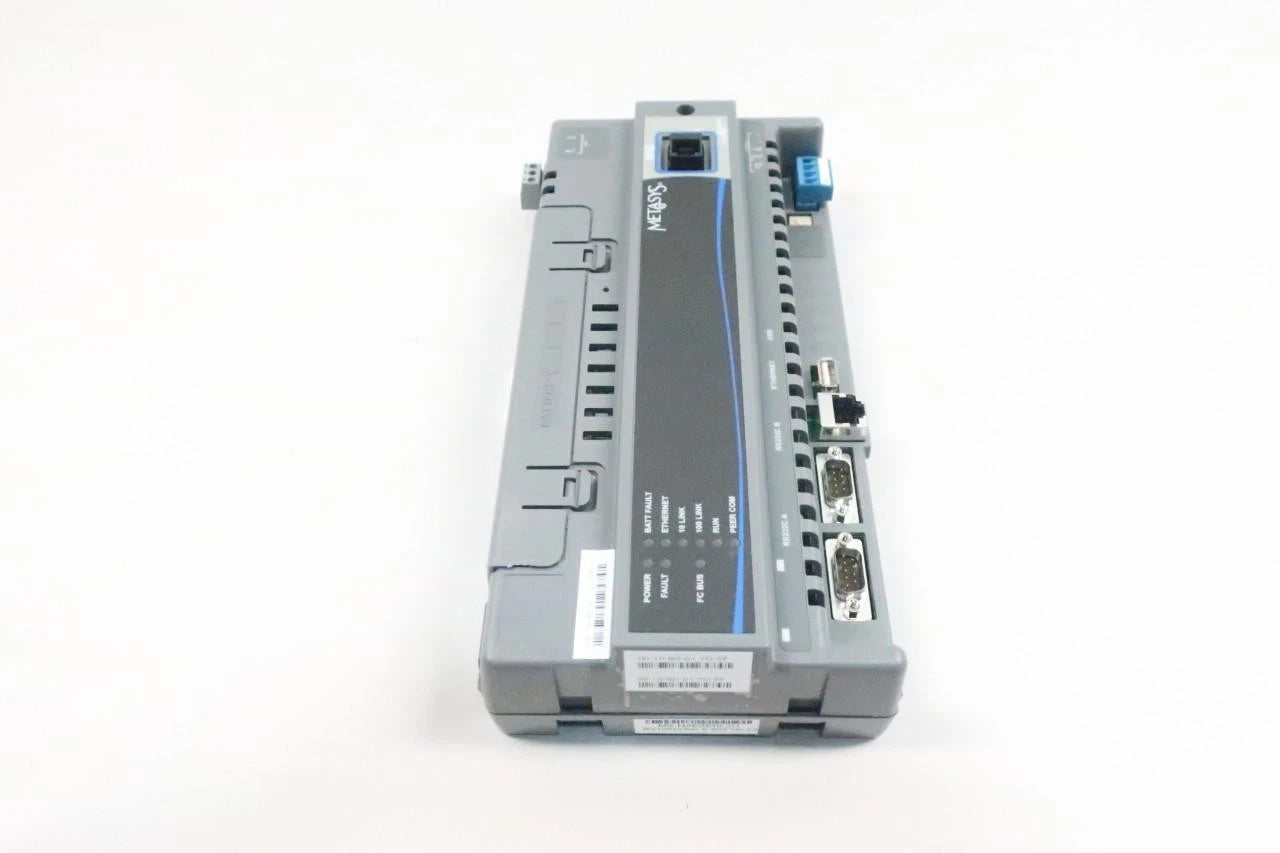

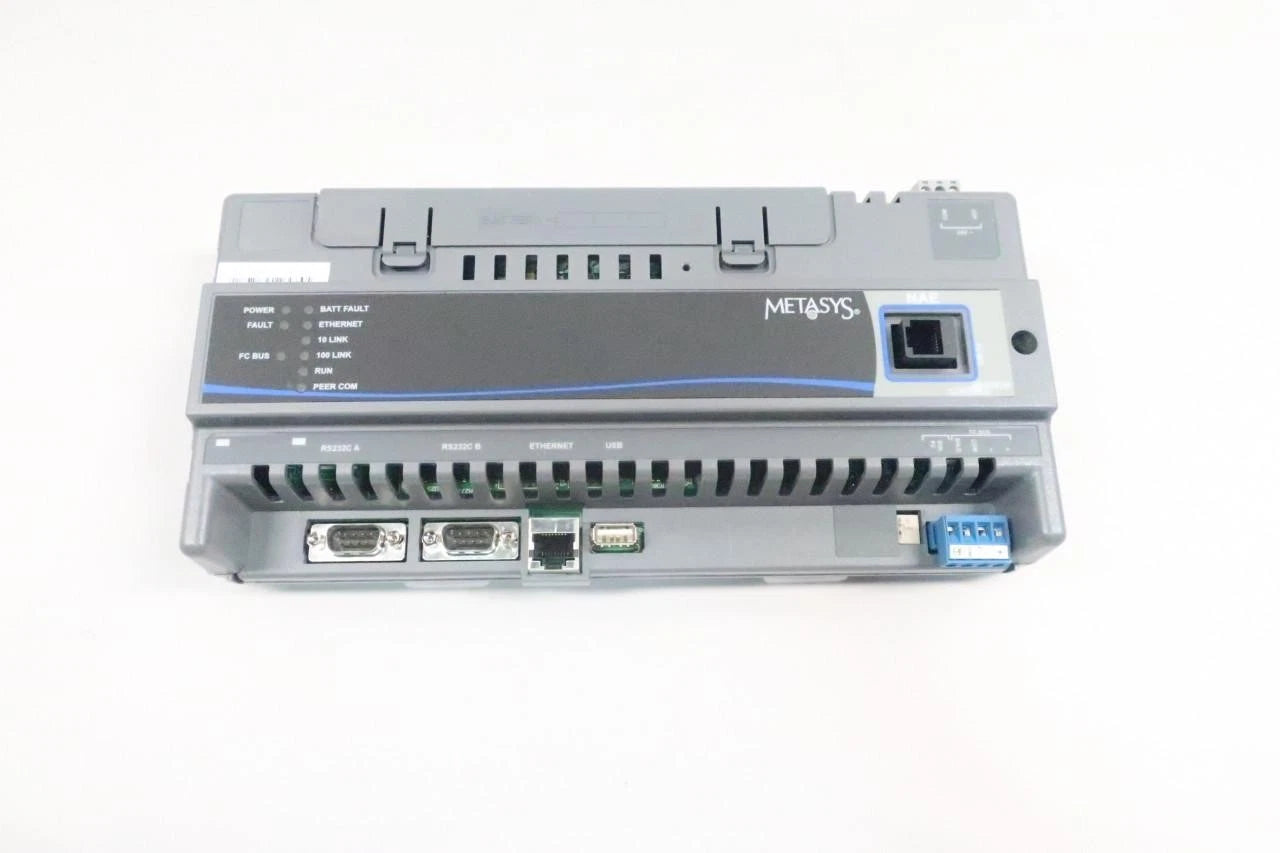

Johnson Controls MS-NAE3510-2 Metasys Network Automation Engine Building Controller
- Regular price
- $7,999.00
- Sale price
- $7,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NAE3510-2
Description
The Johnson Controls MS-NAE3510-2 is a Network Automation Engine designed for the Metasys® Building Automation System to provide centralized supervision, integration, and control of HVAC equipment and field controllers. It serves as a network management platform that communicates with BACnet MS/TP and N2 devices while coordinating alarms, scheduling, trending, and system-wide data exchange. The engine is intended for commercial and industrial building automation applications requiring reliable supervisory control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | MS-NAE3510-2 |
| Subcategory | HVAC Control System Board |
| Product Type | Network Automation Engine |
| Series | Metasys NAE35 |
| Maximum Objects | 2,500 |
| Communication Trunk | 1 × BACnet MS/TP or N2 (RS-485) |
| Supported Field Devices | Up to 50 devices on one trunk |
| Processor | 192 MHz Renesas SH4 7760 RISC |
| Ethernet Ports | 1 × 10/100 Base-T RJ-45 |
| RS-232-C Ports | 2 |
| USB Serial Ports | 1 |
| Power Supply | 24 VAC, 50/60 Hz |
| Memory | 128 MB Flash, 128 MB SDRAM |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 2.01 lbs |
Information About MS-NAE3510-2
The MS-NAE3510-2 is a supervisory controller in the Johnson Controls Metasys NAE35 Series, designed to integrate field controllers into a unified building automation network. It supports up to 2,500 objects and one BACnet MS/TP or N2 communication trunk with support for up to 50 connected field devices, making it suitable for medium-sized facilities. The controller incorporates a 192 MHz Renesas SH4 7760 RISC processor, Ethernet networking, dual RS-232-C serial ports, and a USB serial interface for flexible communication and system integration. Installed as the supervisory engine within a Metasys architecture, it manages scheduling, alarm handling, historical data collection, and network coordination across HVAC control systems.
Key Features:
- Supervisory Building Controller: Provides centralized management for Metasys building automation systems.
- Supports 2,500 Objects: Handles monitoring and control of up to 2,500 network objects.
- BACnet MS/TP and N2 Support: Communicates with one RS-485 trunk supporting BACnet MS/TP or N2 devices.
- High-Performance Processor: Equipped with a 192 MHz Renesas SH4 7760 RISC processor for reliable operation.
- Multiple Communication Ports: Includes two RS-232-C ports, one USB serial port, and one Ethernet interface.
- Integrated Network Management: Performs scheduling, alarm management, trending, and supervisory control functions.
- Commercial HVAC Integration: Designed for office buildings, healthcare facilities, schools, and industrial automation systems.
- Metasys Compatibility: Integrates seamlessly with Johnson Controls Metasys controllers and software infrastructure.
The MS-NAE3510-2 delivers the reliability and precision required for centralized HVAC building automation supervision and network management.
