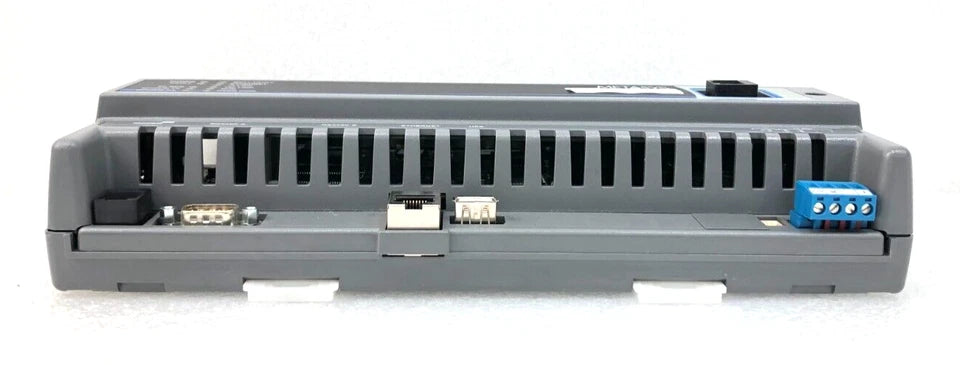

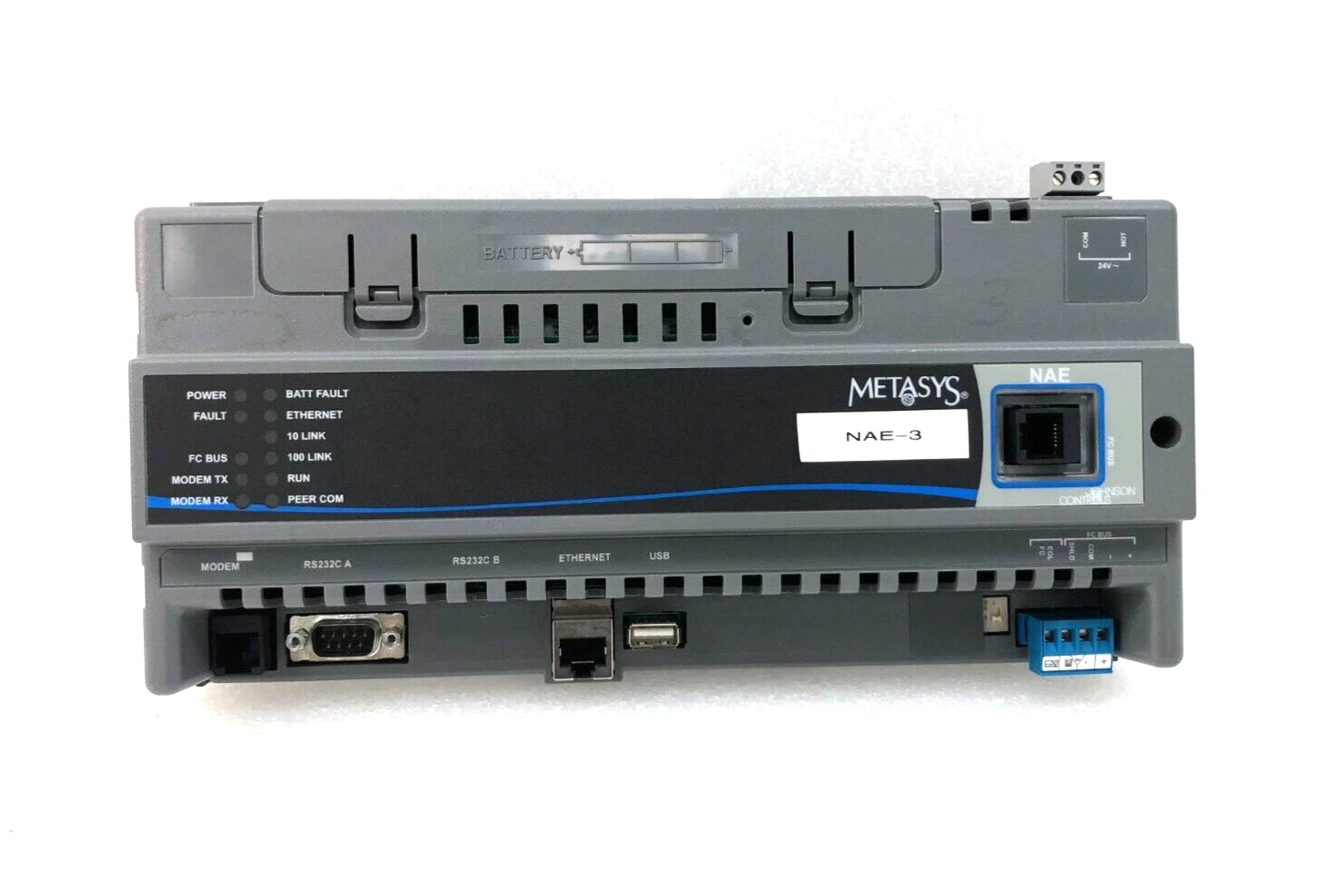

Johnson Controls MS-NAE3511-2 Network Automation Engine for Metasys Building Management
- Regular price
- $4,077.00
- Sale price
- $4,077.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NAE3511-2
Description
The Johnson Controls MS-NAE3511-2 is a Network Automation Engine designed to provide centralized supervision and control for Metasys building automation systems. It manages HVAC equipment, field controllers, alarms, scheduling, and historical data while supporting up to 50 devices on a single N2 or BACnet MS/TP trunk. Operating from a dedicated 24 VAC Class 2 power supply, the MS-NAE3511-2 integrates Ethernet networking and an internal modem for flexible building management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | MS-NAE3511-2 |
| Subcategory | HVAC Control System Board |
| Product Type | Network Automation Engine |
| Series | NAE35 Series |
| Supply Voltage | 24 VAC Class 2 |
| Power Consumption | 25 VA Maximum |
| Communication Trunk | 1 N2 Bus or BACnet MS/TP (RS-485) |
| Maximum Supported Devices | 50 Devices |
| Ethernet Port | 1 × 10/100 Mbps RJ-45 |
| Serial Ports | 1 RS-232-C, 1 USB Serial |
| Internal Modem | Included |
| Memory | 128 MB Flash, 128 MB SDRAM |
| Housing Material | Plastic |
| Protection Rating | IP20 |
| Mounting | DIN Rail or Panel Mount |
| Data Protection | Rechargeable NiMH Backup Battery |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 0.72 kg |
Information About MS-NAE3511-2
The MS-NAE3511-2 is part of the Johnson Controls NAE35 Series of Network Automation Engines developed for commercial building automation applications. It serves as a supervisory controller that coordinates communication between field controllers and the Metasys management platform while providing alarm processing, scheduling, trend logging, and system monitoring. The engine supports one N2 Bus or BACnet MS/TP RS-485 trunk with a maximum capacity of 50 field devices and includes an internal modem for remote connectivity on supported software versions. Its compact IP20-rated plastic enclosure, DIN rail or panel mounting options, and embedded Ethernet interface make it suitable for offices, schools, healthcare facilities, and industrial buildings.
Key Features:
- Supervisory Network Engine: Provides centralized monitoring and management of Metasys building automation systems.
- Single Field Bus Support: Supports one N2 Bus or BACnet MS/TP RS-485 trunk.
- Internal Modem: Includes an integrated modem for remote communication on supported system releases.
- Ethernet Connectivity: Features an integrated 10/100 Mbps Ethernet port for network communication.
- High Device Capacity: Supports up to 50 field devices on a single communication trunk.
- Embedded Data Protection: Includes a rechargeable battery to preserve critical system data during power interruptions.
- DIN Rail or Panel Mounting: Offers flexible installation within commercial control panels.
- Industrial Housing: Constructed with an IP20-rated plastic enclosure for indoor automation environments.
The MS-NAE3511-2 delivers the reliability and precision required for centralized HVAC supervision and commercial building automation management.
