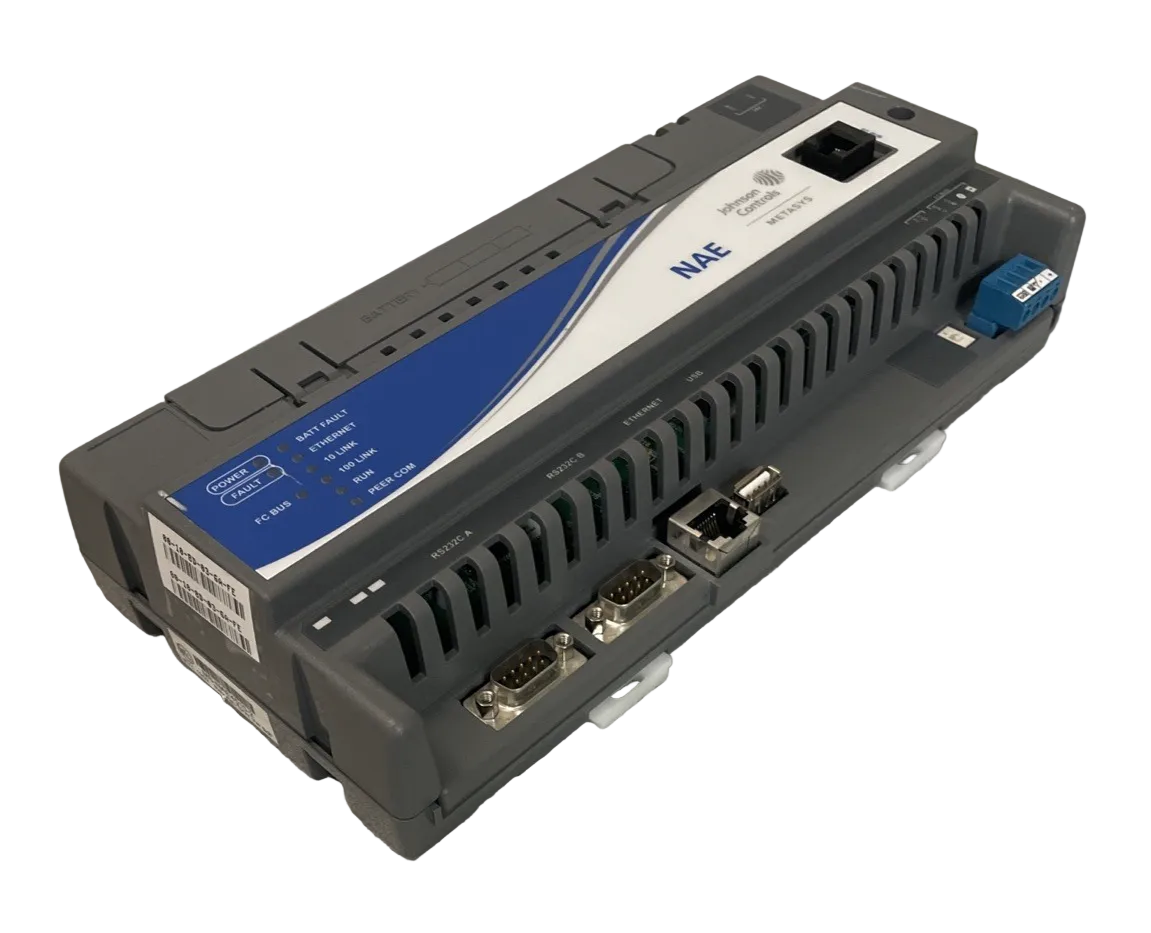

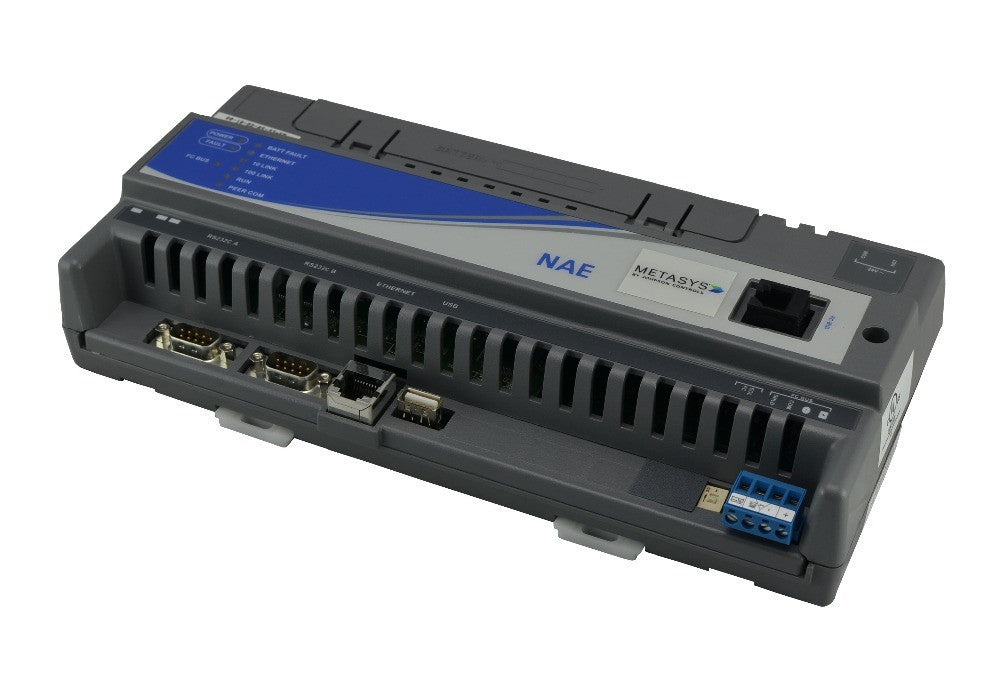

Johnson Controls MS-NAE4510-2 Metasys Network Automation Engine Building Controller
- Regular price
- $6,199.00
- Sale price
- $6,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NAE4510-2
Description
The Johnson Controls MS-NAE4510-2 is a Network Automation Engine designed for the Metasys® Building Automation System, providing centralized supervision and management of HVAC equipment, field controllers, and building networks. It integrates BACnet MS/TP and N2 field devices while delivering scheduling, alarm management, data trending, and system-wide coordination. The engine is intended for medium to large commercial building automation applications requiring reliable supervisory control and network integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | Computer |
| Part Number | MS-NAE4510-2 |
| Subcategory | Networking Router |
| Product Type | Network Automation Engine |
| Series | Metasys NAE45 |
| Power Supply | 24 VAC, 50/60 Hz |
| Maximum Devices per Trunk | 100 |
| Supported Trunk | BACnet MS/TP or N2 (RS-485) |
| Processor | 192 MHz Renesas SH4 7760 RISC |
| Flash Memory | 128 MB |
| Ethernet Ports | 1 × 10/100 Base-T RJ-45 |
| RS-232-C Serial Ports | 2 |
| USB Ports | 1 |
| Mounting | DIN Rail or Panel Mount |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 1.57 lbs |
Information About MS-NAE4510-2
The MS-NAE4510-2 is a member of the Johnson Controls Metasys NAE45 Series, developed as a supervisory controller for advanced building automation systems. It supports one BACnet MS/TP or N2 RS-485 trunk with up to 100 field devices while also supporting selected third-party integrations through additional communication interfaces in supported software releases. The controller features a 192 MHz Renesas SH4 7760 RISC processor, 128 MB Flash memory, Ethernet networking, dual RS-232-C serial ports, and a USB serial interface for flexible system connectivity. Installed as the supervisory engine within a Metasys architecture, it coordinates HVAC operation, alarm processing, historical data collection, scheduling, and enterprise-level building management.
Key Features:
- Metasys Supervisory Engine: Centralizes management of HVAC and building automation systems.
- Supports 100 Field Devices: Supervises up to 100 BACnet MS/TP or N2 devices on a single RS-485 trunk.
- High-Speed Processor: Utilizes a 192 MHz Renesas SH4 7760 RISC processor for dependable system performance.
- Multiple Communication Interfaces: Includes two RS-232-C ports, one USB serial port, and one Ethernet port.
- 128 MB Flash Memory: Provides reliable storage for operating system, configuration, and application data.
- Building Automation Functions: Supports scheduling, alarm handling, trending, reporting, and supervisory control.
- BACnet and N2 Compatibility: Integrates seamlessly with Johnson Controls field controllers and supported third-party systems.
- Commercial Building Integration: Designed for offices, hospitals, schools, campuses, and industrial facilities.
The MS-NAE4510-2 delivers the reliability and precision required for centralized building automation supervision and HVAC network management.
