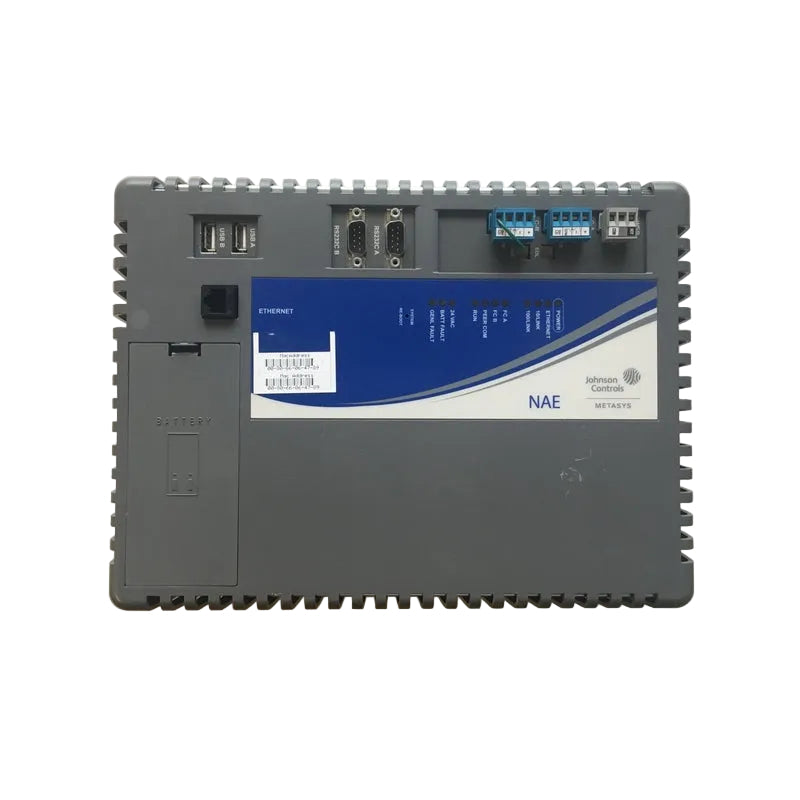

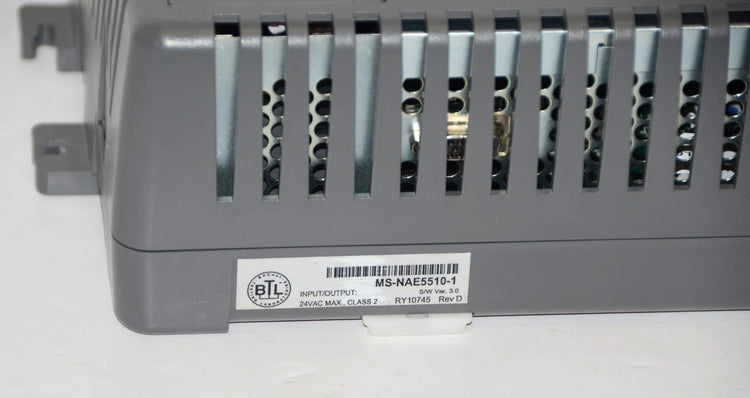

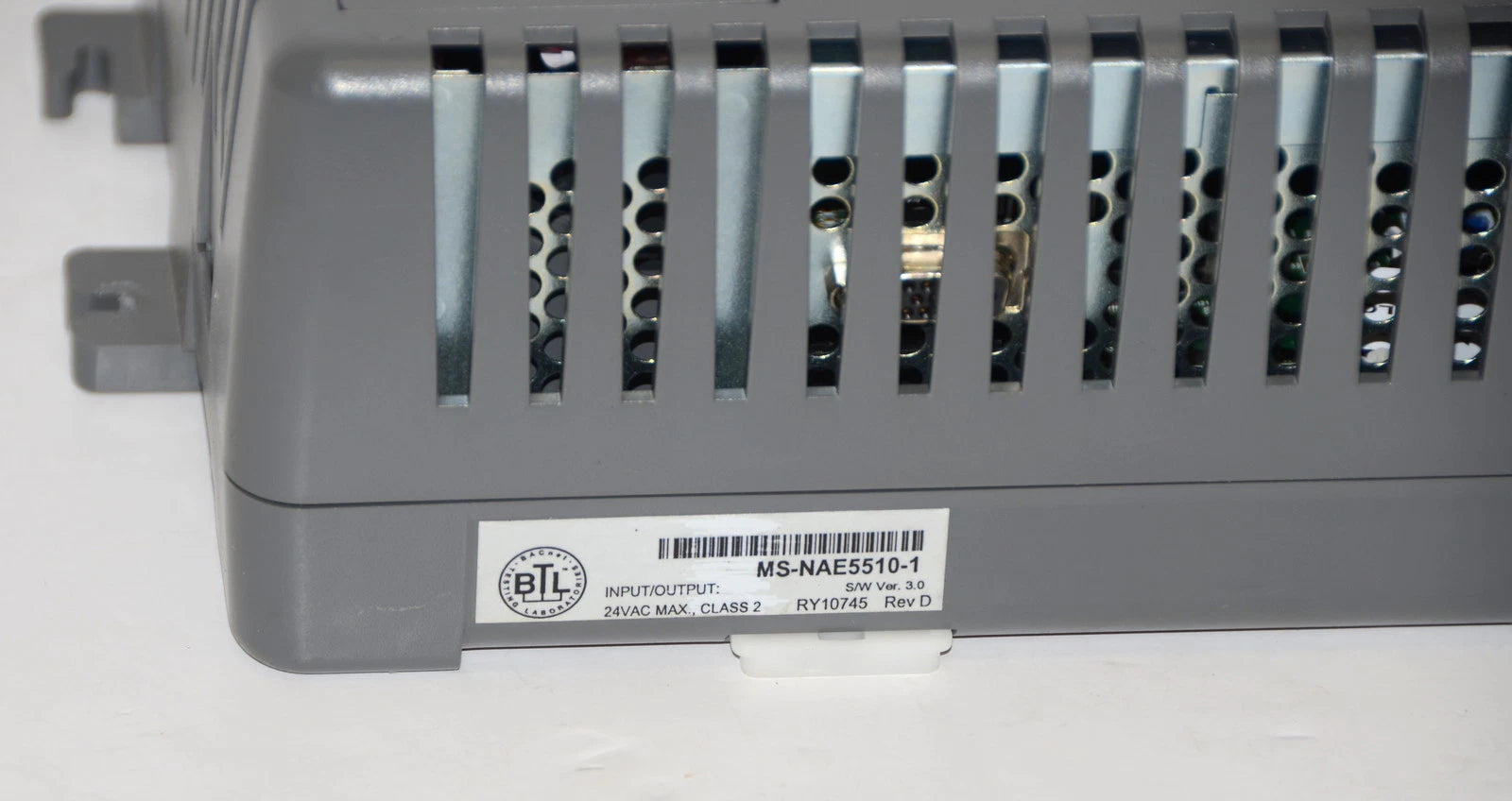

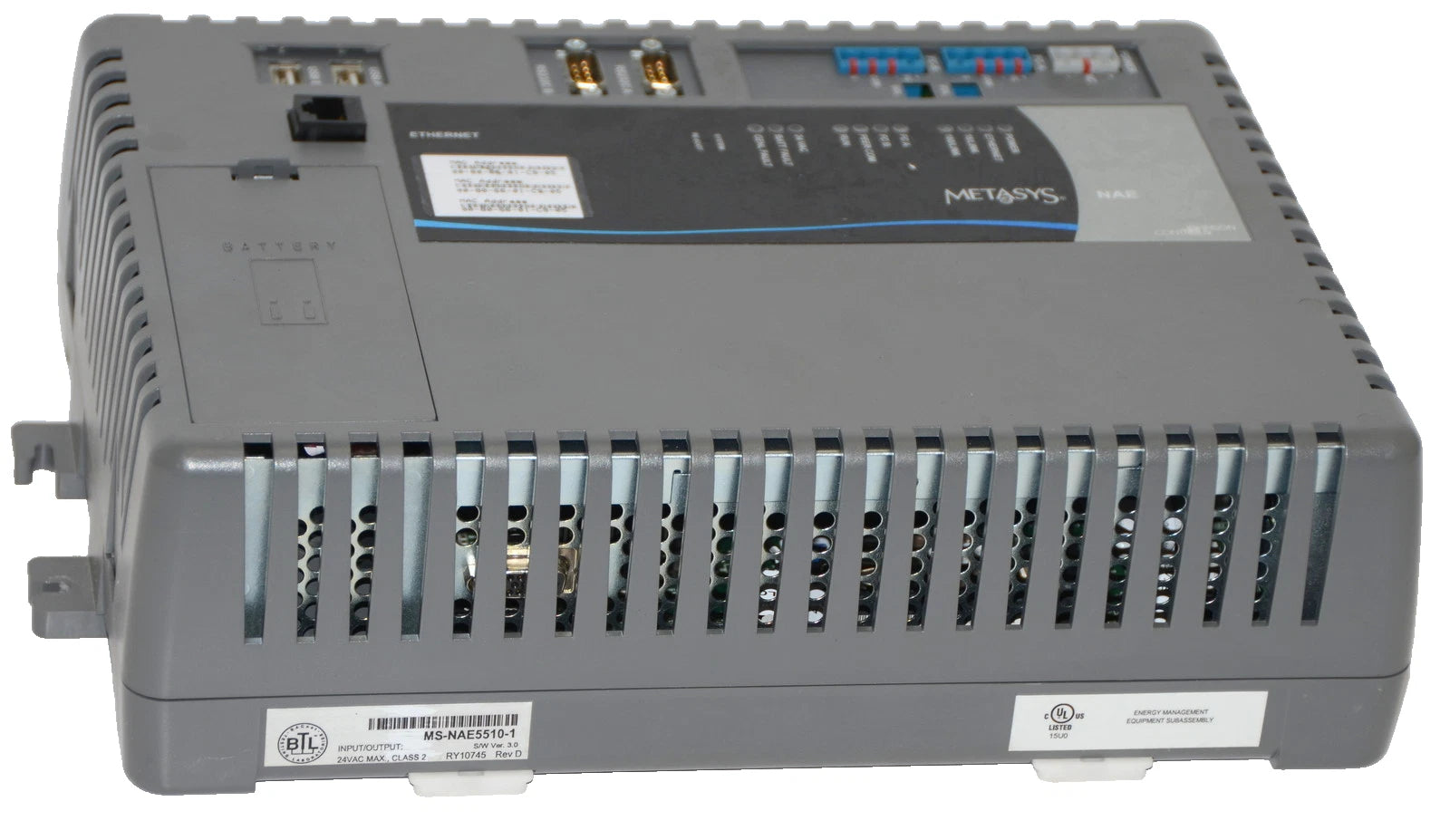

Johnson Controls MS-NAE5510-1 Network Automation Engine for Metasys Building Management Systems
- Regular price
- $4,557.00
- Sale price
- $4,557.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NAE5510-1
Description
The Johnson Controls MS-NAE5510-1 is a Network Automation Engine designed to serve as the supervisory controller for Metasys building automation systems. It provides centralized management of HVAC equipment, field controllers, alarms, scheduling, and data collection while supporting BACnet MS/TP and N2 networks. Operating from a 24 VAC power supply, the MS-NAE5510-1 offers Ethernet and serial connectivity for integrating multiple building automation devices into a single control platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | MS-NAE5510-1 |
| Subcategory | HVAC Control System Board |
| Product Type | Network Automation Engine |
| Series | NAE55 Series |
| Supply Voltage | 24 VAC Class 2 |
| Power Consumption | 50 VA Maximum |
| Ethernet Port | 1 × 10/100/1000 Mbps RJ-45 |
| RS-232-C Ports | 2 |
| USB Serial Ports | 2 |
| RS-485 Ports | 2 Optically Isolated |
| Supported Networks | 2 N2 Trunks, 2 BACnet MS/TP Trunks, or 1 of Each |
| Maximum Devices per Trunk | 100 |
| Data Protection Battery | Rechargeable Battery Included |
| Processor | 1.6 GHz Intel Atom Processor |
| Memory | 4 GB Flash, 1 GB SDRAM |
| Mounting | Panel Mount or Dual 35 mm DIN Rail |
| Weight | 2.30 kg |
Information About MS-NAE5510-1
The MS-NAE5510-1 is part of the Johnson Controls NAE55 Series of Network Automation Engines developed for enterprise-level building automation and energy management applications. It functions as a web-enabled supervisory controller that manages field devices, archives operational data, coordinates scheduling, and provides alarm management through the Metasys platform. The controller supports two BACnet MS/TP trunks, two N2 trunks, or a combination of one BACnet MS/TP trunk and one N2 trunk, allowing flexible integration with a wide range of Johnson Controls field equipment. Its high-performance processor, integrated Ethernet connectivity, multiple serial communication ports, and onboard data protection battery make it suitable for commercial buildings, hospitals, educational facilities, and industrial campuses.
Key Features:
- Supervisory Network Controller: Provides centralized management for Metasys building automation systems.
- Dual Field Bus Support: Supports two N2 trunks, two BACnet MS/TP trunks, or one of each.
- Multiple Communication Ports: Includes Ethernet, RS-232-C, USB serial, and optically isolated RS-485 interfaces.
- Integrated Web Server: Enables browser-based monitoring, configuration, and system management.
- Data Protection Battery: Preserves critical operational data during power interruptions.
- High Device Capacity: Supports up to 100 field devices on each communication trunk.
- 24 VAC Operation: Designed for standard Class 2 building automation power systems.
- Industrial Construction: Features a durable plastic enclosure with an internal metal shield for dependable operation.
The MS-NAE5510-1 delivers the reliability and precision required for centralized building automation, HVAC supervision, and facility management applications.
