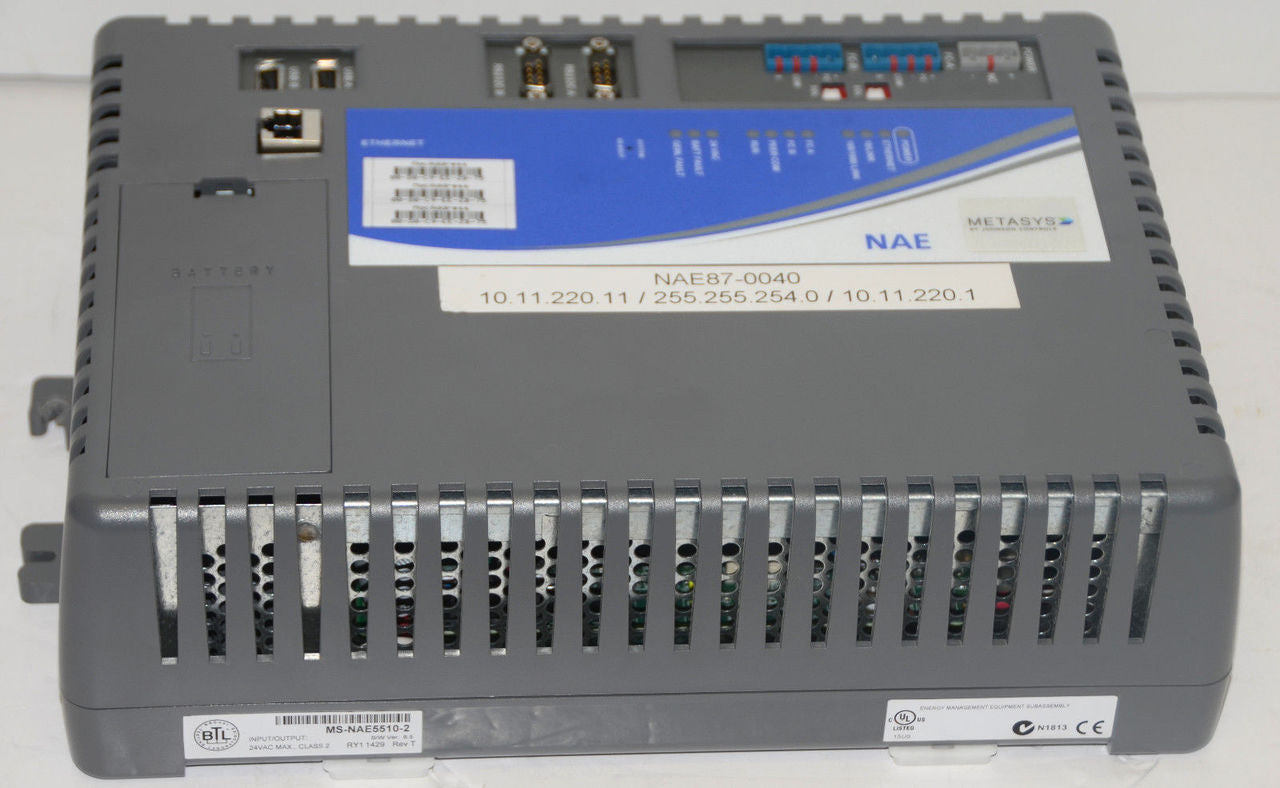

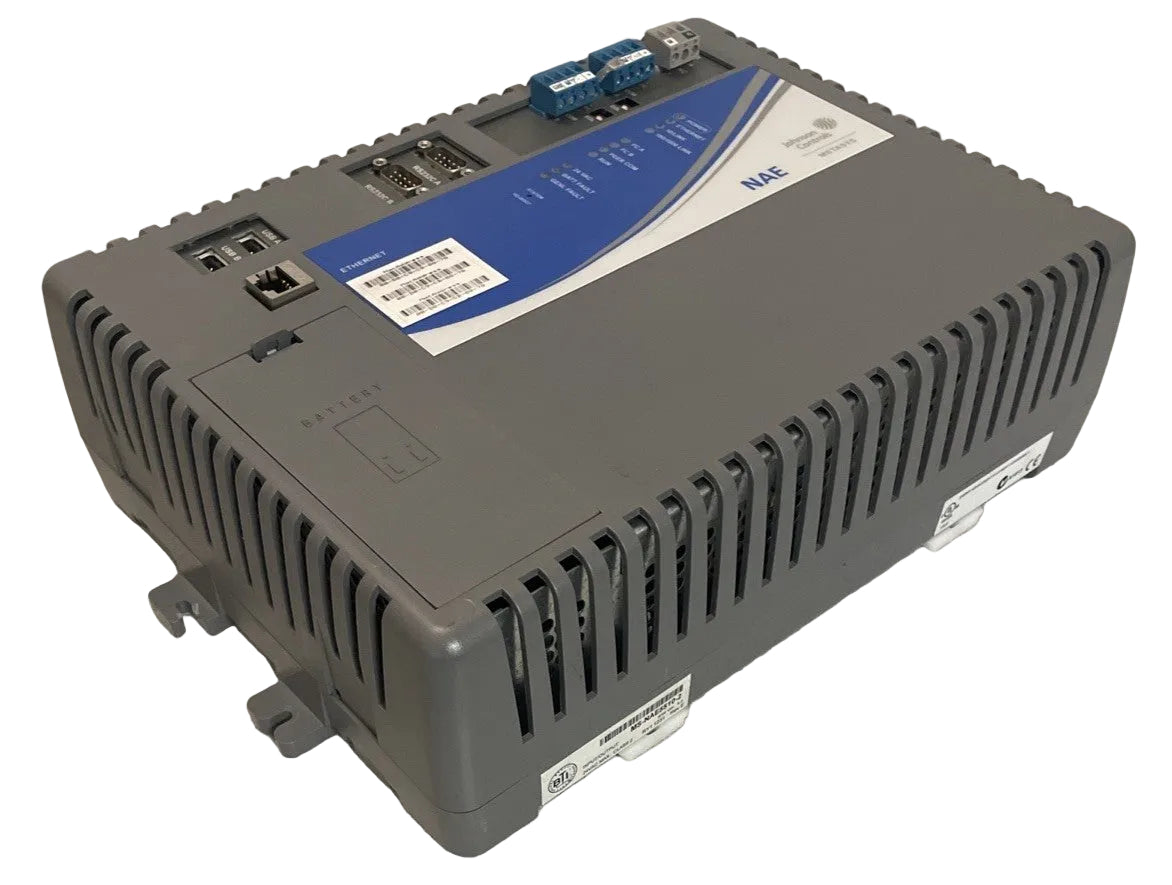

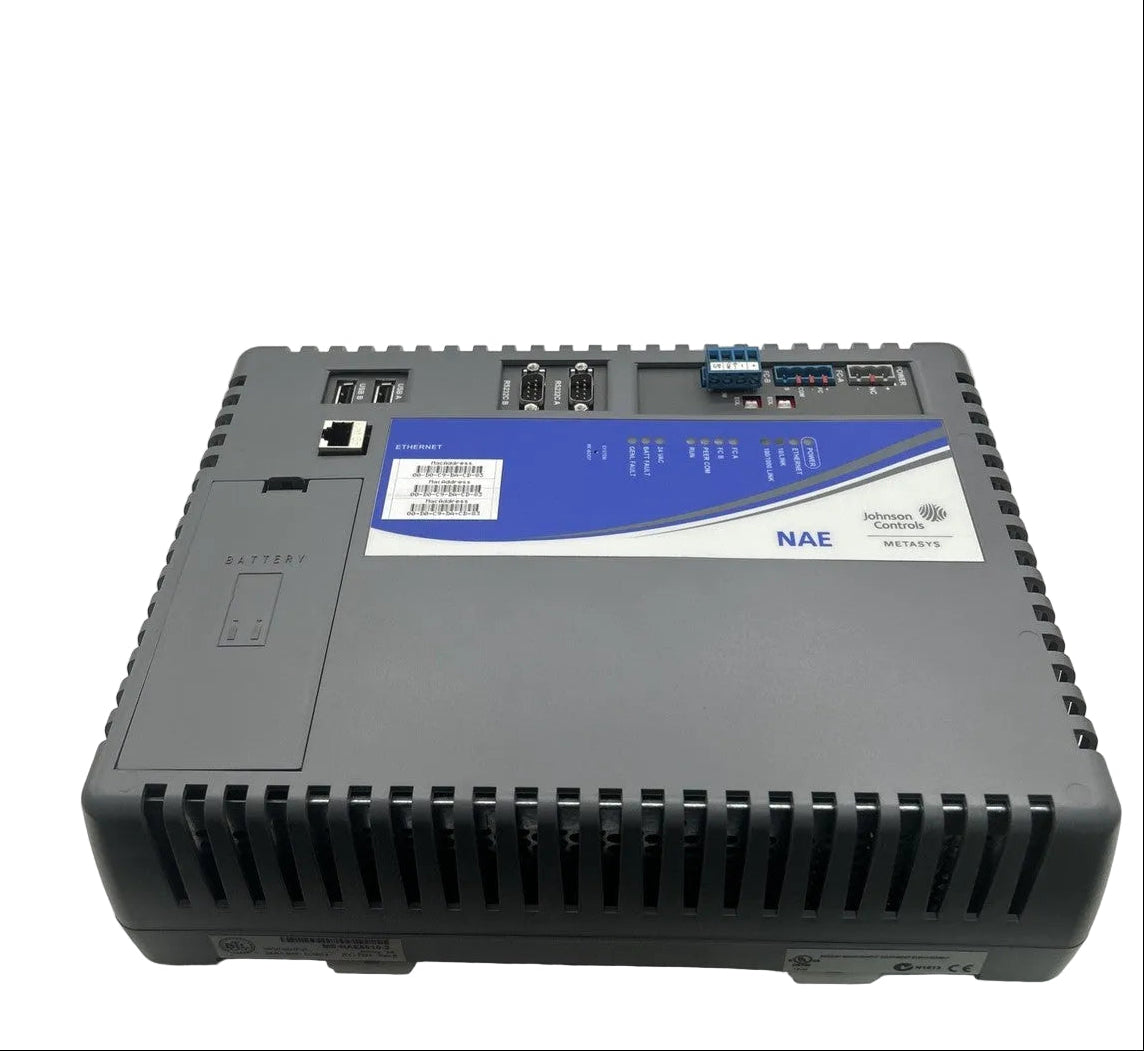

Johnson Controls MS-NAE5510-2 Metasys Network Automation Engine HVAC Supervisory Controller
- Regular price
- $9,199.00
- Sale price
- $9,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-NAE5510-2
Description
The Johnson Controls MS-NAE5510-2 is a Network Automation Engine developed for the Metasys® Building Automation System to provide centralized supervision, monitoring, and control of HVAC equipment and building automation networks. It functions as a supervisory controller that integrates BACnet MS/TP and N2 field devices while managing alarms, scheduling, trending, and network communications. Designed for large commercial facilities, it enables efficient coordination of building systems through a single automation platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls |
| Category | HVAC |
| Part Number | MS-NAE5510-2 |
| Subcategory | HVAC Control System Board |
| Product Type | Network Automation Engine |
| Series | Metasys NAE55 |
| Power Supply | 24 VAC, 50/60 Hz |
| Communication Protocols | BACnet MS/TP, N2 |
| RS-485 Trunks | 2 Configurable Trunks |
| Maximum Devices | 100 Devices per Trunk |
| Ethernet Port | 1 × RJ-45 10/100 Base-T |
| RS-232-C Serial Ports | 2 |
| USB Ports | 2 USB Serial Ports |
| Flash Memory | 128 MB |
| Embedded Features | Web-Based User Interface, Scheduling, Trending, Alarm Management |
| Manufacturer Status | Discontinued by Manufacturer |
| Weight | 7.00 lbs |
Information About MS-NAE5510-2
The MS-NAE5510-2 is part of the Johnson Controls Metasys NAE55 Series, a family of high-capacity Network Automation Engines used as supervisory controllers in enterprise building automation systems. It operates from a 24 VAC power supply and supports two RS-485 communication trunks that can be configured for BACnet MS/TP or N2 communication, allowing up to 100 field devices per trunk. The controller incorporates a high-performance embedded processor, Ethernet networking, serial communication interfaces, onboard data storage, and embedded web-based management tools for system administration. Installed as the Site Director or supervisory engine within a Metasys network, it coordinates field controllers, archives operational data, manages alarms, and provides centralized access to HVAC equipment throughout commercial buildings.
Key Features:
- High-Capacity Supervisory Engine: Centralizes management of large Metasys building automation systems.
- Dual BACnet MS/TP or N2 Trunks: Supports two RS-485 trunks configurable for BACnet MS/TP or N2 communication.
- Up to 100 Devices per Trunk: Provides connectivity for extensive field controller networks.
- Embedded Web Interface: Allows browser-based system monitoring, configuration, diagnostics, and control.
- Multiple Communication Ports: Includes Ethernet, RS-232-C serial ports, USB ports, and RS-485 interfaces for flexible integration.
- Advanced Data Management: Performs alarm processing, scheduling, historical trending, and event archiving.
- Enterprise Building Integration: Designed for office buildings, healthcare facilities, educational campuses, and industrial sites.
- Metasys Compatibility: Integrates seamlessly with Johnson Controls Metasys controllers and supervisory software.
The MS-NAE5510-2 delivers the reliability and precision required for centralized HVAC building automation supervision and enterprise network management.
